ZyXEL Communications ONU-6040BBF-22

www.zyxel.com

User’s Guide

ONU-6040BF-2x Series

GEPON Optical Network Unit

Version 1.00

Edition 1, 5/2009

2009 ZyXEL Communications Corporation

ENGLISH

Introduction

The ONU-6040BF-2x is an optical network unit (ONU)

that allows you to enjoy high-speed Internet access

over optical networks. The ONU-6040BF-2x comes with

one fiber, four 10/100 Mbps RJ-45 ports and one co-

axial CATV connector. No configuration is required. On

the ONU-6040BF-2x, all device configuration is done

remotely by the OLT (Optical Line Terminal). Once you

have connected the hardware, you are ready to enjoy

Internet access.

Two ONU-6040BF-2x models are discussed in this

guide: ONU-6040BF-21 (with a 10km transceiver) and

ONU-6040BF-22 (with a 20km transceiver).

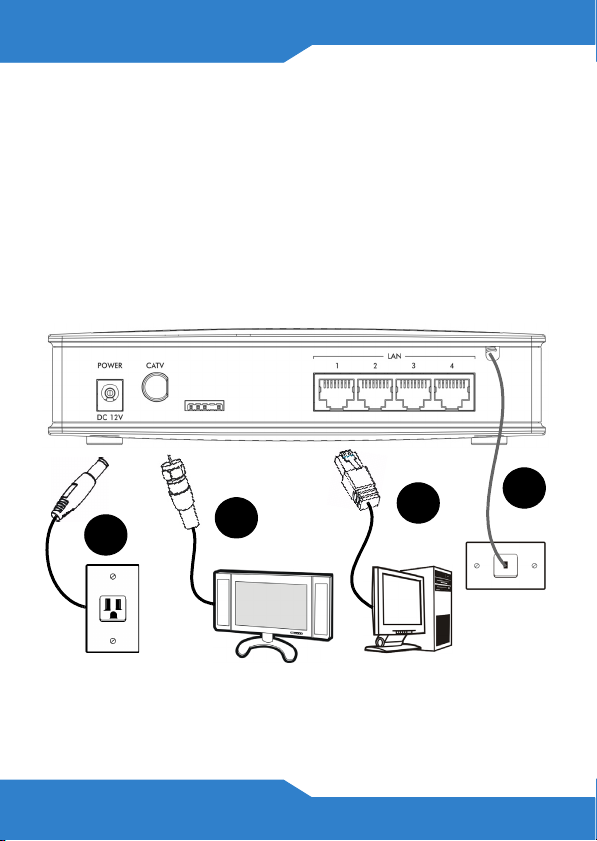

Hardware Connections

1. PON:Follow the steps below to connect an SC-type,

single-mode optical cable to the PON port for

Internet access.

Only qualified technicians should perform these actions!

Please skip this section if you are not a qualified

technician.

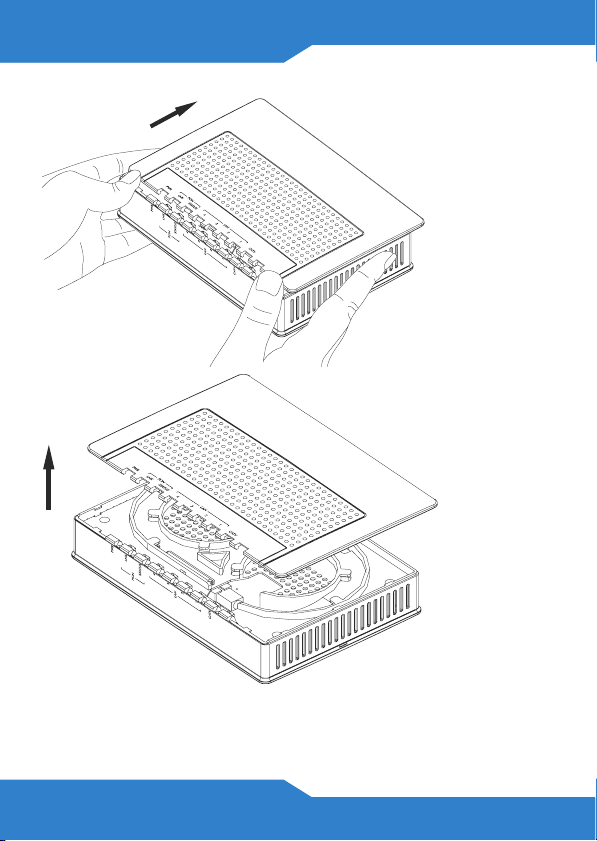

a. Hold the ONU-6040BF-2x upright, push the top

cover forward with the LEDs (lights) facing you,

then lift up the top cover to remove it.

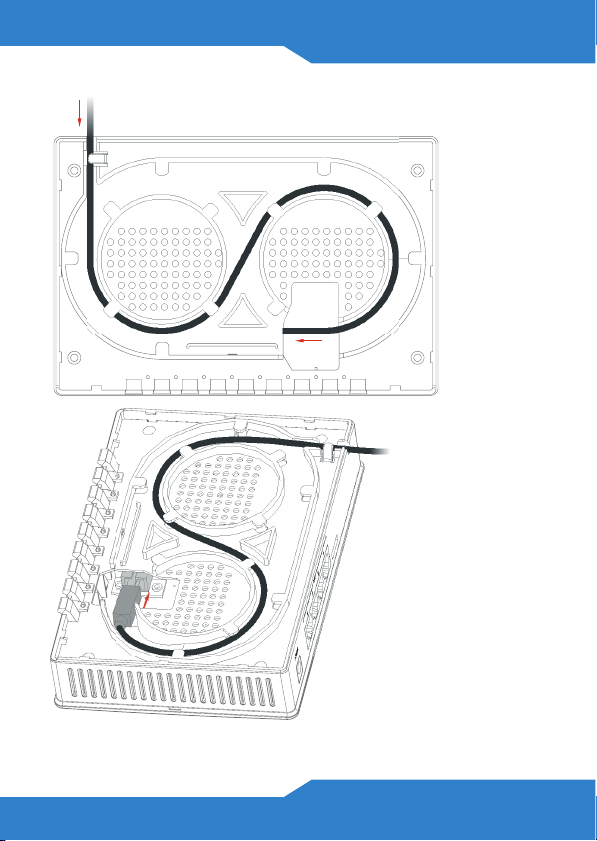

b. Wind the fiber-optic cable around the tray in the

ONU-6040BF-2x.

c. Connect the fiber-optic connector into the PON

port.

d. Put the top cover back.

To avoid possible eye injury, do NOT look into an

operating fiber-optic module’s connector.

2. LAN:Use the included Ethernet cable to connect the

LAN port to a computer.

3. CATV:Use a coaxial cable to connect the CATV port

to a television or set-top box with an F-connector.

 Overly tightened coaxial cable may affect

transmission quality and/or break the connector

pin.

4. POWER: Use the included power adaptor to connect

this power socket to an appropriate power source.

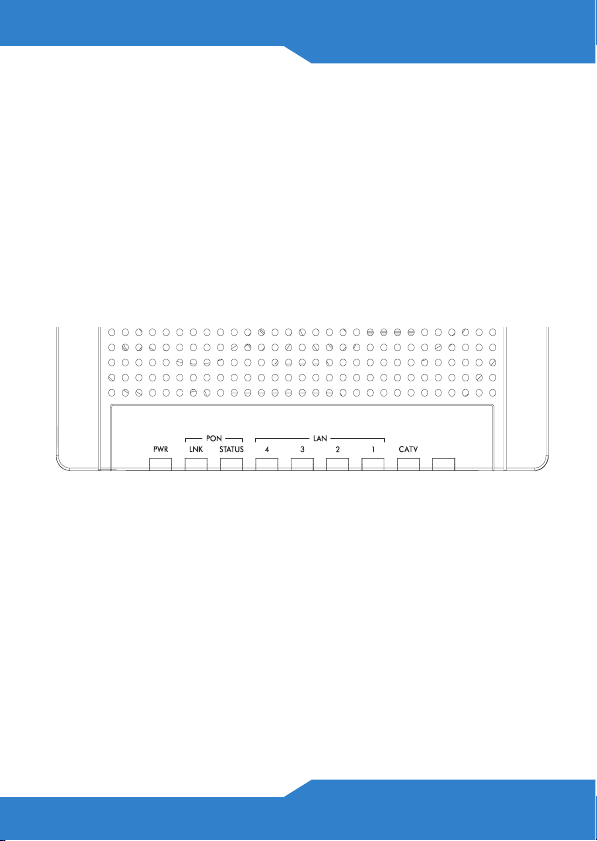

Check the LEDs (Lights)

•ThePWR LED turns steady on when you connect the

ONU-6040BF-2x to the power supply.

•ThePON LNK LED turns on when the fiber connection

is available.

•TheLAN LED turns on when the LAN port is properly

connected.

•TheCATV LED turns on when the CATV port is

properly connected and the ONU-6040BF-2x detects a

video signal.

The following table describes the LEDs in detail.

Label Color Status Description

PWR Green On The ONU-6040BF-2x is getting

proper input power voltage and is

turned on.

Red On The ONU-6040BF-2x is receiving

abnormal input power voltage.

Off The power is off or there is a

power failure.

PON

LNK

Green On Connection to the optical network

is up.

Off Connection to the optical network

is down.

Blinking The ONU-6040BF-2x is trying to

PON

STATUS

Red Off The ONU-6040BF-2x is receiving

good optical signals from the OLT

successfully and no error signals.

Blinking The ONU-6040BF-2x is receiving

error signals or no optical signals

from the OLT.

Test Your Internet Connection

After you have connected the hardware and turned on

the ONU-6040BF-2x, open a web browser on your

computer and go to any web site (for example,

www.zyxel.com) to test your Internet connection.

LAN 1 ~

Yellow On The LAN port is connected to an

Ethernet device at 100 Mbps.

Blinking The ONU-6040BF-2x is sending

or receiving data at 100 Mbps.

Green On The LAN port is connected to an

Ethernet device at 10 Mbps.

Blinking The ONU-6040BF-2x is sending

or receiving data at 10 Mbps.

Off No Ethernet device is connected

to the LAN port.

CATV Green On The ONU-6040BF-2x is receiving

video signals.

Off The ONU-6040BF-2x is not

receiving video signals.

Label Color Status Description

Hardware Installation

The ONU-6040BF-2x can be vertically placed on a

desktop with the included stand or mounted on a wall.

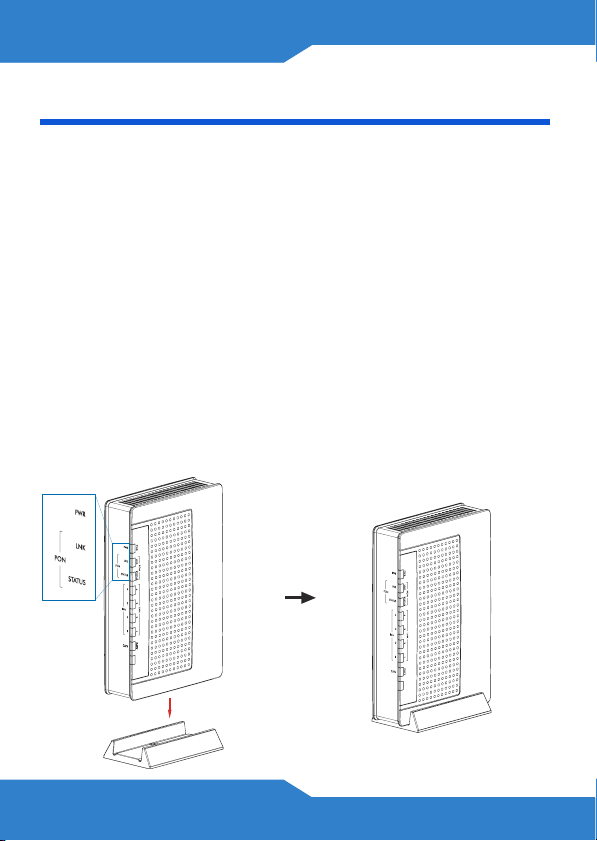

Standing Instructions

Place the right panel of the ONU-6040BF-2x (when

facing the LEDs) onto the included stand until the ONU-

6040BF-2x fits in the stand completely. Make sure the

label names of the LEDs are displayed correctly and

not upside-down. Place the ONU-6040BF-2x and the

stand on a flat, level surface that is strong enough to

support the weight of the ONU-6040BF-2x with

connection cables.
