ZyXEL Communications UNS2300 Manuale

Quick Start Guide

www.zyxel.com

UNS2300 / UNS2700

Unified Network Storage

Version 1.00

Edition 1, 06/2013

Hardware Installation Guide

UNS Series Hardware Installation Guide2

IMPORTANT!

READ CAREFULLY BEFORE USE.

KEEP THIS GUIDE FOR FUTURE REFERENCE.

This guide shows you how to use the rack mounting kit to install the UNS in a rack. Graphics in this

book may differ slightly from your product. Every effort has been made to ensure that the

information in this manual is accurate.

Related Documentation

•User’sGuide

This guide shows how to use the Web Configurator to configure the UNS.

• Web Configurator Online Help

Click the help icon in the web configurator for help in configuring screens and supplementary

information.

UNS Series Hardware Installation Guide 3

CHAPTER 1

Hardware Installation

1.1 Overview

•Mount the UNS in a Rack on page 3

•Insert a Hard Drive on page 6

•About the Power Modules on page 8

•Make Rear Panel Connections on page 9

•Turn on the UNS on page 10

•Observe the LEDs on page 10

•Accessing the UNS on page 14

•Configure the UNS Using the Web Configurator on page 16

1.2 Mount the UNS in a Rack

1Prepare the Installation Requirements

2Separate the Slide Rails

3Connect the Inner Rail to the UNS

4Connect the Outer Rail to the Rack

5Insert the UNS into the Rack

1.2.1 Prepare the Installation Requirements

• A rack with 2U space.

• Two sliding rails.

• 10 M6 screws for attaching both outer rails to the rack.

• The rack depth can be from 71.12 cm to 91.44 cm (28 to 36 inches).

Note: Failure to use the proper screws may damage the unit.

1.2.1.1 Precautions

• Make sure the rack will safely support the combined weight of all the equipment it contains. The

weight of the UNS with 12 hard drives installed is about 22.8 KG. The maximum load the rails can

hold is 33.56 Kg.

Chapter 1 Hardware Installation

UNS Series Hardware Installation Guide

• Make sure the position of the UNS does not make the rack unstable or top-heavy. Take all

necessary precautions to anchor the rack securely before installing the unit.

1.2.2 Separate the Slide Rails

A slide rail consists of an inner rail and an outer rail. Release the lock (1) and slide out out the inner

rail completely to separate the rails.

1.2.3 Connect the Inner Rail to the UNS

1Connect the inner rail to the UNS by latching it onto the screws on the UNS body.

2Repeat this procedure for the other inner rail on the other side of the UNS.

1.2.4 Connect the Outer Rail to the Rack

Find a space in the rack that is 2U high. The space between two triangles is 1U high.

1Adjust the length of the outer slide rail to the depth of the rack. The front of the outer rail can slide

out. This is the side that should be at the front of the rack.

Inner Rail

Outer Rail

Chapter 1 Hardware Installation

UNS Series Hardware Installation Guide 5

2Screw the outer rail onto the side of the rack using the M6 screws and nuts. Repeat for the other

side of the rack.

1.2.5 Insert the UNS into the Rack

It is recommended that two people insert the UNS (with inner railings attached) into the rack.

The inner rail (attached to the UNS) has two locks. Use the inner lock to slide the inner rail into the

outer rail (already attached to the rack).

1Release the inner lock and slide the UNS with inner rail attached onto the outer rail already fastened

to the rack.

2Push the inner rail all the way into the outer rail.

Chapter 1 Hardware Installation

UNS Series Hardware Installation Guide

3Use the screws to fasten the inner rail to the rack.

Note: To remove the UNS from the rack, use the outer lock on the inner rail.

1.3 Insert a Hard Drive

1.3.1 Drive Tray Slot Numbering

The drive trays (with hard drive) can be installed into any slot. T

This is the ordering of the slots

Do the following to remove a hard drive tray from the UNS.

Slot 1 Slot 4 Slot 7 Slot 10

Slot 2 Slot 5 Slot 8 Slot 11

Slot 3 Slot 6 Slot 9 Slot 12

Chapter 1 Hardware Installation

UNS Series Hardware Installation Guide 7

Push the latch on the right (1) to release the front handle of the hard drive tray (2). Gently slide out

the hard drive tray (3).

This is the empty hard drive tray.

Place a compatible hard drive into the hard drive tray as shown.

Turn the tray over while holding the hard drive inside and fasten the hard drive to the tray with the

provided screws. The screw positions for 3.5 inch hard drives and 2.5 inch hard drives are shown in

the figure.

Tray

Hard Drive

Chapter 1 Hardware Installation

UNS Series Hardware Installation Guide

Note: Make sure the screws are fastened tightly as protruding screws will impede

insertion of the hard drive tray into the UNS.

Put the hard drive tray back into the UNS by sliding it gently all the way in, and then closing the

front.

Note: Do NOT close the front handle before you slide the hard drive tray all the way back

in.

1.4 About the Power Modules

There are two power module slots with two power modules. One module is redundant, so if one

power module fails the system can operate on the remaining module. It is recommended that you

use two power modules.

Chapter 1 Hardware Installation

UNS Series Hardware Installation Guide 9

If you want to remove a power module, use the handle (2) to slowly pull it out with one hand and

place the other hand under it to support it.

1.5 Make Rear Panel Connections

The following is the rear panel for the UNS2700.

The following is the rear panel for the UNS2300.

12 3

Chapter 1 Hardware Installation

UNS Series Hardware Installation Guide

1.6 Turn on the UNS

Push the button on the front panel to turn on the UNS.

It is recommended to use the web configurator Shutdown menu to turn off the UNS. Alternatively,

hold the button on the front panel in for several seconds to turn off the UNS.

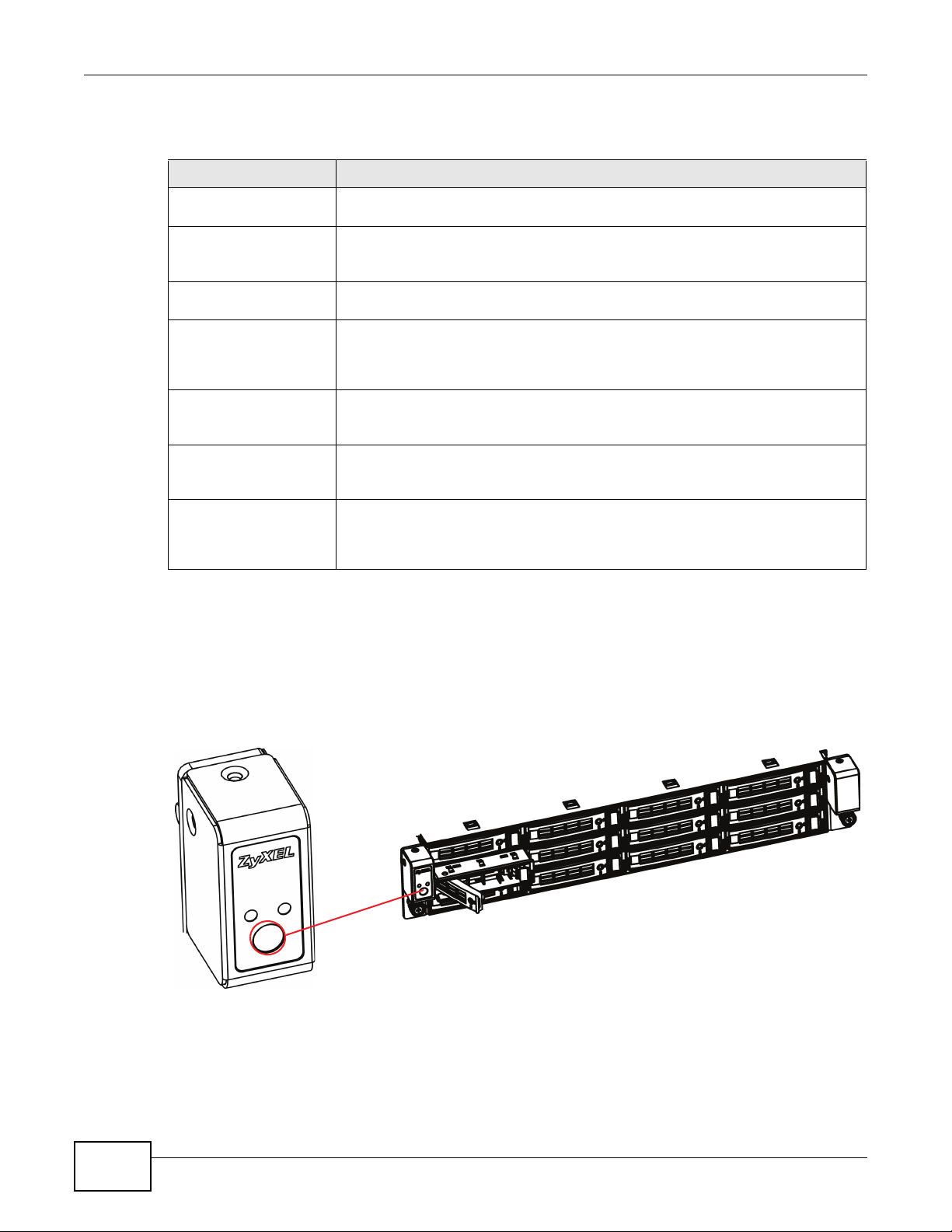

1.7 Observe the LEDs

•Hard Disk Tray LEDs

Table 1 Rear Panel Connections

PORT DESCRIPTION

Power Connectors Connect the female end of a power cord to the module power socket. Connect the

other end of the cord to an appropriate power outlet.

Console Port (C) This port is reserved for service technicians. Connect this port to a computer with

terminal emulation software to troubleshoot the UNS using the command line

interface (CLI).

VGA Port (V) This port is reserved for service technicians. Connect this port to a computer to

troubleshoot the UNS using the command line interface (CLI).

Port 1 Connect an Ethernet cable to this port to access UNS using the web configurator.

This port can operate at 10/100/1000 Mbps speeds and is not VLAN-aware. If

there is no DHCP server in your network, then the default IP address of this port is

169.254.1.1. You can use that IP address to access the web configurator.

1G Ports - 2 on

UNS2700 and 2-6 on

UNS2300

Connect the UNS to a 1G device in your network (computer, switch, router, and so

on) using an Ethernet cable. This port can operate at 10/100/1000 Mbps speeds

and is not VLAN-aware.

10G Ports - 3, 4 on

UNS2700

Connect the UNS to a 10G device in your network (computer, switch, router, and so

on) using an 8-wire Ethernet cable. These ports can operate at 10000 Mbps speeds

and are not VLAN-aware.

USB Use the USB ports to upload firmware from a USB memory stick, dump system

information to a USB memory stick or connect a mouse or keyboard for use when

a monitor is connected to the VGA port. You cannot connect USB hard drives to

these ports.
