Benefits

Layer 2+ Managed Fast

Ethernet Switch

es-3124

es-3124-4f

es-3124f

Premium Access Switch Light Active

Ethernet ETTx Service Network

24 100BASE-X SFP open slots

(ES-3124F)

4 GbE SFP slots

(ES-3124-4F/ES-3124F)

Backup Power System (BPS) that

minimizes network downtime

Policy-based QoS optimizes multi-

service quality

IP TV manipulated by MVR and IGMP

Snooping v3

Minimizes channel surfing

disturbance with Fast Leave

256 Static VLAN and 4K PVID for

service VLAN management

VLAN Stacking (Q-in-Q) support for

L2VPN

Remote management via

IEEE 802.3ah (OAM)

Easy ETTx Deployments

ZyXEL’s ES-3124, ES-3124F and ES-3124-4F are a series of carrier-class L2+ managed access

switches.With robust performance in network resiliency, QoS, IP multicasting and security, the

ES-3124 Series is the ideal solution for cable, utilities or municipality operators and service

providers to adopt in Active Ethernet ETTx deployments.

ES-3124-4F and ES-3124F both support 4 GbE SFP slots for establishing fiber rings to offer

better network resiliency, while ES-3124F has 24 100BASE-X SFP open slots for superior fiber

aggregation capability. ES-3124F can be combined with ES-2108-F to form an end-to-end fiber

access solution. All above models support the latest single fiber transceiver (BX type) for

better system flexibility and easier fiber installation.

Robust and High-Availability System Design

As an alternative power source, BPS prevents the system from total blackouts caused by

internal AC power supply failures, and IEEE 802.3ad Link aggregation also reduces network

downtime by providing more packet paths and performs bandwidth aggregation on critical

paths.The 4G uplink not only provides superb bandwidth, but also forms a high-resiliency ring

topology, which greatly improve network uptime and stability.

Secured Service-Level IP TV & VoIP Operations

The ES-3124 Series comes with proven QoS and VLAN functions to ensure smooth operation.

For instance, QoS features like multi-layer (L2/L3/L4) ACL, eight priority queues, DSCP and WFQ

scheduling algorithm all maximize bandwidth usage and improve network service quality,

while MVR and IGMP snooping enables effective IP TV multicasting. In addition, Fast Leave

eradicates streaming quality disturbance when users surf between different channels,and

bandwidth control with granularity of 64 kbps brings better bandwidth administration to

network operators.

Standardized Services Empowered by Service-Aware VLAN

With 256 static VLAN entries,the ES-3124 series sufficiently satisfies the growing need for video,VoIP and access identification

functionalities required by converged networks to deliver multiple services. Furthermore,The 4K PVID offers the best flexibility for VLAN

configuration, while the L2VPN service is made possible by the VLAN stacking (Q-in-Q) feature.

Strengthened Service Management and Control

The ES-3124 Series supports the 802.3ah operation, administration and maintenance (OAM) standard to facilitate device management and

ZyXEL NetAtlas Enterprise EMS software for central management In addition, command-line interface (CLI) and text configuration are also

offered for the staff to manage the network more conveniently and effectively.

Specifications

Standard Compliance

• IEEE 802.3 10BASE-T Ethernet

• IEEE 802.3u 100BASE-TX/FX Ethernet

• IEEE 802.3ah 100BASE-LX10 (ES-3124F)

• IEEE 802.3ah 100BASE-BX10-U (ES-3124F)

• IEEE 802.3ah 100BASE-BX10-D (ES-3124F)

• IEEE 802.3ab 1000BASE-T Ethernet

• IEEE 802.3z

• IEEE 802.3x Flow control

• IEEE 802.1w Rapid Spanning tree protocol

• IEEE 802.1s Multiple Spanning tree protocol

• IEEE 802.1p Class of service

• IEEE 802.1Q VLAN tagging

• IEEE 802.1x Port Authentication

• IEEE 802.3ad LACP aggregation

• IEEE 802.1ad VLAN Stacking

Performance

• 12.8 Gbps non-blocking switching fabric

• Switching Forwarding Rate 9.6 Mpps

(1488000pps/1000BASE-T/1000BASE-X,

148800pps/100BASE-TX/100BASE-X)

• Wire-speed performance

MAC and Packet Buffer

• 16 K MAC entries

• 32 MB Packet Buffer

Traffic Management and QoS

• Rate Limiting: Rule-based/Port-based

bandwidth control, 64kbps granularity

• Supports Two-Rate-Three-Color (CIR/PIR)

• Port-based egress traffic shaping

• Broadcast Storm Control

• Congestion control on all ports

• IEEE 802.1p with 8 priority queues per port

for different types of traffic

• WFQ (Weighted Fair Queuing)/WRR

(Weighted Round Robin)/SPQ scheduling

algorithm

• DSCP to 802.1p priority mapping

• DSCP

• Fast leave

• IGMP snooping v1, v2, v3

• MVR

Link Aggregation

• IEEE 802.3ad LACP link aggregation

compliant

• Support static manually port trunking

• Up to 6 aggregation groups, per group

support up to 8 ports

Resilient Network

• IEEE 802.1w Rapid Spanning Tree Protocol

(RSTP)

• IEEE 802.1s Multiple Spanning Tree Protocol

(MSTP)

• BPS (Backup Power System)

User Security and Authentication

• MAC filtering per port secures access to

each port

• Specific MAC forwarding per port: only

specified MAC addresses can access the

network (Port Security)

• Limited MAC number per port

• 802.1x port-based authentication,

compensated assignment over VLAN and

bandwidth for valid access

• IEEE 802.1Q tag-based and port-based VLAN

• Support GVRP, automatic VLAN member

registration

• 256 static VLAN, up to 4K dynamic VLAN

• Full range 4K PVID support

• Port isolation

• MAC Freeze

• Intrusion Lock

• VLAN Stacking (Q-in-Q)

• BPDU transparency

• IP Source Guard (DHCP snooping, ARP

inspection)

• DHCP relay/DHCP option 82

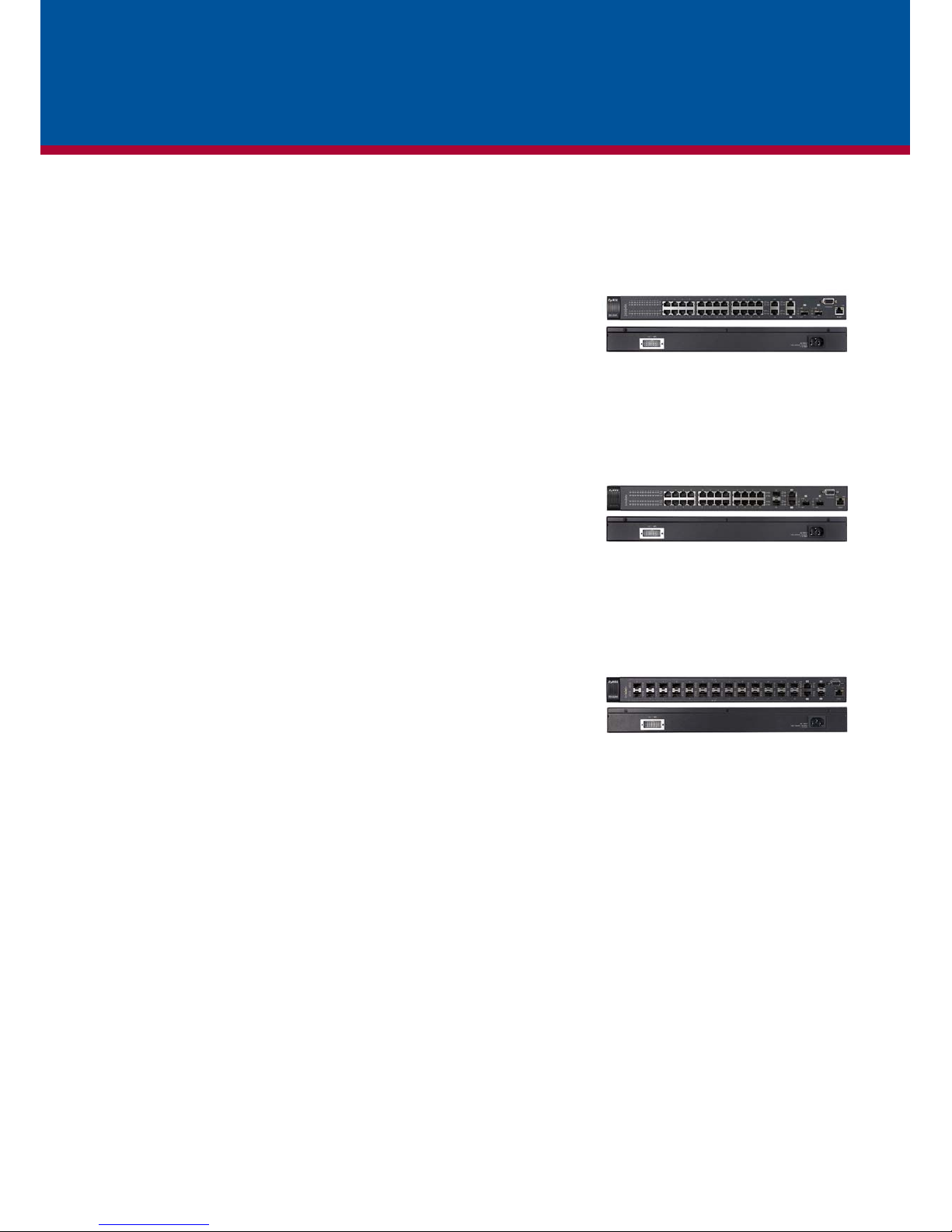

Physical Specifications

ES-3124 (28 ports)

24 10/100BASE-T copper ports + 2 GbE copper

ports + 2 dual-personality GbE ports

• Dimensions: 438 (W) x 270 (D) x 44.45 (H) mm

• Weight: 3.6 Kg

ES-3124-4F (28 ports)

24 10/100BASE-T copper ports + 2 GbE SFP slots +

2 dual-personality GbE ports

• Dimensions: 438 (W) x 270 (D) x 44.45 (H) mm

• Weight: 3.6 Kg

ES-3124F (28 ports)

24 100BASE-X SFP slots + 2 GbE SFP slots + 2 dual-

personality GbE ports

• Dimensions: 438 (W) x 270 (D) x 44.45 (H) mm

• Weight: 3.6 Kg

Network Administration Security

• User name/password required for

web/telnet/local console administrators

• Two level security by specific SNMP read/write

community

• Multiple Log-in session

• Multiple access authorization management

• SSH v1/v2

• SSL/TLS

• TACACS+

• RADIUS client

Network Management

• Supports ZyXEL iStacking™, up to 24 switches

can be managed by one IP address

• Web-based management

• Telnet CLI

• SNMP v1, v2c, v3

• RS-232c Local console

• IP management: static IP or DHCP client

• RMON four RMON groups 1, 2, 3, 9 (history,

statistics, alarms, and events) for enhanced traffic

management, monitoring, and analysis

• Port mirroring: supports

Source/Destination/Both port mirroring

Intelligent ACL

(L2/L3/L4 Access List Control)

• Based on MAC address

• Based on VLAN

• Based on IP address

• Based on Protocol type

• Based on TCP/UDP type

• Based on DSCP

MIB Information

• RFC1213 MIB II

• RFC1493 Bridge MIB

• RFC1643 Ethernet MIB

• RFC1757 RMON group 1, 2, 3, 9

• RFC2011 IP MIB

• RFC2012 TCP MIB

• RFC2013 UDP MIB

• RFC2233 ifVHCPacketGroup

• RFC2674 VLAN MIB

• RFC2925 PING-MIB and TRACEROUTE-MIB

• ZyXEL Private MIB for EMS management

Hardware Specifications

• Support of auto-negotiation

• Support of auto MDI/MDI-X

• Console: D-Sub 9 pin Female (DCE)

• Management: 1 out-of-band management

RJ-45 port

ES-3124

• Ports: 24 10/100BASE-T, RJ-45 copper ports +

2 GbE copper ports and 2 dual-personality GbE

ports (RJ-45 or SFP open slots)

ES-3124-4F

• Ports: 24 10/100BASE-T, RJ-45 copper ports +

2 GbE SFP slots and 2 dual-personality GbE ports

(RJ-45 or SFP open slots)

ES-3124F

• Ports: 24 100BASE-X SFP slots + 2 GbE SFP lot

and 2 dual-personality GbE ports (RJ-45 or SFP

open slots)

Power Requirements

• Input voltage of AC: 100-240 V AC, 50/60Hz

• Input voltage of DC: -48 V ~ -60 V DC

• Max power rating: 60 Watt

• Backup power supply into 12 V DC

Environmental Specifications

• Operating temperature: 0ºC ~ 45ºC

• Storage temperature: -25ºC ~ 70ºC

• Operating humidity: 10% ~ 90%,

(non-condensing)

Gigabit SFP TransceiversGigabit SFP Transceivers

SFP-100FX-2

SFP-100LX-20

SFP-100BX1310-20

SFP-100BX1550-20

ulti-mod

e mo

le mode

ing

e mo

310 nm

1310 nm

(

)

550 nm

(

)

1310 nm

(

)

550 nm (RX

)

2km

20 km

1-010-064001

1-010-065001

1-010-068001

1-010-070001

718

37503

718937503926

718

37503

893

039

Distance EAN CodeP/NModeConnector Type WavelengthModel Name

Fast Ethernet SFP Transceivers (for ES-3124F)Fast Ethernet SFP Transceivers (for ES-3124F)

SFP-SX

SFP-LX-10

SFP-BX1310-10

SFP-BX1490-10

SFP-LHX1310-40

SFP-ZX-80

ti-mo

Sing

e mo

Sing

e mo

Single mod

Sing

e mo

Sing

e mo

310 nm

(

)

490 nm

(

)

490 nm

(

)

310 nm

(

)

1550

91-010-064001

91-010-065001B

91-010-152001

-1

5300

91-010-068001

000

471

893

20308

471

893

20292

471

893

471

893

471

893

471

893

Distance EAN CodeP/NModeConnector Type WavelengthModel Name
