Prestige 791R

G.SHDSL Router

Quick Start Guide

Version 3.40

May 2003

Prestige 791R

Introducing the Prestige

The Prestige 791R Router can be used for high-speed LAN-to-LAN connections or Internet access

through a G.SHDSL connection over the telephone line. You can use your Prestige for either IP

routing or bridging depending on your ISP (Internet Service Provider) configuration.

You should have an Internet account already set up and have been given most of the following

information.

INTERNET ACCOUNT INFORMATION

Your device’s WAN IP Address (if given): __________________

DNS Server IP Address (if given): Primary __________________, Secondary _________________

Virtual Path Identifier (VPI): ____________

Virtual Channel Identifier (VCI): ____________

Multiplexing (VC-based or LLC-based): VC LLC

Encapsulation:

Transfer Rate:

Standard Mode:

 RFC 1483

 ENET ENCAP Ethernet Encapsulation Gateway IP Address: ____________________

 PPPoA User Name: ____________ Password: ____________

 PPPoE Service Name: ____________

User Name: ____________ Password: ____________

Prestige 791R

Quick Start Overview

Hardware Installation............................................................................................................. 3

Setting Up Your Computer’s IP Address.............................................................................. 5

Configuring Your Prestige ..................................................................................................... 6

Hardware Installation

Rear Panel

LABEL DESCRIPTION

POWER Connect to a power source using the power adapter for your region (see your User’s

Guide).

RESET You only need to use this button if you’ve forgotten the Prestige’s password. It returns the

Prestige to the factory defaults (password is 1234, LAN IP address 192.168.1.1, terminal

emulation settings as described above etc.; see your User’s Guide for details).

LAN 10M/100M Connect to a computer/external hub using an Ethernet cable. The LAN port is auto-sensing

which means either a crossover or straight-through Ethernet cable will do in either case.

Prestige 791R

LABEL DESCRIPTION

CON/AUX switch

CON/AUX port

Only connect this port if you want to configure the Prestige using the SMT via console port

or set up a backup WAN connection; see your User’s Guide for details.

Set this switch to the “CON” side to use the CON/AUX port as a console port for local

device configuration and management. Connect the 9-pin male end of the console cable to

the console port of the Prestige and the other end to a serial port (COM1, COM2 or other

COM port) on your computer. Your computer should have a terminal emulation

communications program (such as HyperTerminal) set to VT100 terminal emulation, no

parity, 8 data bits, 1 stop bit, no flow control and 9600 bps port speed.

Set this switch to the “AUX” side to use the CON/AUX port as an auxiliary dial-up WAN

connection. Connect the 9-pin male end of the RS-232 Y-cable to the CON/AUX port and

use the included CON/AUX converter on the other 9-pin end of the cable to connect to a

modem or TA.

DSL Connect to a telephone jack using the included RJ-11 cable.

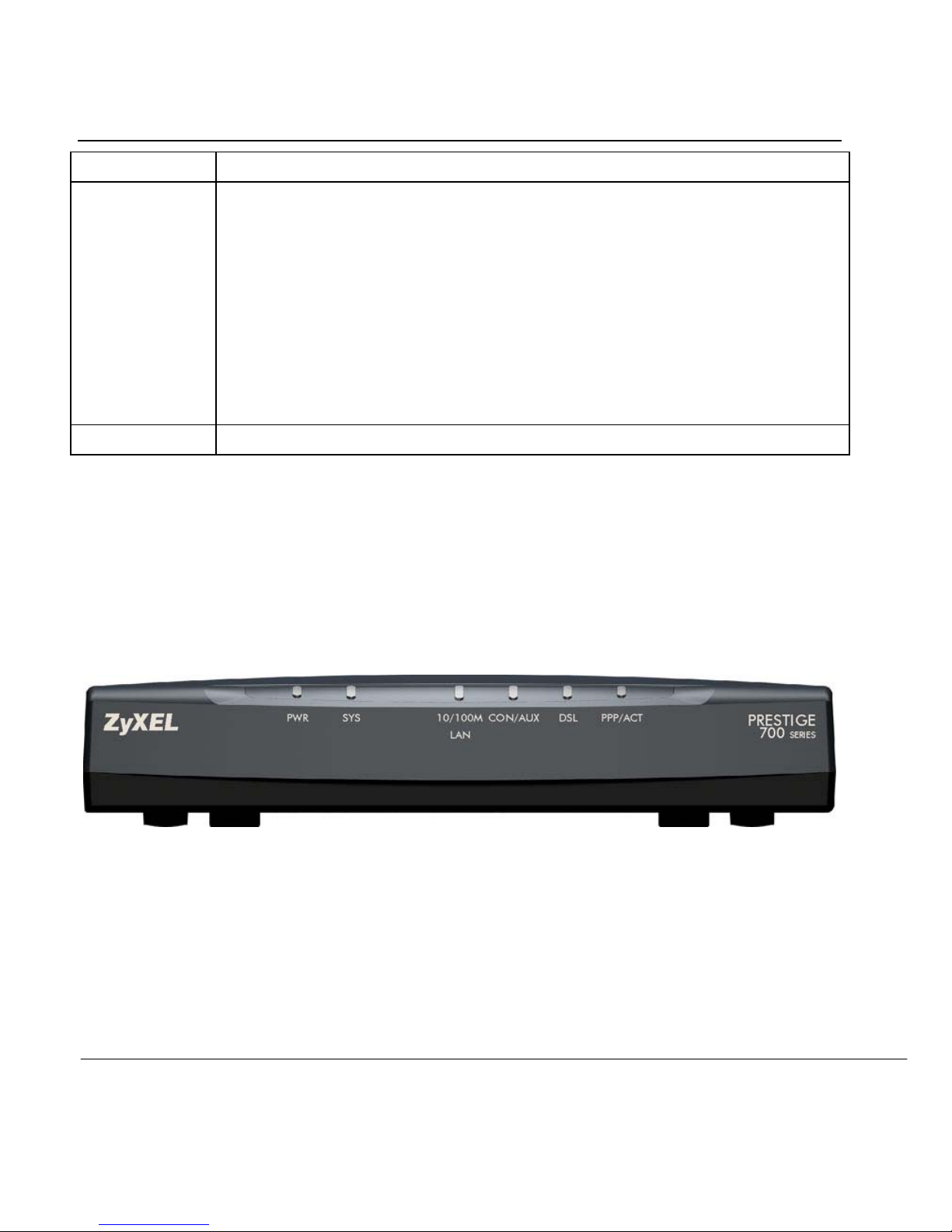

The Front Panel LEDs

Turn on the Prestige by pressing the ON/OFF button.

The PWR LED turns on when you connect the power. The SYS LED blinks while performing

system testing and then stays on if the testing is successful. The LAN,CON/AUX, DSL, and

PPP/ACT LEDs turn on if they are properly connected. Refer to the User’s Guide for more detailed

LED descriptions.

Prestige 791R

Setting Up Your Computer’s IP

Address

Skip this section if your computer is already set up to accept a dynamic IP address.

This is the default for most new computers.

The Prestige is already set up to assign your computer an IP address. Use this section to set up your

computer to receive an IP address or assign it a static IP address in the 192.168.1.2 to 192.168.1.254

range with a subnet mask of 255.255.255.0. This is necessary to ensure that your computer can

communicate with your Prestige.

Your computer must have an Ethernet card and TCP/IP installed. TCP/IP should already be installed

on computers using Windows NT/2000/XP, Macintosh OS 7 and later operating systems.

Windows 2000/NT/XP

1. In Windows XP, click start, Control Panel. In Windows 2000/NT, click Start, Settings, Control Panel.

2. In Windows XP, click Network Connections.

In Windows 2000/NT, click Network and Dial-up Connections.

3. Right-click Local Area Connection and then click Properties.

4. Select Internet Protocol (TCP/IP) (under the General tab in Win XP) and click Properties.

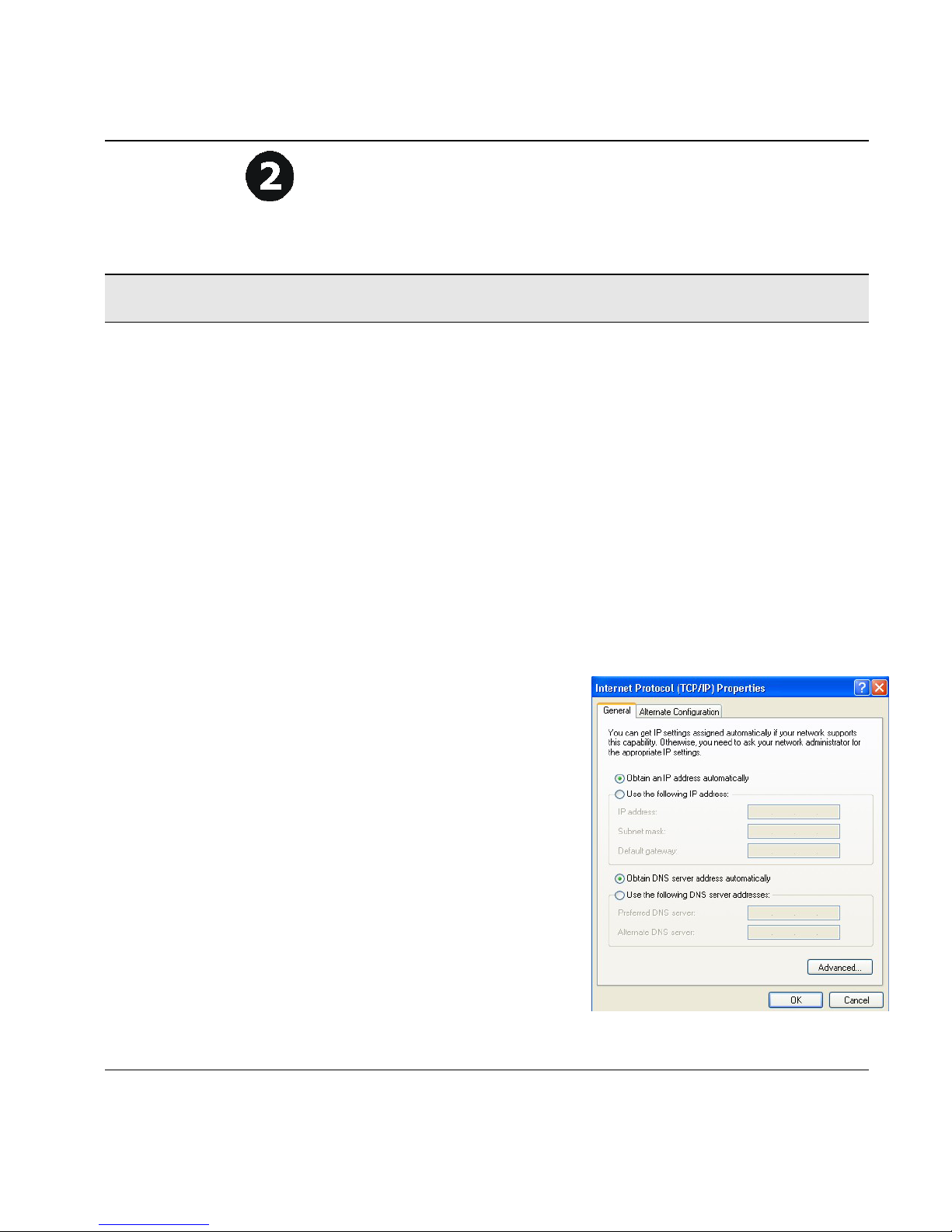

5. The Internet Protocol TCP/IP Properties screen opens (the

General tab in Windows XP).

- To have your computer assigned a dynamic IP address, click

Obtain an IP address automatically.

If you know your DNS sever IP address(es), type them in the

Preferred DNS server and/or Alternate DNS server fields.

-To configure a static IP address, click Use the following IP

Address and fill in the IP address (choose one

from192.168.1.2 to 192.168.1.254), Subnet mask

(255.255.255.0), and Default gateway (192.168.1.1) fields.

Then enter your DNS server IP address(es) in the Preferred

DNS server and/or Alternate DNS server fields.

If you have more than two DNS servers, click Advanced, the

DNS tab and then configure them using Add.

Prestige 791R

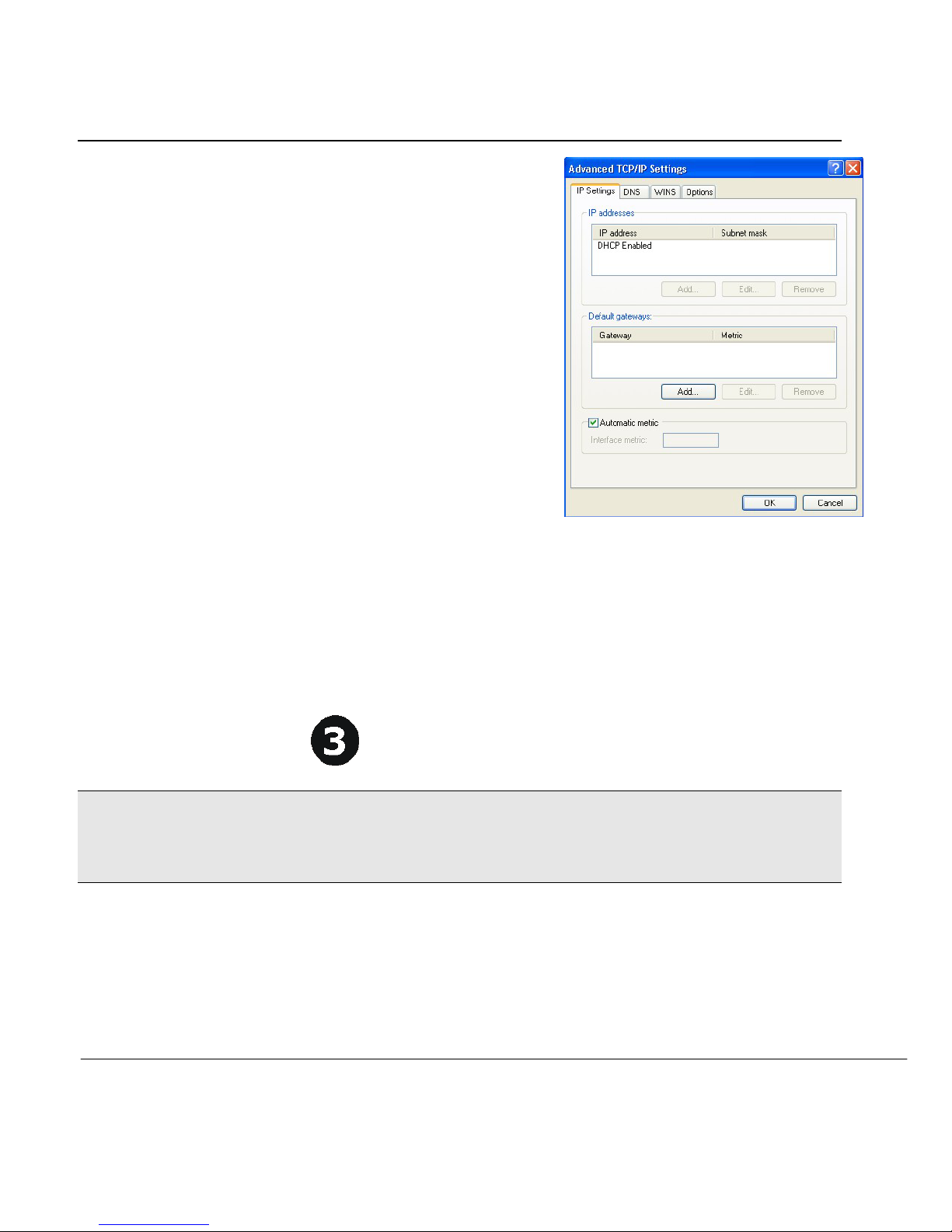

6. Click Advanced. Remove any previously installed gateways in

the IP Settings tab and click OK to go back to the Internet

Protocol TCP/IP Properties screen.

7. Click OK to close the Internet Protocol (TCP/IP) Properties

window.

8. Click OK to close the Local Area Connection Properties

window.

Checking/Updating Your Computer’s IP Address

1. In the computer, click Start, (All) Programs, Accessories and then Command Prompt.

2. In the Command Prompt window, type "ipconfig" and then press ENTER to verify that your computer’s IP

address is in the correct range (192.168.1.2 to 192.168.1.254) with subnet mask 255.255.255.0. This is

necessary in order to communicate with the Prestige.

Refer to your User’s Guide for detailed IP address configuration for other Windows and Macintosh

computer operating systems.

Configuring Your Prestige

Choose one of these methods to access and configure the Prestige. This Quick Start

Guide shows you how to use the web configurator wizard only. See your User’s

Guide for background information on all Prestige features and SMT configuration.

Click the web configurator online help for screen-specific web help.

 Web Configurator

 SMT (System Management Terminal). Access the SMT via:

o Console port using terminal emulation software

o LAN or WAN using Telnet

Prestige 791R

Accessing Your Prestige Via Web Configurator

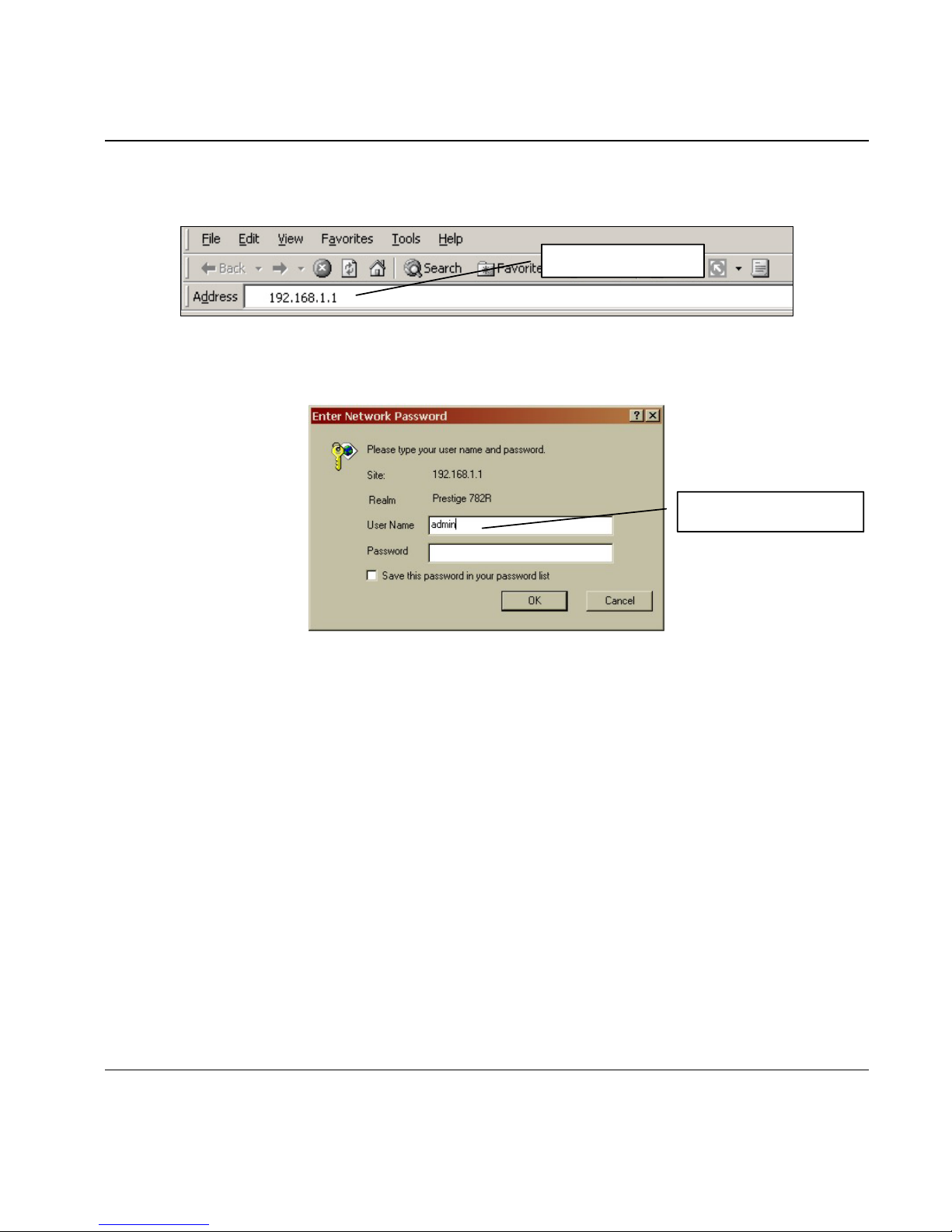

Step 1. Launch your web browser. Enter “192.168.1.1” as the web site address.

Web site address.

Step 2. The default password (“1234”) is already in the password field (in non-readable format).

Click Login to proceed to a screen asking you to change your password. Click Reset to

revert to the default password in the password field.

Default user name.

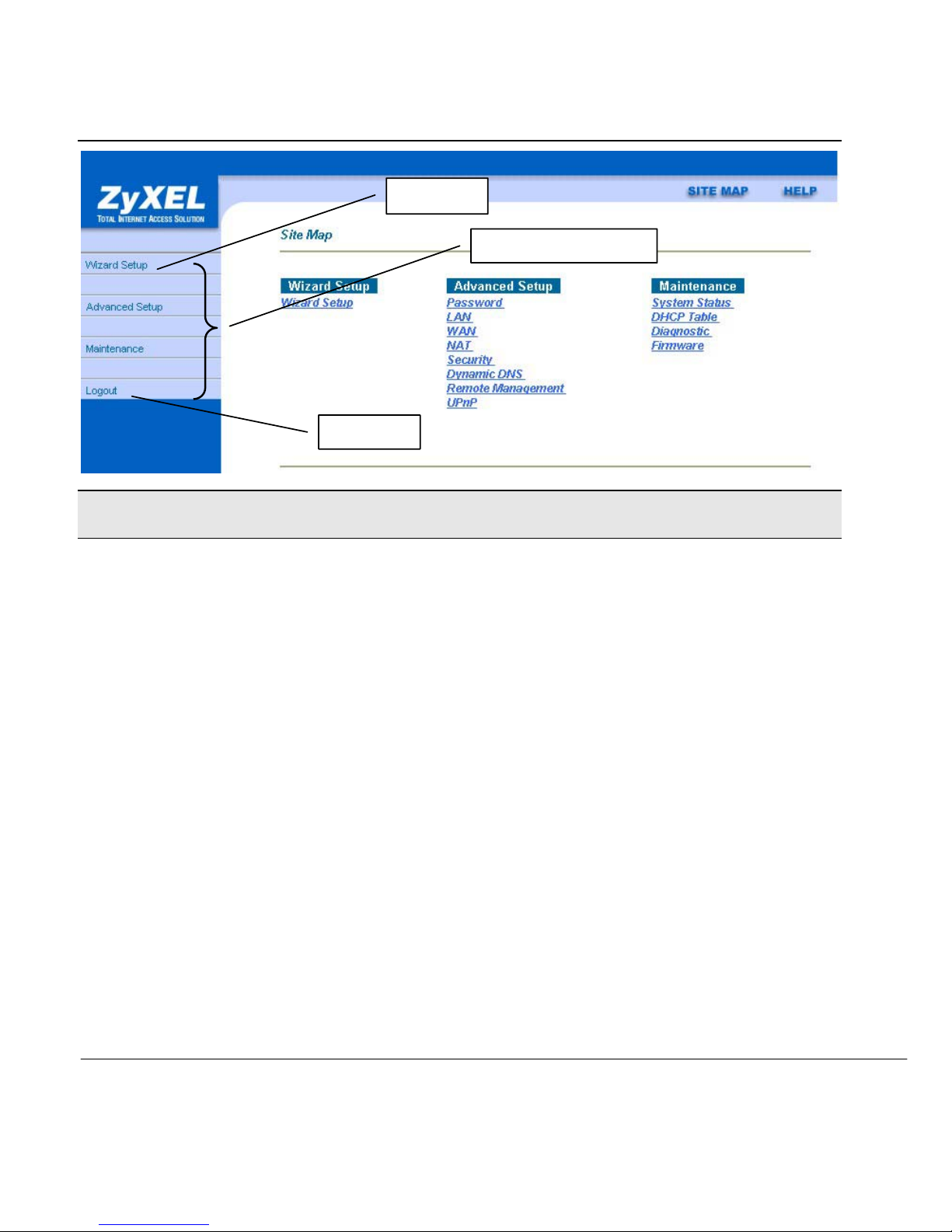

Step 3. You should now see the web configurator Site Map screen.

 Click Wizard Setup to begin a series of screens to configure your Prestige for the first

time.

 Click a link under Advanced Setup to configure advanced Prestige features.

 Click a link under Maintenance to see Prestige performance statistics, upload firmware

and back up, restore or upload a configuration file.

 Click Logout in the navigation panel when you have finished a Prestige management

session.

Prestige 791R

WIZARD

NAVIGATION PANEL

LOGOUT

The Prestige automatically logs you out if it is left idle for five minutes; press ENTER

to log back in again.

Internet Access Using the Wizard

Use the Wizard Setup screens to configure your system for Internet access settings and fill in the

fields with the information in the Internet Account Information table. Your ISP may have already

configured some of the fields in the wizard screens for you.

Step 1. In the Site Map screen click Wizard Setup to display the first wizard screen.

Prestige 791R

If your Prestige is a server, then select the mode that applies to your

region: ANSI (American National Standards Institute) and ETSI

(European Telecommunications Standards Institute). If your Prestige

is a client, select the same Standard Mode that the server side

selects.

Select Client if your Prestige will act as

a client device or Server if your Prestige

will act as a server.

If you enable Rate Adaption, the

Prestige will connect at the optimal

transfer rate between the min and max

rates below. If you disable Rate

Adaption, it will attempt to connect at

the maximum transfer rate configured. If

that rate can’t be attained, the

connection will not be established.

Next, select transfer rates from the Max

Rate and Min Rate drop-down list

boxes. For back-to-back applications

make sure that your Prestige and its

peer have the same Transfer Max Rate

and the same Transfer Min Rate.

Step 2. Click Next to go to the second Wizard screen.

From the Mode drop-down list box, select

Routing or Bridge based on the information

from you ISP.

Select the encapsulation type your ISP uses

from the Encapsulation drop-down list box.

The choices are PPPoA, RFC1483, PPPoE

and ENET ENCAP. PPPoE and ENET

ENCAP are available only when you select

Routing in the Mode field.

Select the multiplexing method used by your

ISP from the Multiplex drop-down list box.

The choices are LLC and VC.

Enter the correct Virtual Path Identifier (VPI)

and Virtual Channel Identifier (VCI) numbers

supplied by your ISP in the VPI and VCI

fields. These fields may already be

configured.

Click Next to go to the third Wizard screen

or click Back to go to the first Wizard screen.

Step 3. The third wizard screen varies depending on what mode and encapsulation type you use.

All screens shown are with routing mode. Configure the fields and click Next to continue

or Back to go to the previous screen. See the first screen below, Internet Connection

with PPPoA, for explanations of the following fields: User Name, Password, IP

Address, Connection, and Network Address Translation.

Prestige 791R

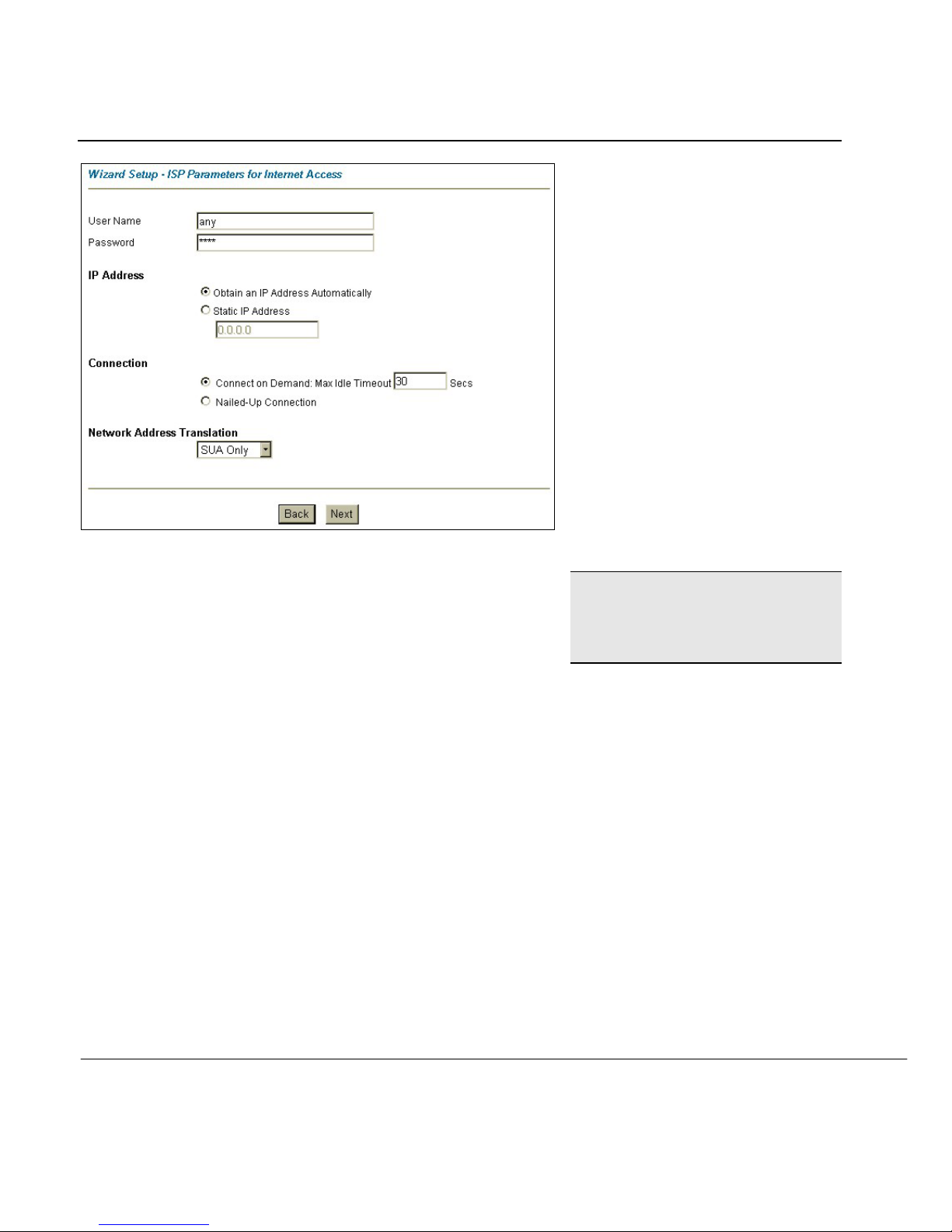

Internet Connection with PPPoA

Enter the user name and password

exactly as your ISP assigned them.

Select Obtain an IP Address

Automatically if you have a dynamic

IP address; otherwise select Static IP

Address and type your ISP assigned

IP address in the text box below.

Select Connect on Demand when you

don't want the connection up all the

time and specify an idle time-out (in

seconds) in the Max. Idle Timeout

field. Select Nailed-Up Connection

when you want your connection up all

the time.

Choose the type of Network Address

Translation (NAT) you need. Select

Full Feature if you have multiple public

WAN IP addresses for your Prestige.

Select SUA Only if you have just one

public WAN IP address for your

Prestige. Select None to disable NAT.

IP Address and NAT will not

be shown for PPPoA when

the Prestige is in bridge

mode.

Altri manuali per P-791R

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ZyXEL Communications Router di rete

ZyXEL Communications

ZyXEL Communications PRESTIGE 128 Manuale utente

ZyXEL Communications

ZyXEL Communications MES3500 Series Manuale utente

ZyXEL Communications

ZyXEL Communications VMG8825 Manuale utente

ZyXEL Communications

ZyXEL Communications IES-2500 Manuale utente

ZyXEL Communications

ZyXEL Communications P-660RU-T1 v3 Manuale utente

ZyXEL Communications

ZyXEL Communications ALC-1024L Manuale utente

ZyXEL Communications

ZyXEL Communications P-660HN-T1H Manuale utente

ZyXEL Communications

ZyXEL Communications NBG4604 Manuale utente

ZyXEL Communications

ZyXEL Communications EXTRASMART ES-1528 Manuale utente

ZyXEL Communications

ZyXEL Communications AMG1202-T10A Manuale utente

ZyXEL Communications

ZyXEL Communications LTE3316 Series Manuale utente

ZyXEL Communications

ZyXEL Communications NR/FWA Outdoor Series Manuale utente

ZyXEL Communications

ZyXEL Communications Dimension GS-3012 Manuale

ZyXEL Communications

ZyXEL Communications Prestige 28641 Manuale utente

ZyXEL Communications

ZyXEL Communications GS1100-8HP Manuale utente

ZyXEL Communications

ZyXEL Communications Prestige 660R-6 Series Manuale

ZyXEL Communications

ZyXEL Communications MAX218M2W Manuale utente

ZyXEL Communications

ZyXEL Communications AES-100 Manuale utente

ZyXEL Communications

ZyXEL Communications P-2612HNU-Fx Series Manuale utente

ZyXEL Communications

ZyXEL Communications UAG Series Manuale utente

ZyXEL Communications

ZyXEL Communications P-974H Manuale utente

ZyXEL Communications

ZyXEL Communications VMG8924 Manuale utente

ZyXEL Communications

ZyXEL Communications Prestige 2602HW Series Manuale utente

ZyXEL Communications

ZyXEL Communications LTE3202-M430 Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
