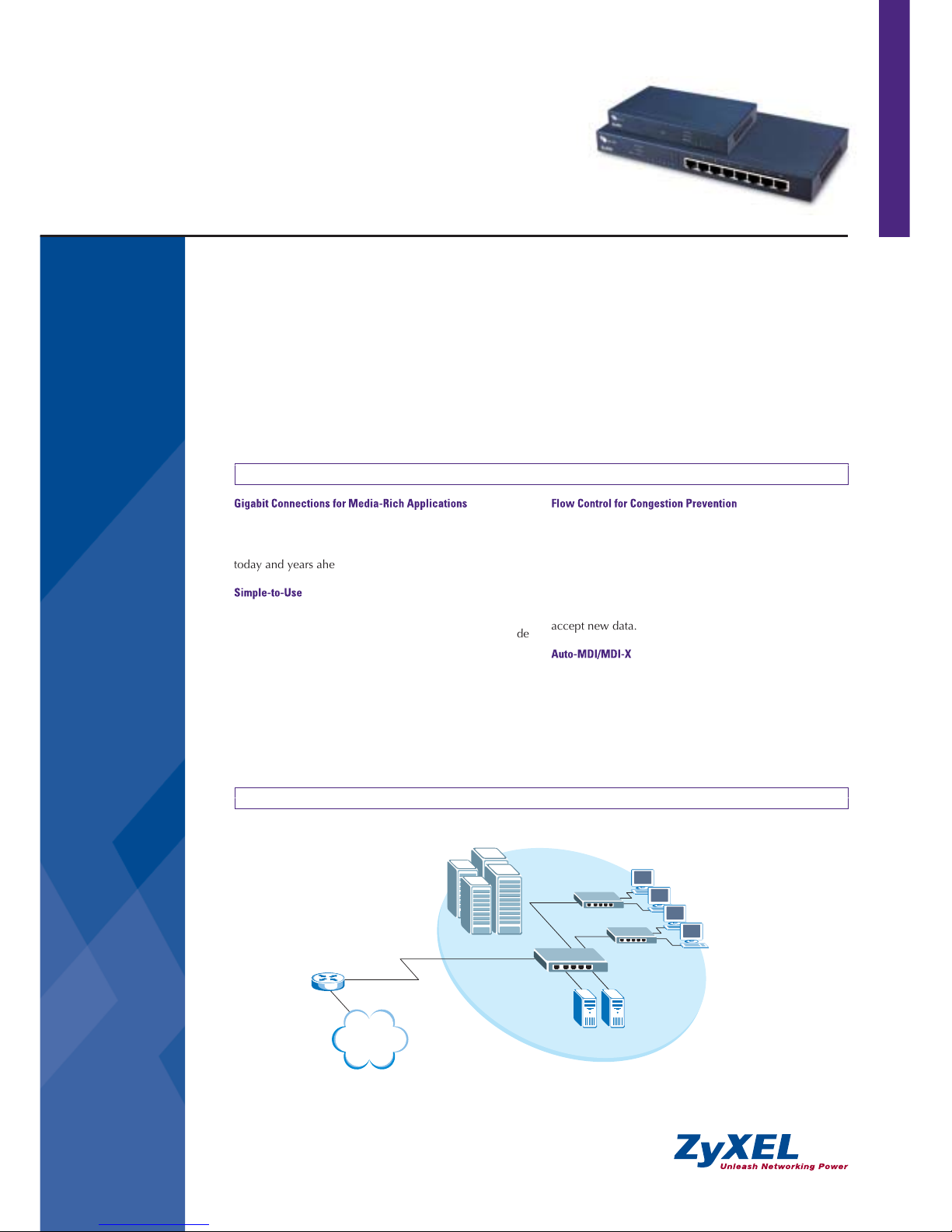

Application Diagram

Dimension GS-105/GS-108

Gigabit Connections for Media-Rich Applications

The GS-105/108 supports gigabit connections, which

provide ultra high bandwidth for media-rich application

today and years ahead.

Simple-to-Use

The GS-105/108 features auto-sensing 100/1000 Mbps

ports that automatically detect the speed and duplex mode

of attached servers, workstations, or hubs, making

installation quick and easy.

Flow Control for Congestion Prevention

The IEEE 802.3x standard-based flow control allows the

GS-105/108 to prevent pending traffic congestion by

informing the attached devices to stop transmission. When

the switch detects that the buffer for each port is nearly

full, it requests the attached devices to wait until it can

accept new data.

Auto-MDI/MDI-X

With the auto-MDI/MDI-X feature, the GS-105/108

automatically adjusts the transmit/receive pins of a port

based on the signal detected on the wire from the attached

device, making crossover cables a thing of the past.

Benefits

ZyXEL’s GS-105/108 is a 5/8-port 100/1000 Mbps Ethernet switch. It provides high flexibility and high bandwidth

connectivity to servers, workstation and other attached devices.

The GS-105/108 fits users who want higher bandwidth without complicated management features. It can be installed in

SOHO application to establish connections to main servers. GS-105/108 is a cost-effective solution where high-

performance, reliable connections to a desktop are more important than management consideration.

The ease of plug-n-play, outstanding price/performance ratio and flexible design make the GS-105/108 a simple,

affordable choice for a wide range of applications.

Router

Mail

Server

Database

Server

100M

1000M

INTERNET

Dimension GS-105/108

5/8-port 100/1000M

Workgroup Switch

Dimension

Dimension GS-105/GS-108

5/8 port 100/1000M Workgroup Switch

Copyright© 2003 ZyXEL Communications Corporation. All rights reserved. ZyXEL, the ZyXEL logo are registered trademarks of ZyXEL Communications Co. Other trademarks and service names referenced are properties of their respective holders. All specifications are subject to change without notice.

Corporate Headquarters

ZyXEL Communications Co.

Tel: +886-3-578-3942

Fax: +886-3-578-2439

Email: [email protected]

http://www.zyxel.com

http://www.zyxel.com.tw

North America

ZyXEL Communications Inc.

Tel: +1-800-255-4101

Email: [email protected]

http://www.us.zyxel.com

Germany

ZyXEL Deutschland GmbH.

Tel: +49 2405 6909 0

Fax: +49 2405 6909 99

Email: [email protected]

http://www.zyxel.de

Denmark

ZyXEL Communications A/S

Tel: +45 39 55 07 00

Fax: +45 39 55 07 07

Email: [email protected]

http://www.zyxel.dk

Norway

ZyXEL Communications A/S

Tel: +47 22 80 61 80

Fax: +47 22 80 61 81

Email: [email protected]

http://www.zyxel.no

Sweden

ZyXEL Communications A/S

Tel: +46 31 744 7700

Fax: +46 31 744 7701

Email: [email protected]

http://www.zyxel.se

Finland

ZyXEL Communications Oy

Tel: +358-9-4780 8400

Fax: +358-9-4780 8448

Email: [email protected]

http://www.zyxel.fi

65-100-105001

Features & Specifications

GS-105 GS-108

General

Standard •IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)

• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

• IEEE 802.3ab 1000BASE-T Gigabit Ethernet

• ANSI/IEEE 802.3 Auto-negotiation

• IEEE 802.3x Flow Control

Interface •5 100/1000 BASE-T Ethernet port • 8 100/1000 BASE-T Ethernet port

Media Interface Exchange •All ports MDI-II/MDI-X auto-adjustment

Data Transfer Rate •Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

•Gigabit Ethernet: 2000Mbps (full duplex)

Network Cable •100BASE-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 (100m)

•1000BASE-T: 4-pair UTP/STP Cat. 5 cable EIA/TIA-568 (100m)

Performance

Packet Forwarding Rate •148800pps for 100BASE-TX

•1488000pps for 1000BAES-T

Switching Method •Store-and-forward

MAC Address Table •8K entries

Data Buffer •256KB

Physical & Environmental

Weight •0.6Kg • 1.0Kg

LED •Per port: 100M, 1000M, LK/ACT (Link/Active), FD/COL (Full-duplex/Collision)

•System: power

Dimensions •164 (L) x 100 (D) x 26 (H) mm • 250 (L) x 132 (D) x 26 (H) mm

Power Supply •External power adaptor

•120 VAC or 230 VAC, 50~60Hz

Power Consumption •9.5W max. • 15W max.

Operating Temperature •0ºC to 45ºC (32ºF to 113ºF)

Operational Humidity •10% to 90% (Non-condensing)

EMI •FCC Class A

•CE

Safety •UL, cUL
