ZyXEL Communications PoE-10 Manuale utente

ZyXEL’s Power over Ethernet solutions deliver a unified supply of data, voice, and video as well as electrical power

through a single source by sending power over standard Category 5 and above twisted pair cables. Power over Ethernet

simplifies installation and eliminates the need to run separate power cords and LAN cables to each Access Point or port

location. ZyXEL Power over Ethernet solutions enhance the reliability of Ethernet devices such as wireless LAN Access

Points, Web Cameras and IP Phones.

Power over Ethernet streamlines wireless infrastructure deployment and lowers cost. Whether on a factory floor or in an

enterprise facility, running power to difficult to reach locations with ZyXEL’s Power over Ethernet solutions significantly

reduce cabling and outlet requirements while providing the lowest total cost of ownership.

PoE-10

Single-port Power over Ethernet Injector

The ZyXEL PoE-10 Single-port Power over Ethernet Injector is designed for use with 10/100 BaseT Ethernet networks.

The PoE-10 supplies DC power by injecting electricity through the unused twisted-wires (pairs 4/5 and 7/8) in a standard

8-pin CAT 5 cable. The PoE-10 provides a cost-effective power solution for a small-site deployment by supplying power

directly to Access Points from a central location.

PoE-80

8-port Power over Ethernet Hub

The ZyXEL PoE-80 8-port Power over Ethernet Hub installs conveniently in your wiring closet rack. The form factor

requires minimal space and fits easily onto a standard size rack. The PoE-80 automatically detects Power-over-Ethernet

enabled Access Points and supplies in-line power for up to eight APs through its easy-to-access interface on the

front panel.

Benefits

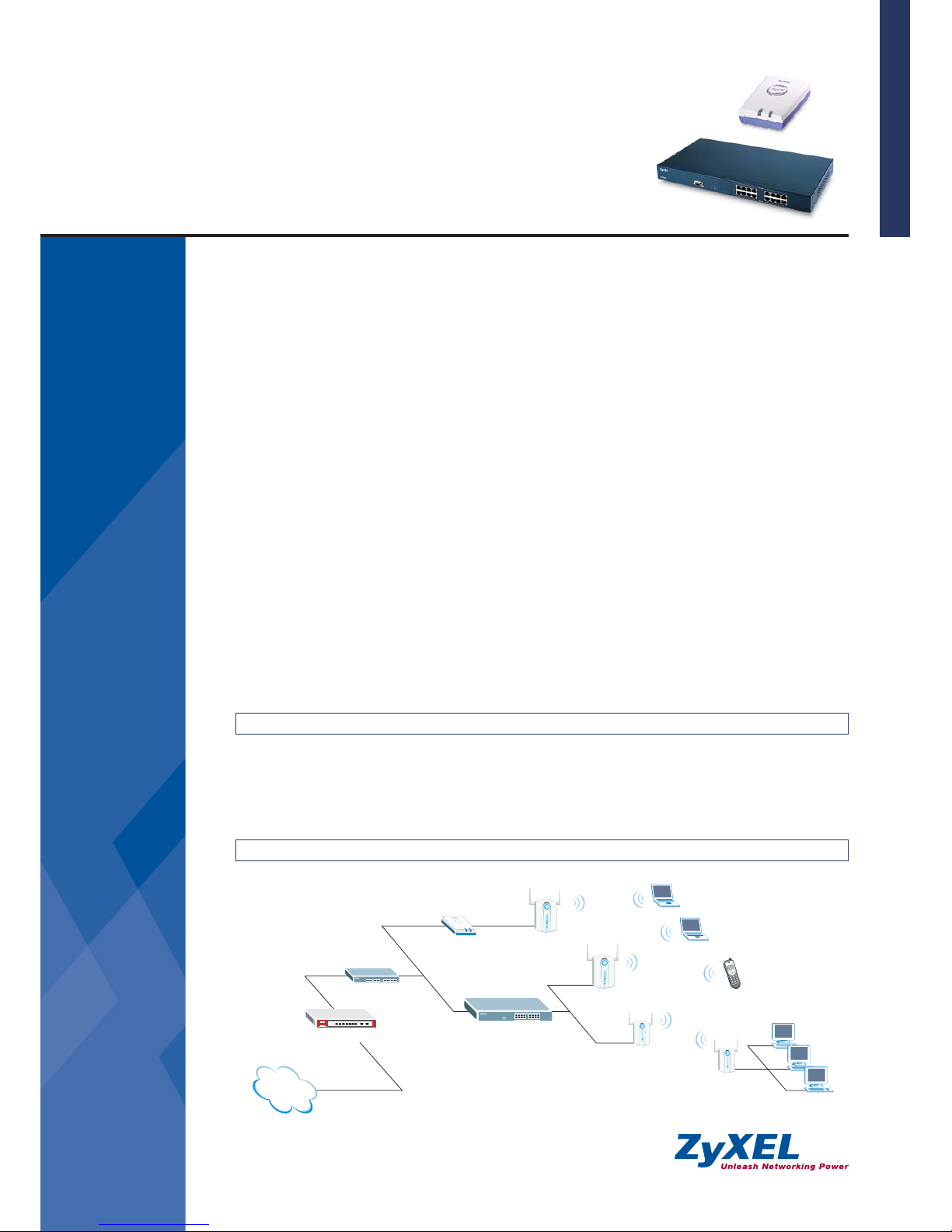

Application Diagram

• Ensures uninterrupted network operation by providing a “power safe” path to the user

• Intelligent detection process to detect Power over Ethernet enabled terminals

• Furnishes easy and cost-effective installation with fewer cables and outlets

• Provides one central secure location for power

PoE-10

Single-port Power over Ethernet Injector

PoE-80

8-port Power over Ethernet Hub

Internet

Security Gateway

Switch

PoE-10

PoE-80

ZyAIR G-3000

ZyAIR B-3000 VoIP Phone

ZyAIR B-420

PoE-10 Single-port Power over Ethernet Injector

PoE-80 8-port Power over Ethernet Hub

RJ-45 Port Pin Assignments

Specifications

Copyright©2004 ZyXEL Communications Corporation. All rights reserved. ZyXEL, the ZyXEL logo are registered trademarks of ZyXEL Communications Corp. Other trademarks and service names referenced are properties of their respective holders. All specifications are subject to change without notice. 65-100-111101

Corporate Headquarters

ZyXEL Communications Corp.

Tel: +886-3-578-3942

Fax:+886-3-578-2439

Email: [email protected]

http://www.zyxel.com

http://www.zyxel.com.tw

Denmark

Tel: +45 39 55 07 00 Fax: +45 39 55 07 07

Email: [email protected]

http://www.zyxel.dk

Finland

Tel: +358-9-4780 8400 Fax: +358-9-4780 8448

Email: [email protected]

http://www.zyxel.fi

France

Tel: +33 (0)4 72 52 97 97 Fax: +33 (0)4 72 52 19 20

Email: [email protected]

http://www.zyxel.fr

Germany

Tel: +49 2405 6909 0 Fax: +49 2405 6909 99

Email: [email protected]

http://www.zyxel.de

North America

Tel: +1-800-255-4101, +1-714-632-0882

Fax: +1-714-632-0858

Email: [email protected]

http://www.us.zyxel.com

Norway

Tel: +47 22 80 61 80 Fax: +47 22 80 61 81

Email: [email protected]

http://www.zyxel.no

Spain

Tel: +34 902 195 420 Fax: +34 913 005 345

Email: [email protected]

http:// www.zyxel.es

Sweden

Tel: +46 31 744 7700 Fax: +46 31 744 7701

Email: [email protected]

http://www.zyxel.se

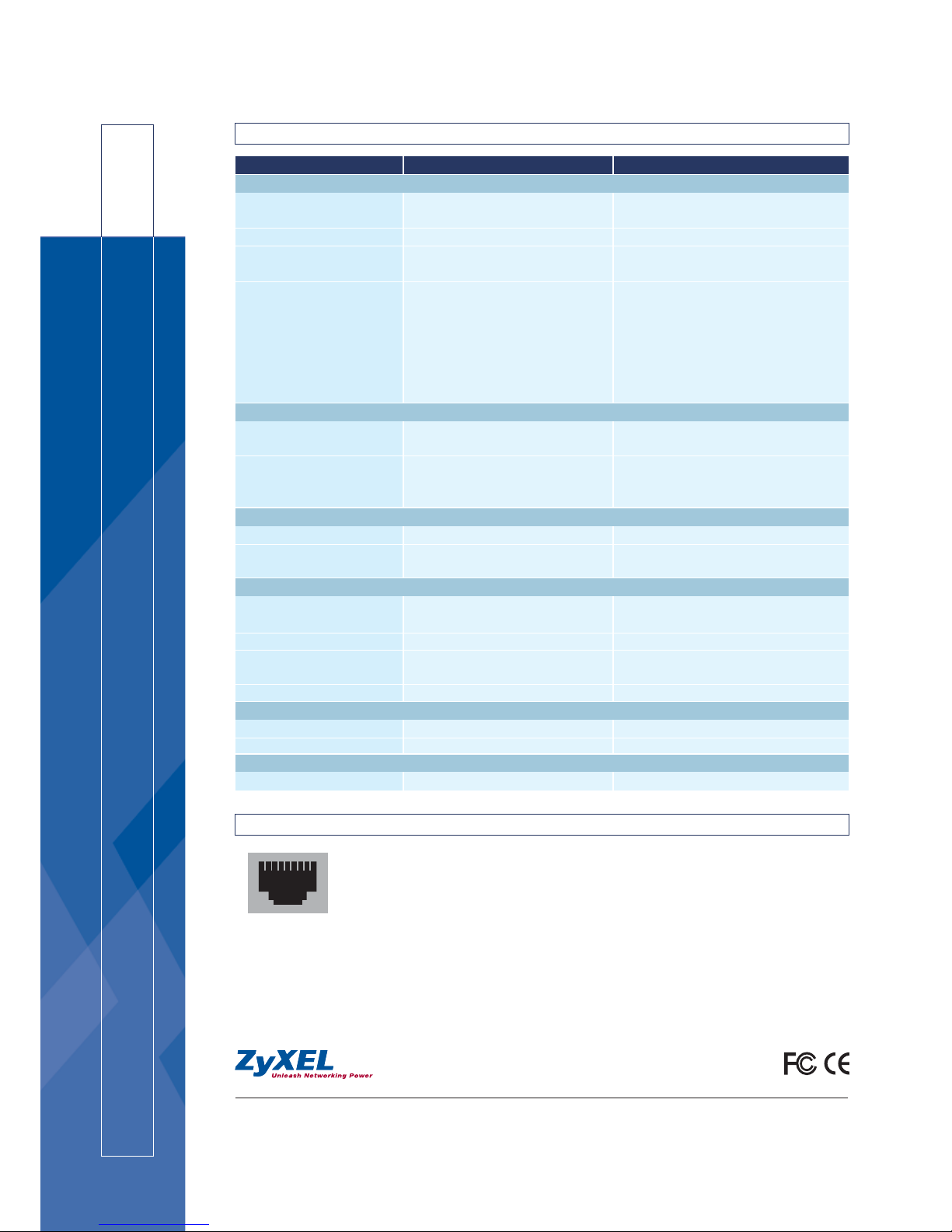

Item PoE-10 PoE-80

Technical Specification

Compatibility Compatible with certain ZyXEL --

PoE-enabled devices

Standards -- IEEE 802.3af

Management -- Microsoft Windows-based application for

power management

Power Management Functions -- • Current ports serviced list

• System total serviced power budget

• Power port disable/ enable

• Power support priority

• Power overload auto shut down

• Power port operation status

• Power consumption limit

Hardware Specification

LEDs • 1: PWR • System: Power

• 1: LNK • Per Port (2 LEDs): Power Forwarding, Power Off

Ports • 1 DATA RJ-45 Ethernet port • 8 DATA IN RJ-45 Ethernet ports

• 1 PWR&DATA PoE injector RJ-45 • 8 DATA OUT PoE injector RJ-45 Ethernet ports

Ethernet port • 1 RS-232 console port

Physical Specification

Weight 101g 2.7kg

Dimensions 74(L) x 102(D) x 30(H) mm 440(L) x 224(D) x 44(H) mm

(19” in width rack mountable)

Power Requirement

Power Output 15.4 Watts maximum -48V DC, 100 Watts maximum

Current (per port maximum): 350mA @ 48V DC

Power Output Current 350 mA maximum

Power Supply • Input: 100 ~ 240V AC, 50/60Hz 100 ~ 240V AC, 50/60Hz internal universal

• Output: 48V .5A power supply with fuse and power switch

Power Consumption 20 Watts maximum 130 Watts maximum

Operation Environment

Operating Temperature 5 ~ 50ºC (41 – 122ºF) 0 ~ 45ºC (32 – 104ºF)

Operational Humidity 10% - 90% 10% to 95% (Non-condensing)

Certification

EMI and Safety FCC Class B, CE, CSA FCC Class A, CE, UL, cUL

PIN NO RJ-45 SIGNAL ASSIGNMENT

1 Output Transmit Data +

2 Output Transmit Data -

3 Receive Data +

4 Power +

5 Power +

6 Receive Data -

7 Power -

8 Power -

12345678
