ENGLISH

Introduction

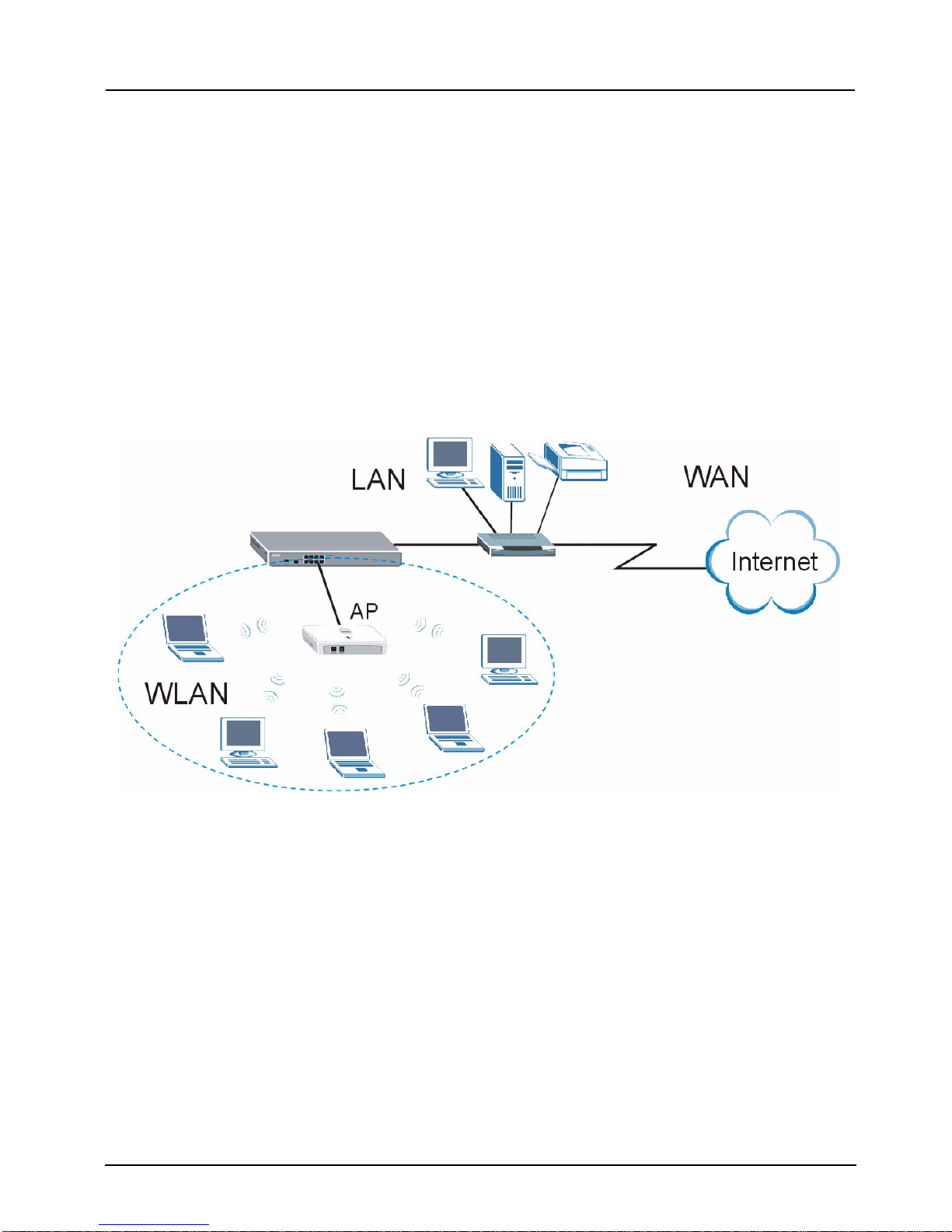

The NWA-8500 is an access point that receives power from a

PoE (power over Ethernet) WLAN controller. The NWA-8500

does not require a power adapter or power cord. You can just

deploy the NWA-8500 in your wireless network with a PoE

wireless switch. Through the NWA-8500 (labeled AP in the

following figure), wireless clients on the WLAN can access

the Internet or the wired network.

This guide shows you how to connect the NWA-8500 to a

WLAN controller and hang your NWA-8500 on a wall.

1 Hardware Connections

Follow the steps below to connect your NWA-8500 for

Internet access.

ENGLISH

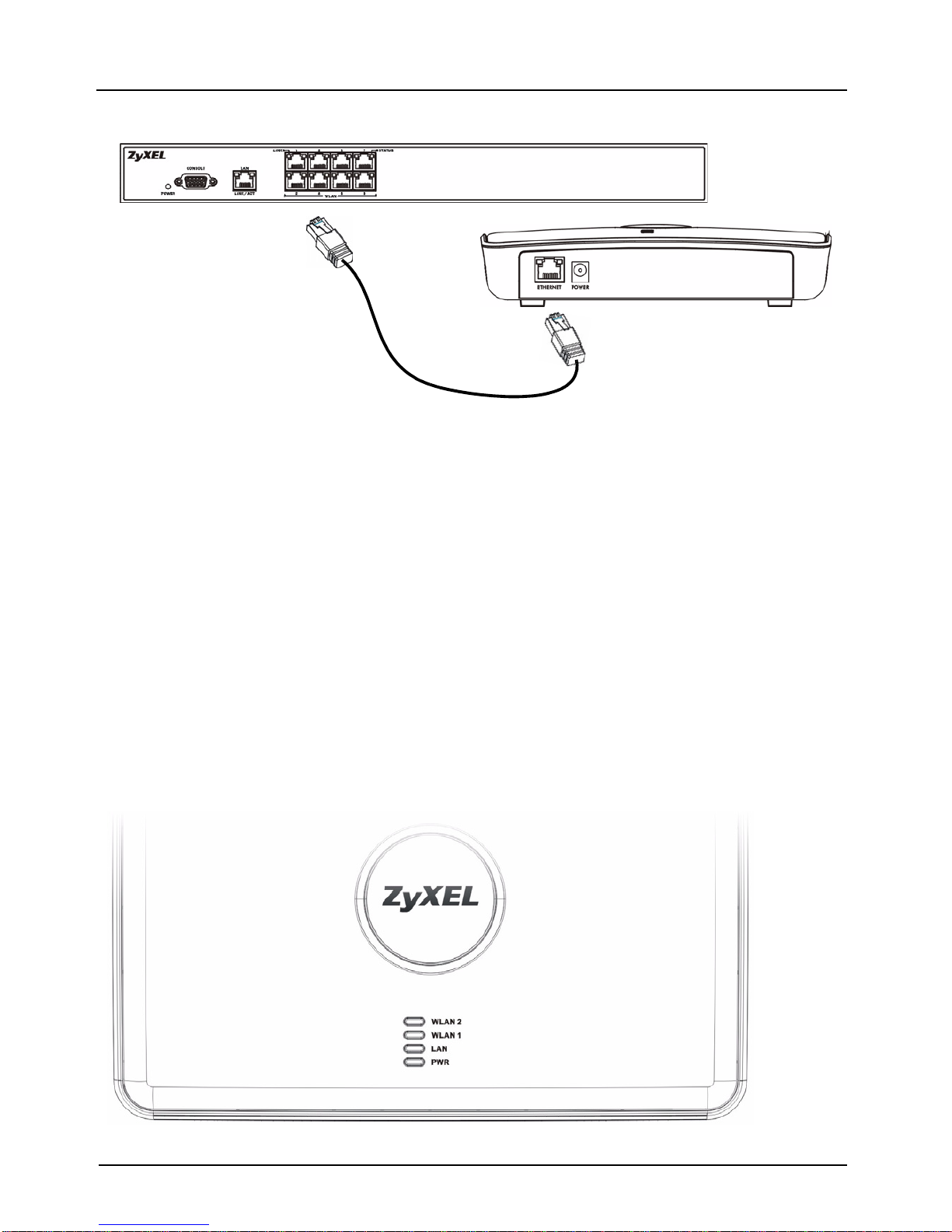

1Use the included Ethernet cable to connect the

ETHERNET port to a PoE WLAN controller’s WLAN port.

At the time of writing, you can connect only the NWA-8500

to the NXC-8160 model.

1.1 LEDs

Look at the LEDs (lights) on the NWA-8500.

The PWR, LAN, WLAN 1 and WLAN 2 LEDs are all on when

the Ethernet port is properly connected. The LAN, WLAN 1

and WLAN 2 LEDs blink when there is traffic.

ENGLISH

VIf none of the LEDs are on, check your

connections, and inspect your cable for

damage. Make sure that your wireless switch is

powered on. If the LEDs are still off, contact

your vendor.

2 Hardware Mounting

In general, the best location for the access point is at the

center of your intended wireless coverage area. For better

performance, mount the NWA-8500 in a place that is high up

and free of obstructions.

2.1 Wall-mounted

Follow the steps to attach your NWA-8500 to a wall.

"See Product Specifications for the size of

screws to use and how far apart to place them.

1Locate a high position on the wall that is free of

obstructions.

2Drill two holes for the screws.

ENGLISH

"Be careful to avoid damaging pipes or cables

located inside the wall when drilling holes for the

screws.

3Do not insert the screws all the way into the wall. Leave a

small gap of about 0.5 cm between the heads of the

screws and the wall.

4Make sure the screws are snugly fastened to the wall.

They need to hold the weight of the NWA-8500 with the

connection cables.

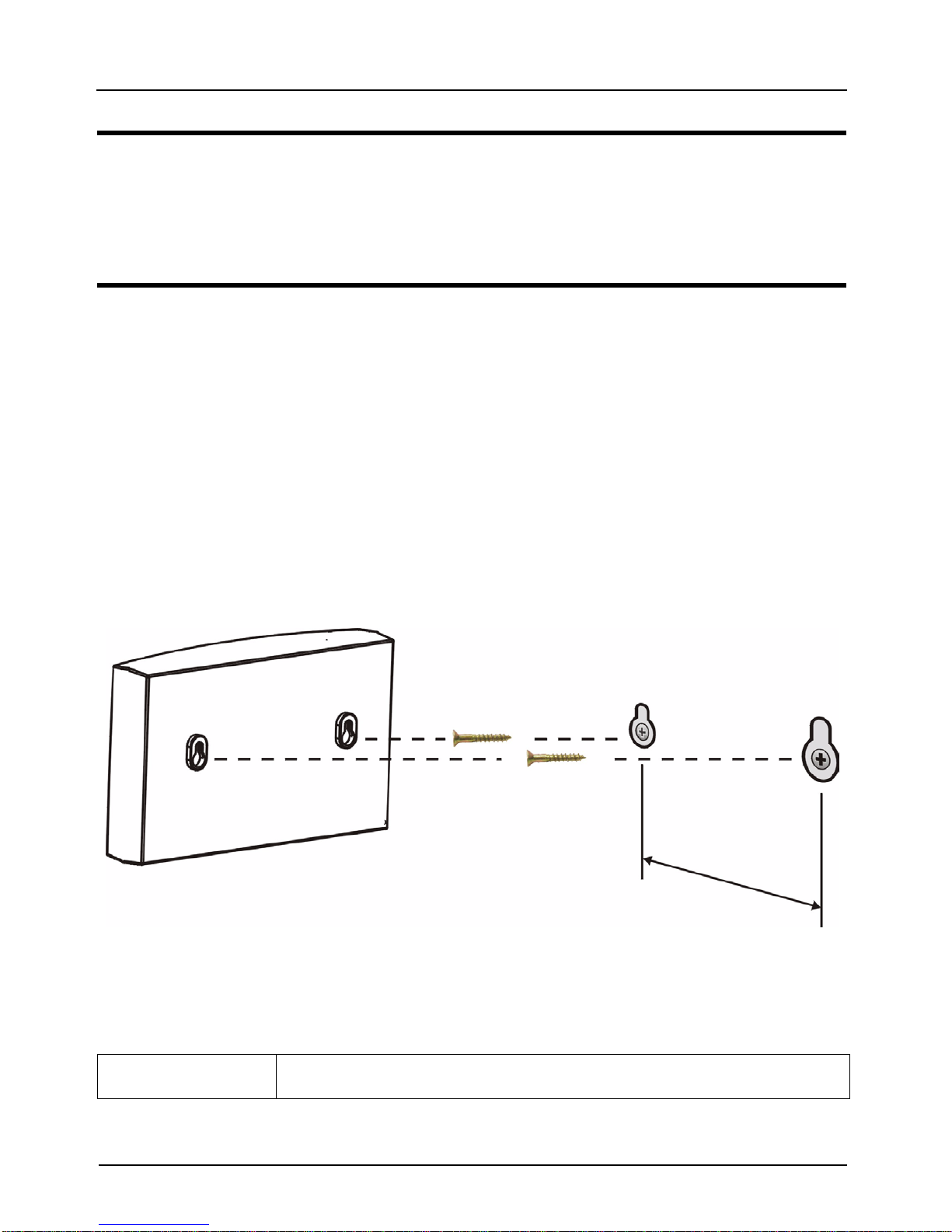

5Align the holes on the back of the NWA-8500 with the

screws on the wall. Hang the NWA-8500 on the screws.

Product Specifications

Dimension 198.5 (W) x 138.5 (D) x 47.5 (H) mm

ENGLISH

Weight 400 g

Connector One auto-negotiating, auto MDI/MDI-X 10/100

Mbps RJ-45 Ethernet port

Antenna Internal antennas with dual-band support (2.4

GHz and 5 GHz)

Distance between the centers of

the holes (for wall mounting) on

the device’s back.

140 mm

Recommended type of screws for

wall-mounting

M4 Tap Screw (see the

figure below)

Operating

Temperature

0º C ~ 50º C

Operating

Humidity

10% ~ 90% RH (non-condensing)

Approvals EMC: FCC Class B, CE-EMC Class B, C-Tick

Class B, VCCI Class B

Safety: CSA International, CE EN60950-1

ENGLISH

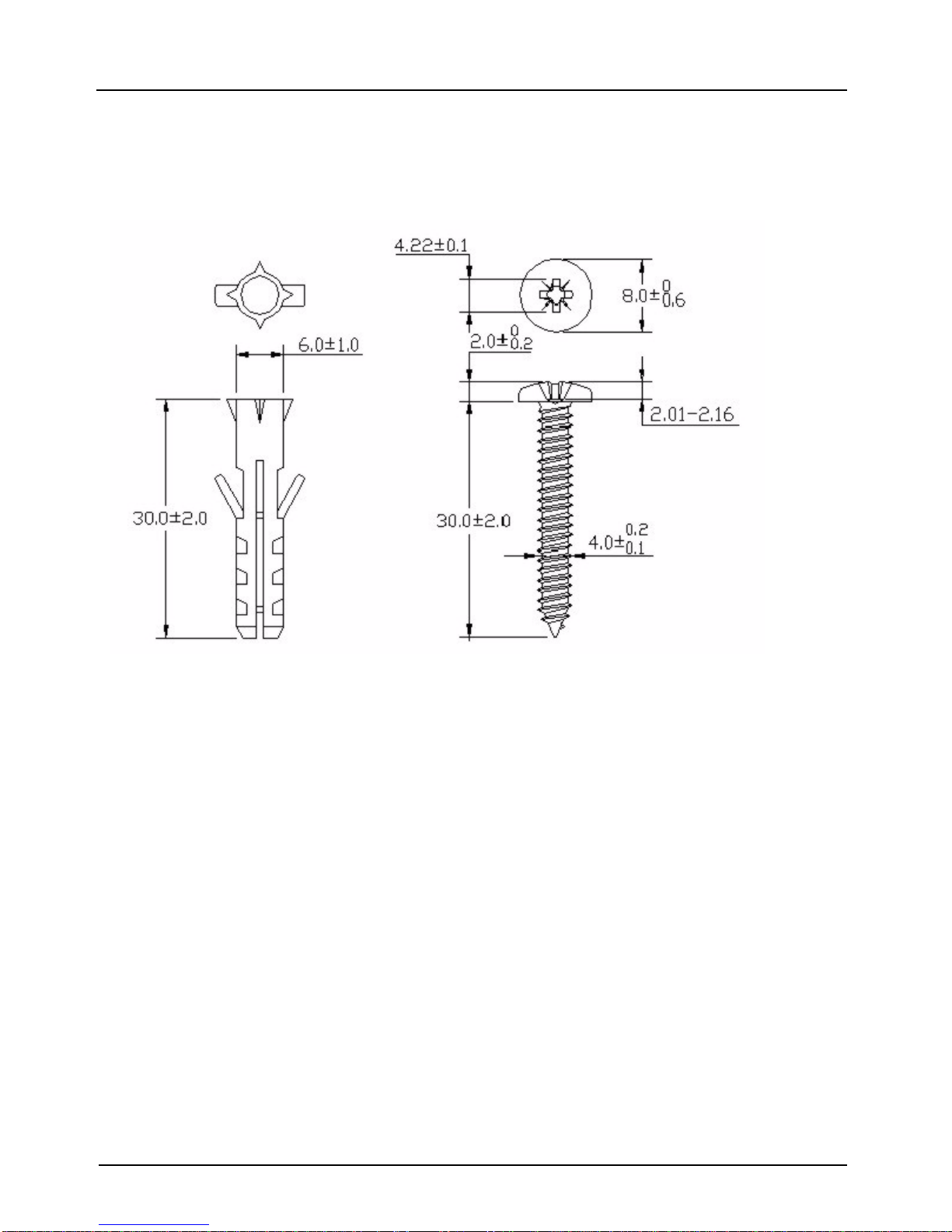

The following are dimensions of an M4 tap screw and

masonry plug used for wall mounting. All measurements are

in millimeters (mm).

Certifications

Federal Communications Commission (FCC)

Interference Statement

The device complies with Part 15 of FCC rules. Operation is

subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including

interference that may cause undesired operations.

ENGLISH

This device has been tested and found to comply with the

limits for a Class B digital device pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This device generates, uses, and can radiate

radio frequency energy, and if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation.

If this device does cause harmful interference to radio/

television reception, which can be determined by turning the

device off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the

receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for

help.

ENGLISH

FCC Radiation Exposure Statement

• This transmitter must not be co-located or operating in con-

junction with any other antenna or transmitter.

• For operation within 5.15 ~ 5.25GHz frequency range, it is

restricted to indoor environment.

• IEEE 802.11b or 802.11g operation of this product in the

U.S.A. is firmware-limited to channels 1 through 11.

• To comply with FCC RF exposure compliance requirements,

a separation distance of at least 20 cm must be maintained

between the antenna of this device and all persons.

注意 !

依據低功率電波輻射性電機管理辦法

第十二條經型式認證合格之低功率射頻電機，非經許

可，公司、商號或使用者均不得擅自變更頻率、加大功率

或變更原設計之特性及功能。

第十四條低功率射頻電機之使用不得影響飛航安全及

干擾合法通信；經發現有干擾現象時，應立即停用，並改

善至無干擾時方得繼續使用。

前項合法通信，指依電信規定作業之無線電信。低功率

射頻電機須忍受合法通信或工業、科學及醫療用電波輻射

性電機設備之干擾。

在 5250MHz~5350MHz 頻帶內操作之無線資訊傳輸設備，

限於室內使用。

ENGLISH

Notices

Changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to

operate the equipment.

This device has been designed for the WLAN 2.4 GHz and 5

GHz networks throughout the EC region and Switzerland,

with restrictions in France.

This Class B digital apparatus complies with Canadian ICES-

003.

Cet appareil numérique de la classe B est conforme à la

norme NMB-003 du Canada.

Viewing Certifications

1Go to http://www.zyxel.com.

2Select your product on the ZyXEL home page to go to that

product's page.

3Select the certification you wish to view from this page.

Safety Warnings

"For your safety, be sure to read and follow all

warning notices and instructions.
