ZyXEL Communications P-3202H-Bb Manuale utente

G-PON VoIP IAD

Firmware v1.0

Edition 1, 09/2009

P-3202H-Bb

DEFAULT LOGIN DETAILS

IP Address: http://192.168.1.1

User Name admin

Password: 1234

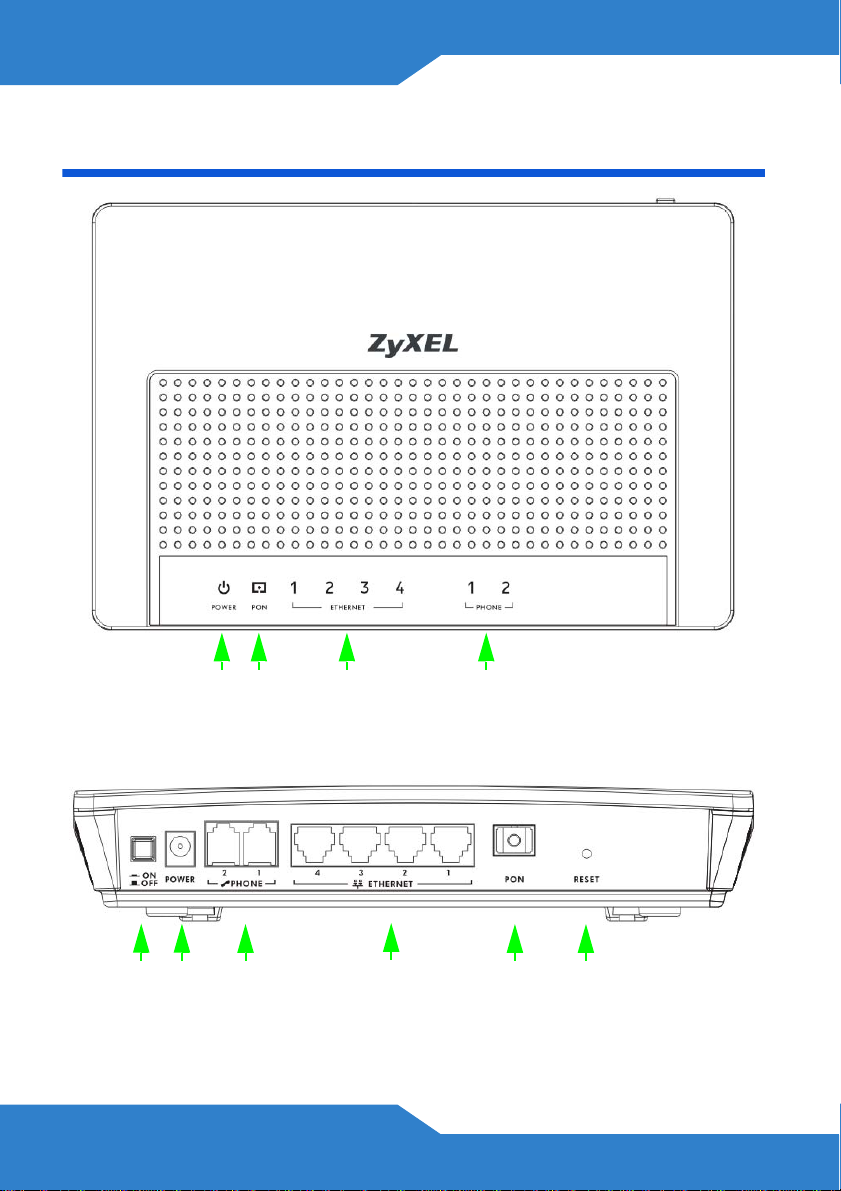

Device Panels

POWER ETHERNET

1~4 PHONE

1~2

PON

ON/OFF POWER ETHERNET

1~4

PHONE

1~2 PON

PORT

PORT RESET

ENGLISH

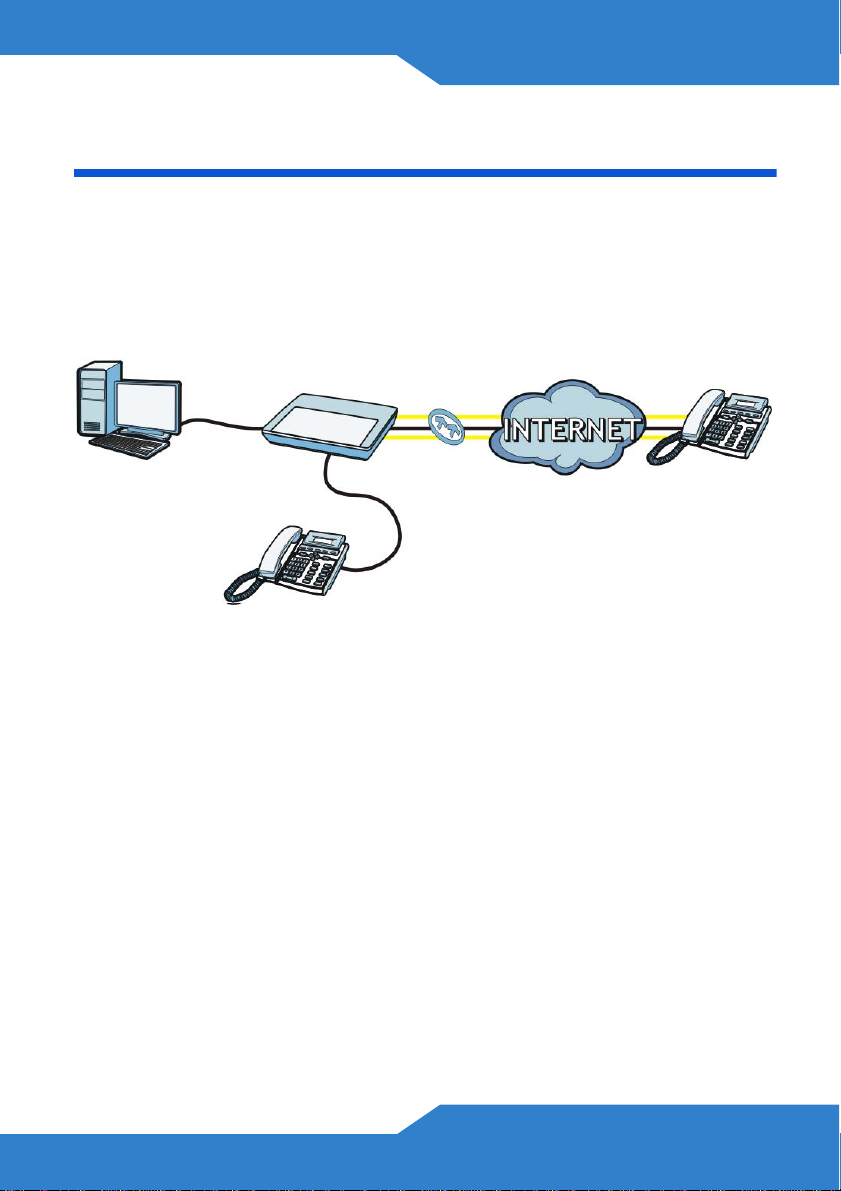

Overview

This device is an Integrated Access Device (IAD) which combines high-

speed fiber optic (G-PON) Internet access, a built-in switch, and Voice

over IP (VoIP) technology to allow you to use an analog telephone to

make phone calls over the Internet.

In This Guide, You Will:

• Make the hardware connections to set up your device.

• Configure your Internet access using the software built into the

device. (In some regions these settings may already be

preconfigured by your ISP.)

• Configure your VoIP settings in order to make phone calls over the

Internet using an analog phone.

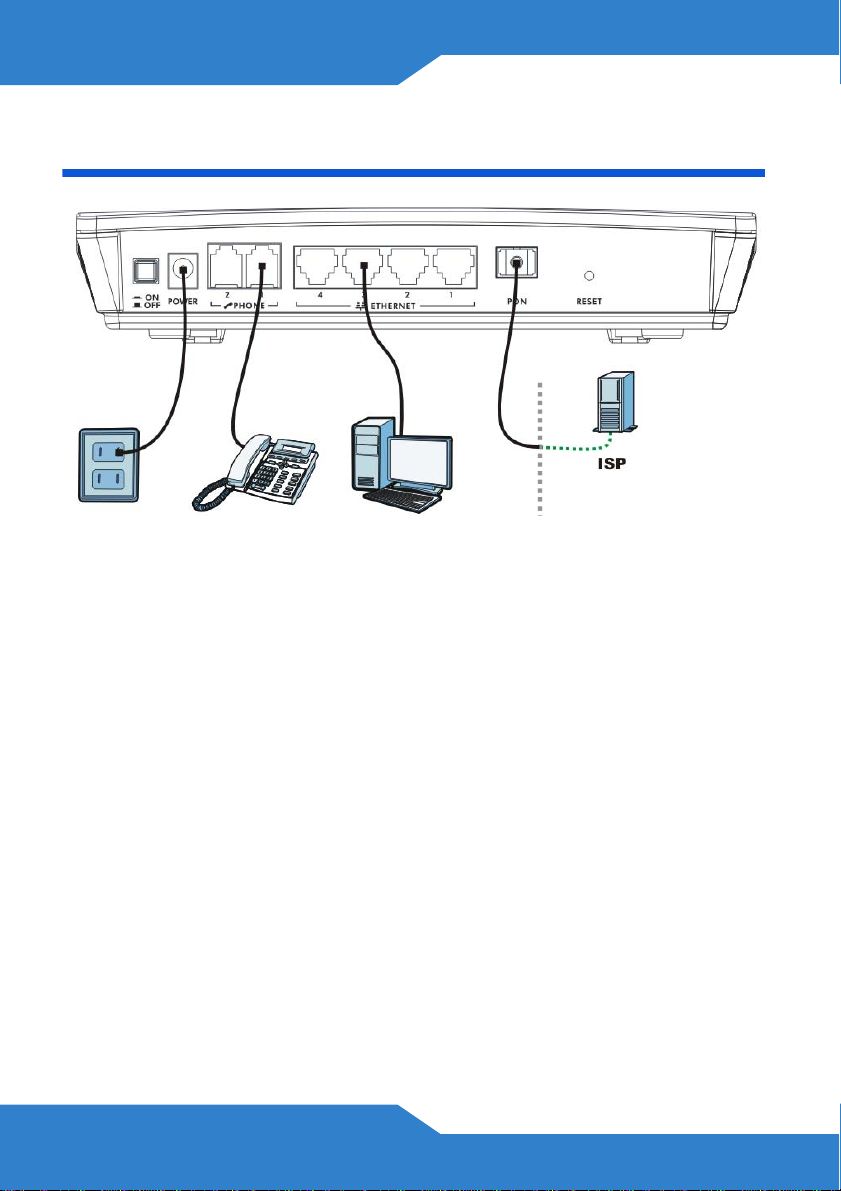

Hardware Connections

1. PON: Connect the fiber optic cable from your ISP to this port.

2. ETHERNET: Use an Ethernet cable to connect a computer to one of

these ports for initial configuration and/or Internet access.

3. PHONE: Use a telephone cable (and any telephone adapter provided

with your device) to connect your telephone to the PHONE 1 port.

4. POWER: Use the power adapter provided with your device to connect

an appropriate power source to this socket.

5. Push the power switch to the on position.

234

ENGLISH

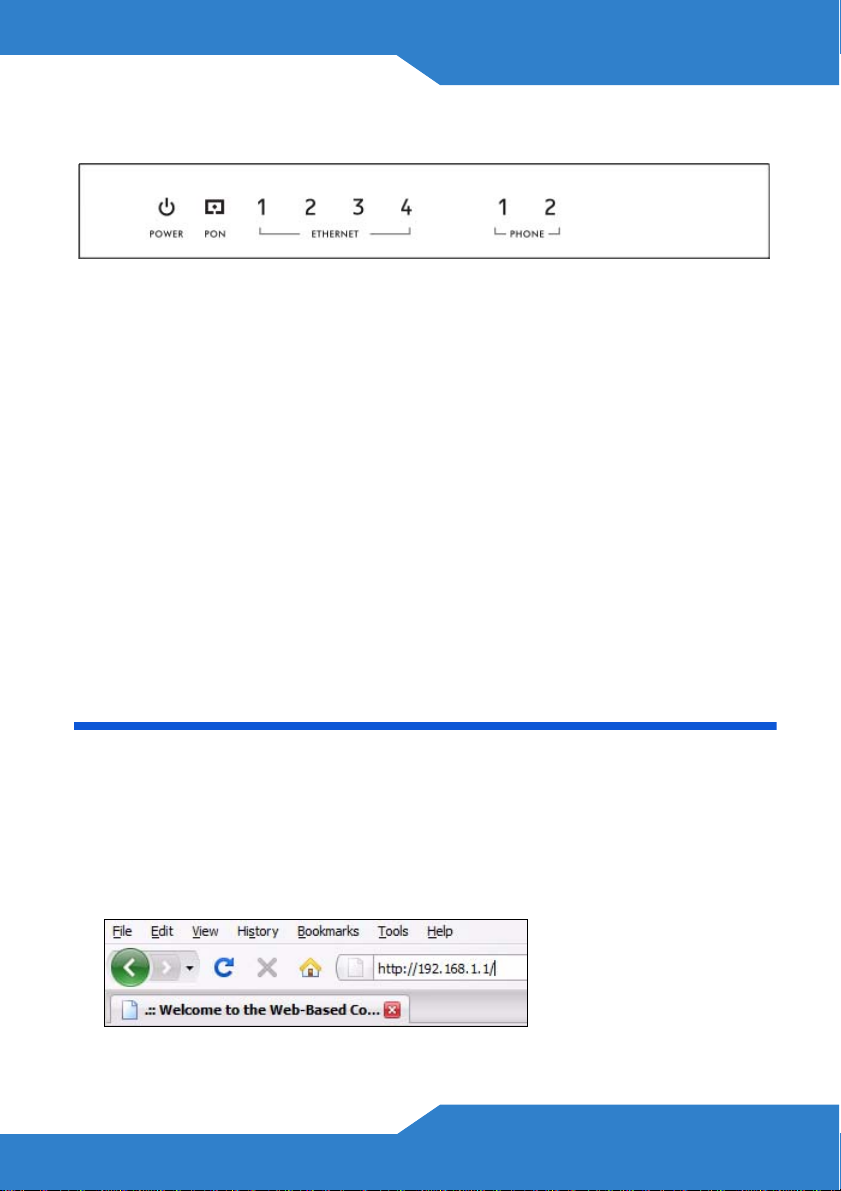

Look at the LEDs (lights) on the top panel of the device.

• The POWER light blinks during start-up and is green once the

device is ready. If it turns red, then that means there has been a

failure during the start up routine.

• Each ETHERNET light turns on if its corresponding port is properly

connected to a computer. The lights blink when the device is

sending or receiving data through the corresponding port.

• The PON light stays on if a physical fiber optic connection exists

and blinks when transmitting data. If it is off, then it means the

device cannot connect to the ISP or an error has occured.

• The PHONE lights stay on when your SIP account is registered and

they blink if the receiver is off the hook.

The Web Configurator

The Web Configurator allows you to set up your device so that you

access the Internet or place VoIP phone calls.

1. Open your browser and enter http://192.168.1.1 (the device's default

IP address) as the address.

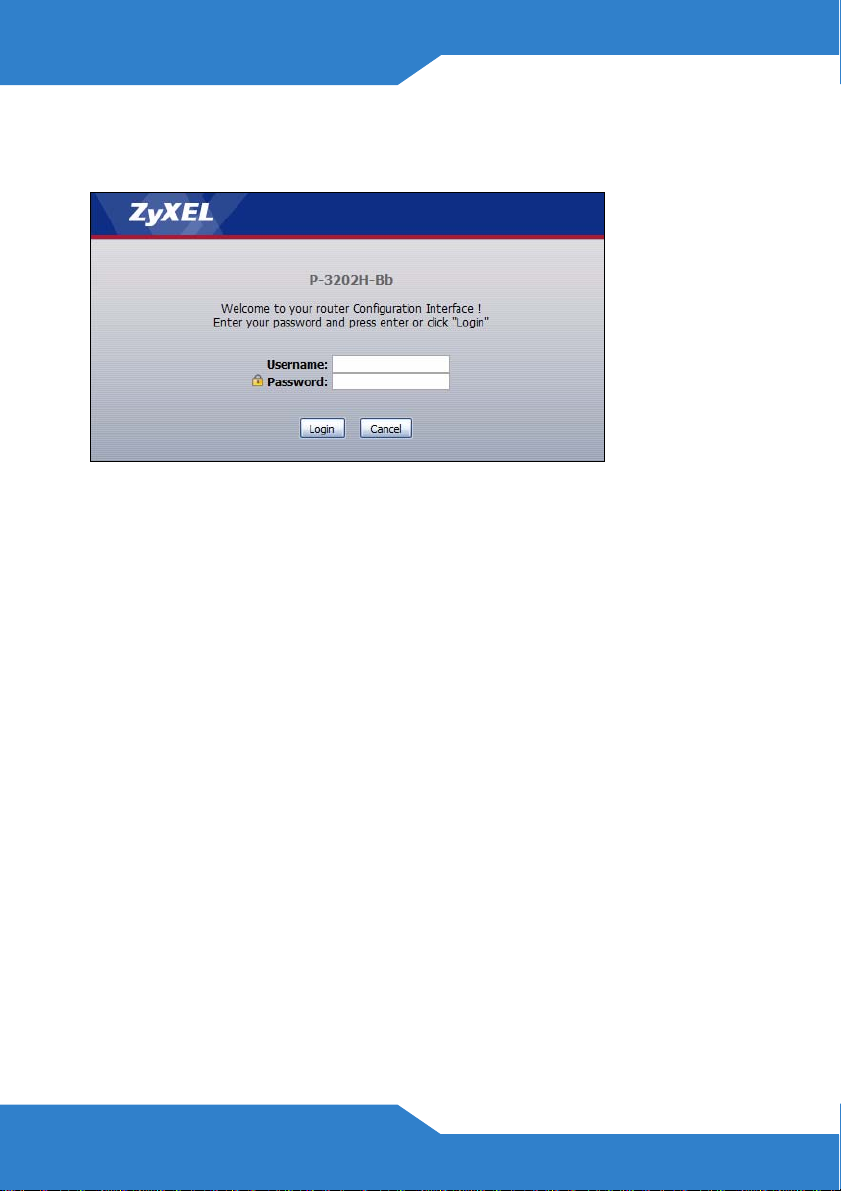

2. Enter the user name admin (default) and Password, then click the

If the login screen does not display, make sure you allow web

browser pop-up windows, JavaScript and Java permissions. Your

computer should be also set to get an IP address automatically from

a DHCP server. See the User’s Guide for more information.

Internet Setup

This section shows you how to configure your device’s connection

settings so that you can access the Internet.

Be sure to use any connection settings provided by your ISP. This

includes user name, password, IP address, and DNS server.

1. Log into the Web Configurator as described in the previous section.

ENGLISH

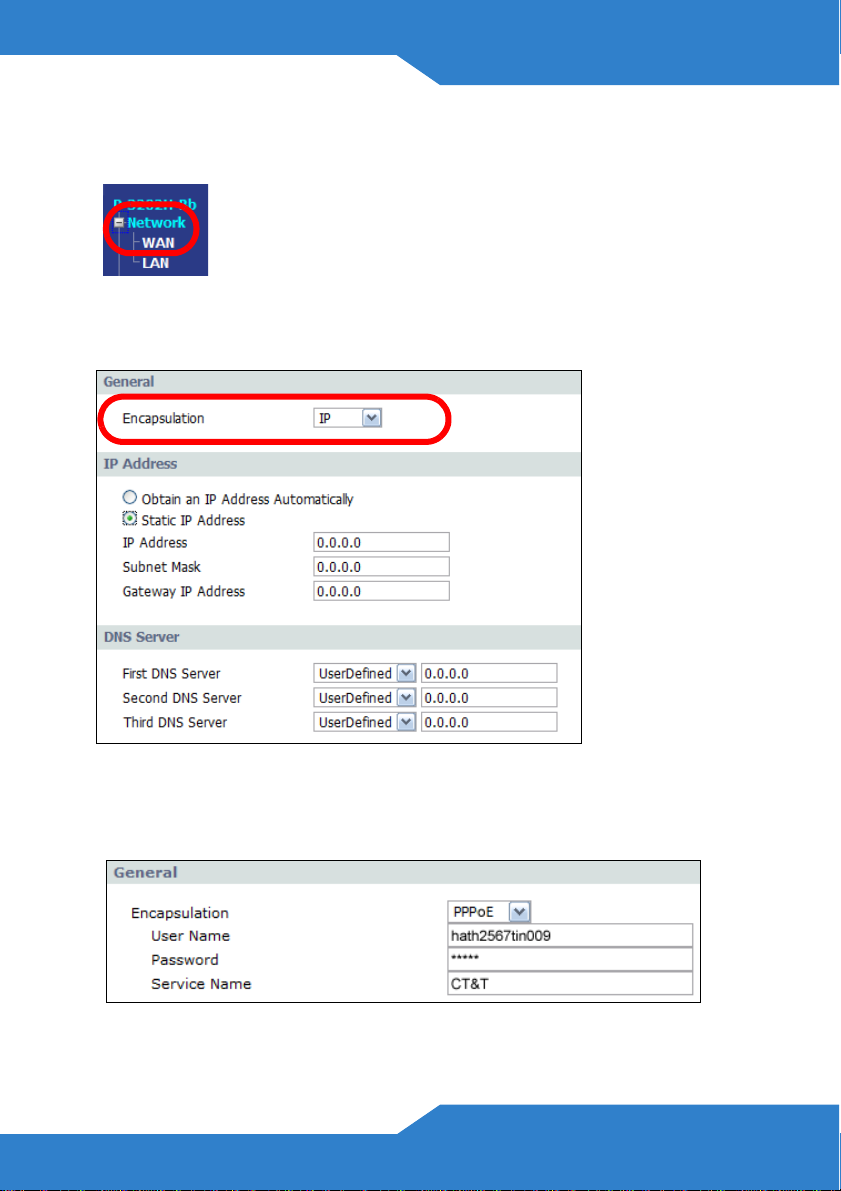

2. When the Status screen displays, expand the Network menu in the

navigation pane and then click WAN.

3. When the Internet Access Setup screen displays, select an

Encapsulation method.

If you choose PPPoE encapsulation, then you must enter a User

Name and Password. The Service Name is optional, but usually

corresponds to the name of the ISP for easy reference later.

If you choose IP encapsulation, then you must enter a method for

obtaining an IP address on your device. Choose Obtain an IP

address automatically if your ISP dynamically assigns IP addresses

with a DHCP server.

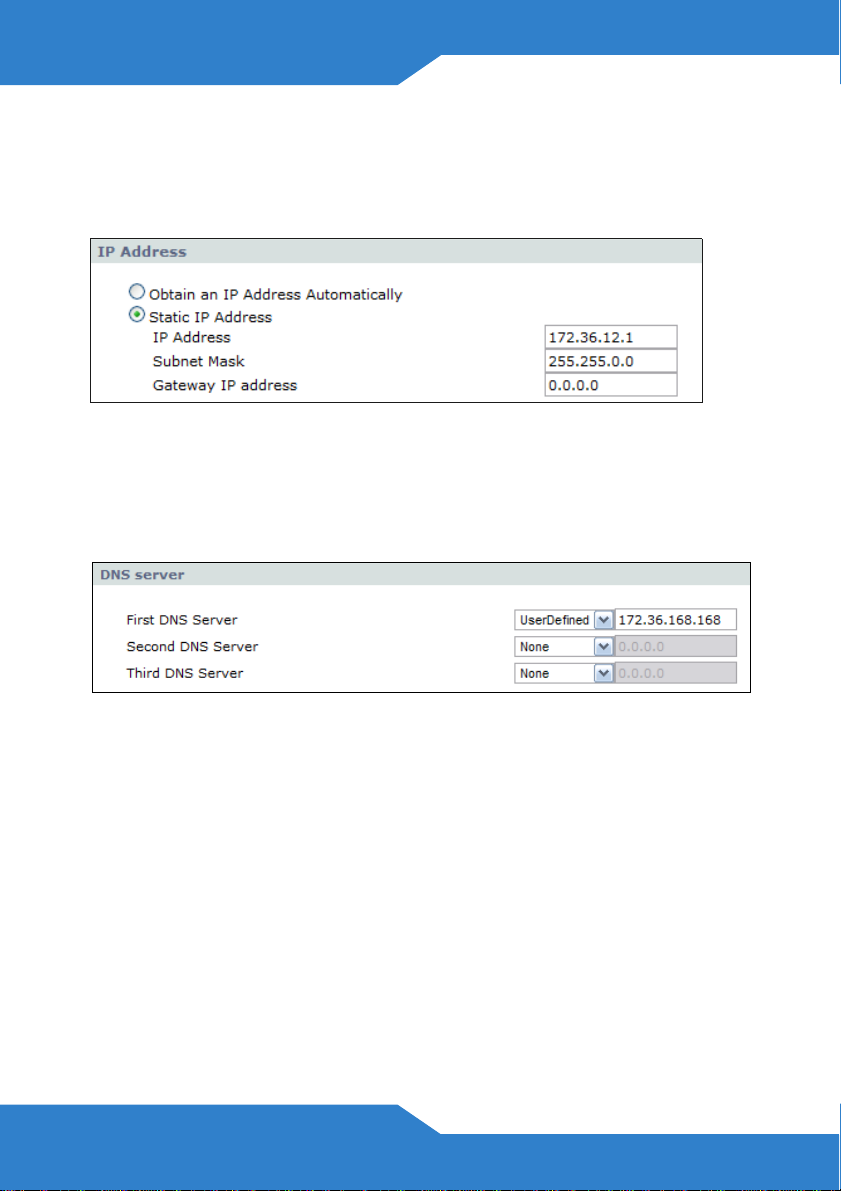

Otherwise, choose Static IP Address and enter the information as

provided by your ISP.

4. If your ISP uses one or more DNS servers, enter their IP addresses.

5. Finally, click Apply to save your changes.

ENGLISH

VoIP Setup

This section shows you how to configure your Voice over IP (VoIP)

settings so that you can place calls over the Internet. When you make

Internet phone calls, your device utilizes a protocol known as ‘SIP’.

Be sure to use any connection settings that may have been provided by

your VoIP service provider. This includes SIP number, SIP Server

Address, and SIP username and password.

1. Log into the Web Configurator as described in the previous section.

2. When the Status screen displays, expand the VoIP menu in the

navigation pane and then click SIP.

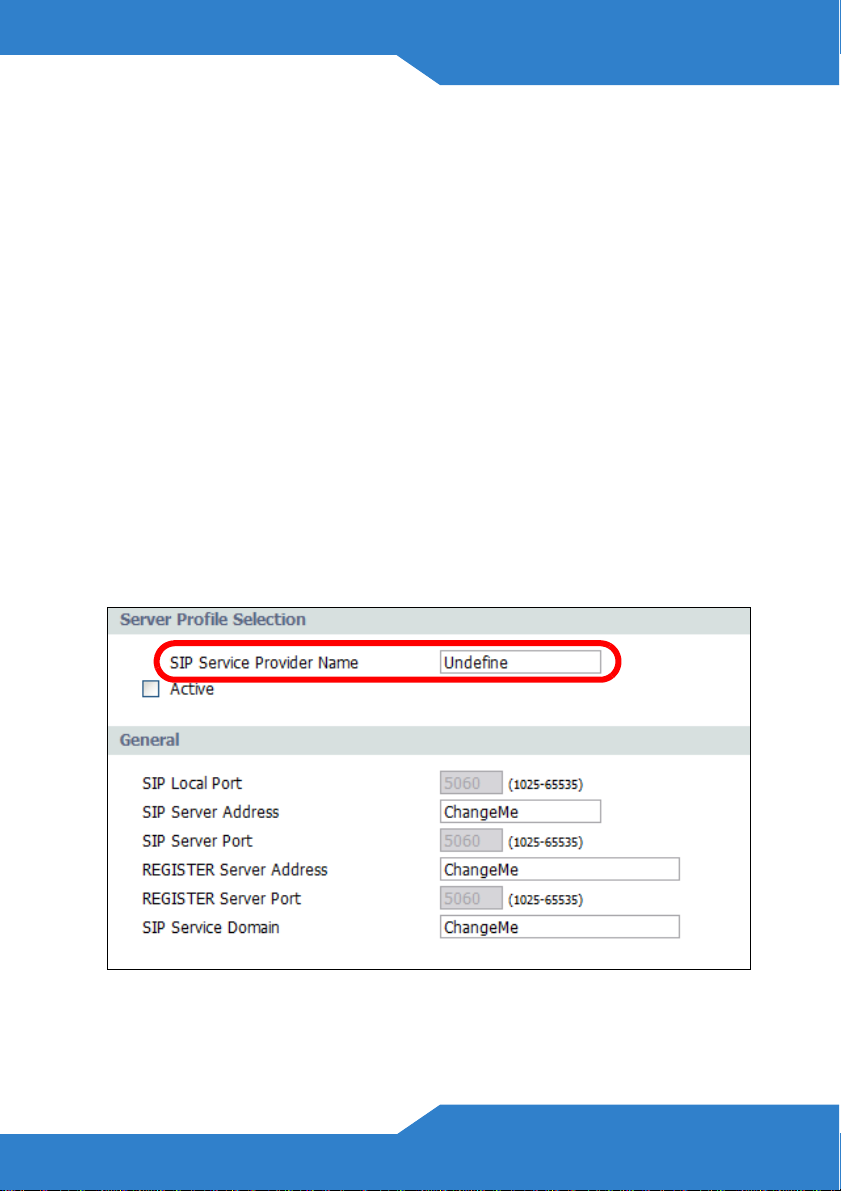

3. On the SIP Service Provider screen, enter a SIP Service Provider

Name in the space provided.

4. Select Active, then enter the following information as it was provided

by your VoIP service provider:

• SIP Local Port - This is the “listening” port to which incoming call

requests are received.

• SIP Server Address - This is the IP address or domain name of

the SIP server.

• SIP Server Port - This is the “listening” port on the SIP server to

which outgoing calls are sent.

• REGISTER Server Address - This is the IP address or domain

name of the SIP account registration server. If your VoIP service

provider did not give you this information then you can use the

SIP server address.

• REGISTER Server Port - This is the SIP register server’s

“listening” port to which registration requests are sent. If your

VoIP service provider did not give you this information then you

can use the SIP server port number.

• SIP Service Domain - This is a domain name used by the SIP

service. If your VoIP service provider listed the full SIP address,

then it is the portion after the “@” symbol. For example, if you

were given a SIP service domain of “112233445566@voip-

provider.com” then the value you put in this field would be “voip-

provider.com”.
