ZyXEL Communications WAP3205 Manuale utente

WAP3205

Wireless N Access Point

Quick Start Guide

Version: 2.00

Wireless N Access PointWireless N Access Point

trademarks of ZyXEL Communications Corp.All other brands, product names, or trademarks mentioned

are the property of their respective owners. All specifications are subject to change without notice.

This product is designed for the 2.4 GHz WLAN network throughout the EC region.

http://www.zyxel.com/index.php

A6 105(W) x 150(H) mm

www.zyxel.com

WAP3205

Wireless N Access Point

Version 1.00

Edition 2, 6/2010

DEFAULT LOGIN DETAILS

LAN Port: LAN ~ LAN 2

IP Address http://192.168.1.2

Password: 1234

CONTENTS

ENGLISH 5

DEUTSCH 15

ESPAÑOL 25

FRANÇAIS 35

ITALIANO 45

SVENSKA 55

NEDERLANDS 65

繁體中文 75

2009 ZyXEL Communications Corporation

ENGLISH

Device Panels

RESET

LAN 1 ~ LAN 2

POWER

WPS

POWER WLAN

LAN 1 ~ LAN 2

ENGLISH

Overview

The WAP3205 is a wireless access point (AP) that

allows wireless clients to connect to a wired network

and the Internet.

The WAP3205 can act as a repeater or bridge to extend

your wireless network. It can also work as a wireless

client to access the wired network through another AP.

See your User’s Guide for detailed information.

The Quick Start Guide shows you how to:

•Set Up a Wired Network with Internet Access

•Set Up a Wireless Network with WPS

•Set Up Your Wireless Network using the Web

Configurator

ENGLISH

Set Up a Wired Network with

Internet Access

ENGLISH

1. Make the following hardware connections to set up

your WAP3205:

• Connect the antennas (A) to the antenna sockets,

ensuring they are screwed in firmly and angled

upwards.

• Connect the Ethernet port on your computer to a LAN

port (B) on the WAP3205 using an Ethernet cable.

• Connect another LAN port (C) on your WAP3205 to

the Ethernet port on the device with which you are

accessing the Internet (for example, a modem) using

an Ethernet cable.

• Use the power adapter (D) from the package to

connect the POWER socket to an appropriate power

source.

2. Check your Internet connection. Open a web

browser on your computer and enter www.zyxel.com

in the address bar.

 If you cannot access the Internet, make sure the

WAP3205’s IP address is in the same subnet as

your broadband modem or router and restart your

WAP3205. See the User’s Guide for information

on setting up the WAP3205’s IP address.

Set Up a Wireless Network with

WPS

Use Wi-Fi Protected Setup (WPS) to let WPS-enabled

wireless devices securely access the WAP3205.

Check if your wireless device has the

WPS logo and follow these steps to set

up your wireless network using WPS.

2 minutes

ENGLISH

1. Make sure your WAP3205 is turned on (A). Place

your wireless device within range of the WAP3205.

2. Press the WPS button for two to three seconds on

the WAP3205 as well as the WPS button on the

wireless adapter connected to your notebook (B). It

doesn’t matter which button is pressed first. You

must press the second button within two minutes of

pressing the first one.

The WPS LED ( ) on the WAP3205 blinks during the

WPS process, then shines steadily when the WPS

process is finished.

If your WPS connection is successful, you should

now be able to access the WAP3205.

3. Connect a LAN port (C) on your WAP3205 to your

broadband modem. You are now ready to connect to

the Internet wirelessly through your WAP3205.

 If your wired Internet connection is fine but your

wireless connection is not, repeat step 3. If WPS

is not working or your wireless device does not

support WPS, go to the next section.

Set Up Your Wireless Network

using the Web Configurator

1. Set your computer’s IP address to be between

192.168.1.3 and 192.168.1.254 with subnet mask

255.255.255.0. Connect the computer to the

WAP3205.

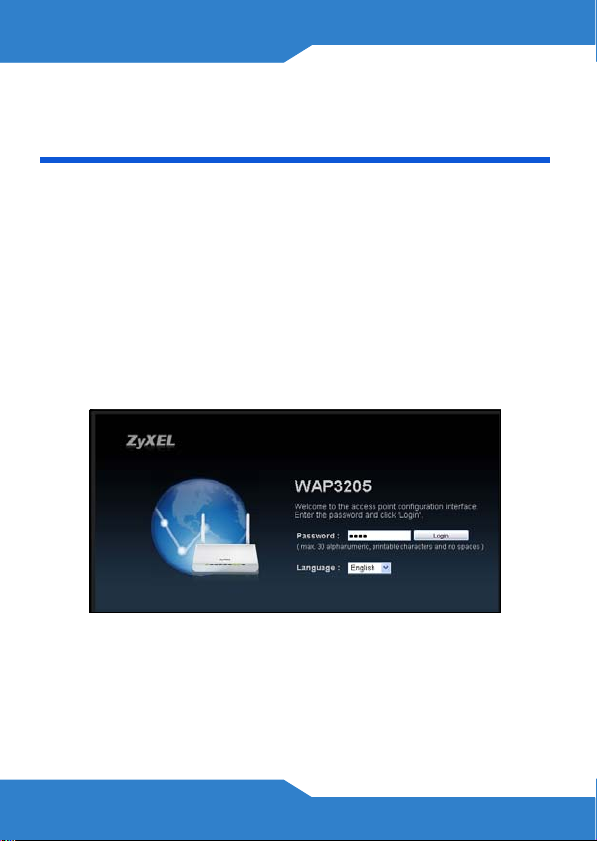

2. Open a web browser on the computer connected to

the WAP3205. Type "http://192.168.1.2" as the

website address. Enter "1234" (default) as the

password, choose your Language and click Login.
