ABB Slimline XRG1 Manuale utente

—

I N S TA LL AT ION I N S T R U C T I O N

Switch Disconnector Fuse

Slimline XRG1

—

Switch Disconnector Fuse

Slimline XRG1 rev. A / 1SEQ100099P0001

—

Table of contents

01 Use of symbols

ITS

EFM

Motor operation

14 Fuse replacement

15 Accessory

04 Busbar overview

Manual operation

SWI TCH DIS CON NEC TO R FUS E, XR G1

Hazardous voltage

Warns about a situation where a hazardous

voltage may cause physical injury to a per-

son or damage to equipment.

General warning

Warns about a situation where something

other than electrical equipment may cause

physical injury to a person or damage to

equipment.

—

Use of symbols

Caution

Provides important information or warns

about a situation that may have a detrimen-

tal effect on equipment.

Information

Provides important information about the

equipment.

—

Receiving, handling and storage

Receiving and handling

Upon receipt, carefully inspect the switch

for damage that may have occurred during

transit. If damage is evident, or there is vis-

ible indication of rough handling, immedi-

ately file a damage claim with the transpor-

tation company, and notify your local ABB

sales office.

Do not remove the shipping package until

ready to install the switch.

Storage

If the unit will not be placed into service im-

mediately, store the switch on its original

package in a clean, dry location. To prevent

condensation, maintain a uniform tempera-

ture. Store the unit in a heated building, al-

lowing adequate air circulation and protec-

tion from dirt and moisture. Storing the

unit outdoors could cause harmful conden-

sation inside the switch enclosure.

HAZARD OF EQUIPMENT

OVERTURNING

When moving with a fork lift, do not re-

move the shipping package until the device

is in its final location.

Failure to follow this instruction will result

in personal injury or equipment damage.

Warning

2SWI TC H D ISCO NN ECTOR FU SE, XRG 1

—

Read these safety instructions

carefully before using this product!

HAZARD OF ELECTRIC SHOCK,

EXPLOSION, OR ARC FLASH

• Apply appropriate personal protective

equipment and follow safe electrical work

practices.

• This equipment must only be installed

and serviced by qualified electrical per-

sonnel.

• Before performing visual inspections,

tests, or maintenance on the equipment,

disconnect all sources of electric power.

Assume that all circuits are live unless

they are completely deenergized, tested,

grounded, and tagged. Pay particular at-

tention to the design of the power sys-

tem. Consider all sources of power, in-

cluding the possibility of backfeeding.

• Turn off switch before removing or mak-

ing load side connections.

• Always use a properly rated voltage sens-

ing device at all line and load to confirm

switch is off.

• Turn off power supplying switch before

doing any other work on or inside switch.

Failure to follow these instructions could

result in death or serious injury.

Danger

SWI TCH DIS CON NEC TO R FUS E, XR G1

—

Busbar overview

A B C

50/5-2p

100

50/5-3p

50/5-4p

50/10-2p

100

50/10-3p

50/10-4p

4SWI TC H D ISCO NN ECTOR FU SE, XRG 1

—

Busbar overview

185/10-2p

370

77.5

185/10-3p

185

77.5

185/10-4p

185

97.5

77.5

SWI TCH DIS CON NEC TO R FUS E, XR G1

—

Manual operation

45°

(4)

6SWI TC H D ISCO NN ECTOR FU SE, XRG 1

—

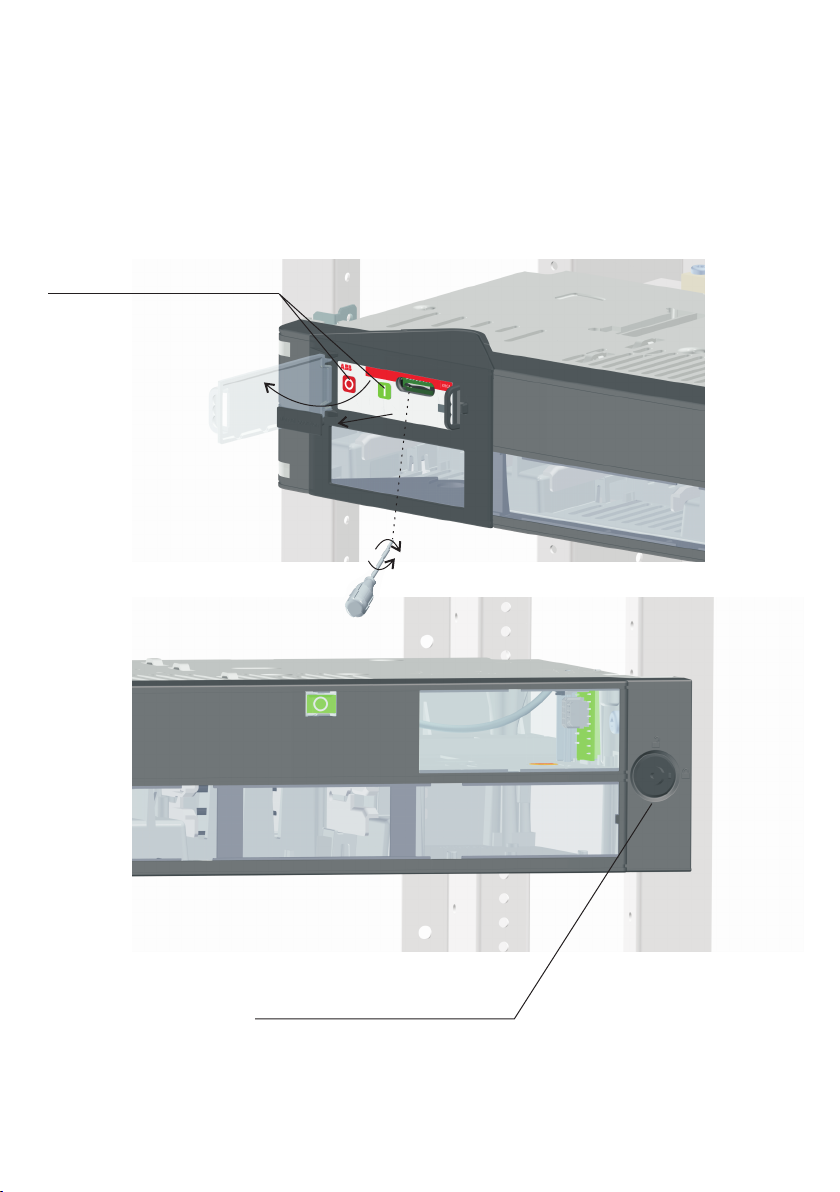

Motor operation

45°

5(5)

SWI TCH DIS CON NEC TO R FUS E, XR G1

—

Motor operation

Front cover must be

locked before operating

Open

8SWI TC H D ISCO NN ECTOR FU SE, XRG 1

Signal: >0.5 sec or permanent
