Abit AB-BH6 Manuale utente
Copyright and Warranty Notice
The information in this document is subject to change without notice and does
not represent a commitment on part of the vendor, who assumes no liability or
responsibility for any errors that may appear in this manual.
No warranty or representation, either expressed or implied, is made with
respect to the quality, accuracy or fitness for any particular part of this
document. In no event shall the manufacturer be liable for direct, indirect,
special, incidental or consequential damages arising from any defect or error
in this manual or product.
Product names appearing in this manual are for identification purpose only
and trademarks and product names or brand names appearing in this
document are property of their respective owners.
This document contains materials protected under International Copyright
Laws. All rights reserved. No part of this manual may be reproduced,
transmitted or transcribed without the expressed written permission of the
manufacturer and authors of this manual.
If you do not properly set the motherboard settings causing the motherboard
to malfunction or fail, we cannot guarantee any responsibility.
Part No: MN-130-2A6-61 Rev:1.06
BH6 Motherboard
USER’S MANUAL
Table of Contents
Chapter 1 Introduction of BH6 Features
(1) Specifications 1-1
Layout diagram 1-3
The system block diagram 1-4
Chapter 2 Installing the Motherboard
Installing the Motherboard to the Casing 2-2
Standard External Connectors 2-4
Jumper and Switches 2-9
(4) Installation of the PentiumII/III, Celeron™CPU 2-10
(5) Installing System Memory 2-11
Chapter 3 Introduction of BIOS
(1) CPU Setup 3-3
(2) Standard CMOS Setup Menu 3-8
(3) BIOS Features Setup Menu 3-11
(4) Chipset Features Setup Menu 3-17
(5) Power Management Setup Menu 3-21
(6) PNP/PCI Configuration 3-28
(7) Load Setup Defaults 3-30
(8) Integrated Peripherals 3-31
(9) Password Setting 3-35
(10) IDE Hard Disk Detection 3-35
(11) Save & Exit Setup 3-36
(12) Exit Without Saving 3-36
Appendix A Quick Installation
Appendix B General Discussion About HDD Installation
Appendix C Flash BIOS User Instructions
Appendix D How to install the IDE Bus Master driver
Appendix E How to install the PCI bridge driver for 440BX chipset
Appendix F Install HighPoint XStore Pro Utility
Appendix G Technical Support
IntroductionOfBH6Features 1-1
Chapter 1
Introduction Of BH6 Features
The motherboard is designed for a new generation CPUs. It supports the Intel SLOT1
structure (PentiumII/III and Celeron™ processors), up to 768MB of memory, super I/O,
and Green PC functions. The motherboard provides high performance for server
systems and meets the requirements for desktop system for multimedia in the future.
(1) Specifications
1. CPU
!CPU SOFT MENU™ II eliminates the need for jumpers or DIP switches
needed to set CPU parameters
!Employs switching type regulators to stabilize CPU operation
!Supports 66 and 100MHz MHz CPU external clock speeds
!Supports Intel®Pentium®III 450 ~ 500MHz processor cartridge (Based on
100MHz)
!Supports Intel®Pentium®II 350 ~ 450MHz processor cartridge (Based on
100MHz) and Pentium®II 233 ~ 333MHz processor cartridge (Based on
66MHz)
!Supports Intel®Celeron™ 266MHz~466MHz processor (Based on 66MHz)
2. Chipset
!Intel®440BX chipset (82443BX and 82371EB)
!Supports Ultra DMA/33 IDE protocol
!Supports Advanced Configuration and Power Management Interface(ACPI)
!Accelerated Graphics Port connector supports AGP 1x and 2x mode (Sideband)
3.3V device
3. Cache Memory
!Level 1 and Level 2 cache built into Intel®Pentium®II/III processor cartridge
!Level 1 cache (without L2 cache) built into Intel®Celeron™processor"
4. Memory (DRAM)
!Three 168-pin DIMM sockets support SDRAM modules
!Supports up to 768MB#
!ECC support
5. System BIOS
!AWARD BIOS
!Supports Plug-and-Play (PnP)
!Supports Advanced Configuration Power Interface (ACPI)
!Supports Desktop Management Interface (DMI)
!Year 2000 compliant
1-2 Chapter 1
Multi I/O Functions
!!Floppy port supports up to 2.88MB, and 3 mode floppies
!!Ultra DMA/33 bus master IDE supports up to 4 IDE devices
(Including LS-120 MB floppy drive)
!!Built-in Standard/EPP/ECP parallel port connector
!!Two built-in 16550 fast UART compatible serial port connectors
!!Built-in PS/2 keyboard and PS/2 mouse port connectors
!Built-in standard IrDA TX/RX header
!!Two built-in USB connectors
Miscellaneous
!!ATX form factor
!!One AGP slot, Five PCI slots and Two ISA slots
!!Wake Up On LAN header
!!SB-LINK header
!Hardware monitoringIncluded fan speed, voltages, and system
environment temperature
!!Board size: 305 * 190mm
Note: All brand names and trademarks are the property of their respective owners.
"Only Celeron™300A and 333 or higher speed processors have built in Level 2 cache.
#This is the maximum memory size the Intel®440BX chipset supports it, also depends on the size of
memory module you can buy on the market.
$Above 66MHz/100MHz bus speed supported but not guaranteed due to the PCI and chipset specs.
$Sound Blaster™is a registered trademark of Creative Technology Ltd in the United States and certain
other countries. Sound Blaster-LINK™and SB-LINK™ are trademarks of Creative Technology Ltd.
$Specifications and information contained in this manual are subject to change without notice.
IntroductionOfBH6Features 1-3
(2) Layout Diagram
Figure 1-1 Motherboard Component Locations
1-4 Chapter 1

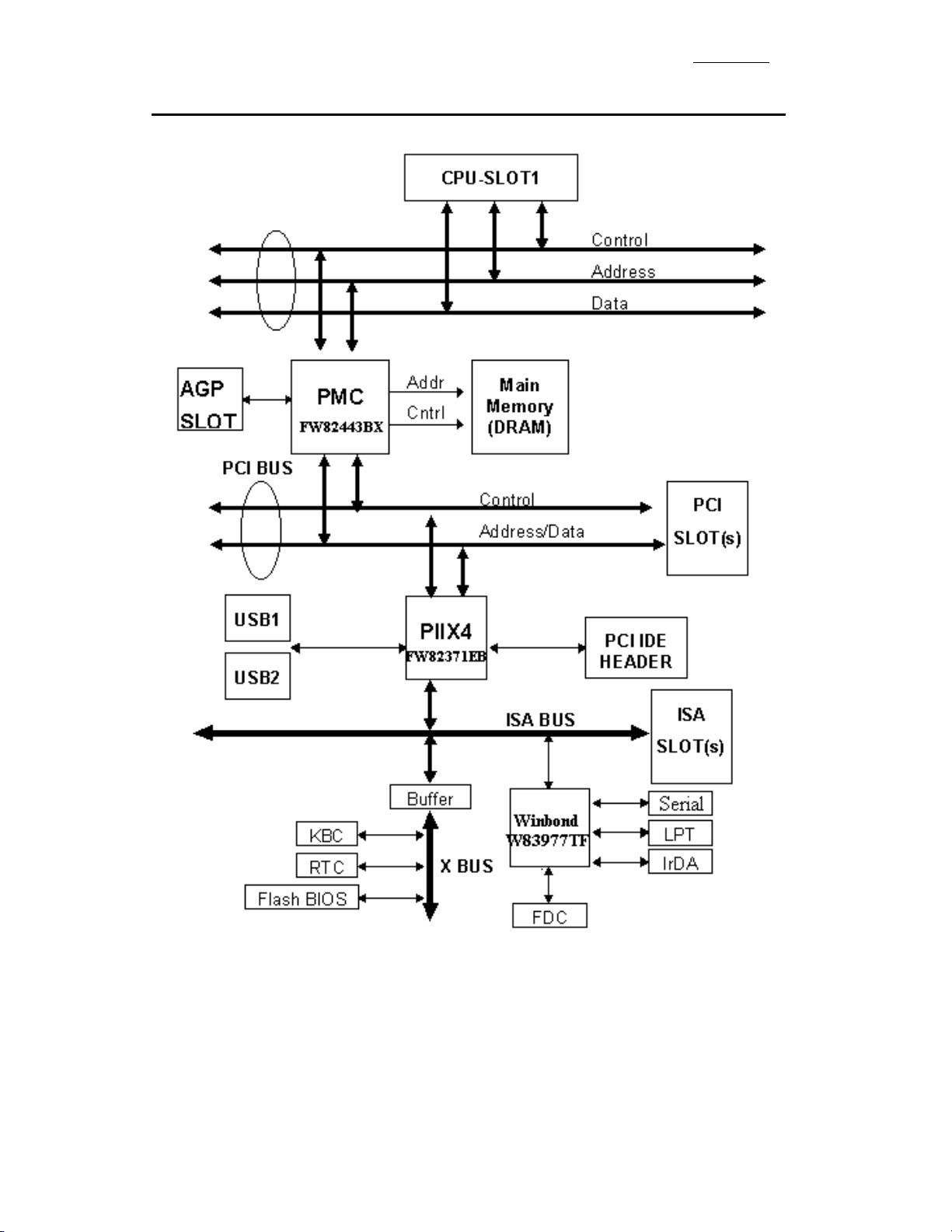

(3) The System Block Diagram
Installing the Motherboar 2-1
Chapter 2 Installing the Motherboard
This BH6 motherboard not only provides all standard equipment for classic
personal computers, but also provides great flexibility for meeting future
upgrade demands. This chapter will introduce step by step all the standard
equipment and will also present, as completely as possible, future upgrade
capabilities. This motherboard is able to support all IntelPentiumII/III
processors and IntelCeleron™processor now on the market. (For details, see
specifications in Chapter 1.)
This chapter is organized according the following features:
Installing the Motherboard to the Casing
Standard external connectors
Jumpers and switches
(4) Installation of the PentiumII/III, Celeron™CPU
(5) Installing the system memory
%%%%
%%%%%%%%
%%%%
Before proceeding with the installation
Before installing the motherboard please be sure to turn off or disconnect the
power supply unit. Before making any modifications to the hardware
configuration of the motherboard, the power supply to any areas of the
motherboard you plan to modify should be turned off to avoid unnecessary
damage to the hardware.
&
&&
&
User friendly instructions
Our objective is to enable the novice computer user to perform the installation
by themselves. We have attempted to write this document in a very clear,
concise and descriptive manner to help overcome any obstacles you may face
during installation. Please read our instructions carefully and follow them
step-by-step.
2-2 Chapter 2
Installing the Motherboard to the Casing
Most computer chassis will have a base on which there will be many mounting
holes that allows the motherboard to be securely attached and at the same time,
prevents short circuits.
There are two ways to attach the motherboard to the base of chassis:
!with stud
!or with spacer

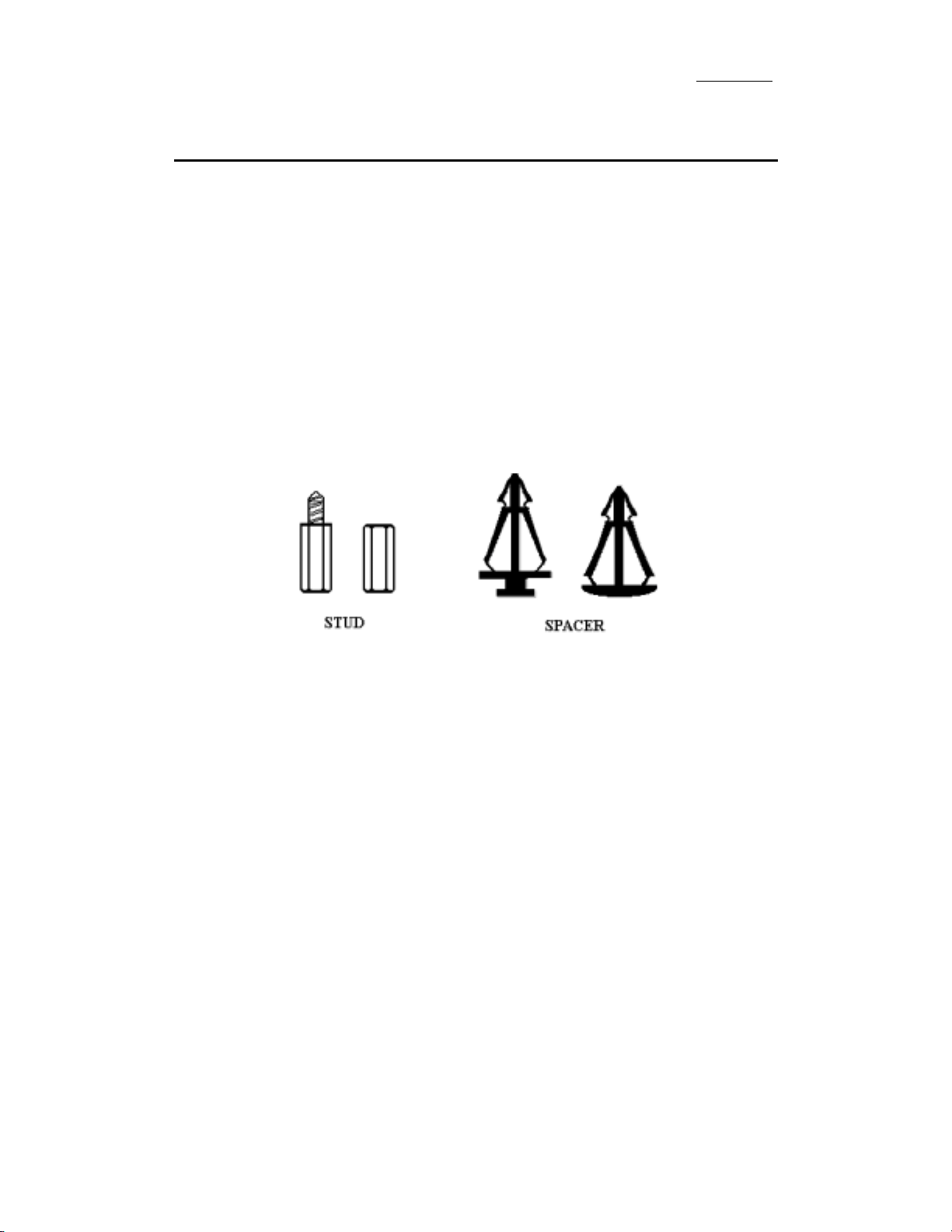

Please refer the figure below show the studs and spacers, they may have several
types, but all look like the figure below:
In principle, the best way to attach the motherboard is with studs, and only if
you are unable to do this should you attach the board with spacers. Take a
careful look at the motherboard and you will see many mounting holes on it.
Line these holes up with the mounting holes on the base. If the holes line up,
and there are screw holes this means you can attach the motherboard with studs.
If the holes line up and there are only slots, this means you can only attach the
motherboard with spacers. Take the tip of the spacers and insert it into the slots.
After doing this to all the slots, you can slide the motherboard into position
aligned with the slots. After the motherboard has been positioned, check to
make sure everything is OK before putting the casing back on.
The figure below will show you the way to fix the motherboard using with the
stub and spacer:
