Abit AN9 32X Manuale utente

Introduction

Motherboard

AMD Socket AM2

User’s Manual

Hardware Setup

BIOS Setup Driver & Utility CD Appendix

For more information:

www.abit.com.tw

 AMD Socket AM2

ATX Motherboard

 NB: NVIDIA C51XE

 SB: NVIDIA MCP55PXE

 2GHz HT

 Dual DDR2 800 DIMM Slots

 NVIDIA SLI Technology

 Dual PCI-E X16 Slots

 Dual GbE LAN

 IEEE 1394a

 6x SATA 3Gb/s with

RAID 0/1/0+1/5/JBOD

 Fatal1ty Guru™ Technology

 ABIT OTES GT™ Technology

 7.1 Channel HD Audio

User’s Manual

English, 1st Edition

May, 2006

The information in this document is subject to change without notice and does not represent a

commitment on part of the vendor, who assumes no liability or responsibility for any errors that may

appear in this manual.

No warranty or representation, either expressed or implied, is made with respect to the quality,

accuracy or fitness for any particular part of this document. In no event shall the manufacturer be

liable for direct, indirect, special, incidental or consequential damages arising from any defect or

error in this manual or product.

Product names appearing in this manual are for identification purpose only and trademarks and

product names or brand names appearing in this document are the property of their respective

owners.

No part of this manual may be reproduced, transmitted or transcribed without the expressed written

permission of the manufacturer and authors of this manual.

If you do not properly set the motherboard settings, causing the motherboard to malfunction or fail,

we cannot guarantee any responsibility.

The Fatal1ty name, Fatal1ty logos and the Fatal1ty likeness are trademarks of Fatal1ty,

All other trademarks are the property of their respective owners.

Introduction

Contents

1. Introduction..................................................................... 1-1

Hardware Setup

BIOS Setup Driver & Utility CD Appendix

1.1 Fatal1ty ......................................................................................1-1

1.2 Features & Specifications .............................................................1-3

1.3 Motherboard Layout.....................................................................1-5

2. Hardware Setup ............................................................... 2-1

2.1 Choosing a Computer Chassis.......................................................2-1

2.2 Installing Motherboard .................................................................2-1

2.3 Checking Jumper Settings ............................................................2-2

2.3.1 CMOS Memory Clearing Header and Backup Battery ..............2-3

2.3.2 Wake-up Headers................................................................2-5

2.4 Connecting Chassis Components...................................................2-6

2.4.1 ATX Power Connectors ........................................................2-6

2.4.2 Front Panel Switches & Indicators Headers............................2-7

2.4.3 FAN Power Connectors ........................................................2-8

2.5 Installing Hardware......................................................................2-9

2.5.1 CPU Socket AM2 .................................................................2-9

2.5.2 DDR2 Memory Slots ..........................................................2-11

2.5.3 PCI Express X16 Add-on Slots (Install Graphics Card) .......... 2-13

2.5.4 AudioMAX Connection Slot .................................................2-16

2.6 Connecting Peripheral Devices ....................................................2-19

2.6.1 Floppy and IDE Disk Drive Connectors ................................ 2-19

2.6.2 Serial ATA Connectors .......................................................2-20

2.6.3 Additional USB 2.0 Port Headers.........................................2-21

2.6.4 Additional IEEE1394 Port Headers ...................................... 2-22

2.6.5 PCI Express X1 Add-on Slots ..............................................2-23

2.6.6 PCI Add-on Slots ...............................................................2-23

2.6.7 GURU Panel Connection Header .........................................2-24

2.7 Onboard Status Display.............................................................. 2-25

2.7.1 POST Code Displayer.........................................................2-25

2.7.2 Power Source Indicators .................................................... 2-26

2.8 Connecting I/O Devices.............................................................. 2-27

3. BIOS Setup....................................................................... 3-1

3.1 µGuru™Utility..............................................................................3-2

3.1.1 OC Guru .............................................................................3-2

3.1.2 ABIT EQ .............................................................................3-2

iii

3.2 Standard CMOS Features..............................................................3-3

3.3 Advanced BIOS Features ..............................................................3-3

3.4 Advanced Chipset Features...........................................................3-4

3.5 Integrated Peripherals..................................................................3-4

3.6 Power Management Setup............................................................3-5

3.7 PnP/PCI Configurations ................................................................3-5

3.8 Load Fail-Safe Defaults ................................................................3-6

3.9 Load Optimized Defaults ..............................................................3-6

3.10 Set Password.............................................................................3-6

3.11 Save & Exit Setup ......................................................................3-6

3.12 Exit Without Saving....................................................................3-6

4. Driver & Utility CD............................................................ 4-1

5. Appendix .......................................................................... 5-1

5.1 POST Code Definitions .................................................................5-1

5.1.1 AWARD POST Code Definitions.............................................5-1

5.1.2 AC2005 POST Code Definitions.............................................5-4

5.2 Troubleshooting (How to Get Technical Support?)..........................5-5

5.2.1 Q & A.................................................................................5-5

5.2.2 Technical Support Form ......................................................5-8

5.2.3 UNIVERSAL ABIT Contact Information ..................................5-9

Introduction

1. Introduction

1.1 Fatal1ty

FATAL1TY STORY

Who knew that at age 19, I would be

a World Champion PC gamer. When

I was 13, I actually played

competitive billiards in professional

tournaments and won four or five

games off guys who played at the

highest level. I actually thought of

making a career of it, but at that

young age situations change rapidly.

Because I’ve been blessed with great

hand-eye coordination and a grasp of

mathematics (an important element

in video gaming) I gravitated to that

activity.

GOING PRO

I started professional gaming in 1999 when I entered the CPL (Cyberathlete Professional

League) tournament in Dallas and won $4,000 for coming in third place. Emerging as one of

the top players in the United States, a company interested in sponsoring me flew me to Sweden

to compete against the top 12 players in the world. I won 18 straight games, lost none, and

took first place, becoming the number one ranked Quake III player in the world in the process.

Two months later I followed that success by traveling to Dallas and defending my title as the

world’s best Quake III player, winning the $40,000 grand prize. My earned frags allowed at

this tournament were 2.5. From there I entered competitions all over the world, including

Singapore, Korea, Germany, Australia, Holland and Brazil in addition to Los Angeles, New York

and St. Louis.

WINNING STREAK

I was excited to showcase my true gaming skills when defending my title as CPL Champion of

the year at the CPL Winter 2001 because I would be competing in a totally different first person

shooter (fps) game, Alien vs. Predator II. I won that competition and walked away with a new

car. The next year I won the same title playing Unreal Tournament 2003, becoming the only

three-time CPL champion. And I did it playing a different game each year, something no one

else has ever done and a feat of which I am extremely proud.

At QuakeCon 2002, I faced off against my rival ZeRo4 in one of the most highly anticipated

matches of the year, winning in a 14 to (-1) killer victory. Competing at Quakecon 2004, I

became the World’s 1st Doom3 Champion by defeating Daler in a series of very challenging

matches and earning $25,000 for the victory.

1-1

LIVIN’ LARGE

Since my first big tournament wins, I have been a “Professional Cyberathlete”, traveling the

world and livin’ large with lots of International media coverage on outlets such as MTV, ESPN

and G4TV to name only a few. It's unreal - it's crazy. I’m living a dream by playing video

games for a living. I’ve always been athletic and took sports like hockey and football very

seriously, working out and training hard. This discipline helps me become a better gamer and

my drive to be the best has opened the doors necessary to become a professional.

A DREAM

Now, another dream is being realized – building the ultimate gaming computer, made up of the

best parts under my own brand. Quality hardware makes a huge difference in competitions…a

couple more frames per second and everything gets really nice. It's all about getting the

computer processing faster and allowing more fluid movement around the maps.

My vision for Fatal1ty hardware is to allow gamers to focus on the game without worrying

about their equipment, something I’ve preached since I began competing. I don’t want to

worry about my equipment. I want it to be there – over and done with - so I can focus on the

game. I want it to be the fastest and most stable computer equipment on the face of the

planet, so quality is what Fatal1ty brand products will represent.

FATAL1TY BRAIN TRUST

This is just the beginning. We’re already in development for several new products, and I’m

really grateful to all my Fatal1ty Brain Trust partners for helping make my dreams a reality.

I know there is a business side to all of this, but for me the true reward is making products that

are so good I can win with them – and making them available to fellow gamers. Gaming is my

life, and many fellow gamers around the world are also some of my best friends, so giving back

to the gaming community is really important to me.

Johnathan “Fatal1ty” Wendel

1-2

Introduction

1.2 Features & Specifications

CPU

• Supports Socket 940 AM2 Processor with 2GHz system bus using Hyper-Transport™

Technology

• Supports AMD CPU Cool ‘n’ Quiet Technology

Chipset

• Northbridge: NVIDIA®C51XE Chipset

• Southbridge: NVIDIA®MCP55PXE Chipset

Memory

• Four 240-pin DIMM slots

• Supports Dual Channel DDR2 800 Un-buffered ECC/Non-ECC memory

• Supports maximum memory capacity up to 8GB

ABIT Engineered

• ABIT Fatal1ty Guru™Technology

• ABIT OTES GT™Technology

NVIDIA SLI Technology

• Two PCI-Express X16 slots support NVIDIA Scalable Link Interface

SATA 3Gb/s RAID

• Supports 6 ports NV SATA 3Gb/s RAID 0/1/0+1/5/JBOD

Dual GbE LAN

• Dual NVIDIA®Gigabit Ethernet

IEEE 1394

• Supports 2 Ports IEEE 1394a at 400Mb/s transfer rate

Audio

• ABIT AudioMAX HD 7.1 CH

• Supports auto jack sensing and optical S/PDIF In/Out

Expansion Slots

• 2x PCI Express x16 slots

• 2x PCI Express x1 slots

• 1x PCI slot

• 1x AudioMAX slot

Internal I/O Connectors

• 1x Floppy port

• 1x UDMA 133/100/66/33 connector

• 6x SATA connectors

• 3x USB 2.0 headers

1-3

• 2x IEEE1394a headers

Rear Panel I/O

• OTES GT™

• 1x PS/2 Keyboard connector

• 1x PS/2 Mouse connector

• 2x RJ-45 Gigabit LAN ports

• 4x USB 2.0 ports

Miscellaneous

• ATX form factor (305mm x 245mm)

Specifications and information contained herein are subject to change without notice.

For more information:

www.abit.com.tw

1-4

Introduction

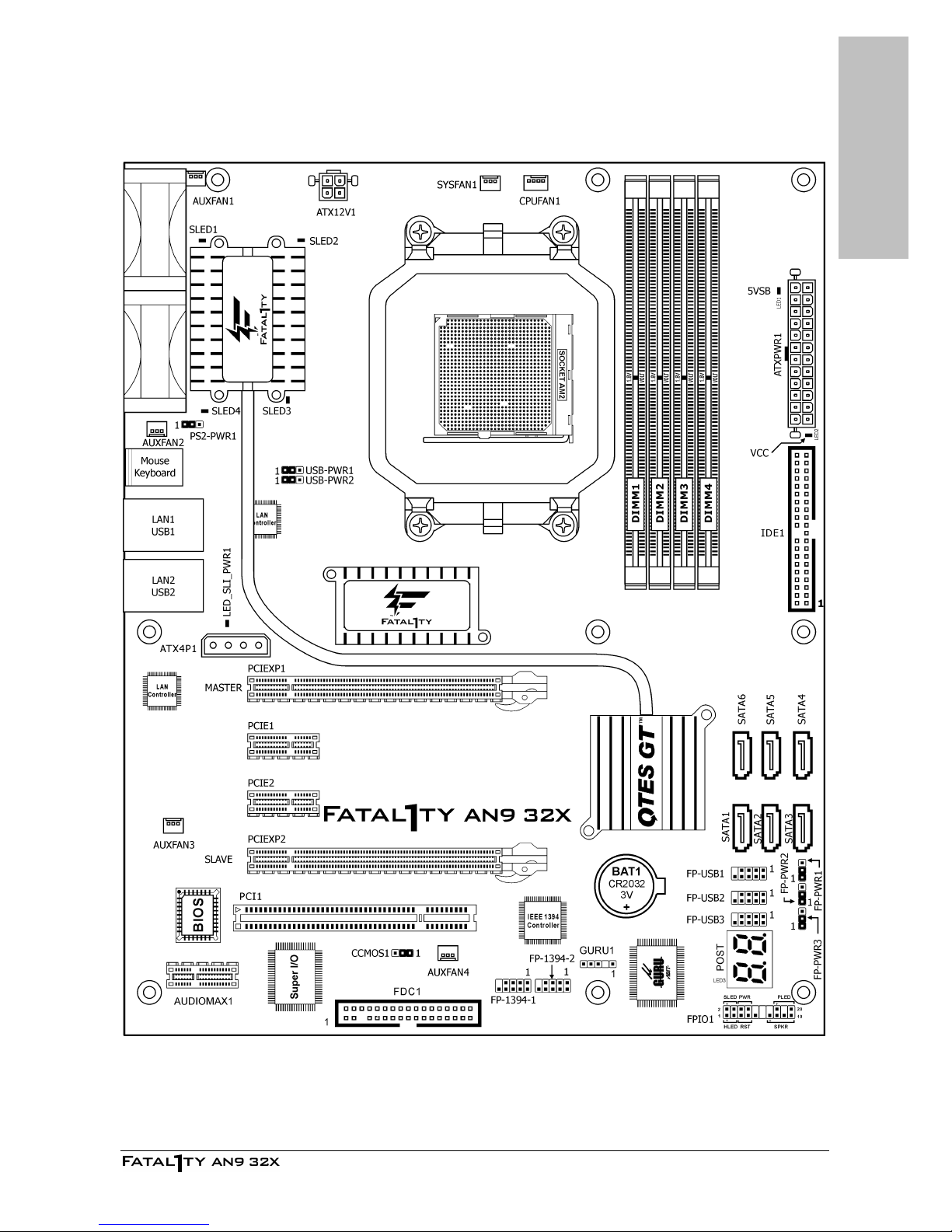

1.3 Motherboard Layout

1-5

For more information:

www.abit.com.tw

1-6

Altri manuali per AN9 32X

Questo manuale è adatto per i seguenti modelli

Indice

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
