Firewall VPN Router
Quick Installation Guide
-1-
Firewall VPN Router Overview
The Firewall VPN Router provides three 10/100Mbit Ethernet network
interface ports which are the Internal/LAN, External/WAN, and DMZ port. It
also provides an easily operated software WebUIthat allows users to set
system parameters or monitor network activities using a web browser.
Firewall VPN Router security feature
Some functions that are available in the firewall are: Packet Filter, Proxy
Server, Hacker invasion alarm, Packet monitor log, Policy, etc.
Firewall VPN Router installation
This product is a hardware firewall. Therefore the installation is much easier
than a software firewall. First the user has to prepare three network cables,
and connect them to the internal, external and DMZ connectors respectively.
The internal interface has to connect to the office’s internal network on the
same HUB/Switch. The external interface has to connect with an external
router, DSL modem, or Cable modem. The DMZ interface connects to an
independent HUB/Switch for the DMZ network.
Firewall VPN Router function setting
The Firewall VPN Router has a built in WEBUI (Web User Interface). All
configurations and management are done through the WEBUI using an
Internet web browser.
Firewall VPN Router monitoring function
The firewall provides monitoring functions which contains traffic log, event
log, traffic alarm, event alarm, and traffic statistics. Traffic alarm records the
packets of hacker invasions. Not only does the firewall log these attacks, it
can be set up to send E-mail alerts to the Administrator automatically for
immediate hacker’s invasion crisis management.
-2-
Firewall VPN Router supporting protocols
The Firewall VPN Router supports all the TCP, UDP and ICMP protocols,
such as HTTP, TELNET, SMTP, POP3, FTP, DNS, PING, etc. System
Administrators can set up proprietary protocols according to operating
requirements.
Hardware Description
DMZ Port: Use this port to connect to the company’s server(s), which
needs direct connection to the Internet (FTP, SNMP, HTTP, DNS).
External Port (WAN): Use this port to connect to the external router, DSL
modem, or Cable modem.
Internal Port (LAN): Use this port to connect to the internal network of the
office.
Reset: Reset the Firewall VPN Router to the original default settings.
DC Power: connect one end of the power supply to this port, the other
end to the electrical wall outlet.
DMZ Port
External Port
Internal Port
Reset
DC Power
-3-
Connecting Example:
Firewall:
Internal Port = 192.168.1.1
External Port = x.x.x.x (provided by ISP)
DMZ Port = 172.16.1.254
ConnectionType: 10/100 Mbps Cable Connection
【Internal 1 Port】= 192.168.1.3
【Internal 2 Port】= 192.168.1.4
【Internal 3 Port】= 192.168.1.5
【Internal 4 Port】= 192.168.1.6
-4-
【External Port】= 61.11.11.11
【DMZ Port】= 172.16.1.254
Firewall VPN Router Software (management tool) description
Firewall VPN Router management tool: WebUI
The main menu functions are located on the left-hand side of the screen, and
the display window will be on the right-hand side. The main functions include
12 items, which are: Administrator, Configuration, Address, Service,
Schedule, Policy, VPN, Virtual Server, Log, Alarm, Statistics, and Status.
-5-
Quick Setup
WebUI Configuration example
STEP 1:
Connect both the Administrator’s PC and the Internal (LAN) port of the
Firewall VPN Router Firewall to a hub or switch. Make sure there is a link light
on the hub/switch for both connections. The Firewall VPN Router has an
embedded web server used for management and configuration. Use a web
browser to display the configurations of the firewall (such as Internet Explorer
4(or above) or Netscape 4.0(or above) with full java script support). The
default IP address of the firewall is 192.168.1.1 with a subnet mask of
255.255.255.0. Therefore, the IP address of the Administrator PC must be in
the range between 192.168.1.2 /24–192.168.1.254/24.
If the company’s internal IP Address is not subnet of 192.168.1.0, (i.e.
Internal IP Address is 172.16.0.1)the Administrator must change his/her PC
IP address to be within the same range of the internal subnet (i.e.
192.168.0.0). Reboot the PC if necessary.
By default, the Firewall VPN Router is shipped with its DHCP Server function
enabled. This means the client computers on the internal (LAN) network
including the Administrator PC can set their TCP/IP settings to automatically
obtain an IP address from the Firewall VPN Router.
The following table is a list of private IP addresses. These addresses may
not be used as an External IP address.
10.0.0.0 ~ 10.255.255.255
172.16.0.0 ~ 172.31.255.255
192.168.0.0 ~ 192.168.255.255
-6-
STEP 2：
Once the Administrator PC has an IP address on the same network as the
FirewallVPN Router, open up an Internet web browser and type in
http://92.168.1.1 in the address bar.
A pop-up screen will appear and prompt for a username and password. A
username and password is required in order connect to the firewall. Enter the
default login username and password of Administrator (see below).
Username: admin
Password: admin
Click OK
-7-
STEP 3:
After entering the username and password, the Firewall VPN Router WEBUI
screen will display.
Select theConfiguration tab on the left menu and a sub-function list will be
displayed. Click on Interface from the sub-function list, and enter proper
Layer 3 network setup information. (for example)
Internal interface IPAddress 192.168.1.1
NetMask 255.255.255.0
ExternalIP address 211.222.20.100
NetMask 255.255.255.0
Default Gateway 211.222.20.101
DMZ IP address 192.168.3.1
NetMask 255.255.255.0
Note: The above figures are only examples. Please fill in the appropriate IP
address information provided to you by the ISP.
-8-
STEP 4：

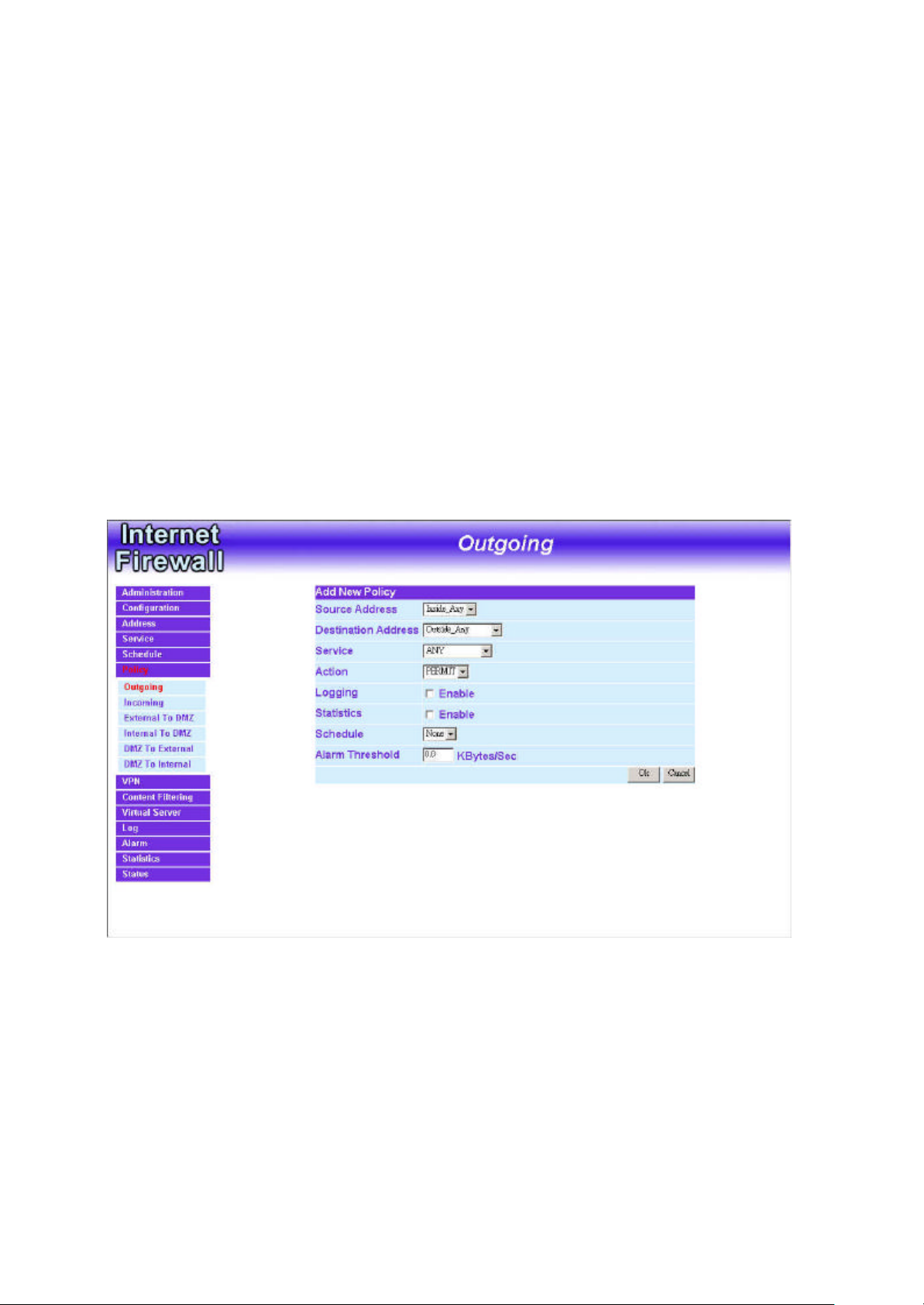

Click on the Policy tab from the main function menu, and then click on
Outgoing from the sub-function list.
Click on New Entry button.
When theNew Entryoption appears, then enter the following configuration:
Source Address –select “Inside_Any”
DestinationAddress –select“Outside_Any”
Service -select “ANY”
Action -select “Permit”
Click on OK to apply the changes.
ç
ç
-9-
STEP 5：
The configuration is successful if you see the screen below. Make sure that
all the computers that are connected to the Internal (LAN) port have their
Default Gateway IP Address set to the Firewall’s Internal IP Address (i.e.
192.168.1.1). At this point, all the computers on the Internal network should
gain access to Internet immediately. If a firewall filter function is required,
please refer to the Policy section.
