Abocom SW1600B Manuale utente

M73-APO07-310

16-Port Fast Ethernet Switch

User’s Guide

FCC REGULATORY STATEMENTS

Part15, Class B

This device complies with Part 15 of FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interface, and

2. This device must accept any interface received, including interface that may cause

undesired operation. This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy, and if

not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the distance between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

Changes or modifications not expressly approved by party responsible for compliance

could void the user authority to operate the equipment.

CE Mark Warning

This is a Class B product. In a domestic environment, this product may cause radio

interference, in which case the user may be required to take adequate measures.

- 1 -

INTRODUCTION

The 16-Port Fast Ethernet 10/100Mbps N-Way Switch provides you a flexible, reliable, and

affordable solution of the Ethernet network. It comes with sixteen 10BASE-T /100BASE-TX

ports. The 16-Port Fast Ethernet 10/100Mbps N-Way Switch is able to operate in both half

and full-duplex modes. Each port delivers up to 200Mbps throughput in full duplex mode.

The 16-Port Fast Ethernet 10/100Mbps N-Way Switch also processes a N-Way auto-

negotiation function, which automatically adjusts the device for optimum operation; “Store-

and-Forward” architecture filters to eliminate error packets and improve efficiency. Plus, the

auto-MDI/MDIX technology provides the convenience of using a straight through or a

crossover Ethernet cable and you will be connected with any other devices. Moreover, the

built-in Universal Power Supply allows you to install the switch easily without the external

power adapter.

Key Features

 Complies with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX standards

 “Store and Forward” architecture filters

 IEEE 802.3x or Back Pressure (HDX) Flow Control

 16 x RJ45 STP/UTP Ethernet ports on front panel

 4K MAC Address table supported

 10/100Mbps auto-detection on Full or Half Duplex

 Each Ethernet port supports Auto-MDI/MDIX (auto-crossover) technology

 Provides non-blocking and Head-of-line blocking forwarding prevention

 256KB on-chip buffer

 Built in Universal Power Supply: 90~264V

 Emission certification: FCC Class B, CE mark

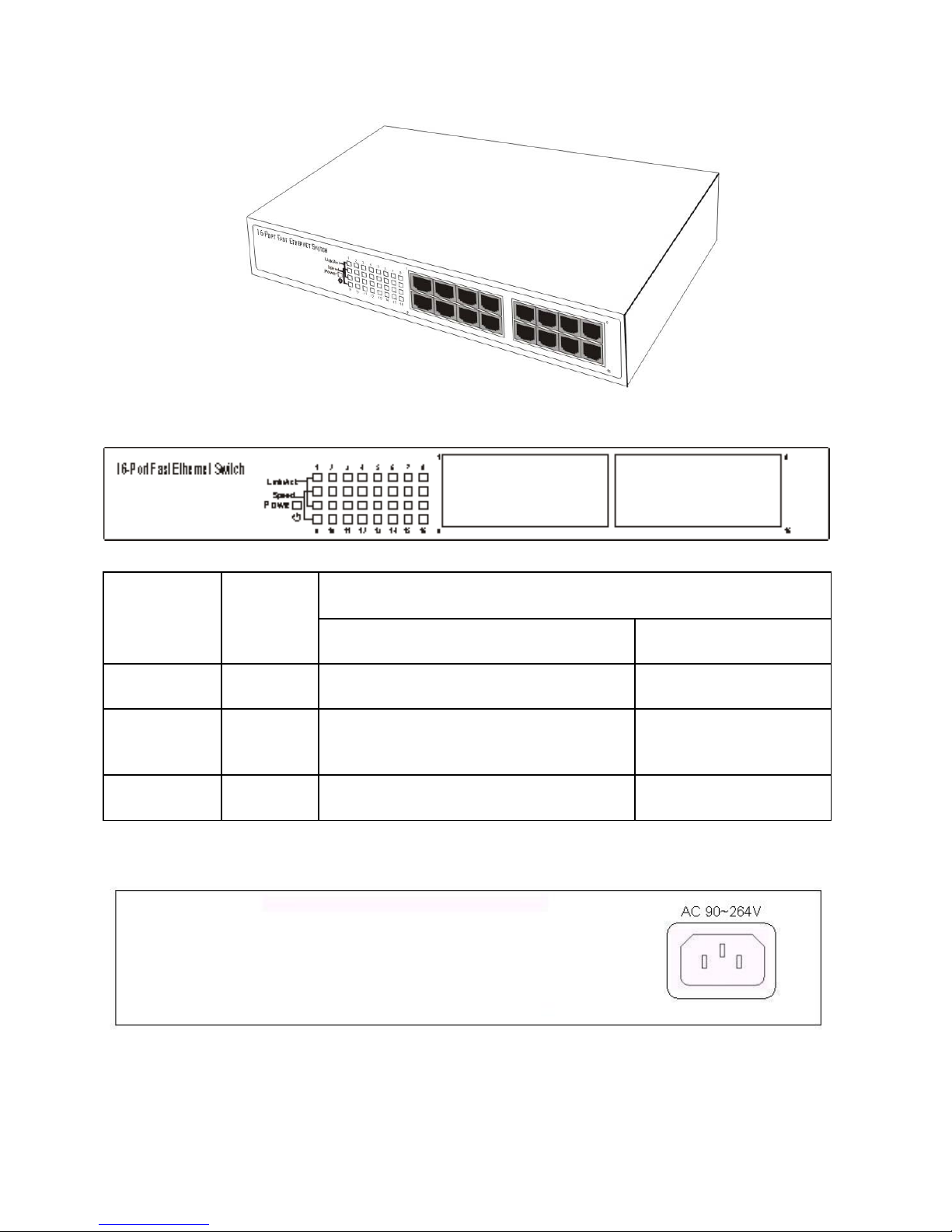

PARTS NAMES AND FUNCTIONS

Front Panel: LED Indicators

Status

LED Color

Solid Flashing

Power Green Power is on. N/A

LINK/ACT Green Connection is detected Sending or Receiving

packets

Speed Green ON for 100Mbps, OFF for 10Mbps N/A

Rear Panel: Power Port

- 2 -

- 3 -

HARDWARE INSTALLATION

The switch is considered as a “plug and play” network device and requires no special setup

procedures. Connect the power cord and cables correctly and you are ready to go.

Switch installation

1. Put the switch on the appropriate location. When you install the switch, there are two

things needed to be considered:

 Location: Your switch should be located in a place that is central to your

home/office space and allows all computers and networked devices connected to

your switch.

 Power: Remember to locate your switch near electrical outlet.

2. Power on the switch by connecting the power cord.

3. Verify if the power (POWER) LED is on. If the POWER LED does not light up,

check the power cord and power outlet to verify its connection. If it still remains unlit,

please contact your dealer for support.

Ethernet Port Connection

Connect user machines, servers, another switch, hub, or any other devices to the Ethernet

ports on this switch with either straight through or crossover Ethernet cables.

- 4 -

SPECIFICATION

Standards

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

IEEE802.3x Flow Control

Protocol CSMA/CD

Ports Sixteen 10/100Mbps RJ-45 ports support auto-MDI/MDIX

Switching Scheme Store-and-Forward

Flow control Full Duplex: IEEE802.3x

Half Duplex: Back Pressure

Cabling type UTP Category 3 or better (10Base-T)

UTP Category 5 or better (100Base-TX)

Speed per port 10Mbps or 100Mbps (Half Duplex)

20Mbps or 200Mbps (Full Duplex)

MAC Address 4K

Power Green Power is up.

LINK/ACT Green:

On for connection detected;

Flashing for sending/

receiving data

LED indicators

SPD Green On for 100Mbps, off for

10Mbps

Physical Dimension 273 x 161 x 45 ( mm) (Width x Depth x Height)

Weight 1.2 Kg

Input power specifications AC 90~264V

Power Consumption 13W

Agency and Regulatory FCC Class B, CE mark

Operating Temperature 0°C to 40°C

Operating Humidity 5~90% non-condensing
