Abocom HomePlug AV Ethernet Bridge PLE0200 Istruzioni per l’uso

Plug the other end of this cable into the

Ethernet port of the Bridge.

Plug type Inlet type

Plug the Bridge into an electrical

socket.( Plug type)

Plug the electrical cable into electrical

port.( Inlet type )

Plug type

Inlet type

Plug the other end of this cable into an

electrical socket.

The installation of the Bridge is complete.

You can enjoy this HomePlug AV product

by default setting now. If you want to

further configure the Bridge, proceed to

Software Installation.

Plug the included Ethernet network cable into

the computer's Ethernet port.

Because the Bridge sends data over the powerlines of

your house, plug the Bridge directly into an electrical

socket. It’s recommended not to plug the device into a

power strip with surge protection. And do not plug the

device into UPS. The Bridge has its own power filter for

protection against surges.

Note:

If you want to distinguish the 200M’s adapter

(AV) from 14 M’s adapter, you can go to the Network

Connections of Control Panel. And open the Connection

which one is connecting and also finish the hardware

installation. You can check the connection speed is

100.0 Mbps, but 14M will show 10.0Mbps.

200M type 14M type

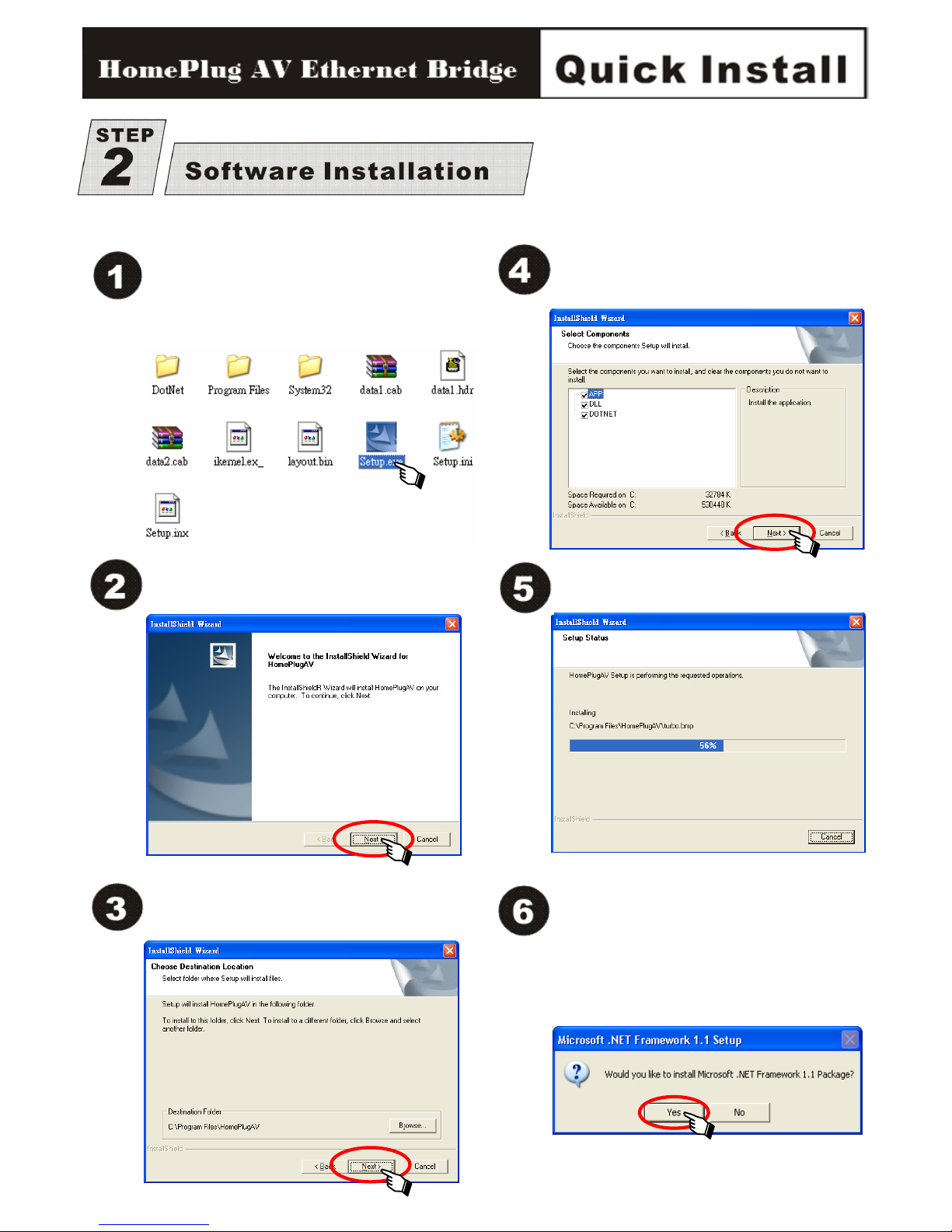

Insert the included utility CD into the CD-ROM

drive of your computer and then perform

Setup.exe within setup folder or click install

Utility option in CD Auto-Run program.

Instal

InstalInstal

Instal

ling the

ling the ling the

ling the

HomePlug AV

HomePlug AVHomePlug AV

HomePlug AV

Utility

Utility Utility

Utility

Note: Utility could be installed in Windows

Vista(x86), Windows 2003 Server, Windows XP,

Windows 2000.

Click Next to continue.

Select the destination folder and click Next.

Select the components, just click Next

to continue.

Wait for the finish status.

If you have not installed the FrameWork

1.1, please continue to install. And after

the step, you will complete the Software

installation. To launch the HomePlug

AV utility on the windows‘s desktop.
