COPPERHEAD 3D PRINTER ASSEMBLY GUIDE
WELCOME
Thank you for choo ing the Copperhead 3D printer from Acadian
Robotic . Plea e read through thi manual fir t before etting up
your machine. If you have any que tion or comment regarding
thi guide plea e contact u at tech upport@acadianrobotic .com.
January 2015 ver ion
ASSEMBLY INSTRUCTIONS
Tool required:
Metric allen wrench et
Needle no e plier
Large and mall Philip head crewdriver
Large and mall flat head crewdriver
Grounding wri t trip (for PCB protection)
Small cre cent wrench
General note :
-
Keep the hardware (nut , bolt , wa her ) loo e until the machine i fully
a embled unle otherwi e noted in the individual tep .
-
When te ting the machine’ component and wiring all connection
hould be ecurely fa tened.
-
When in talling wiring loo ely ecure the zip trip or cable clap unle
otherwi e noted in the individual tep . Do not let the wiring hand loo e
from component without upporting the wire with zip trip or wire
clip .
-
When di connecting the motor grab the ide of the white motor plug
connector and gently jiggle the connector away from the motor. NEVER
grab the wire to di connect the motor .
2
COPPERHEAD 3D PRINTER ASSEMBLY GUIDE
3
COPPERHEAD 3D PRINTER ASSEMBLY GUIDE
I. Pre-a embly
Step 1: Bottom tructure panel
- In tall the Z motor wire (66) to the bottom ide of the bottom panel
(10) u ing zip trip (36).
Step 2: Shelf
- A emble the two helf (14) piece u ing (2) 8-32x7/8” black oxide
bolt (37) and wa her (40).
4
COPPERHEAD 3D PRINTER ASSEMBLY GUIDE
Step 3: PCB mounting
- In tall the printed circuit board (PCB) (31) to the in ide of the helf
(14). Do not overtighten the bolt . Tighten enough only to ecure the
PCB. Spacer (30) hould be mounted between the helf and PCB.
Step 3: Top panel
- In tall the white LED trip (58) to the under ide of the top panel
(12).
- Cooling fan (65) can be in talled at a later tep when in talling the
extruder. Cooling fan i an option component. It i mo tly only u ed
when printing with PLA material.
5
COPPERHEAD 3D PRINTER ASSEMBLY GUIDE
Step 4: Left panel
- Fa ten the Z limit witch (32) to the Z witch angle (7).
- In tall the Z limit witch angle (16) [NOT THE ANGLE THAT
FASTENS TO THE CARRIAGE] to the left panel (8).
- In tall the Z motor mount (26) to the left panel (8).
Step 5: Right panel
- In tall the Z motor mount (26) to the right panel (9).
6
COPPERHEAD 3D PRINTER ASSEMBLY GUIDE
Step 6: Motor a embly
- In tall the aluminium gear (29) to the Nema 17 motor (20).
- In tall the motor (20) to the motor mount (26) with (55).
Step 7: X carriage
- In tall the Y rack (6), X motor mount (26), X motor (20), linear
bearing (22), limit witch bolt (44), Y limit witch (32), and rod
holder (23) to the X carriage.
7
COPPERHEAD 3D PRINTER ASSEMBLY GUIDE
Step 7: X carriage wiring
Step 7: Y carriage
- In tall the Y motor mount (26), Y motor (20) , limit witch bolt (44),
linear bearing (22), print bed (4) to the Y carriage (3).
- In tall and ecure the Y carriage wiring from the print bed before
attaching to the X carriage.
8
COPPERHEAD 3D PRINTER ASSEMBLY GUIDE
- Do not tighten the linear bearing at thi time. Fa ten the nut to the
bolt ju t enough o they will not fall off the bolt .
Step 8: Print bed to Y carriage
- In tall the print bed (4) to the Y carriage (3).
Do not in tall the gla until a embly i fully complete.
- Thi would be the be t time to manually level the bed. U e the
pring (19) and 2 nut (44) to level the bed.
Step 9: Y carriage wiring
- In tall the y carriage wiring but do not ecure tight at thi time.
9
COPPERHEAD 3D PRINTER ASSEMBLY GUIDE

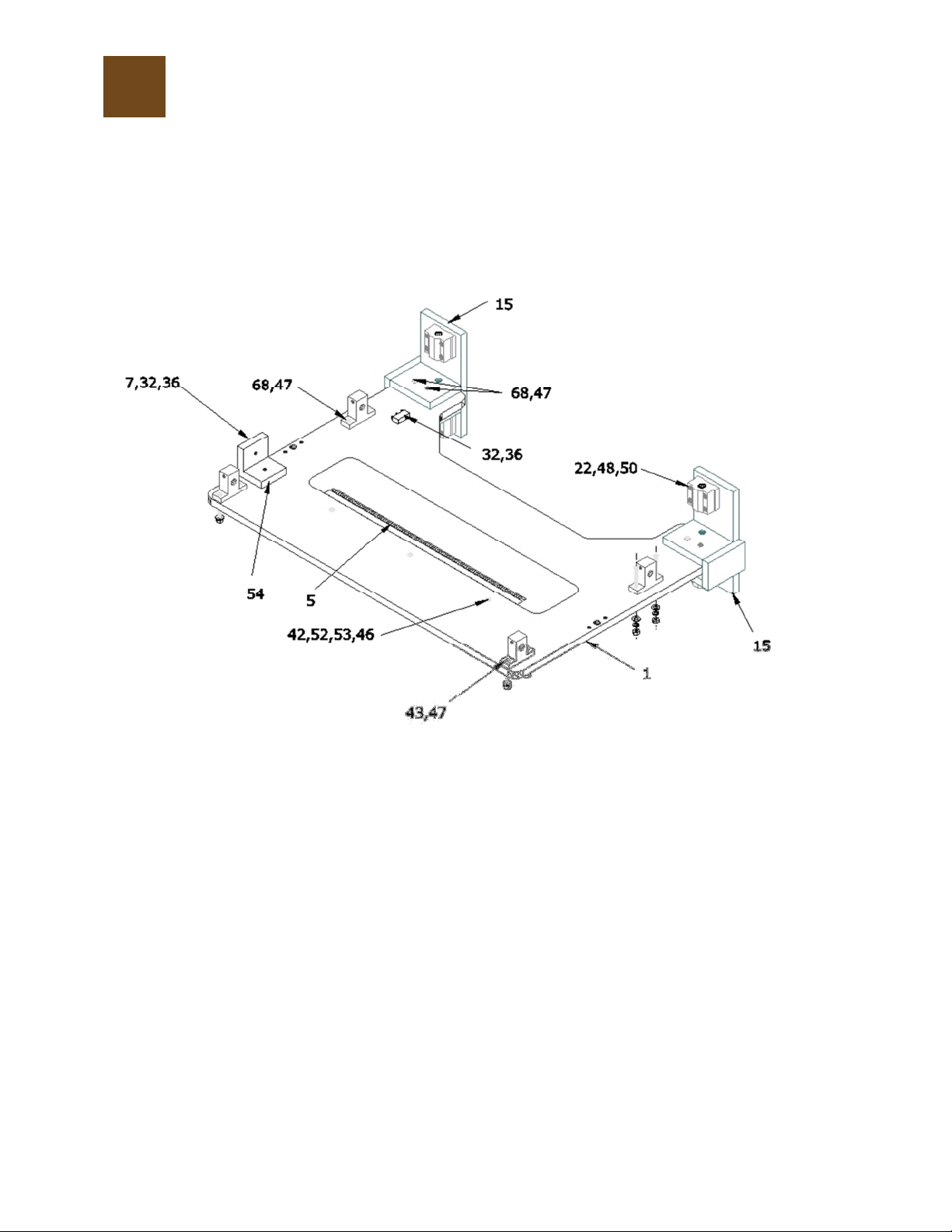

Step 10: Main carriage
- In tall the Z limit witch angle with witch (7), the X limit witch
(32), rod holder (23), Z linear bearing block (15)with linear
bearing (22), and the X rack (5) to the main carriage (1).
- Leave the rod holder nut loo e until the machine i completely
a embled. Do not over tighten the nut . Snug them to ecure in
place.
Step 10: Y carriage to the X carriage
- Fa ten the Y carriage (3) to the X carriage (2).
- When in erting mooth rod through linear bearing DO NOT USE
FORCE. Gently guide and pu h while twi ting lowly to guide the
rod through the linear bearing . It may help to lubricate the rod
with a light ba ed oil or WD-40.
