Acconeer XC112 Manuale utente
PROPRIETARY AND CONFIDENTIAL
Explore the next sense
Getting Started Guide
Acconeer XC112-XR112
Radar Sensor Evaluation Kit
Apr 2021
PROPRIETARY AND CONFIDENTIAL
© 2021 by Acconeer

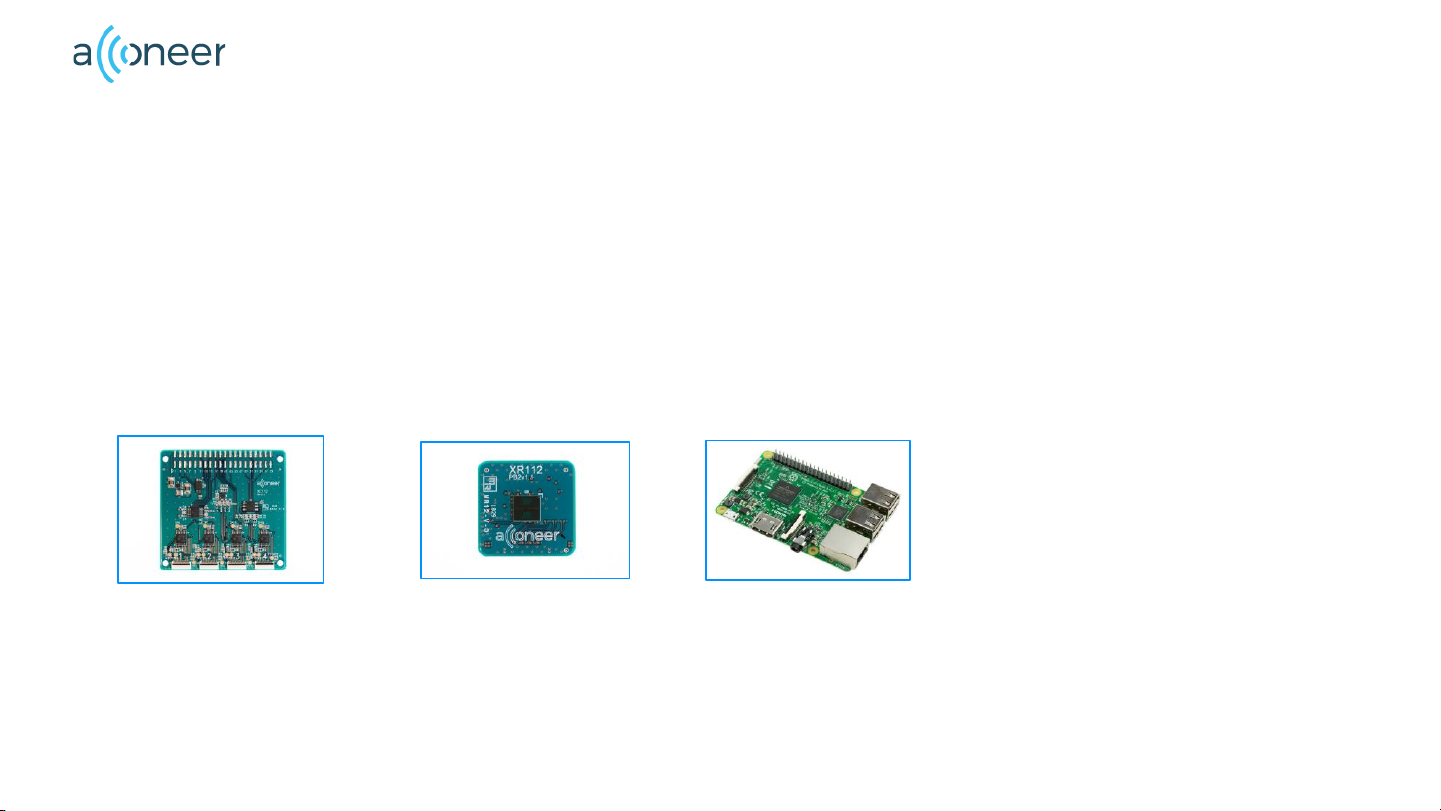

To complete a successful installation of Acconeer EVK, the following HW
components will be required:
Preparing the HW Installation
3
Connector Board Raspberry Pi3*
Radar Sensor Board
* Not provided by Acconeer except flex cable
** Raspberry Pi original Power Supply is recommended
Additionally*:
•SD Card
•SD Card Holder
•USB Keyboard
•USB Mouse
•Flex Cable, 1 per XR112
•Power Supply for Raspberry Pi**
•Monitor with HDMI cable
XC112 ++
PROPRIETARY AND CONFIDENTIAL
© 2021 by Acconeer
The following applications will be required to complete an installation. Also,
they will be very useful when working with the Radar Sensor EVK. Please
download and install:
•Acconeer SW for EVK: Available from http://developer.acconeer.com
For all users (Windows, Linux, IOS)
•Raspbian OS: Available from www.raspberrypi.org
•Etcher: Available from www.etcher.io for flashing the Raspbian OS
For Windows users (Linux/IOS users use SSH and SCP)
•PuTTY: Available from www.putty.org used for connecting to the Raspberry Pi
•WinSCP: Available from www.winscp.net used for transferring files to Raspberry Pi
Preparing the SW installation
4
PROPRIETARY AND CONFIDENTIAL
© 2021 by Acconeer

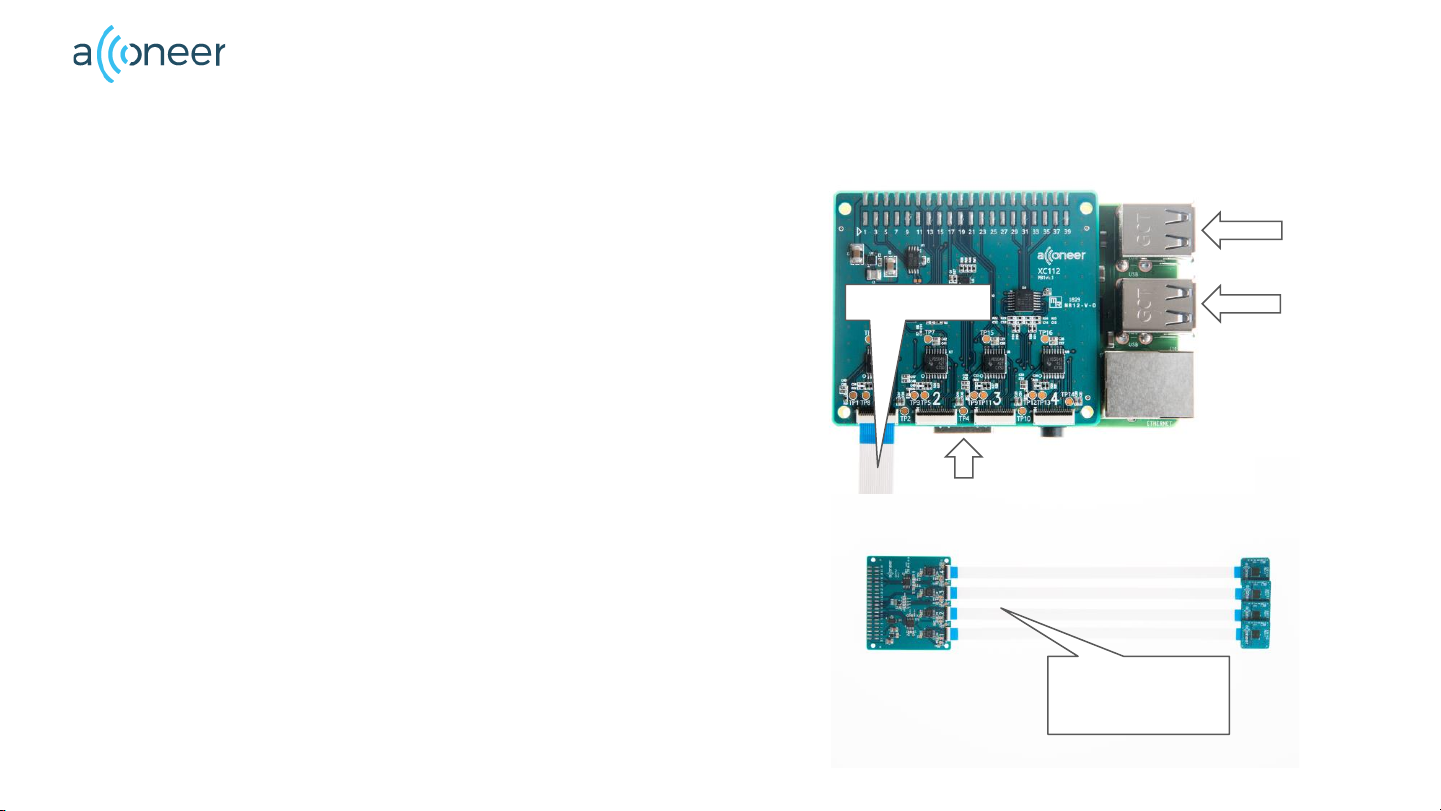

•Connect the XR112 Radar Sensor
Board to the XC112 Connector Board
using the provided flex cable.
•Connect the Raspberry Pi3 to the
XC112 Connector Board.
•Also, connect mouse and keyboard in
the same way as on previous page.
Assemble the HW XC112/XR112
5
Four XR112
connected to XC112
Flex Cable
USB Mouse
USB Keyboard
Monitor
PROPRIETARY AND CONFIDENTIAL
© 2021 by Acconeer

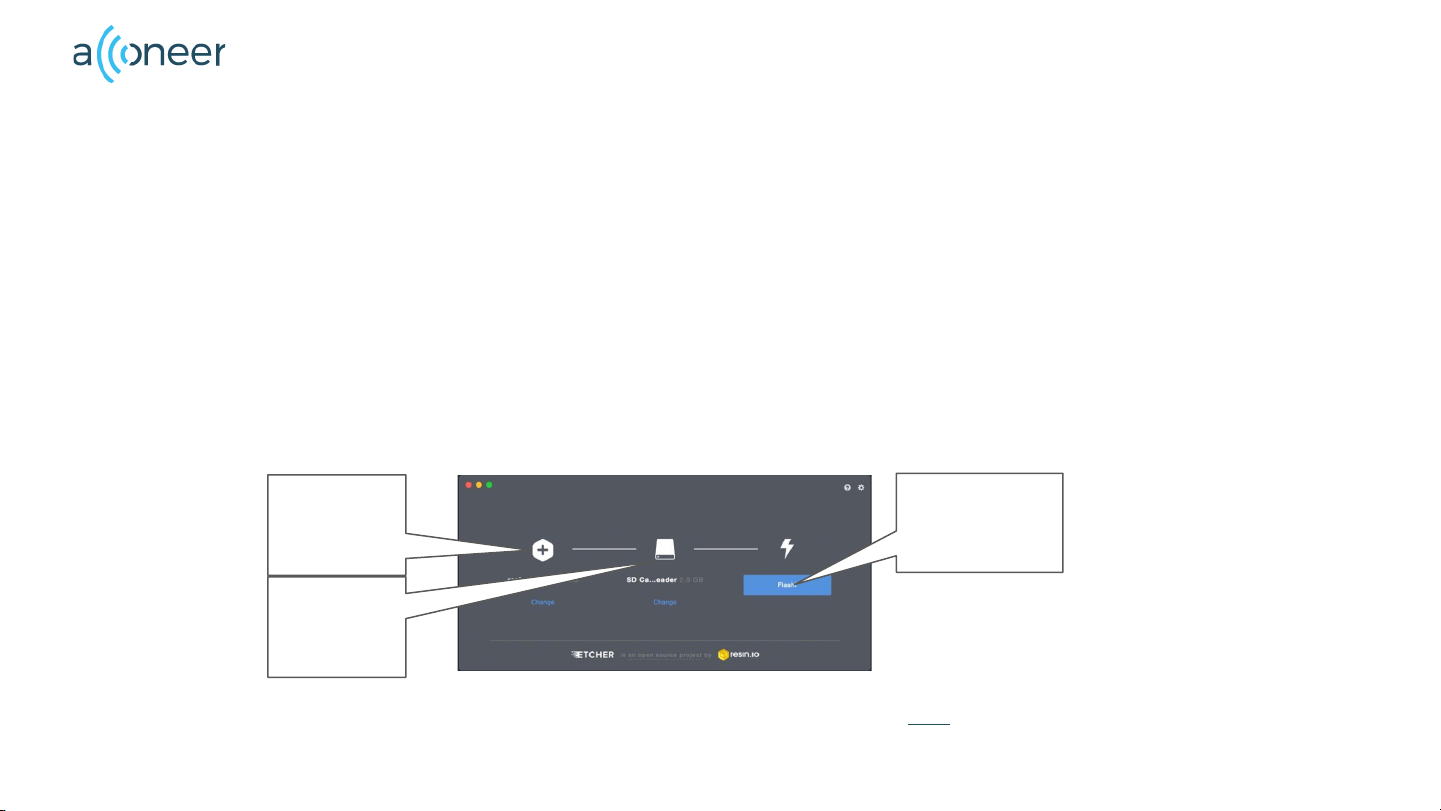

1. Insert the SD-Card in the PC. When prompted to format the card, please ignore/cancel.
2. Open Etcher.
3. Drag the Raspbian flash image, zipped, to Etcher.
4. Make sure the SD card is the selected destination.
5. Click flash. Flashing will begin and take a few minutes. When flashing is done, Etcher can be closed.
Installing the Raspbian
6
Drag to
here!
Select SD
Card
(should be
preselected)
Click
flash!
Depending on the security settings in Windows, you may need to click Yes in the confirmation popup to
grant permission for the flashing process.
PROPRIETARY AND CONFIDENTIAL
© 2021 by Acconeer
1. Pull the SD card from the PC.
2. Insert into the Raspberry Pi.
3. Plug in the monitor, using the HDMI cable.
4. Plug in the power supply to the Raspberry Pi.
5. Boot of the Raspberry Pi will initiate automatically.
Installing Raspbian, cont.
7
PROPRIETARY AND CONFIDENTIAL
© 2021 by Acconeer
Installing Raspbian, cont.
8

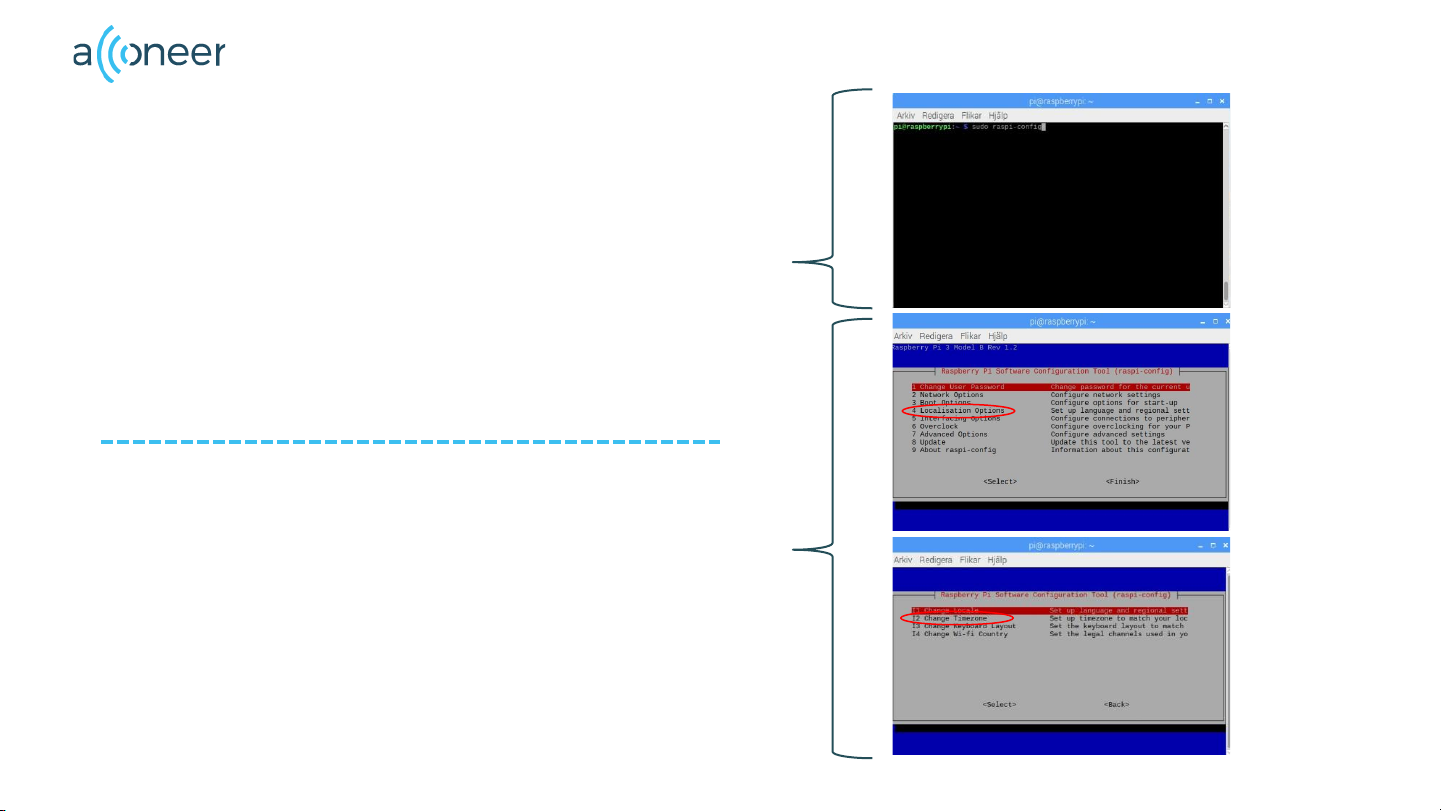

•Once booting is complete, you can start up
the Raspberry Pi Terminal Window.
•On the prompt, type sudo raspi-config. The
configuration menu will appear.
•From the menu, choose #4 Localization
options.
•From the next menu choose #2 Change Time
zone.
•Set the appropriate Time zone.
PROPRIETARY AND CONFIDENTIAL
© 2021 by Acconeer

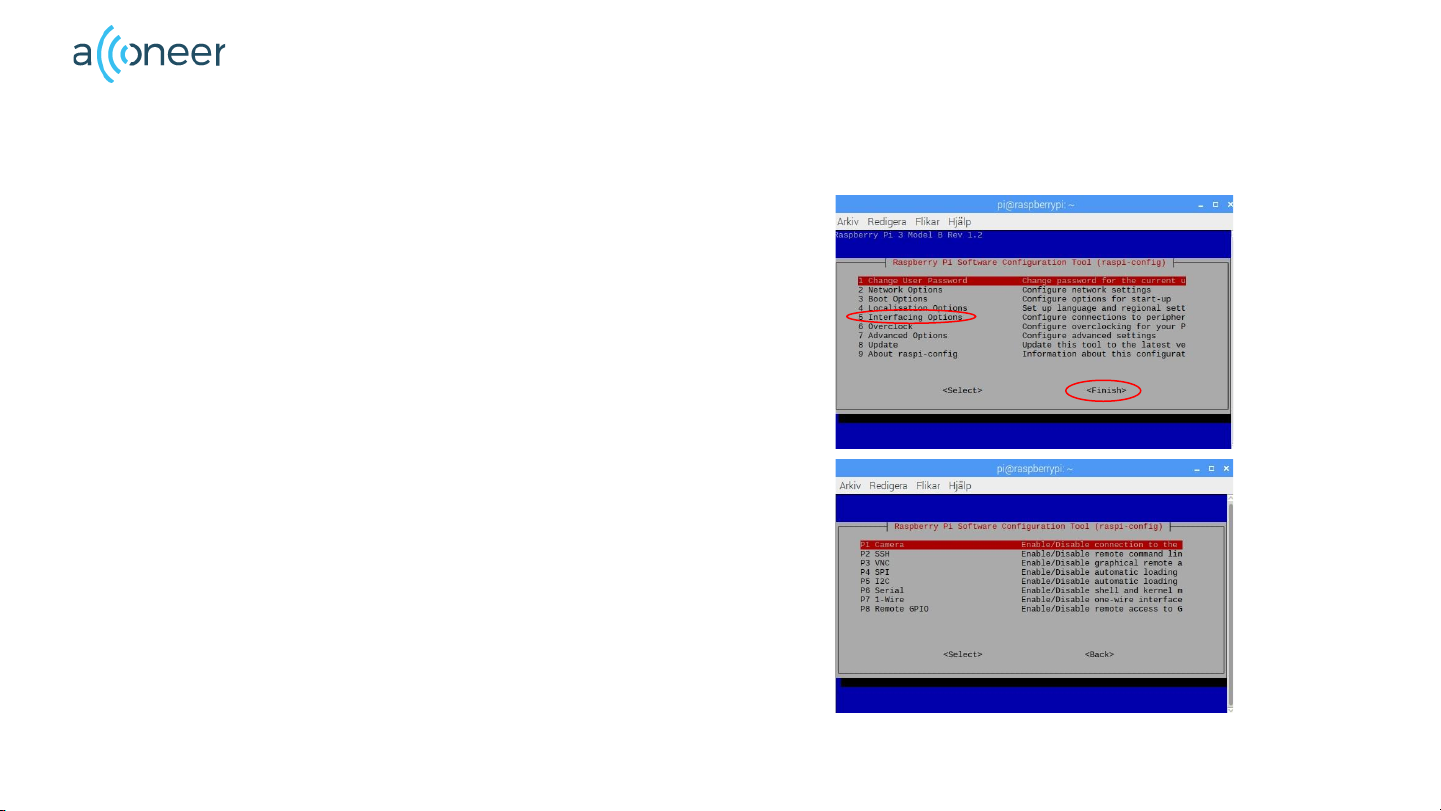

•Go to #5 Interfacing options.
•Enable the following interfaces:
•P2 SSH
•P4 SPI
•P5 I2C
•When done, click <finish> to close the
config menu.
Installing Raspbian, cont.
9
PROPRIETARY AND CONFIDENTIAL
© 2021 by Acconeer
•Make sure your PC and Raspberry Pi is
connected to wifi. If that is not an option, use
an Ethernet cable to connect your PC to the
Raspberry Pi.

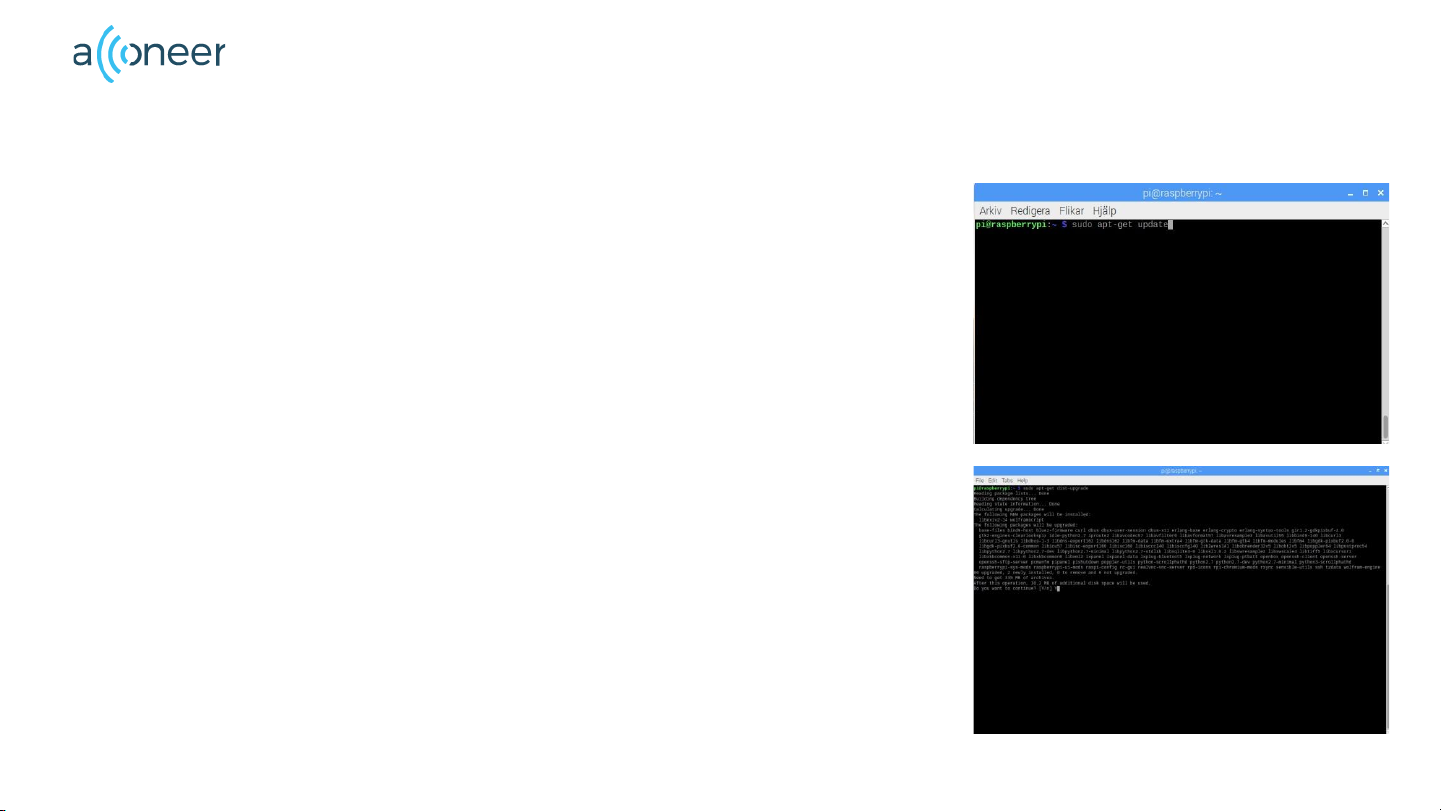

•To make sure that you are using the latest
version of Raspbian, type sudo apt-get update.
This command will present the latest update.
•Type sudo apt-get dist-upgrade to start the
upgrade and confirm, when prompted, with a Y.
Installing Raspbian, cont.
10
