PRODUCT SPECIFICATIONS
Automation Components, Inc.
2305 Pleasant View Road | Middleton, WI 53562
Phone: 1-888-967-5224 | Website: workaci.com
Page 4
Version: 1.0
I0000855
Note: Transmitter’s calibrated at 71ºF (22ºC) nominal | Note: Thermal Drift is referenced to 71ºF (22ºC) nominal calibration temperature
SENSOR NON-SPECIFIC
Storage Temperature Range:
Operating Humidity Range:
Lead Length | Conductor Size:
Lead Wire Insulation | Wire Rating:
Conductor Material:
Enclosure Specifications: (Operating
Temperature, Material, Flammability,
NEMA/IP Ratings):
SENSOR
Sensor Type | Sensor Curve | Sensing Points:
Sensor Output @ 0°C (32°F):
RTD Tolerance Class | Accuracy:
Din Standard | Temperature Coefficient:
Sensor Stability:
Response Time (63% Step Change):
Sensor Operating Temperature Range:
Probe Diameter | Probe Material:
TRANSMITTER
Transmitter Supply Voltage |
Supply Current:
Maximum Load Resistance:
Output Signals:
Calibrated Accuracy | Linearity1:
Thermal Drift2:
Min./Max. CalibratedTemperature Spans:
TTM100/TTM1K Certification Points:
Warm Up Time | Warm Up Drift:
Transmitter Operating Temperature Range:
Transmitter Operating Humidity Range:
Connections | Wire Size:
Terminal Block Torque Rating:
-40 to 80 °C (-40 to 176 °F)
10 to 90% RH, non-condensing
14” (35.6 cm) | 22 AWG (0.65mm)
Etched Teon (PTFE) Colored Leads | Mil Spec 16878/4 Type E
Silver Plated Copper

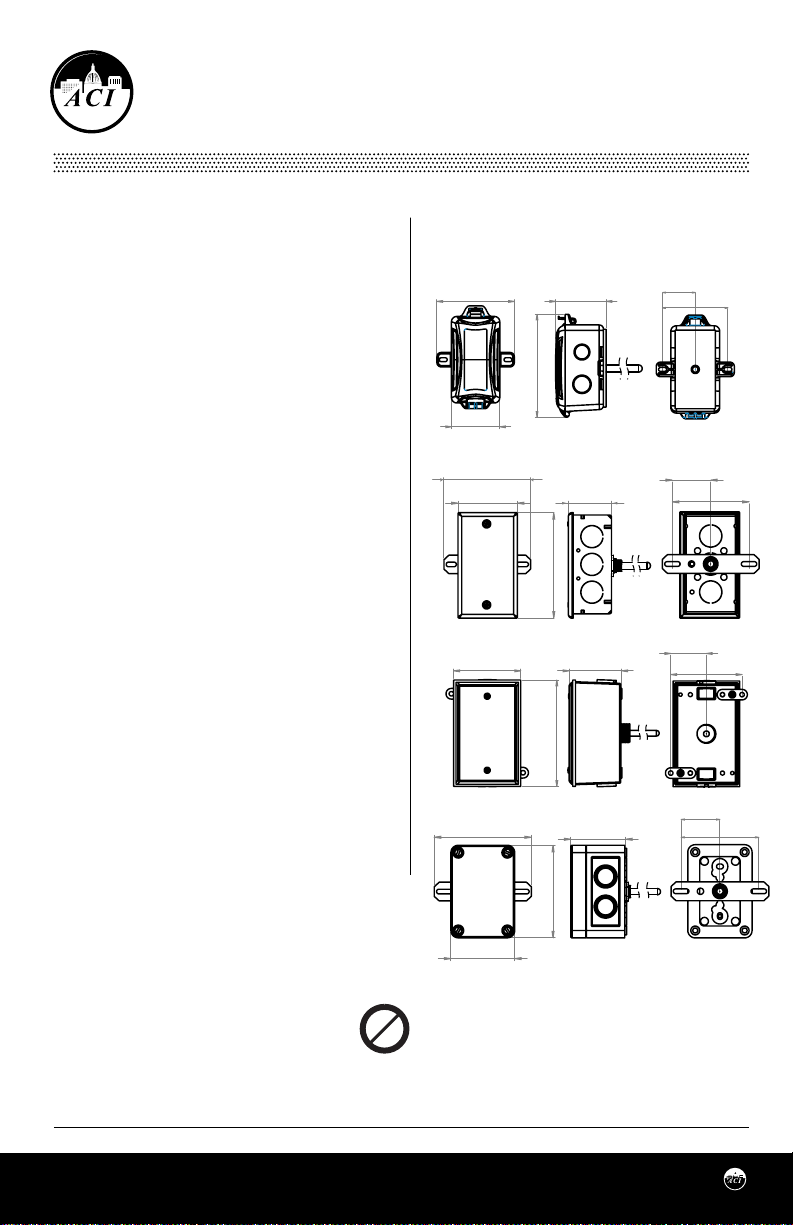

“-GD” : Galvanized Steel, -40 to 121 °C (-40 to 250 °F), NEMA 1 (IP10)
“-PB” : ABS Plastic, -30 to 90 °C (-22 to 194 °F), UL94-HB, Plenum Rated
“-BB” : Aluminum, -40 to 121 °C (-40 to 250 °F), NEMA 3R (IP 14)
“-4X”: Polystyrene Plastic, -40 to 70 °C (-40 to 158 °F), UL94-V2, NEMA 4X (IP 66)
Platinum RTD | PTC (Positive Temperature Coecient) | One
A/TT100/TTM100: 100 Ωnominal | A/TT1K/TTM1K: 1 KΩ nominal
+/- 0.06% Class A | (Tolerance Formula: +/- ºC = (0.15 °C + (0.002 * |t|))
where |t| is the absolute value of temperature above or below 0 °C in °C)
DIN EN 60751 (IEC 751) | 3850 ppm / °C
+/- 0.03% after 1000 Hours @ 300 °C (572 °F)
8 Seconds nominal
-40 to 200 °C (-40 to 392 °F)
0.250” (6.35mm) | 304 Stainless Steel
+8.5 to 32 VDC (Reverse Polarity Protected) | 25 mA minimum
250 ΩLoad: +13.5 to 32 VDC | 500 ΩLoad: +18.5 to 32 VDC
(Terminal Voltage - 8.5 V) | 0.020 A
Current: 4-20 mA (2-Wire) | Voltage: 1-5 VDC or 2-10 VDC (3-Wires)
T. Spans < 500 °F (260 °C): +/- 0.2%
T. Spans < 100 °F (38 °C): +/- 0.04%/ °F | T. Spans > 100 °F (38 °C): +/- 0.02%
Min. T. Span: 50 °F (28 °C) | Max T. Span: 400 °F (204 °C)
3 Pt. NIST: 20, 50, & 80% of span | 5 Pt. NIST: 0, 20, 50, 80, & 100% of span
10 Minutes | +/- 0.1%
-40 to 185 °F (-40 to 85 °C)
0 to 90%, non-condensing
Screw Terminal Blocks | 16 AWG (1.31 mm2) to 26 AWG (0.129 mm2)
0.37 ft-lb (0.5 Nm ) nominal
