Sam440ep-ex
User Guide
ACube Systems S.r.l.
Via Tabacco, 58 - 36061 Bassano del Grappa (VI) – Italy
tel. +39 0424 393120 fax +39 0424 393119 – info@acube-systems.com – www.acube-systems.biz
C.F. 03367150244 - VAT ID 03367150244 - REA VI-319762
Please check you local regulations for disposal of electronic devices
version 0.2 – 22 May 2009
Welcome
Thanks for buying an ACube Systems motherboard!
Your Sam440ep-ex board is ready to go. Just connect a PCI graphics
card, a hard drive, monitor, mouse and a keyboard, and switch it on! It
can be housed into a ex-atx, micro-atx and full ATX computer case.
Enjoy our products!
1. Package
Check your motherboard packaging for the following
items:
Motherboard Sam440ep-ex
Cables 2 x Sata cables
Documentation User Guide

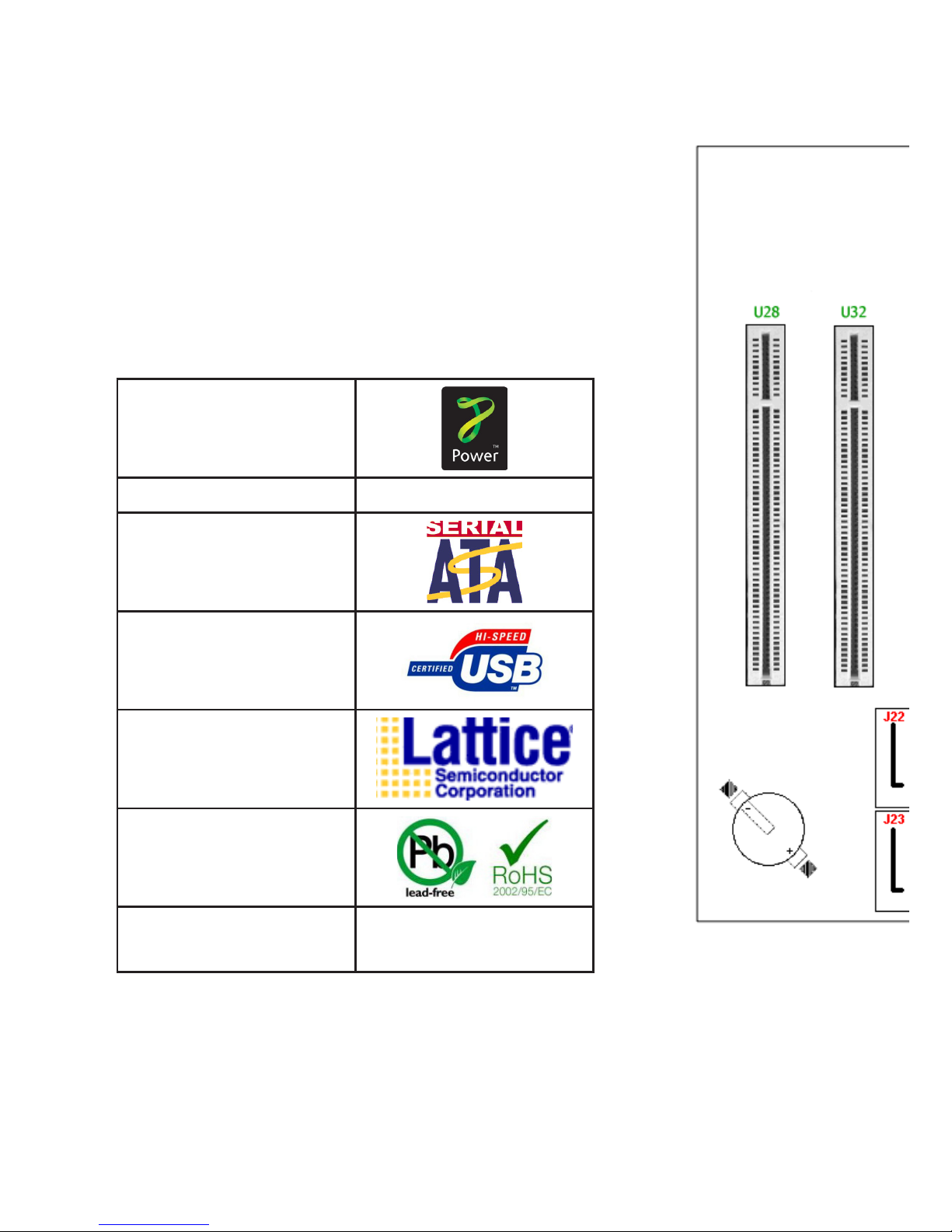

2. Features
PowerPC AMCC•
440ep
DDR Ram•
Serial ATA 1.5•
Gb/s
USB 2.0•
Lattice XP FPGA•
Rohs compliance•
ZigBee module•
(optional) Note that any component not shown in this picture is for internal use only.
Note that any component not shown in this picture is for internal use only.
3. Sam440ep-ex hardware specications
Flex-atx form factor (216 x 170 mm)•
533/667 Mhz PowerPC AMCC 440ep CPU•
2 DIMM module slots. Max 1 GB.•
Serial ATA Silicon Image 3114 controller - 4 ports (PCI 66 Mhz)•
Pericom 8150B PCI to PCI bridge•
Audio 5.1 onboard, CS 4281 and Realtek ALC655 codec (PCI 33•
Mhz)
USB 2.0 OHCI/EHCI NEC PCI controller (2 external ports, 2 internal•
ports)
3 PCI expansion slots, 32 bits, (1 x 66 Mhz, 2 x 33 Mhz), 3.3V•
Dual 10/100 Ethernet controller•
LatticeXP FPGA with 80 I/O pins expansion connector•
RTC clock•
Serial port•
I2C and SPI/I2C buses•
Optional ZigBee module•

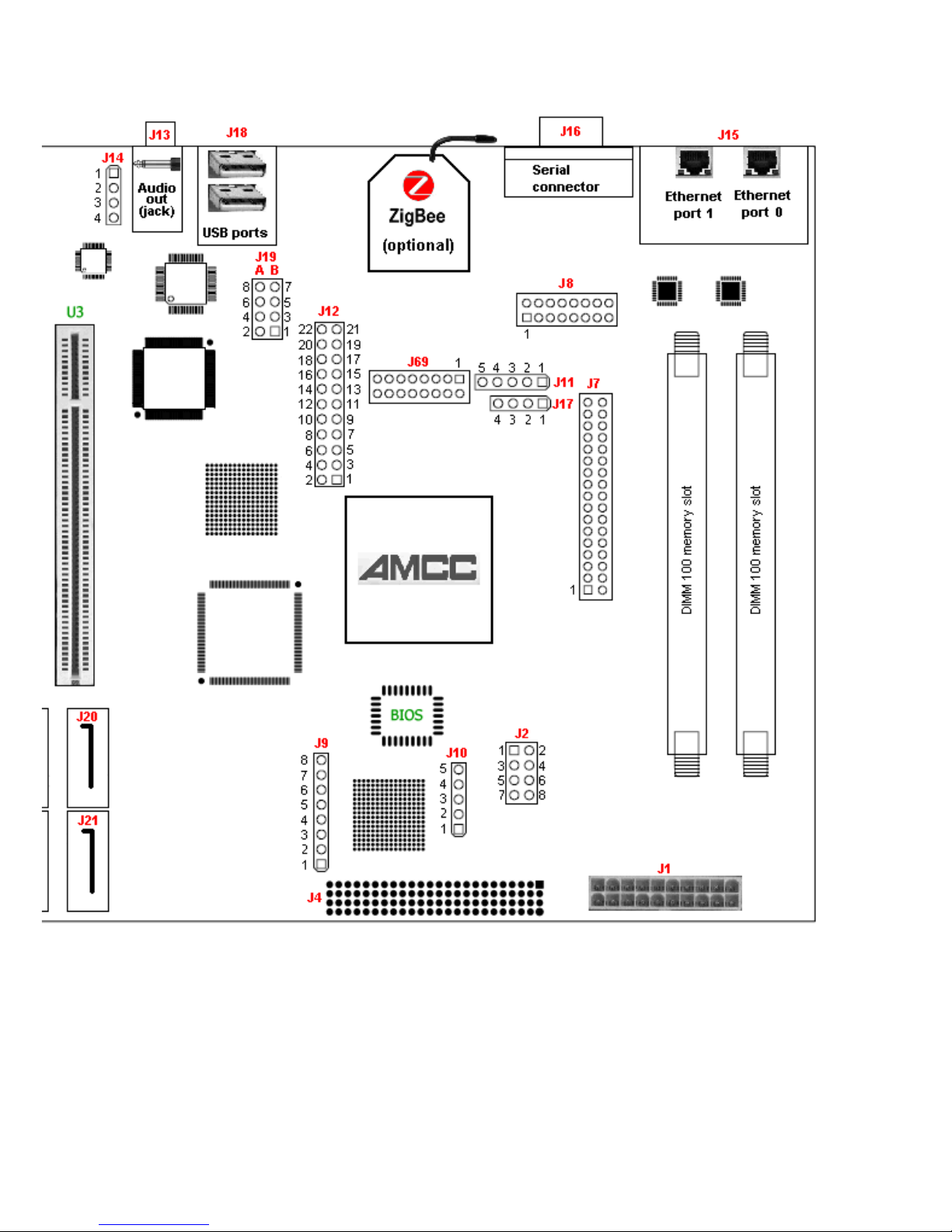

4. Rear panel connectors
Ethernet
J15 – Lan ports 0 and 1
Note that the connector which is closer to the end of the board is
considered as unit 0. The other port is unit 1.
Serial
J16 – Serial port
Note that the serial line is made of 4 wires: Tx, Rx, RTS, CTS.
USB
J18 – USB 2.0 ports 1 and 2
These 2 ports support EHCI/OHCI protocols.
Audio
J13 – Audio out
The audio connector has a jack stereo format.
5. Internal connectors
Case panel connector: J2
1-2 HD led
3-4 Power led
5-6 Power Switch
7-8 Reset Switch
USB
Internal USB ports: J19 (EHCI/OHCI) and J17 (OHCI only)
J19a (port 3) 1 – VCC J17 (port 5) 1 – VCC
3 – D- 2 – D-
5 – D+ 3 – D+
7 – GND 4 – GND
J19b (port 4) 2 – VCC
4 – D-
6 – D+
8 – GND
Audio
Audio in: J14 (DVD/CD)
Audio expansion port: J12
1 – 3.3 V 2 – 5 V
3 – SPDIFI 4 – SPDIFO
5 – MIC1 6 – LINE_IN_L
7 – JD0 8 – JD2
9 – MIC2 10 – LINE_IN_R
11 – SURR_L 12 – PCIM_OUT
13 – SURR_R 14 – PCIM_IN
15 – AUX_L 16 – CEN_OUT
17 – AUX_R 18 – LFE_OUT
19 – FMIC 20 – VREFOUT
21 – GND 22 – GND
SATA ports: J20 (Hard Disk), J23 (DVD/CD), J21, J22
PCI slots
U3 – PCI slots running at 66 Mhz
U28 – PCI slots running at 33 Mhz
U32 – PCI slots running at 33 Mhz
For better performance we suggest to use the U3 slot for plugging a
graphics card.
RAM slots
Both memory slots are the same. In case only one memory module is
used, it can be installed in either one.
Misc
ATX Power connector: J1
Cpu JTAG: J8
LatticeXP FPGA JTAG: J9
LatticeXP FPGA expansion connector: J4 (80 I/O pins available)
I2C bus port: J10
1 – SCLK
2 – 3.3V
3 – SDATA
4 – GND
5 – NC
SPI/I2C bus port: J11
1 – I2C SCLK / SPI SCL
2 – 3.3V
3 – I2C SDATA / SPI SDA
4 – GND
5 – SPI SDO
GPIO: J7
6. Firmware
Note: the 1.3.1 Uboot version shipped with the board is under constant
development. Currently there are a few limitations, which may be
resolved in future updates.
To use an USB keyboard under UBoot, it needs to be attached to the
upper external USB port (J18) or internal header J19A.
Uboot currently handles only 2 SATA ports from which you can boot.
It means that you must connect devices you want to boot from on J20
and J23 only.
Obviously, other devices will be recognised when the operating system
is loaded.
7. Instructions
There is a blue led near the J21 Sata connector. When this led is lit, the
board is under power. When the board is switched on, this led should
go o and the power led on the computer case should light on.
If you encounter a problem using your board, please contact your
dealer. He is very qualied to x any issues.
8. Safety Information
ALWAYS DISCONNECT ALL POWER CABLES BEFORE CONNECTING OR
REMOVING CABLES FROM THE MOTHERBOARD.
Also make sure that your power supply is set to the correct voltage in
your area.

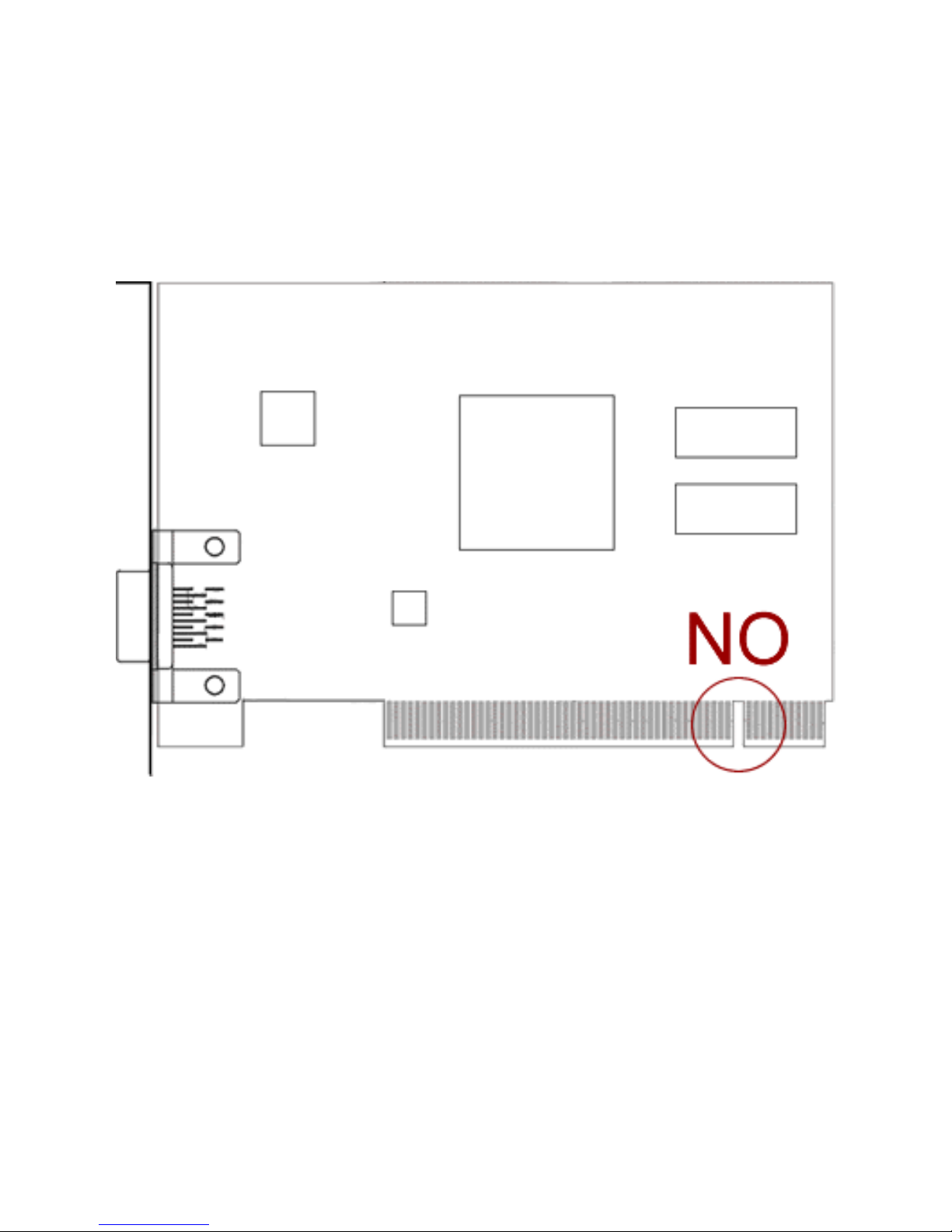

5V compatible PCI card – DO NOT use it
9. PCI SLOTS
Warning: the PCI slots are compatible with 3.3V PCI cards only. Inserting
a 5.0V PCI card will damage the Sam440ep-ex board!!
Do not try to reverse a 5.0V PCI board to t it into the 3.3V PCI slot, it
will damage your board!!
