ADA INSTRUMENTS CUBE MINI Manuale utente

Operating manual

Line laser level

ADA CUBE MINI

MEASUREMENT FOUNDATION

INSTRUMENTS

www.ekt2.com

Electronics Katrangi Trading

CUBE MINI

INSTRUMENTS

Kit

Cross line laser, batteries, operating manual, a tripod (optional). Manufacturer may modify complete set

without notice.

Application

Cross Line Laser projects visible laser planes. It is used for determination height, making horizontal and

vertical planes.

Specications

Leveling Range self-leveling, ±3°

Accuracy ±2mm/10m

Working Range 10 m* (*depends on illumination of work area)

Power Supply 2xAA Batteries Alkaline

Laser Source 1 x 635nm

Operating temperature -10°C to 45°C

Laser class 2

Dimensions 65х65х45 mm

Weight 190 g

www.ekt2.com

Electronics Katrangi Trading

CUBE MINI

INSTRUMENTS

Change of batteries

Open battery compartment. Put in 2x AA Alkaline batteries. Take care to correct polarity. Close battery compartment.

ATTENTION: If you are not going to use instrument for a long time, take out batteries.

Laser lines

www.ekt2.com

Electronics Katrangi Trading

CUBE MINI

INSTRUMENTS

Features

1. laser emitting window

2. battery cover

3. compensator switch

4. tripod mount 1/4"

www.ekt2.com

Electronics Katrangi Trading

CUBE MINI

INSTRUMENTS

Operation

Place the instrument on the working surface or mount it on the tripod/pillar or wall mount (comes with the

instrument).

Switch on the instrument: turn the compensator switch (3) to the position “ON”.

When enabled, the vertical and horizontal plane projected constantly. Visual alarm (blinking line) and

audible signal indicate that the device was not installed within the compensation range ± 3 º. To properly

work align the unit in a horizontal plane.

www.ekt2.com

Electronics Katrangi Trading

CUBE MINI

INSTRUMENTS

APPLICATION DEMONSTRATION

www.ekt2.com

Electronics Katrangi Trading

CUBE MINI

INSTRUMENTS

To check the accuracy of line laser level

To check the accuracy of line laser level (slope of plane)

Set up the instrument between two walls, the distance is 5

m.Turn on the Cross Line Laser and mark the point of cross

laser line on the wall.

Set up the instrument 0,5-0,7m away from the wall and make, as

described above, the same masrks. If the difference {a1-b2} and

{b1-b2} is less then the value of “accuracy” (see spesications),

there is no need in calibration.

Example: when you check the accuracy of Cross Line Laser the

difference is {a1-a2}=5 mm and {b1-b2}=7 mm. The

instrument’s error: {b1-b2}-{a1-a2}=7-5=2 mm. Now you can

compare this error with standard error.

If the accuracy of Cross Line Laser isn’t corresponding with

claimed accuracy, contact the authorized service center.

www.ekt2.com

Electronics Katrangi Trading

CUBE MINI

INSTRUMENTS

To check level

Choose a wall and set laser 5M away from the wall. Turn

on the laser and cross laser line is marked A on the wall.

Find another point M on the horizontal line, the distance is

around 2.5m. Swivel the laser, and another cross point of

cross laser line is marked B. Please note the distance of

B to A should be 5m.

Measure the distance between M to cross laser lune, if

the difference is over 3mm, the laser is out of calibration,

please contact with seller to calibrate the laser.

To check plumb

Choose a wall and set laser 5m away from the wall. Mark

point A on the wall, please note the distance from point A

to ground should be 3m. Hang a plumb line from A point

to ground and nd a plumb point B on ground. turn on

the laser and make the vertical laser line meet the point

www.ekt2.com

CUBE MINI

INSTRUMENTS

B, along the vertical laser line on the wall and measure the distance 3m from point B to another point C.

Point C must be on the vertical laser line, it means the height of C point is 3m.

Measure the distance from point A to point C, if the distance is over 2 mm, please, contact with seller to

calibrate the laser.

Care and cleaning

Please handle measuring instrument with care. Clean with soft cloth only after any use. If necessary

damp cloth with some water. If instrument is wet clean and dry it carefully. Pack it up only if it is perfectly

dry. Transport in original container/case only.

Note: During transport On/Off compensator lock (3) must be set to position “OFF”. Disregard may lead to

damage of compensator.

Specic reasons for erroneous measuring results

• Measurements through glass or plastic windows;

• Dirty laser emitting window;

www.ekt2.com

Electronics Katrangi Trading

CUBE MINI

INSTRUMENTS

• After instrument has been dropped or hit. Please check the accuracy.

• Large uctuation of temperature: if instrument will be used in cold areas after it has been stored in

warm areas (or the other way round) please wait some minutes before carrying out measurements.

Electromagnetic acceptability (EMC)

• It cannot be completely excluded that this instrument will disturb other instruments (e.g. navigation

systems);

• will be disturbed by other instruments (e.g. intensive electromagnetic radiation nearby industrial

facilities or radio transmitters).

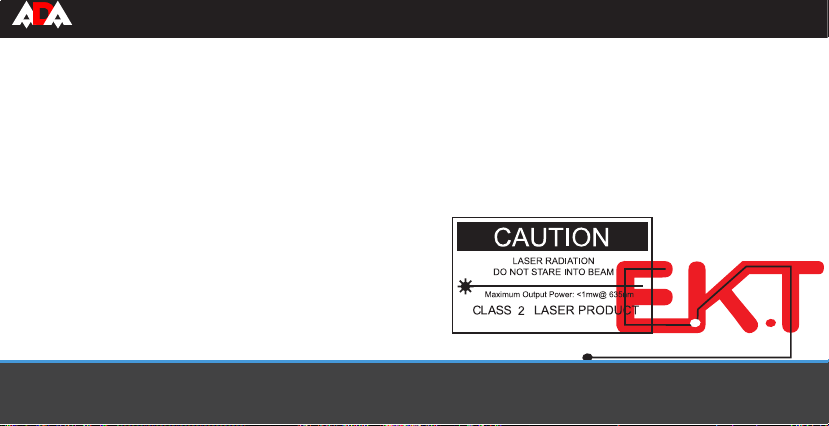

Laser class 2 warning label on the laser instrument

www.ekt2.com
