ProPatch®Miniature Series
Super High-Density Coax Patching System
The ProPatch®Miniature (PPM) Series is an all new Super High-Density Coax (SHDC) patching
system designed for High Definition (HD), SDI, AES audio, 5.1 and 7.1 audio applications where
coax medium is preferred but space is at a premium. The system is available in both 1 and 1.5 rack
unit configurations. The 1 rack unit panel features a patent-pending pullout designation strip that
dramatically increases space for text, and a high-density 2x48 circuit configuration of ports. The
1.5 rack unit panel features 4x48 ports.
The new SHDC jack features a unique patent-pending switchable termination system that allows
the user to select terminating and non-terminating 75 Wfunctions on each circuit pair. The
normal-through system is also available in a straight-through configuration for tie-line panels and
applications where normals are not required. The SHDC high-performance normalling and straight-
through LCC jacks are rated to SMPTE 424M HD standard. The SHDC AES jacks are rated for AES
digital audio and analog video transmission. Both versions feature modular screwless mounting,
circuit identification icons on the rear of the jack, 10,000 insertion/withdrawal cycles and are fully
qualified to MIL-STD 202 for the ultimate in durability.
The system features two options. ADC’s patented push-pull LCC connector technology on the
backplane, or standard 1.0/2.3 connectors and ADC's patented LCC and LCP connectors terminate
like a BNC using standard tooling.
5/08 • 105548AE ProPatch®Miniature Series (SHDC)
2
www.adc.com • +1-952-938-8080 • 1-800-366-3891
1 Rack Unit Super High-Density Coax Patch Panel
ProPatch®Miniature Series
Super High-Density Coax Patching System
Features:
High-density: 48 total jacks (2x48)•
Large designation strips: .440" wide designation on top and bottom; plus a 1" slide out designation•
Lightweight: Less then 1 Kg (2 lbs) total panel weight•
1.5 Rack Unit Super High-Density Coax Patch Panel
Features:
High-density: 96 total jacks (4x48)•
Large designation strips: .440" wide middle designation, .289" on top and bottom•
Lightweight: Less then 1.8 Kg (3.8 lbs) total panel weight•
5/08 • 105548AE ProPatch®Miniature Series (SHDC)
3
www.adc.com • +1-952-938-8080 • 1-800-366-3891
ProPatch®Miniature Series
Super High-Density Coax Patching System

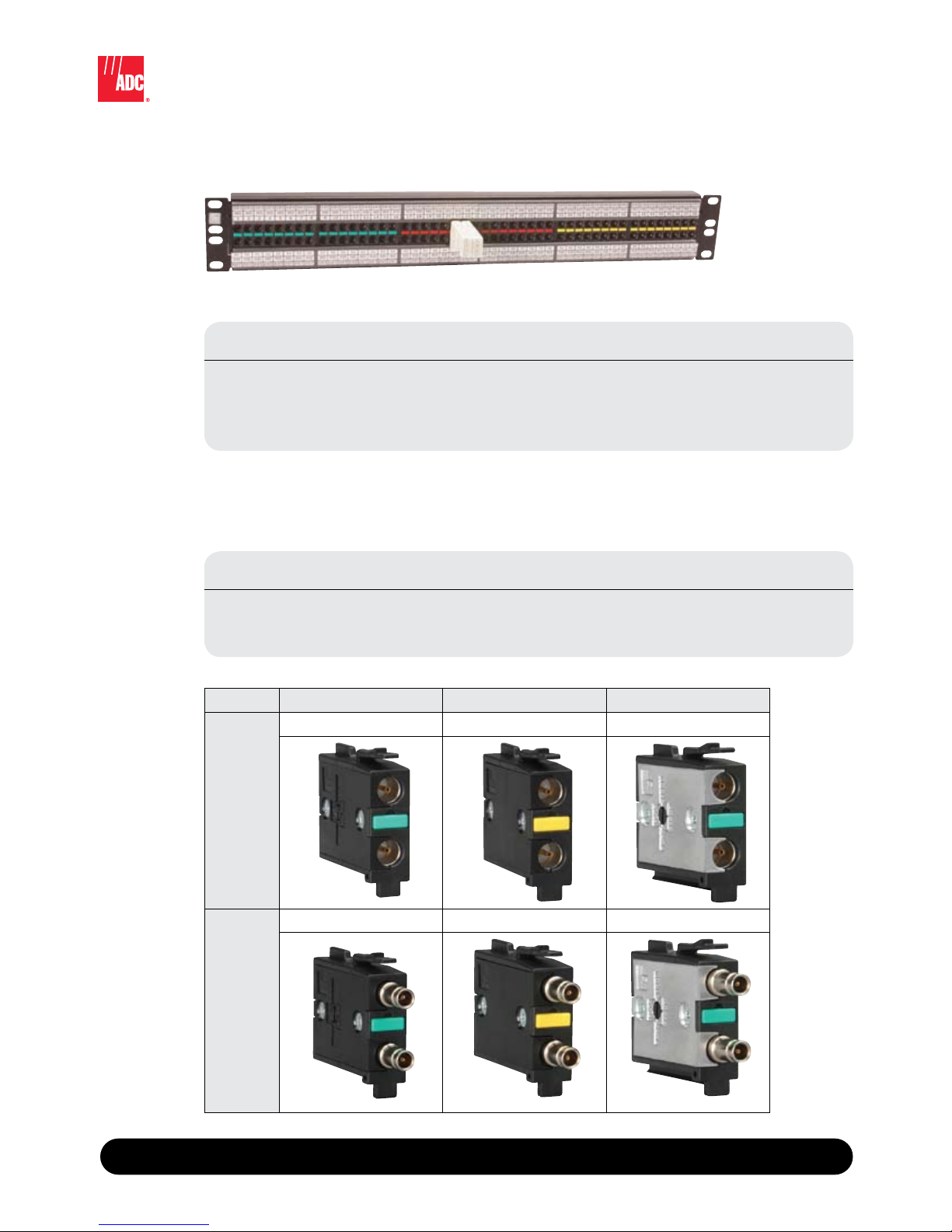

Normalling AES Straight-Through HD Normalling HD
LCC
SHDC-LCC SHDC-LCC-NN SHDC-LCC-HP
1.0/2.3
SHDC-1023 SHDC-1023-NN SHDC-1023-HP
1.5 Rack Unit Super High-Density Coax Patch Panel
Features:
High-density: 48 total jacks (2x48)•
Large designation strips: .680" designation on top and bottom•
Lightweight: Less then 1.4 Kg (3 lbs) total panel weight•
SHDC Jack
Features:
Switchable between terminating and non-terminating normalled-through•
Non-normalled jack offered in same jack housing, looping plug available for circuit patching•
5/08 • 105548AE ProPatch®Miniature Series (SHDC)
4
www.adc.com • +1-952-938-8080 • 1-800-366-3891
ProPatch®Miniature Series
Super High-Density Coax Patching System
Specifications
ELECTRICAL
Characteristic impedance: 75 W
Voltage rating: 600 Volts RMS
Bandwidth
HD LCC: Up to 3 GHz
HD 1.0/2.3: Up to 1.0 GHz
Straight-through LCC: Up to 3 GHz
Straight-through 1.0/2.3: Up to 1.0 GHz
AES: Up to 500 MHz
Contact resistance: .030 Wmax change post environmental
Insulation resistance: 200 MWmin change
MECHANICAL
Mechanical durability: 10,000 cycles min (Front port: LCP)
500 cycles min (Back port: LCC)
Center contact retention: 6 lbs min
SHDC jack panel retention: 20 lbs min
Patch cord cable bend and twist: 500 cycles min
ENVIRONMENTAL
Thermal shock: -40°C to 65°C, operating; -55°C to 85°C, non-operating
Moisture resistance: 0% to 95%; MIL-STD-202 Method 106
Corrosion (salt spray): MIL-STD-202 Method 101, test condition B
Flammability: UL 94-VO rated (center conductor insulator)
Vibration: MIL-STD-202 Method 201
Solvent resistance: MIL-STD-202 Method 215
FINISH
Sheet metal panel: .060 CRS with protective black finish
Jack plastic housing: 30% Glass Filled Valox
Nickel coax housings: Tarnish-resistant electroless nickel plating
Springs: Beryllium copper with 50 millionths inch gold plating
Center conductors: 50 millionths inch gold plating
Gated Return Loss
High-Performance SHDC LCC Jack
-55
-50
-45
-40
-35
-30
-25
-20
-15
-10
-5
0
0 250 500 750 1000 1250 1500 1750 2000 2250 2500 2750 3000
Frequency (MHz)
SMPTE 424M HD Limit
SHDC HD Jack Normal-through
SHDC Accessed
SMPTE 424M Standard
Return Loss (dB)
5/08 • 105548AE ProPatch®Miniature Series (SHDC)
5
www.adc.com • +1-952-938-8080 • 1-800-366-3891
ProPatch®Miniature Series
Super High-Density Coax Patching System
Description Catalog Number
ProPatch®Miniature Panels
2x48 1 RU LCC Normalling AES and Analog Video PPM1248-LCC-BK
High-Performance, HD PPM1248-LCCHP-BK
Non-Normalling High-Performance PPM1248-LCCNN-BK
1.0/2.3 jack Normalling AES and Analog Video PPM1248-1023-BK
High-Performance, HD PPM1248-1023HP-BK
Non-Normalling High-Performance PPM1248-1023NN-BK
1.5 RU LCC Normalling AES and Analog Video PPM15248-LCC-BK
High-Performance PPM15248-LCCHP-BK
Non-Normalling High-Performance PPM15248-LCCNN-BK
1.0/2.3 jack Normalling AES and Analog Video PPM15248-1023-BK
High-Performance PPM15248-1023HP-BK
Non-Normalling High-Performance PPM15248-1023NN-BK
4x48 1.5 RU LCC Normalling AES and Analog Video PPM15448-LCC-BK
High-Performance PPM15448-LCCHP-BK
Non-Normalling High-Performance PPM15448-LCCNN-BK
1.0/2.3 jack Normalling AES and Analog Video PPM15448-1023-BK
High-Performance PPM15448-1023HP-BK
Non-Normalling High-Performance PPM15448-1023NN-BK
Ordering Information
1.5 RU 2x48 PPM Panel
1.5 RU 4x48 PPM Panel
1 RU 2x48 PPM Panel
5/08 • 105548AE ProPatch®Miniature Series (SHDC)
6
www.adc.com • +1-952-938-8080 • 1-800-366-3891
ProPatch®Miniature Series
Super High-Density Coax Patching System
Description Catalog Number
Looping plug; LCP .48" Centers LP-SHDC-480
Ordering Information
Description Catalog Number
Super High-Density Coax Jacks
LCC Normalling AES and Analog Video SHDC-LCC
High-Performance, HD SHDC-LCC-HP
Straight-Through High-Performance, HD SHDC-LCC-NN
1.0/2.3 connectors Normalling AES and Analog Video SHDC-1023
High-Performance SHDC-1023-HP
Straight-Through High-Performance SHDC-1023-NN
Ordering Information
Description Catalog Number
LCP High-Performance Patch Cords
2 feet BK2VXM-LCP-LCP
3 feet BK3VXM-LCP-LCP
4 feet BK4VXM-LCP-LCP
6 feet BK6VXM-LCP-LCP
Ordering Information
LCP Patch Cords
LCP Looping Plug
LCC Jack
5/08 • 105548AE ProPatch®Miniature Series (SHDC)
7
www.adc.com • +1-952-938-8080 • 1-800-366-3891
ProPatch®Miniature Series
Super High-Density Coax Patching System
Ordering Information
LCC Connectors Bulk Pack
LCC Connector
Description
Catalog Number
Cable Type (or equivalent to)
1505, 9259
9100,
VPM2000
1855
VDM230
VDM250
0.6/2.8
SDV-25
179DT
LCC Connectors
1 each LCC-1-BE LCC-13-BE LCC-26-BE LCC-31-BE
bulk (100 pack) LCC-1B-BE LCC-13B-BE LCC-26B-BE LCC-31B-BE
Crimp Tools
Features ergonomic handle for ADC die sets WT-2
Features long ergonomic handle for ADC die sets WT-3
Crimp Die Sets WD-1 WD-2 WD-3 WD-2
WD-2 WD-4
WD-3
WD-5
Manual Stripper Tool
Includes One Stripper Replacement Cassette
STC-12B STC-13B STC-13B STC-13B
Manual Stripper Replacement Cassette CCS-BLK
Automatic Cable Stripper Tool BNC-S1
Cutter Head For Automatic Cable Stripper Tool BNC-H2 BNC-H5 BNC-H5 BNC-H5
Insertion/Withdrawl Tool LCA-400004
Replacement Tips
For Insertion/Withdrawal Tool (12-Pack)
LCA-400005-12
LCC Tester LCA-414001
Insertion/Withdrawal
Tool
