PON Express™ 16

Universal Transport Platform for Access Networks

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Spec Sheet

Features:

Supports point-to-point and point-to-•

multipoint architectures

Delivers up to 1Gbps of dedicated,•

symmetrical bandwidth per suscriber

Uses a single fiber for up and downstream•

traffic

Provides “colorless” optics on the ONTs/•

ONUs as well as the OLT line cards

Supports SNMP and TL1 for management•

Provides multiple deployment options to fit•

every environment:

- Strand mount or underground option

- Rack mount option

- Modular option for existing splitter

cabinet

Uses modular architecture for simple and•

quick service and bit rate upgrades

Allows complete or partial redundancy•

through the network

Benefits:

Enables multiple services and bit rates to•

exist simultaneously without complex traffic

management

Allows for service and bit rate upgrades•

without infrastructure changes

Reduces inventory costs by using “colorless”•

ONTs/ONUs and OLT line cards (OCUs)

Recovers fiber assets in older deployments•

and reduces fiber count for new

deployments

Supports transparent SLAs•

Plug-n-play simplicity reduces time to•

market and eliminates wavelength

management issues

Allows 1310nm overlay using ADC‘s DWDM•

VAM module to support legacy networks

Provides more security and privacy due to•

dedicated wavelengths

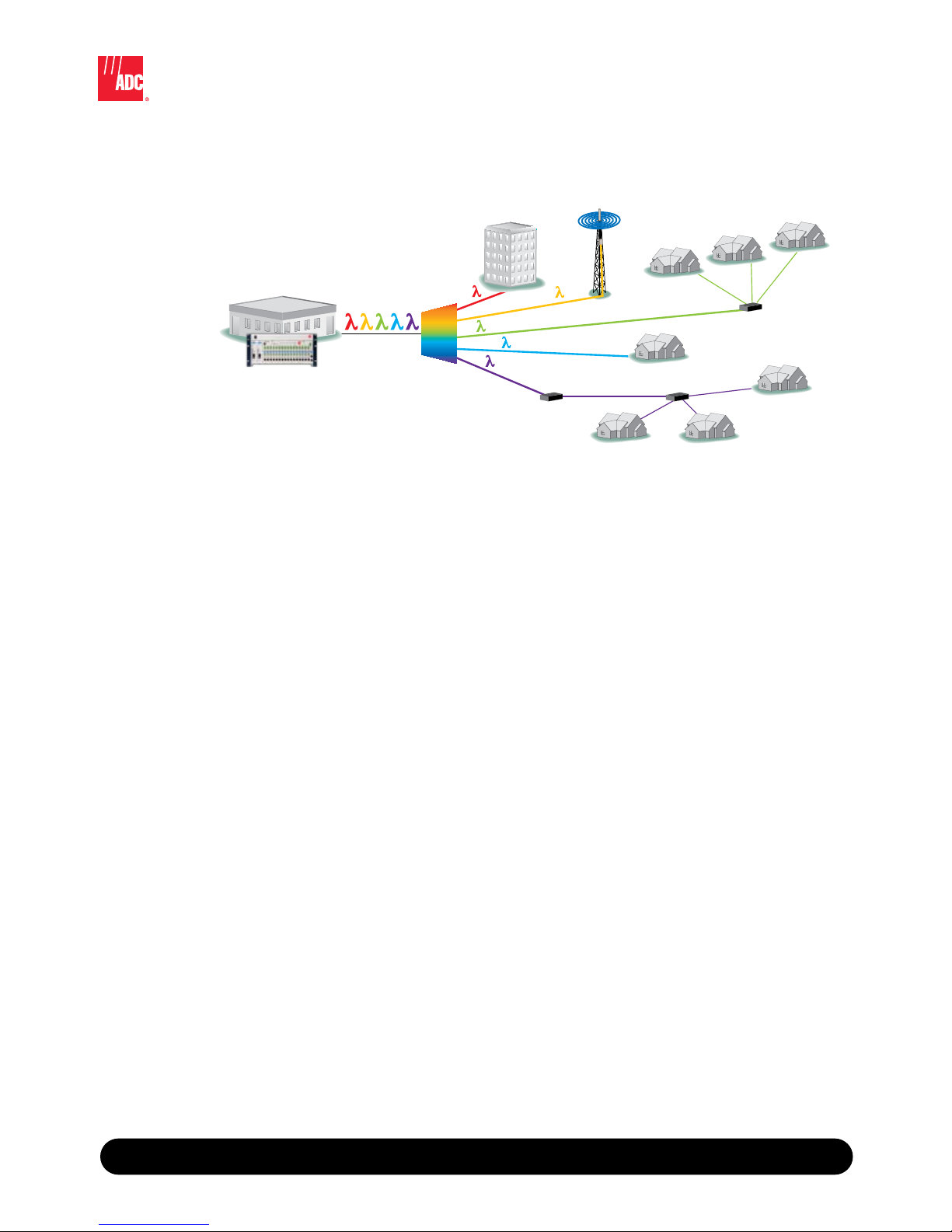

The PON (Passive Optical Network over wavelengths) Express 16 is the first transport platform

to use a Passive Optical Network (PON) architecture to break the access bottleneck. Using Dense

Wave Division Multiplexing (DWDM), the PON Express 16 provides cost-effective access to

business parks, campuses, and multi-dwelling unit/multi-tenant units over a shared network

infrastructure without sacrificing security or limiting bandwidth. Up to 16 customers can be

simultaneously connected with each having up to 1Gbps dedicated, symmetrical bandwidth.

Operationally, each Optical Network Terminal (ONT) is “colorless” which eliminates the sparing

issue that plagues traditional DWDM systems and provides “plug-n-play” system provisioning.

The PON Express 16 is integrated into other ADC products such as the OmniReach®FTTX Fiber

Distribution Hub FDH3000S providing a compelling solution unique to the industry.

8/08•104743AE PON Express™16

PON Express™ 16

Universal Transport Platform for Access Networks

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Residential

FTTC

ENET/VDSL

GPON/EPON

FTTH

FTTN

Passive

Remote Node

PON Express 16

Central Office

FTTB

Wireless

The DWDM-PON architecture (presented below) removes the bandwidth bottlenecks on the feeder fiber

in the existing broadband access networks and enables flexible service upgrades.

Applications:

Business access services (FTTB/FTTC)•

- True transparent LAN service

- Dedicated GE

- Wireless/WiMAX/Wi-Fi backhaul

Carrier services (FTTB/FTTN)•

- Dedicated GE for carrier hotels

- Fiber exhaust and reduced fiber count

between nodes or offices

Residential services (FTTH/FTTC)•

- GPON/EPON backhaul

- Triple-play with dedicated 100Mbps to

1Gbps to the home

8/08•104743AE PON Express™16

PON Express™ 16

Universal Transport Platform for Access Networks

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Remote Node Packaging Option

1 RU Shelf

•Passiveremotenodeprovides1x16channelsof

DWDM multiplexing/de-multiplexing

•Hardenedcomponentsforoutdoorinstallation

•Rack-mountableunitforindoorinstallation

Optical Network Termination (ONT)

•DWDM1.25GbpsGigabitEthernet(GE)termination

ofopticalsignaltoRJ45

•AllONTmodulesarecolorlessandinterchangeable

for easy inventory management and plug-and-play

operation

•Symmetricaldedicated1.25GbpsGEwith

transparent Quality of Service (QoS)

Optical Line Termination Shelf (OLT)

OLT shelf with BMS, OCU, MPU, PSU slots

Dimensions:19"x5RU(4RUOLTand1RUFan)

PowerSupply:-48V/3.5A

OperatingTemperature:0°to50°C

Website: www.adc.com

FromNorthAmerica,CallTollFree:1-800-366-3891•OutsideofNorthAmerica:+1-952-938-8080

Fax:+1-952-917-3237•ForalistingofADC’sglobalsalesofficelocations,pleaserefertoourwebsite.

ADCTelecommunications,Inc.,P.O.Box1101,Minneapolis,Minnesota USA 55440-1101

Specifications published here are current as of the date of publication of this document. Because we are continuously

improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may

verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc.

views its patent portfolio as an important corporate asset and vigorously enforces its patents. Products or features

contained herein may be covered by one or more U.S. or foreign patents. An Equal Opportunity Employer

Spec Sheet

Description Catalog Number*

OLT Shelf

and Common

Equipment

19" Rack Mountable Chassis for Optical Line Terminating Equipment PNY16-OLT Shelf

Software license for OLT (1 PNYr OLT) PNY16-OLT SW

Main Control Unit (MCU) PNY16-MCU

Broadband Lightsource and Upstream AWG Mux/Demux PNY16-BMU

Variable speed fan unit containing 3 fans PNY16-OLT Fan

-48VDCPowerSupplyUnit PNY16-PSU

OM Shelf and

Module

Chassis PNY16-OM Shelf

Module PNY16-1310-OM

CO Line Cards 1.25GbpsEthernetLineCardforOLT PNY16-OCU-1250

125MbpsEthernetLineCardforOLT PNY16-OCU-125

Subscriber

Equipment

1.25GbpsEthernetSubscriberUnit PNY16-ONT-1250

125MbpsEthernetSubscriberUnit PNY16-ONT-125

Remote

Equipment

Downstream AWG Mux/Demux PNY16-RN

Redundant

Systems

Includes:2PNY16-OLTShelf,2PNY16-OLTSWLicense,

2PNY16-MPU,2PNY16-BMU,2PNY16-OLTFan,4PNY16-PSUs,

8PNY16-OCU-1250s,8PNY16-ONT-1250s,and2PNY16-RN

PNY16-4R-1250

Includes:2PNY16-OLTShelf,2PNY16-OLTSWLicense,

2PNY16-MPU,2PNY16-BMU,2PNY16-OLTFan,4PNY16-PSUs,

16PNY16-OCU-1250s,16PNY16-ONT-1250s,and2PNY16-RN

PNY16-8R-1250

Includes:2PNY16-OLTShelf,2PNY16-OLTSWLicense,

2PNY16-MPU,2PNY16-BMU,2PNY16-OLTFan,4PNY16-PSUs,

32PNY16-OCU-1250s,32PNY16-ONT-1250s,and2PNY16-RN

PNY16-16R-1250

Ordering Information
