Addonics Technologies NAS NAST4SR5HPM-B Manuale utente

T E C H N O L O G I E S

User Guide

NAS Storage Tower

(NAST4SR5HPM-B)

Technical Support

If you need any assistance to get your unit functioning properly, please have your

product information ready and contact Addonics Technical Support at:

Hours: 8:30 am - 6:00 pm PST

Phone: 408-453-6212

Email: http://www.addonics.com/support/query/

v6.1.11

www.addonics.com

www.addonics.com Technical Support (M-F 8:30am - 6:00pm PST) Phone: 408-453-6212 Email: www.addonics.com/support/query/

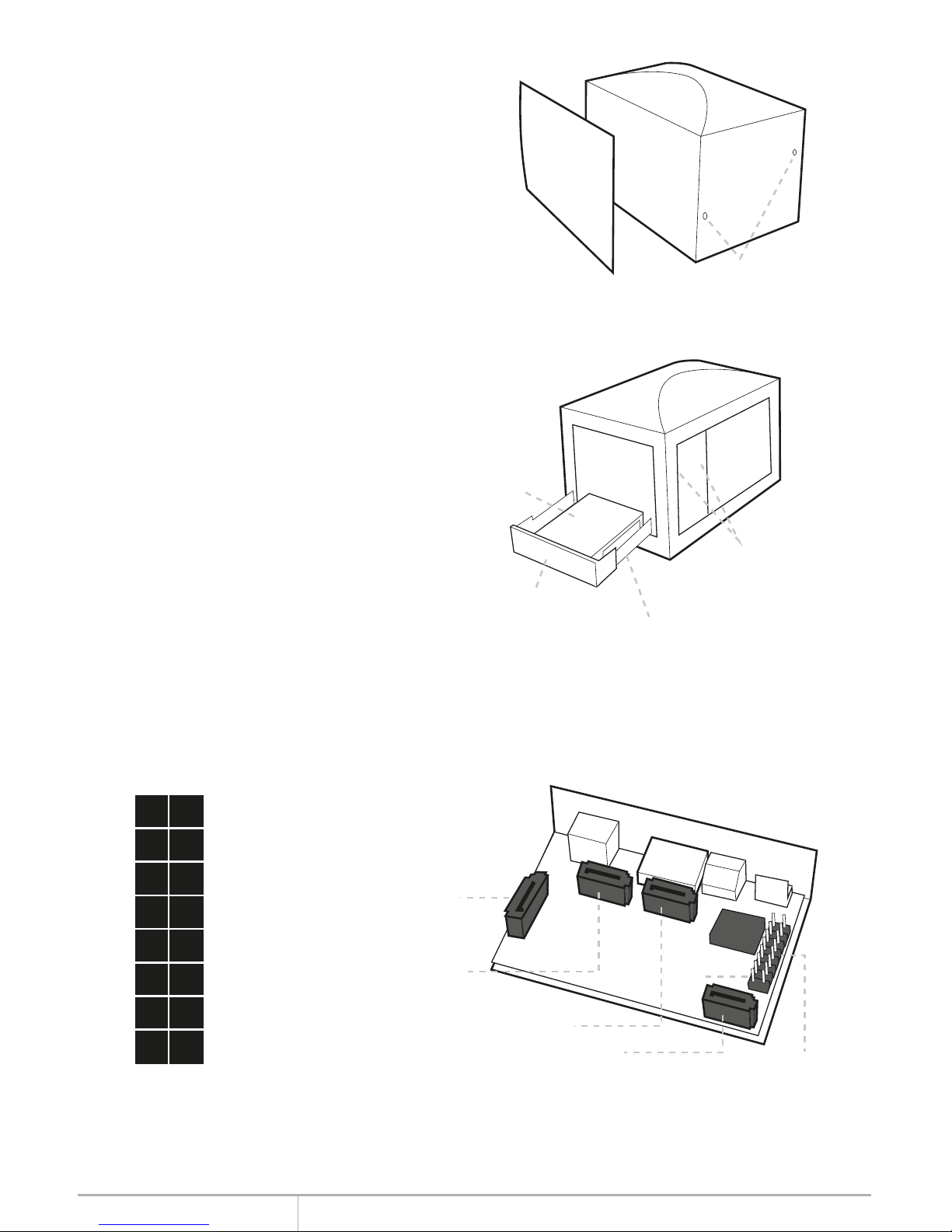

Removing Cover of

Storage Tower

a. Unscrew the side panel

screws.

b. Slide the side panel towards

the backside then pull or lift to

open.

c. To remove the front face

panels, unscrew 2 screws on

opposite sides of the 5 ¼”

drive bay on the tower

Installing drives into the

Storage Tower

a. Make sure that screws are

placed for both sides of the

mounting bracket to secure

the drives.

b. After installing the hard drive,

attach the side panels back

to the storage tower.

Setting RAID on the Hardware Port Multiplier (HPM)

LED Pins

Pin 1

SATA Port 3

SATA Port 2

SATA Port 1

SATA Port 4

- +

eSATA Status

USB Status

PM Power

PM Health

HD3 PWR & Access

HD2 PWR & Access

HD1 PWR & Access

HD0 PWR & Access

Side

Panel

Side Panel

Screw Locations

Screw Holes

SATA Drive

Optional Drive Mounting Bracket

Front Face Plates

www.addonics.com Technical Support (M-F 8:30am - 6:00pm PST) Phone: 408-453-6212 Email: www.addonics.com/support/query/

1. Set the Rotary switch to the RAID mode required.

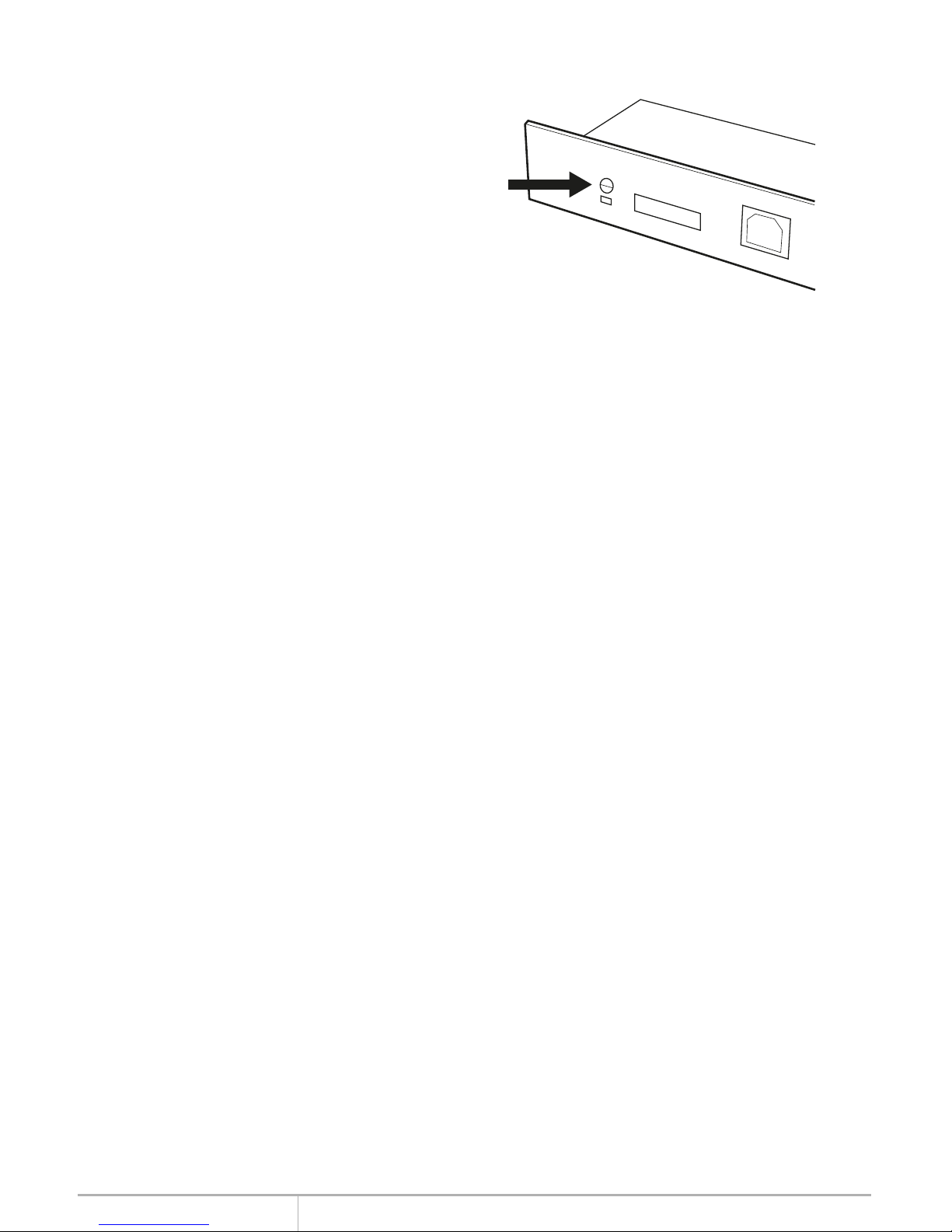

2. Push the RAID setting button with a ballpoint pen while the tower is

turned off.

Note: Do not use paper clip or sharp

object. Use a ballpoint pen to press the

raid setting button.

3. While holding the RAID setting

button, turn on the tower and continue

to hold for at least 5 seconds.

Note: The LED's for SATA and USB will blink while pressing on the raid setting

button. Once the button is release, the PM Health LED will blink for 4-6 times then

stops. This indicates the raid was setup correctly. Otherwise, the PM Health LED

will remain lit up indicating incorrect raid setup.

Instruction for Special RAID Modes:

BIG 2 - 2 Drives Spanned

o Note: Do not connect more than 2 SATA drives to the HPM. Doing so will

hang the system when you configure the raid.

o For SATA drives with different capacities, the HPM will use the smallest

drive capacity of the 2 drives connected to create the total partition size.

FAST 2 - 2 Drives Striped

o Note: Do not connect more than 2 SATA drives to the HPM. Doing so will

hang the system when you configure the raid.

Verify RAID Setting on the HPM

Note: Disconnect the HPM from host when verifying the RAID setting.

It is assumed that you have already connected the SATA drives and set up the raid

mode when verifying the raid setting.

1. Turn on power for the tower.

2. Push the RAID setting button with the tool provided. Using the table

below, verify if the LEDs are lighting up. The selected LEDs will light up for

2 seconds followed by a blink and cycles back.

www.addonics.com Technical Support (M-F 8:30am - 6:00pm PST) Phone: 408-453-6212 Email: www.addonics.com/support/query/

RAID Mode LEDs

BIG 2 LEDs 1, 2 & 4 all OFF

BIG 4 4 ON, 2 & 1 OFF

FAST 2 2 ON, 4 & 1 OFF

FAST 4 1 ON, 4 & 2 OFF

SAFE FAST 4 & 2 ON, 1 OFF

SAFE 2 4 & 1 ON, 2 OFF

RAID 5 2 & 1 ON, 4 OFF

RAID 5 + S 4, 2 & 1 all ON

Connecting the Power Cable and Storage Tower to the

Computer

a. Connect the power cord provided from the wall outlet to the back of the

tower.

b. Make sure the power is off (power LED light should be off).

c. Connect the eSATA cable from the back of the tower to the eSATA port on

the computer.

Power On/Off Control

a. A main power switch is located at the back of the tower. Turn the switch

on. Another auxiliary switch is located on the front of the tower.

b. Make sure the power is off on the auxiliary switch (power LED light should

be off).

c. Power on the tower.

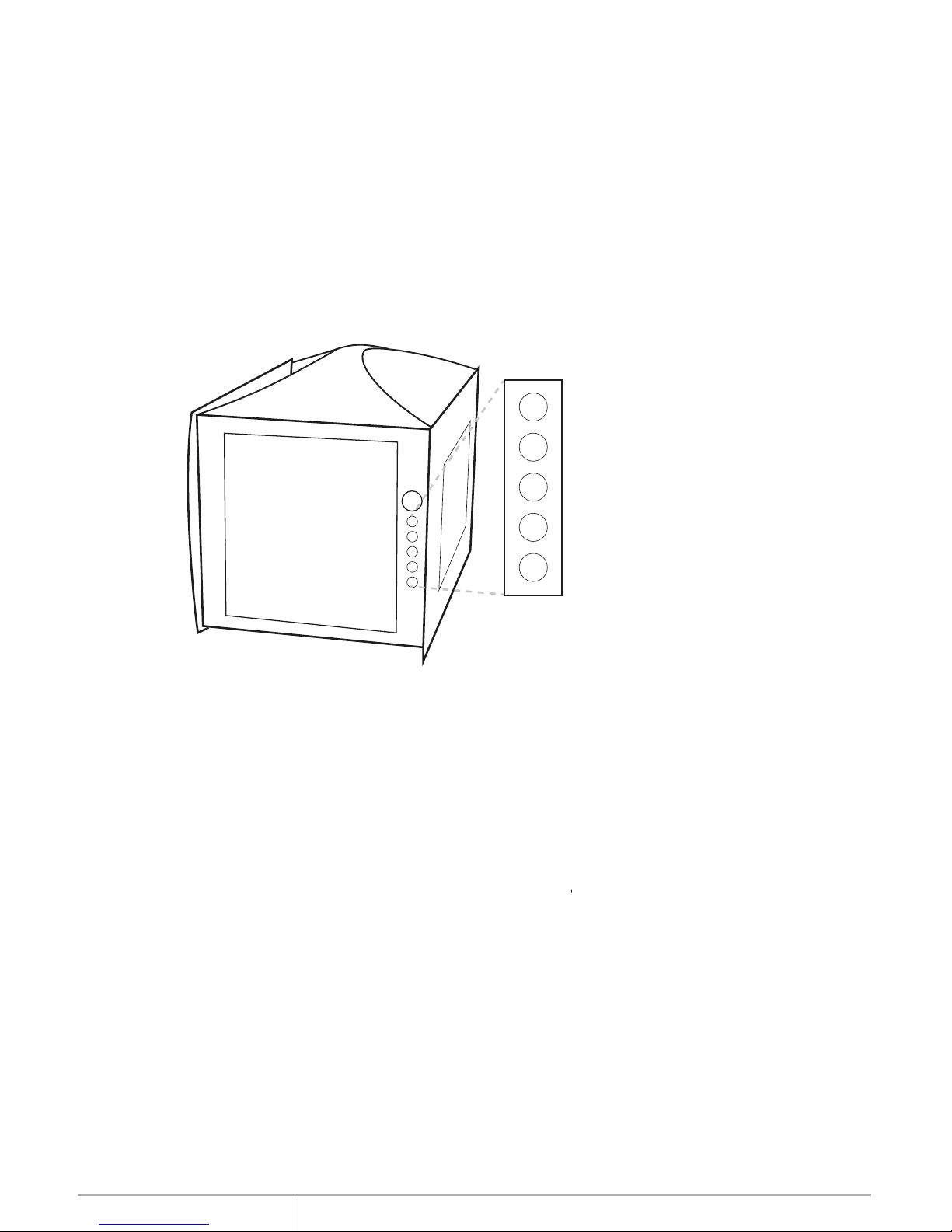

Storage Tower Power LED

eSATA LED

USB LED

Port Multiplier Power LED

Port Multiplier Health Status LED
