Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 1 of 28
User Manual
Revision 1 100
English
Modbus TCP Slave / Modbus Master – Converter
(Ethernet Switch Inside for enter/exit connection)
(Order Code: HD67508-A1-232, HD67508-A1-485,
HD67508-A1-422)
for Website information:
www adfweb com?Product=HD67508-A1
for Price information:
www adfweb com?Price=HD67508-A1-232
www adfweb com?Price=HD67508-A1-485
www adfweb com?Price=HD67508-A1-422
Benefits and Main Features:
35mm Rail DIN mount
Wide supply input range
Two Ethernet ports
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others products, see also the following links:
RS232 / RS485 / SB / Ethernet
www adfweb com?Product=HD67118 (RS232 / RS485 - Converter)
www adfweb com?Product=HD67119 (USB / RS485 - Converter)
www adfweb com?Product=HD67038 (RS485 / RS232 / Ethernet - Converter)
CAN / CANopen / Modbus / Modbus TCP
www adfweb com?Product=HD67001 (CANopen / Modbus Master - Converter)
www adfweb com?Product=HD67502 (CANopen / Modbus Slave - Converter)
www adfweb com?Product=HD67011 (CAN / Modbus Master - Converter)
www adfweb com?Product=HD67012 (CAN / Modbus Slave - Converter)
www adfweb com?Product=HD67514 (CAN / Modbus TCP Master – Converter)
www adfweb com?Product=HD67515 (CAN / Modbus TCP Slave – Converter)
Modbus RT Slave / Modbus TCP Master - Converter
www adfweb com?Product=HD67510
Do you have your customer protocol? Then go to:
www adfweb com?Product=HD67003
Do you need to choose a device? Do you want help?
www adfweb com?Cmd=helpme
User Manual
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 2 of 28
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLES OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 8
CONFIGURATION 8
POWER SUPPLY 9
FUNCTION MODES 10
LEDS 11
ETHERNET 12
RS232 12
RS485 13
RS422 14
USE OF COMPOSITOR SW67508 15
NEW PROJECT / OPEN PROJECT 16
SOFTWARE OPTIONS 17
SET COMMUNICATION 18
OPERATION MODE 20
TRANSLATE TABLE 21
UPDATE VIA UDP 23
MECHANICAL DIMENSIONS 25
ORDER CODE 26
ACCESSORIES 26
DISCLAIMER 27
OTHER REGULATIONS AND STANDARDS 27
WARRANTIES AND TECHNICAL SUPPORT 28
RETURN POLICY 28
PDATED DOC MENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document
With this “Document Code” go to web page www adfweb com/download/
and search for the corresponding code on the page Click on the proper
“Document Code” and download the updates
REVISION LIST:
Revision
Date Author Chapter Description
1 012 07/02/2013
Nt All Added new chapters
1 013 29/01/2014
Fl All Revision
1 014 12/02/2014
Fl All Revision
1 100 13/12/2021
Ff All Revision
WARNING:
ADFweb com reserves the right to change information in this manual about
our product without warning
ADFweb com is not responsible for any error this manual may contain
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 3 of 28
SEC RITY ALERT:
G
ENERAL
I
NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and
safety regulation are required for each individual application The same applies also when using accessories
I
NTENDED
SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e
independent limit switches, mechanical interlocks, etc )
Q
ALIFIED
P
ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job
R
ESID AL
R
ISKS
The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage
CE
CONFORMITY
The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 4 of 28

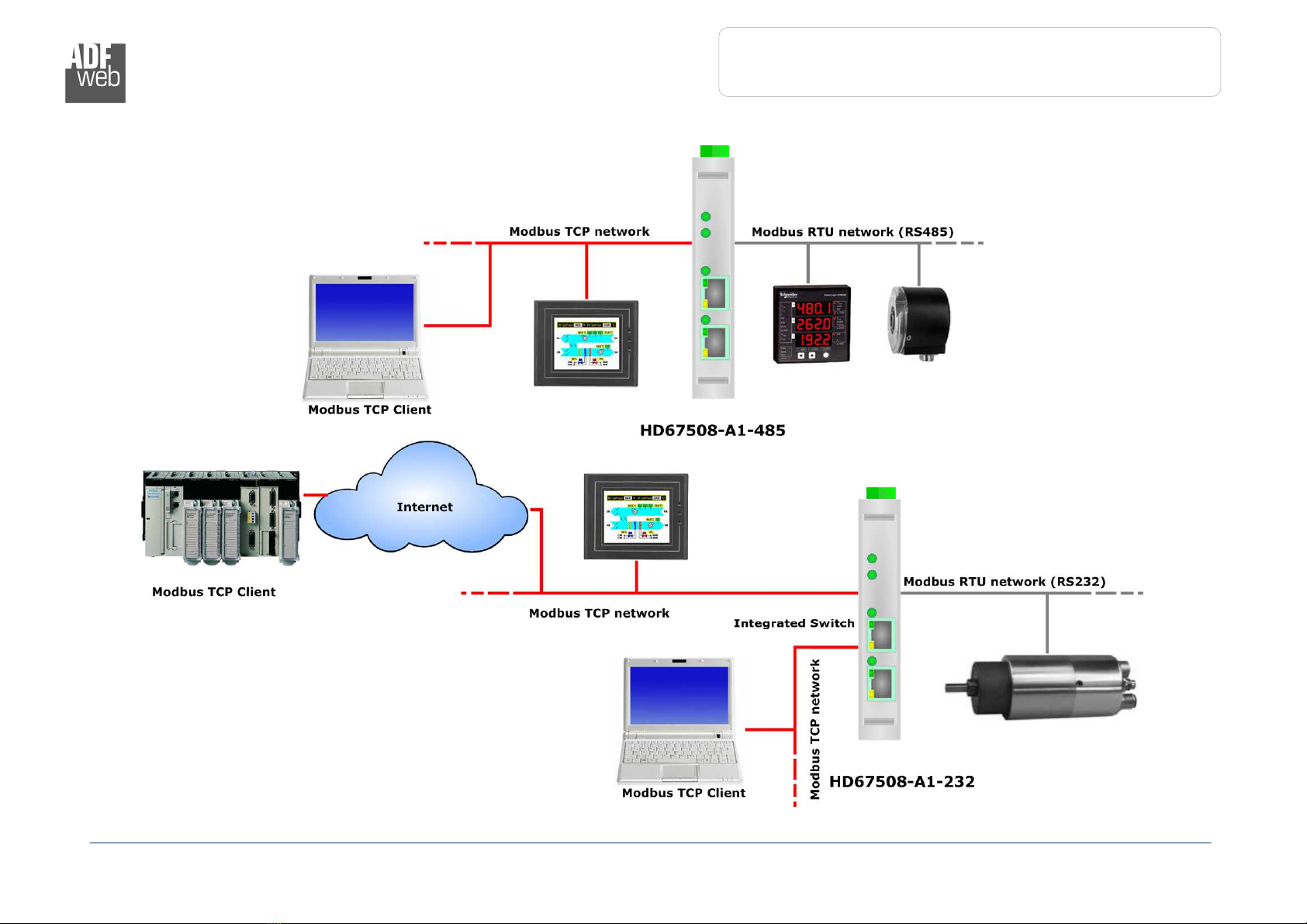

EXAMPLES OF CONNECTION:
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 5 of 28
CONNECTION SCHEME:

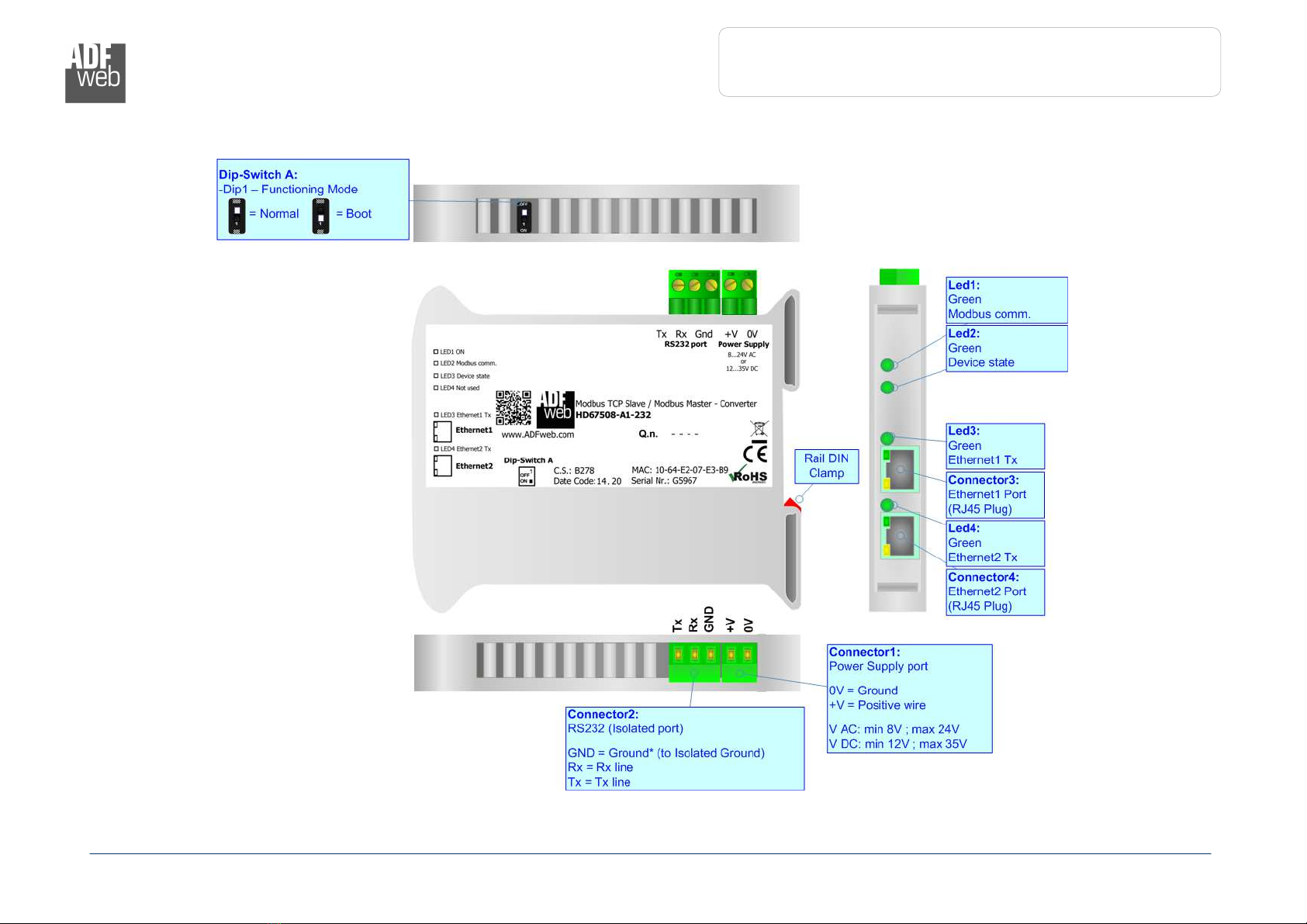

Figure 1a: Connection scheme for HD6750 -A1-232
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 6 of 28

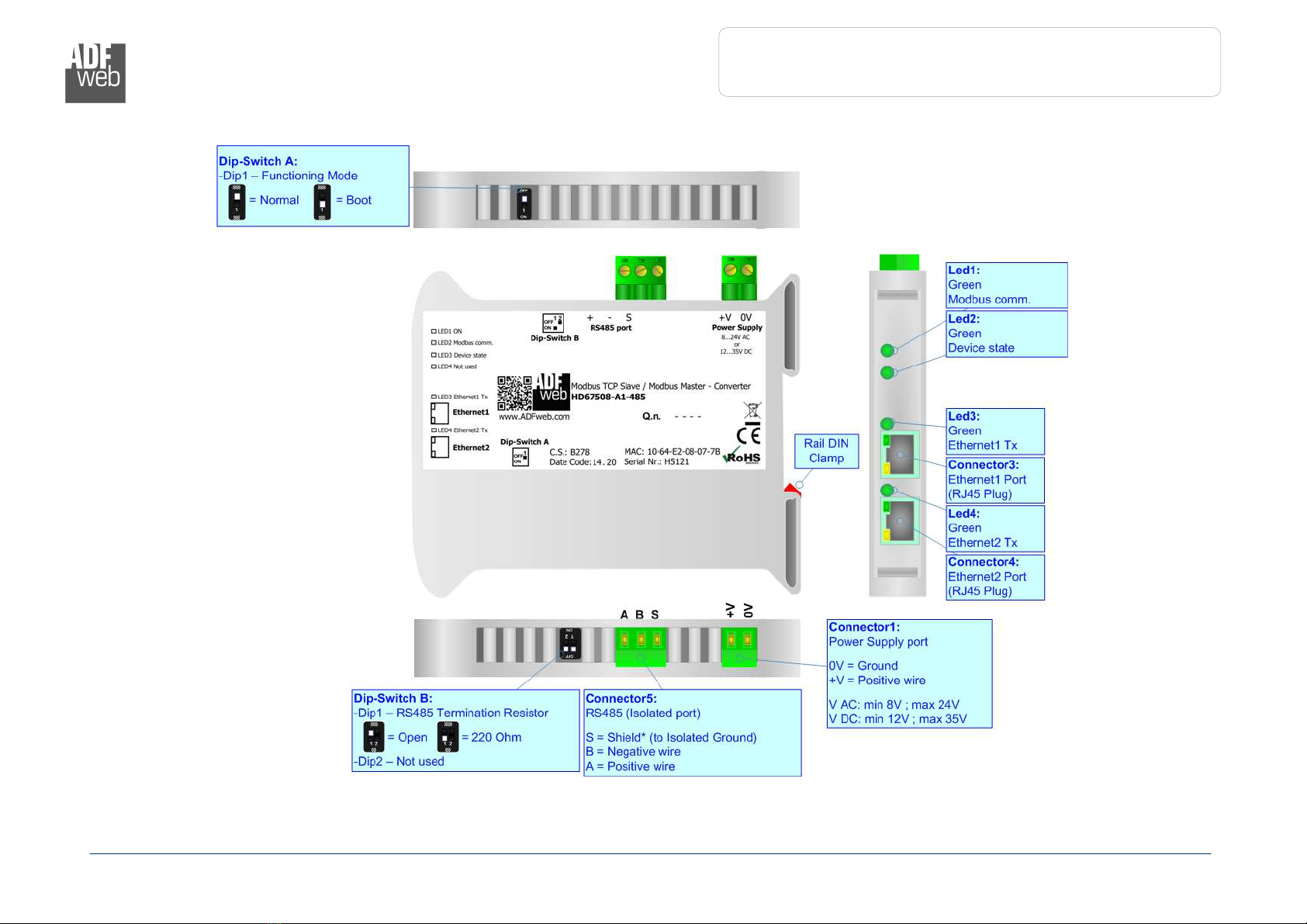

Figure 1b: Connection scheme for HD6750 -A1-4 5
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 7 of 28

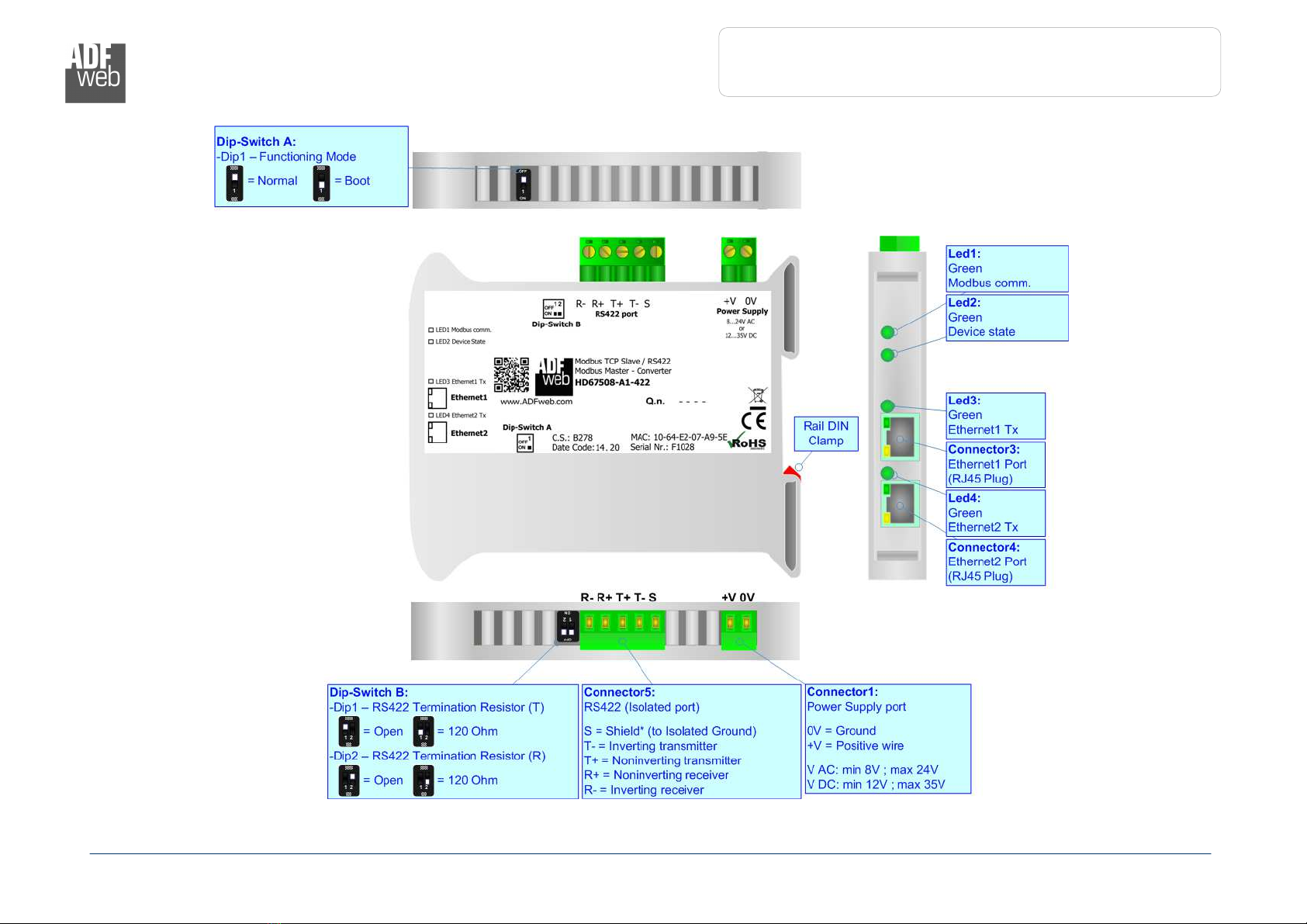

Figure 1c: Connection scheme for HD6750 -A1-422
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 8 of 28
CHARACTERISTICS:
The “Modbus TCP Slave / Modbus Master – Converter” allows the following characteristics:
Triple isolation between RS232/RS485/RS422 - Power Supply, RS232/RS485/RS422- Ethernet, Power Supply - Ethernet;
Internal Ethernet switch;
Ethernet 10Base-T / 100Base-T, autosensing for Modbus TCP ;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC
Temperature range -40°C / +85°C [-40°F / +185°F];
This device is able to manage a maximum of ten simultaneous connections from Ethernet side
It can be used in two operative ways:
In the “Routing Mode” the command Modbus is forwarded on the serial line using the same requested addresses
In the “Natting Mode” the device addresses and data are altered through a translation table of the addresses
CONFIG RATION:
You need Compositor SW67508 software on your PC in order to perform the following:
Define the parameters of Modbus TCP line;
Define the parameters of Modbus Serial line;
Update the device
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 9 of 28

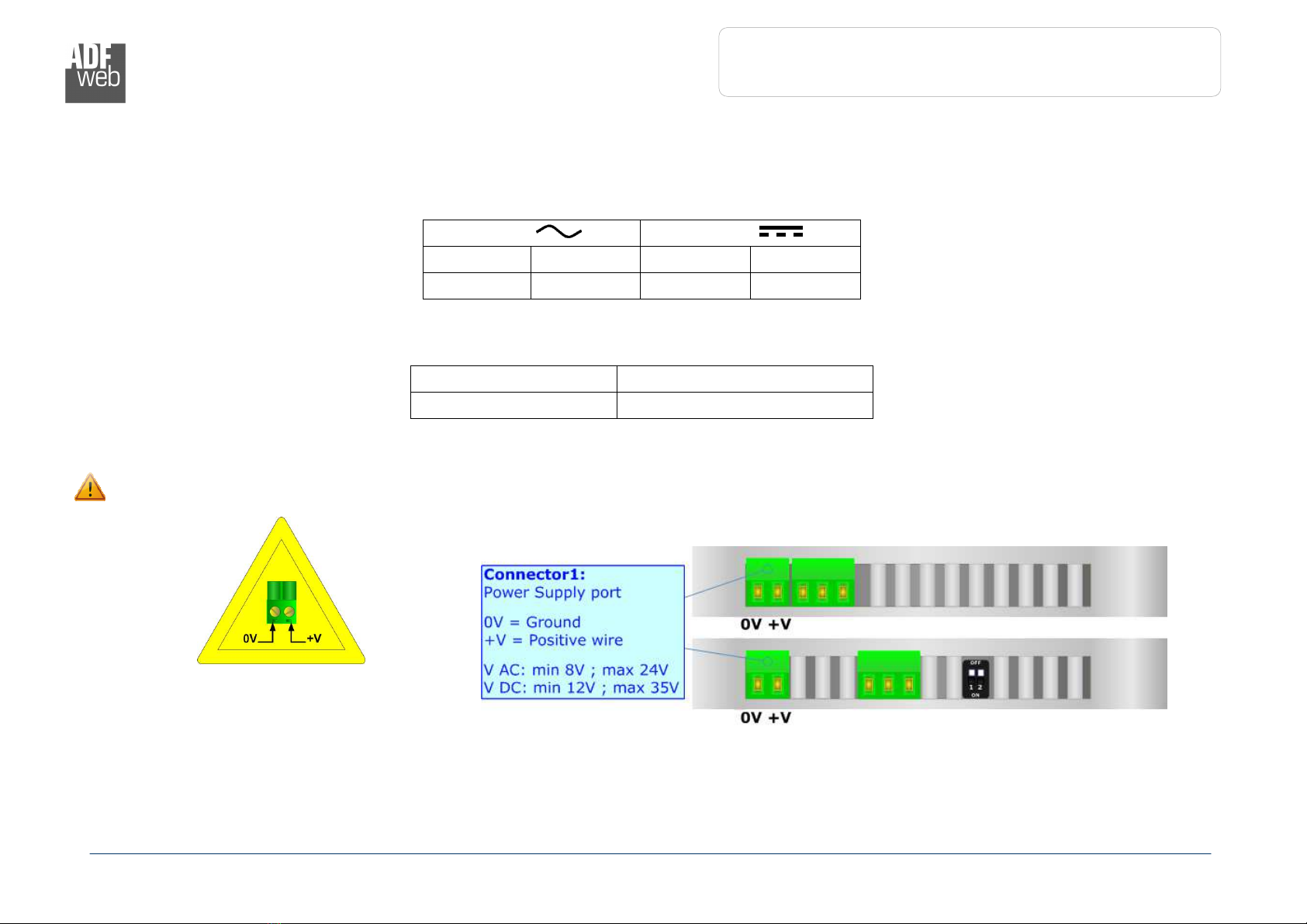

POWER S PPLY:
The devices can be powered at 8…24V AC and 12…35V DC The consumption depends to the code of the device For more details see the two
tables below
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67508-A1-xxx 3 5
Warning
: Not reverse the polarity power
HD67508-A1-xxx
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
Modbus TCP Slave
/
Modbus Master
Document code: MN67508_ENG Revision 1 100 Page 10 of 28

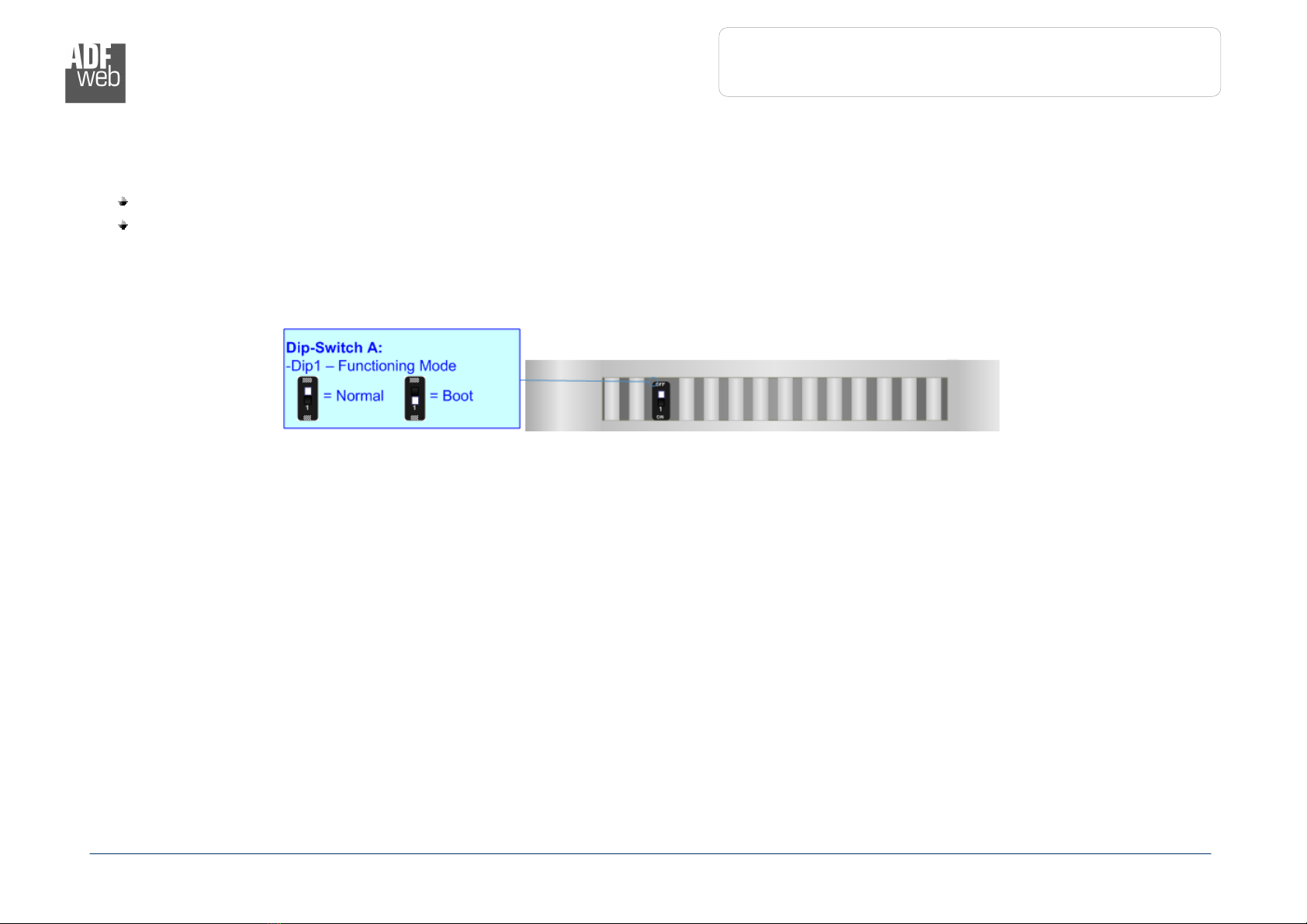

F NCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section
