ADF Web HD67872-A1-2A Manuale utente

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Link /

J1939

Document code: MN67872_ENG Revision 1. Page 1 of 38

User Manual

Revision 1.

English

IO-Link / J1939 - Converter

(Order Code: HD67872-A1-2A, HD67872-A1-4A,

HD67872-A1-2B, HD67872-A1-2A-2B)

for Website information:

www.adfweb.com/?Product=HD67872

for Price information:

www.adfweb.com/?Price=HD67872-A1-2A

www.adfweb.com/?Price=HD67872-A1-4A

www.adfweb.com/?Price=HD67872-A1-2B

www.adfweb.com/?Price=HD67872-A1-2A-2B

Benefits and Main Features:

Triple electrical isolation

Two Ethernet ports

Temperature range: -4 °C/+85°C (-4 °F/+185°F)

For others IO-Link devices, see also the following links:

IO-Link from/to …

www.adfweb.com?Product=HD6786 (Modbus Master)

www.adfweb.com?Product=HD67861 (Modbus lave)

www.adfweb.com?Product=HD67862 (Modbus TCP Master)

www.adfweb.com?Product=HD67863 (Modbus TCP lave)

www.adfweb.com?Product=HD67864 (BACnet Master)

www.adfweb.com?Product=HD67865 (BACnet lave)

www.adfweb.com?Product=HD67866 (CAN)

www.adfweb.com?Product=HD67867 (CANopen)

www.adfweb.com?Product=HD67868 (DeviceNet Master)

www.adfweb.com?Product=HD67869 (DeviceNet lave)

www.adfweb.com?Product=HD6787 (EtherNet/IP Master)

www.adfweb.com?Product=HD67871 (EtherNet/IP lave)

www.adfweb.com?Product=HD67873 (MQTT)

www.adfweb.com?Product=HD67874 (NMEA0183)

www.adfweb.com?Product=HD67875 (NMEA2000)

www.adfweb.com?Product=HD67876 (PROFINET lave)

www.adfweb.com?Product=HD67877 ( NMP Manager)

www.adfweb.com?Product=HD67878 ( NMP Agent)

Do you have an your customer protocol?

See the following links:

www.adfweb.com?Product=HD67876

Do you need to choose a device? do you want help?

Ask it to the following link:

www.adfweb.com?Cmd=helpme

User

Manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Link /

J1939

Document code: MN67872_ENG Revision 1. Page 2 of 38

INDEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 9

CONFIGURATION 9

POWER SUPPLY 1

FUNCTION MODES 11

LEDS 12

IO-LINK 13

AUX POWER SUPPLY 14

ETHERNET 15

CAN 16

USE OF COMPOSITOR SW67872 17

NEW PROJECT / OPEN PROJECT 18

SOFTWARE OPTIONS 19

SET COMMUNICATION 21

IO-LINK SET ACCESS 22

RECEIVE FRAMES 31

SEND FRAMES 32

UPDATE DEVICE 33

MECHANICAL DIMENSIONS 35

ORDERING INFORMATIONS 36

ACCESSORIES 36

DISCLAIMER 37

OTHER REGULATIONS AND STANDARDS 37

WARRANTIES AND TECHNICAL SUPPORT 38

RETURN POLICY 38

Pagina 2 di 38

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/

and search for the corresponding code on the page. Click on the proper

“Document Code” and download the updates.

REVI ION LI T:

Revision

Date Author

Chapter

Description

1. 13/ 3/2 2 Ff All First release version

WARNING:

ADFweb.com reserves the right to change information in this manual about

our product without warning.

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARK :

All trademarks mentioned in this document belong to their respective

owners.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Link /

J1939

Document code: MN67872_ENG Revision 1. Page 3 of 38

ECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and

safety regulation are required for each individual application. The same applies also when using accessories.

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

UALIFIED

ER ONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job.

E IDUAL

I K

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage.

CONFORMITY

The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Link /

J1939

Document code: MN67872_ENG Revision 1. Page 4 of 38

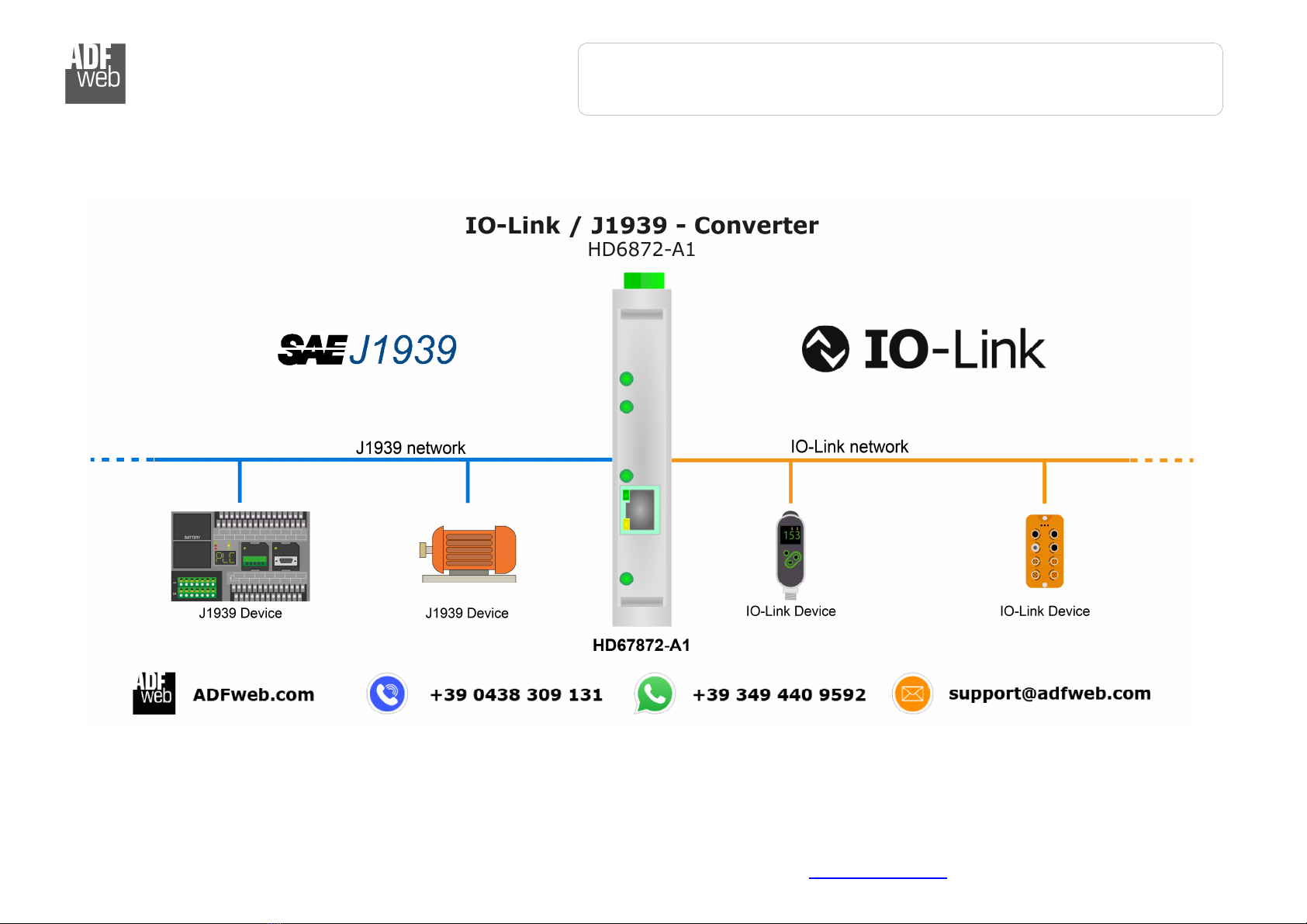

EXAMPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Link /

J1939

Document code: MN67872_ENG Revision 1. Page 5 of 38

CONNECTION CHEME:

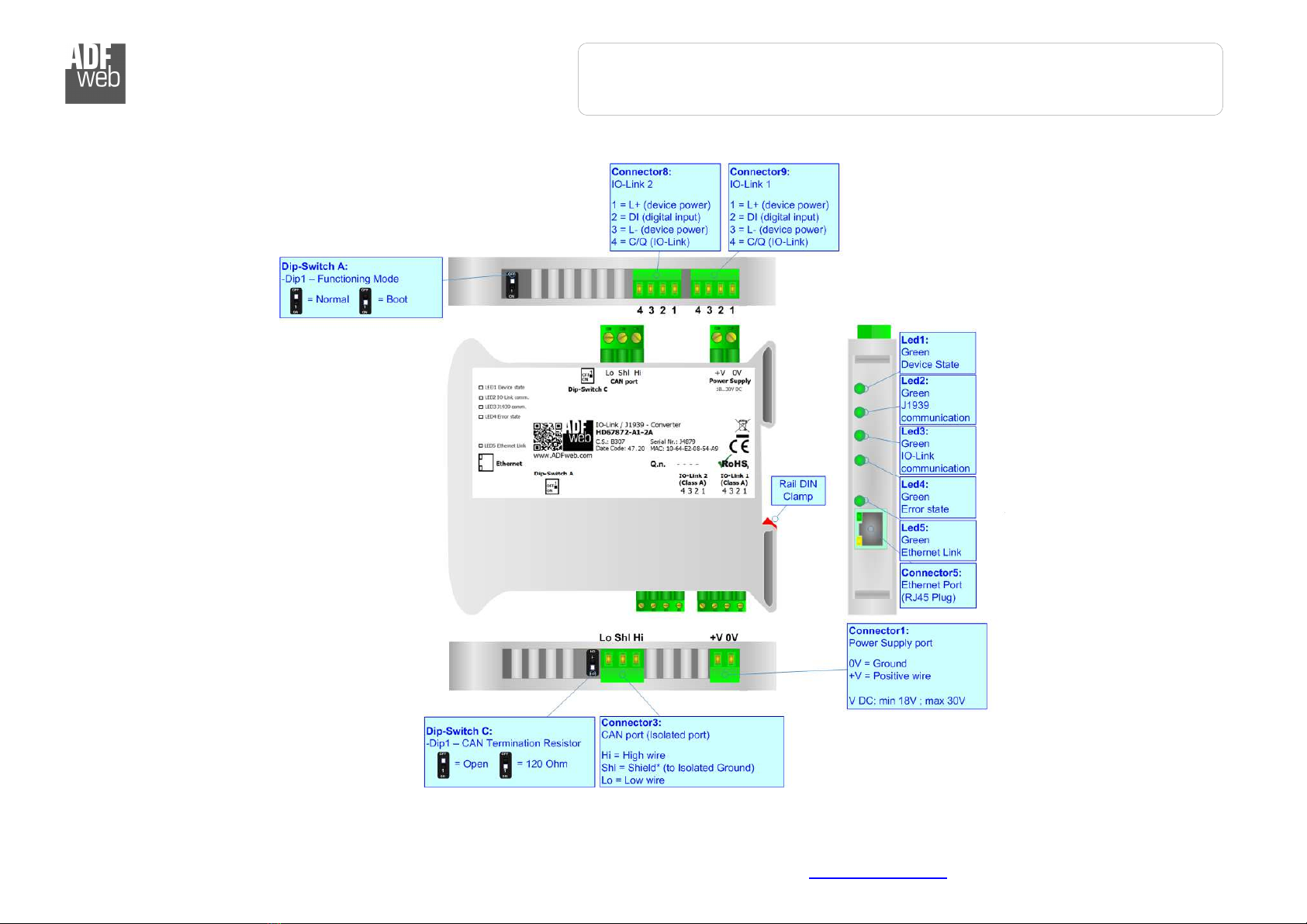

Figure

: Connection scheme for HD67

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Link /

J1939

Document code: MN67872_ENG Revision 1. Page 6 of 38

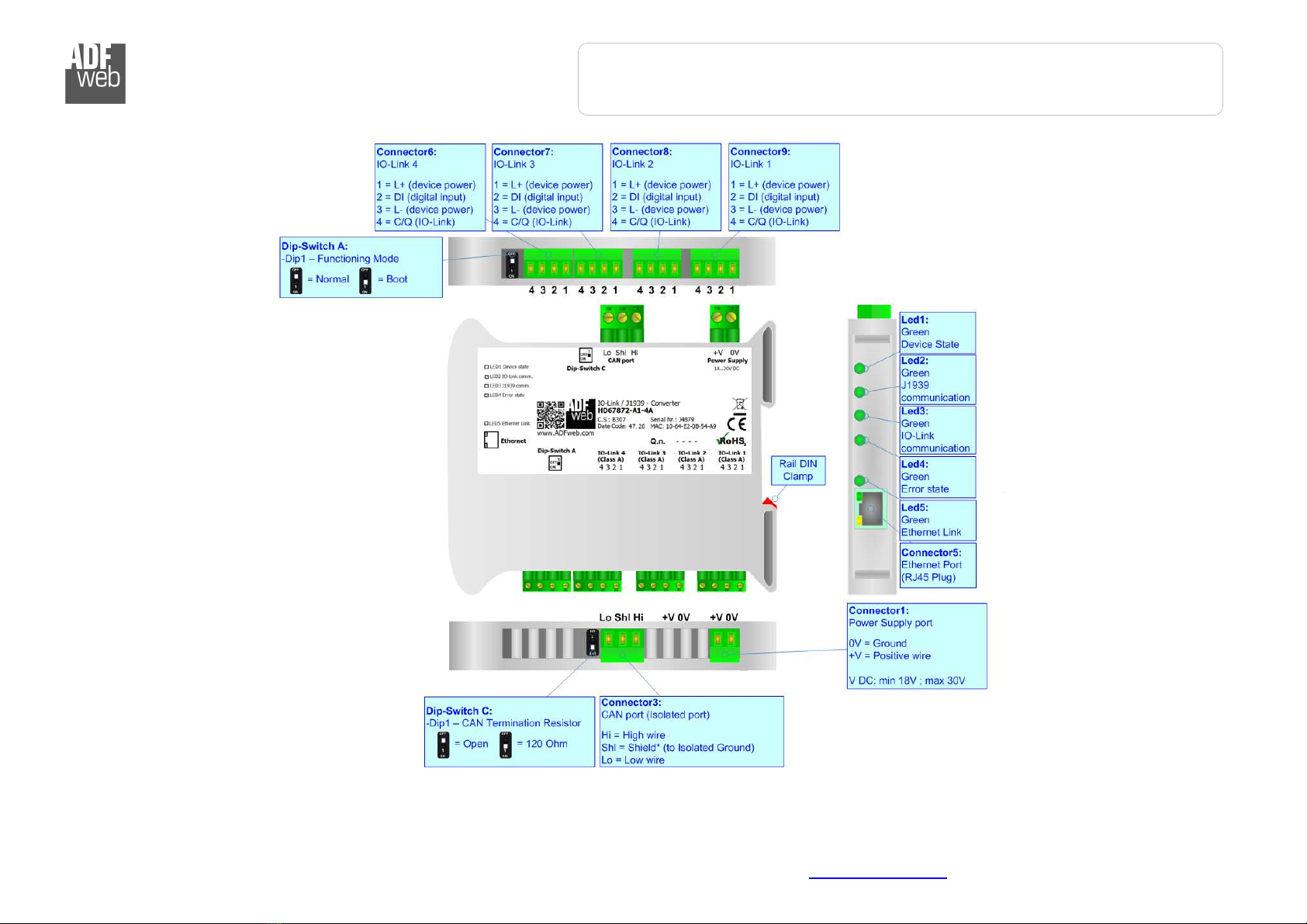

Figure

: Connection scheme for HD67

872

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Link /

J1939

Document code: MN67872_ENG Revision 1. Page 7 of 38

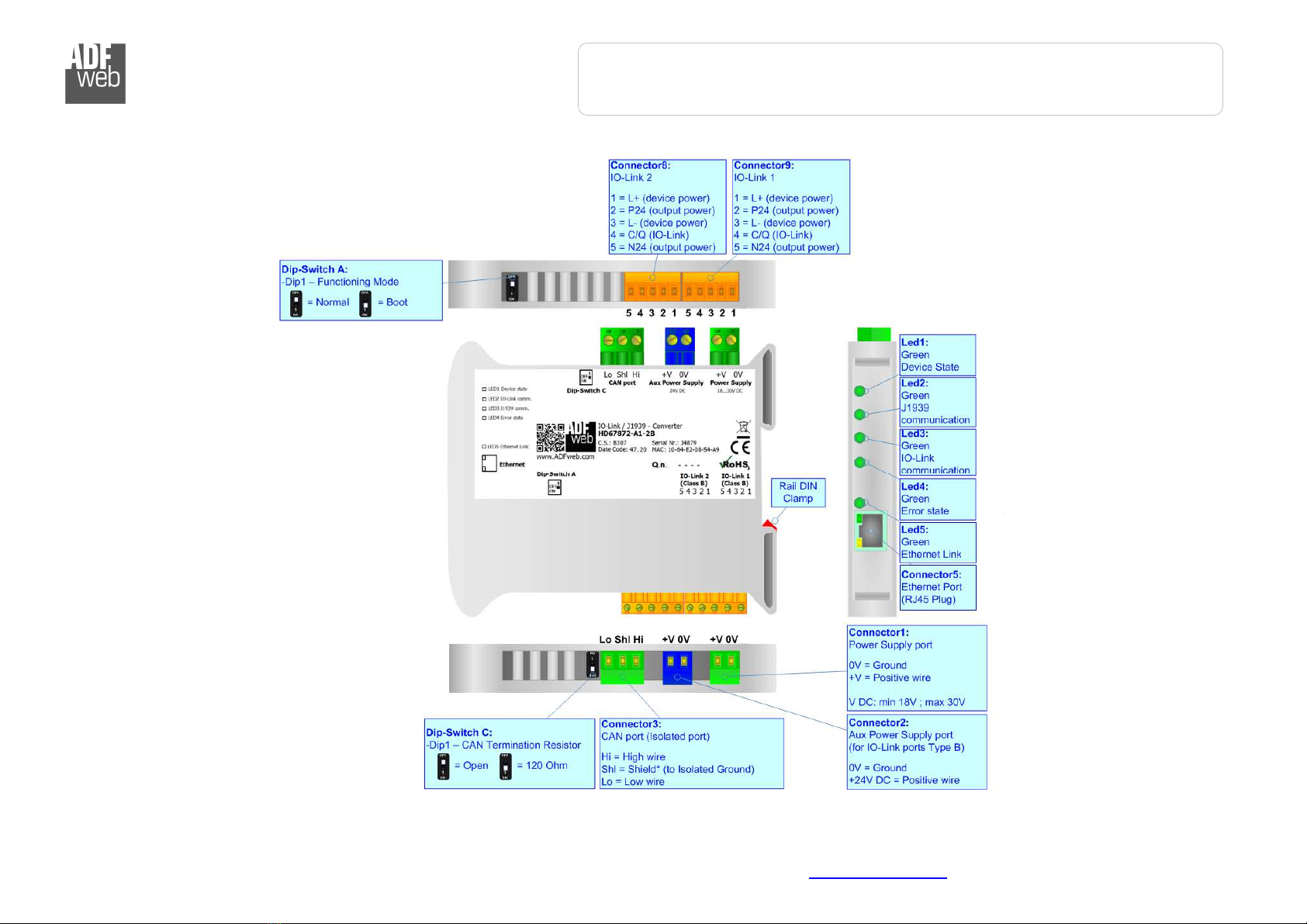

Figure

: Connection scheme for HD67

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Link /

J1939

Document code: MN67872_ENG Revision 1. Page 8 of 38

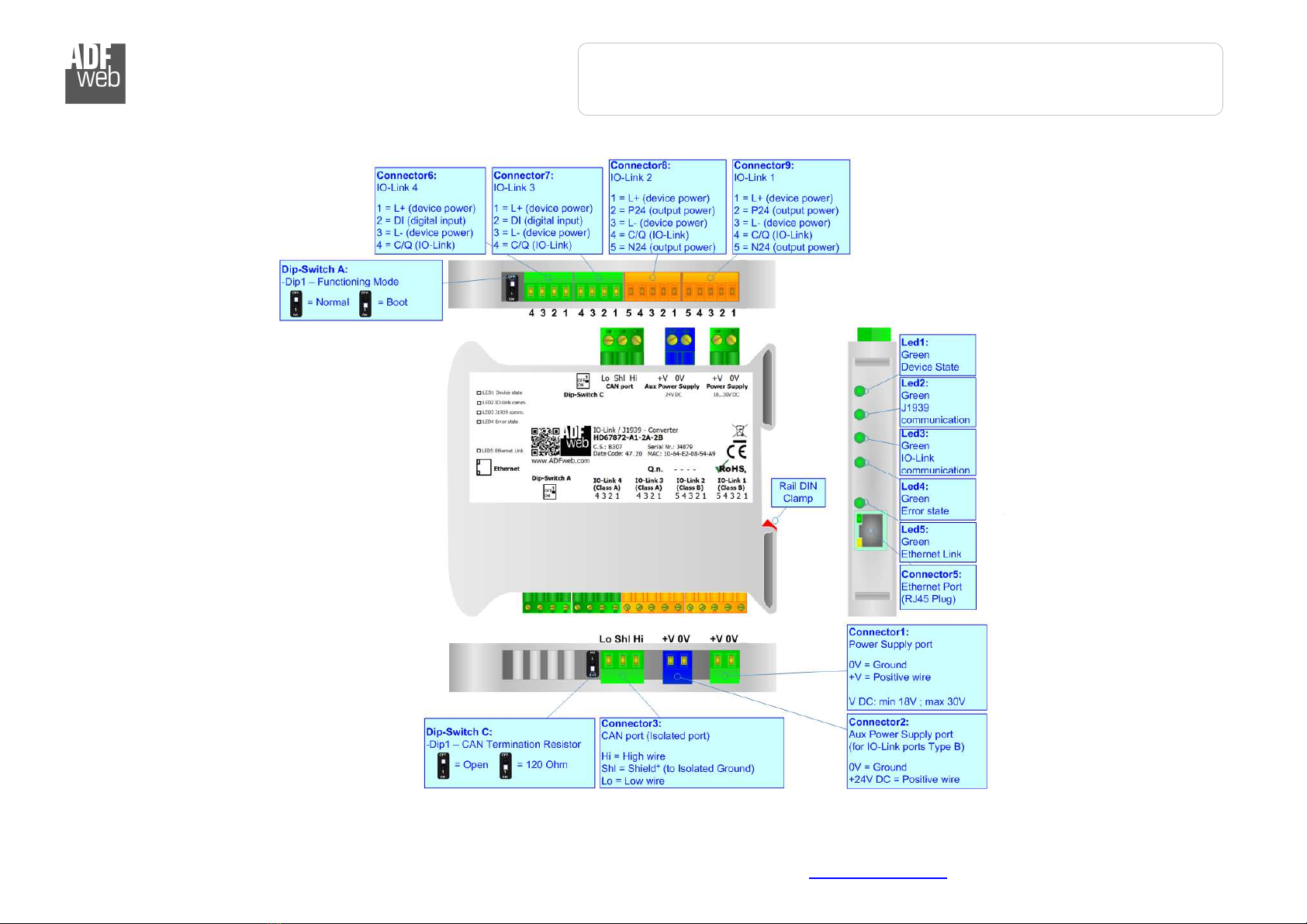

Figure

: Connection scheme for HD67

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Link /

J1939

Document code: MN67872_ENG Revision 1. Page 9 of 38

CHARACTERI TIC :

The HD67872-A1 is a IO-Link / J1939 converter.

It allows the following characteristics:

Up to 15 bytes in reading and 15 bytes in writing;

Two-directional information between J1939 and IO-Link;

Mountable on 35mm Rail DIN;

Wide power supply input range: 18…3 V DC;

Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].

CONFIGURATION:

You need Compositor SW67872 software on your PC in order to perform the following:

Define the parameters of IO-Link;

Define the parameters of J1939;

Define IO-Link variables to be read by J1939 devices;

Define IO-Link variables to be written by J1939 devices;

Update the device.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Link /

J1939

Document code: MN67872_ENG Revision 1. Page 1 of 38

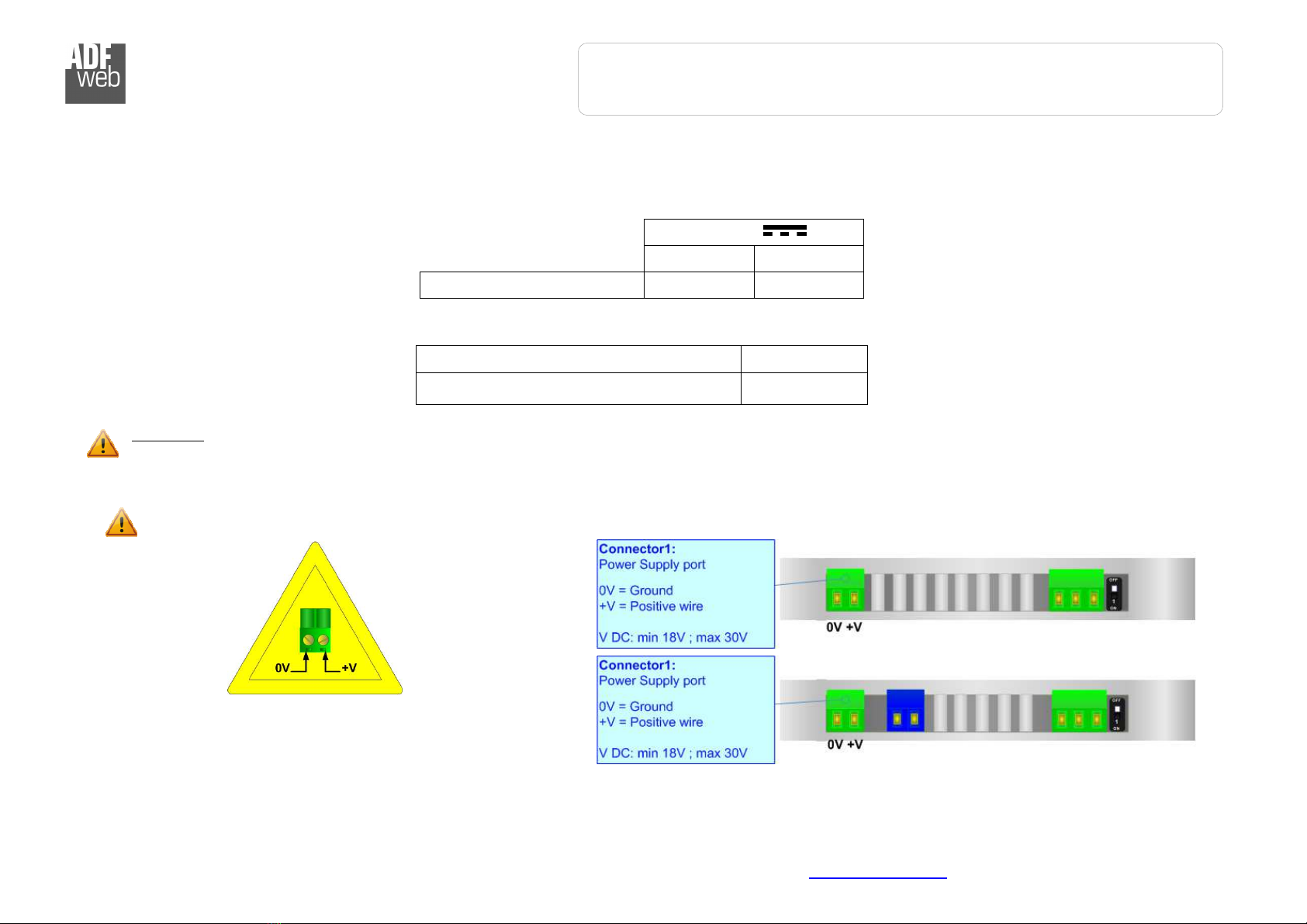

POWER UPPLY:

The devices can be powered between a wide range of tensions. For more details see the two tables below.

VDC

Vmin Vmax

HD67872-A1-xx 18V 30V

Consumption at 24V DC:

Device W/VA

HD67872-A1-xx 4

Warning:

It is necessary to add to this consumption the one required by the IO-Link devices connected to the IO-Link channels.

Caution: Not reverse the polarity power
