ADF Web HD67E77-A1 Manuale utente

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EtherCAT Master / EtherNet/IP Slave

Document code: MN67E77_ENG Revision 1.000 Pa e 1 of 28

User Manual

Revision 1.000

En lish

EtherCAT Master / EtherNet/IP Slave -

Converter

(Order Code: HD67E77-A1)

For Website information:

www.adfweb.com?Product=HD67E77

For Price information:

www.adfweb.com?Price=HD67E77-A1

Benefits and Main Features:

Very easy to confi ure

Triple Electrical isolation

Temperature ran e: -40°C/+85°C (-40°F/+185°F)

For other EtherCAT Master products see also the followin link:

Converter EtherCAT Slave to

www.adfweb.com?Product=HD67E50 (Serial)

www.adfweb.com?Product=HD67E51 (Mod us Master)

www.adfweb.com?Product=HD67E52 (Mod us Slave)

www.adfweb.com?Product=HD67E53 (Mod us TCP Master)

www.adfweb.com?Product=HD67E54 (Mod us TCP Slave)

www.adfweb.com?Product=HD67E55 (BACnet Master)

www.adfweb.com?Product=HD67E56 (BACnet Slave)

www.adfweb.com?Product=HD67E57 (CAN)

www.adfweb.com?Product=HD67E58 (CANopen)

www.adfweb.com?Product=HD67E59 (DeviceNet Master)

www.adfweb.com?Product=HD67E60 (DeviceNet Slave)

www.adfweb.com?Product=HD67E61 (DMX)

www.adfweb.com?Product=HD67E62 (Ethernet)

www.adfweb.com?Product=HD67E64 (IEC61850 Client)

www.adfweb.com?Product=HD67E65 (IEC61850 Server)

www.adfweb.com?Product=HD67E66 (J1939)

www.adfweb.com?Product=HD67E67 (MQTT)

www.adfweb.com?Product=HD67E68 (NMEA0183)

www.adfweb.com?Product=HD67E69 (NMEA2000)

www.adfweb.com?Product=HD67E70 (OPC UA Client)

www.adfweb.com?Product=HD67E71 (OPC UA Server)

www.adfweb.com?Product=HD67E72 (PROFINET Master)

www.adfweb.com?Product=HD67E73 (Mod us TCP Master)

www.adfweb.com?Product=HD67E74 (SNMP Manager)

www.adfweb.com?Product=HD67E75 (SNMP Agent)

www.adfweb.com?Product=HD67E76 (EtherNet/IP Master)

www.adfweb.com?Product=HD67E78 (S7comm Client)

User Manual

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EtherCAT Master / EtherNet/IP Slave

Document code: MN67E77_ENG Revision 1.000 Pa e 2 of 28

INDEX:

Pa e

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 6

CONFIGURATION 6

POWER SUPPLY 7

FUNCTION MODES 8

LEDS 9

ETHERCAT 10

ETHERNET 10

USE OF COMPOSITOR SW67E77 11

NEW CONFIGURATION / OPEN CONFIGURATION 12

SOFTWARE OPTIONS 13

SET COMMUNICATION 15

ETHERCAT SET ACCESS 16

UPDATE DEVICE 19

PLC CONFIGURATION 21

MECHANICAL DIMENSIONS 25

ORDERING INFORMATIONS 26

ACCESSORIES 26

DISCLAIMER 27

OTHER REGULATIONS AND STANDARDS 27

WARRANTIES AND TECHNICAL SUPPORT 28

RETURN POLICY 28

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the followin document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top ri ht-hand corner of each pa e of this document.

With this “Document Code” o to web pa e www.adfweb.com/download/

and search for the correspondin code on the pa e. Click on the proper

“Document Code” and download the updates.

REVISION LIST:

WARNING:

ADFweb.com reserves the ri ht to chan e information in this manual about

our product without warnin .

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belon to their respective

owners.

Revision

Date Author Chapter

Description

1.000 15/09/2021

Ff All First Release

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EtherCAT Master / EtherNet/IP Slave

Document code: MN67E77_ENG Revision 1.000 Pa e 3 of 28

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated accordin to the instructions in the manual. When usin the device, le al and

safety re ulation are required for each individual application. The same applies also when usin accessories.

NTENDED

Machines and systems must be desi ned so the faulty conditions do not lead to a dan erous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissionin and operation of this equipment and

who have appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the followin symbol:

This symbol indicates that non-observance of the safety instructions is a dan er for people that could lead to serious injury or

death and / or the possibility of dama e.

CONFORMITY

The declaration is made by our company. You can send an email to [email protected]om or ive us a call if you need it.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EtherCAT Master / EtherNet/IP Slave

Document code: MN67E77_ENG Revision 1.000 Pa e 4 of 28

EXAMPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EtherCAT Master / EtherNet/IP Slave

Document code: MN67E77_ENG Revision 1.000 Pa e 5 of 28

CONNECTION SCHEME:

Figure 1: Connection scheme for HD67E77-A1

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EtherCAT Master / EtherNet/IP Slave

Document code: MN67E77_ENG Revision 1.000 Pa e 6 of 28

CHARACTERISTICS:

The HD67E77-A1 are EtherCAT Master / EtherNet/IP Slave - Converters.

It allows for the followin characteristics:

Isolation between EtherCAT – EtherNet/IP – Power Supply;

Two-directional information between EtherCAT bus and EtherNet/IP bus;

Mountable on 35mm Rail DIN;

Wide power supply input ran e: 8…24V AC or 12…35V DC;

Wide temperature ran e: -40°C / 85°C [-40°F / +185°F].

CONFIGURATION:

You need Compositor SW67E03 software on your PC in order to perform the followin :

Define the parameters of EtherCAT line;

Define the parameters of EtherNet/IP line;

Define EtherCAT slaves from which readin /writin the data;

Update the device.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EtherCAT Master / EtherNet/IP Slave

Document code: MN67E77_ENG Revision 1.000 Pa e 7 of 28

POWER SUPPLY:

The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

8V 24V 12V 35V

Consumption at 24V DC:

Device Consumption [W/VA]

HD67E77-A1 3.5

HD67E77-A1

Caution:

Do n

ot reverse the polarity power

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EtherCAT Master / EtherNet/IP Slave

Document code: MN67E77_ENG Revision 1.000 Pa e 8 of 28

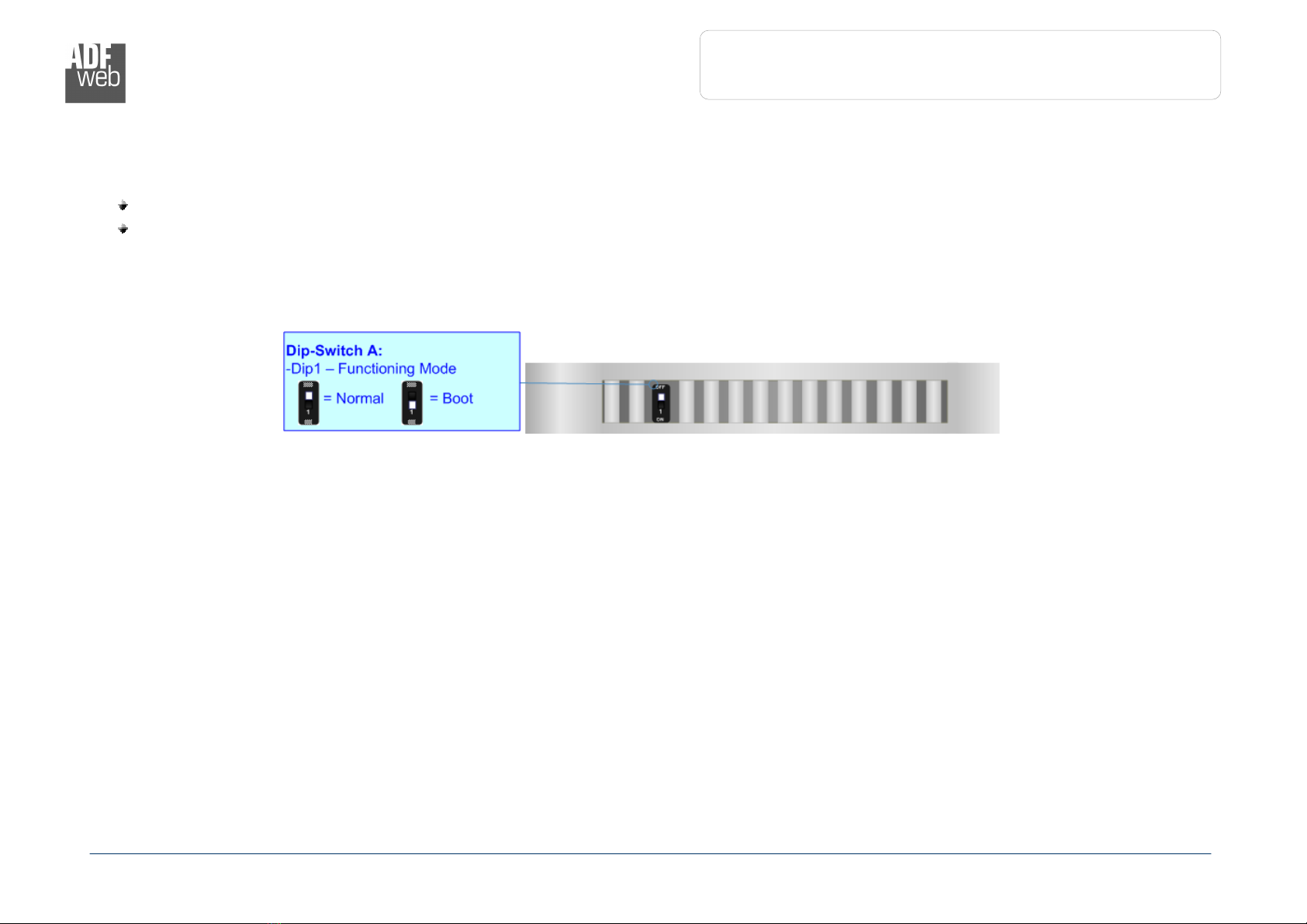

FUNCTION MODES:

The device has ot two function modes dependin on the position of the ‘Dip1 of Dip-Switch A’:

The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal workin of the device.

The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for uploadin the Project and/or Firmware.

For the operations to follow for the updatin , see ‘UPDATE DEVICE’ section.

Accordin to the functionin mode, the LEDs will have specific functions, see ‘LEDS’ section.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EtherCAT Master / EtherNet/IP Slave

Document code: MN67E77_ENG Revision 1.000 Pa e 9 of 28

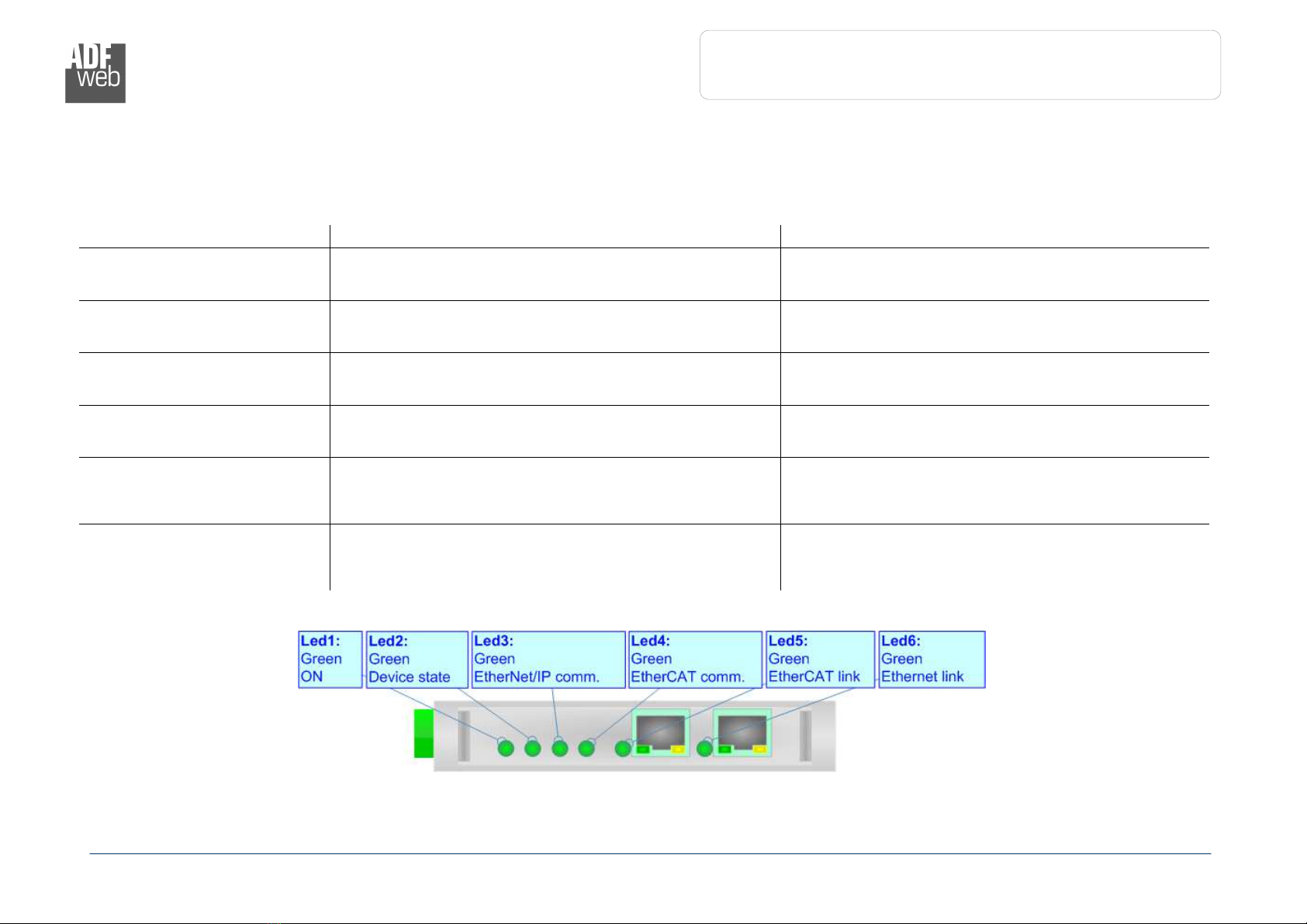

LEDS:

The device has ot seven LEDs that are used to ive information about the functionin status.

The various meanin s of the LEDs are described in the table below.

LED Normal Mode Boot Mode

1: ON [supply volta e ]

( reen)

ON: Device powered

OFF: Device not powered

ON: Device powered

OFF: Device not powered

2: Device State ( reen) Blinks slowly (~1Hz) Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in pro ress

3: EtherNet/IP comm.

( reen) It blinks when EtherNet/IP communication is runnin Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in pro ress

4: EtherCAT comm. ( reen) It blinks when EtherCAT communication is runnin Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in pro ress

5: EtherCAT link ( reen) ON: EtherCAT cable connected

OFF: EtherCAT cable disconnected

ON: EtherCAT cable connected

OFF: EtherCAT cable disconnected

6: Ethernet link ( reen) ON: Ethernet cable connected

OFF: Ethernet cable disconnected

ON: Ethernet cable connected

OFF: Ethernet cable disconnected

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EtherCAT Master / EtherNet/IP Slave

Document code: MN67E77_ENG Revision 1.000 Pa e 10 of 28

ETHERCAT

EtherCAT (Ethernet for Control Automation Technolo y) is an Ethernet-based fieldbus system, invented by Beckhoff Automation.

The protocol is standardized in IEC 61158 and is suitable for both hard and soft real-time computin requirements in automation technolo y.

With EtherCAT, the standard Ethernet packet or frame (accordin to IEEE 802.3) is no lon er received, interpreted, and copied as process

data at every node. The EtherCAT slave devices read the data addressed to them while the tele ram passes throu h the device, processin

data "on the fly". In other words, real-time data and messa es are prioritized over more eneral, less time-sensitive or heavy load data.

EtherCAT connection must be made usin Connector5 of the HD67E77-A1.

ETHERNET:

EtherNet/IP connection and the updatin of the converter must be made usin Connector6 of the HD67E77-A1 with at least a Cate ory 5E

cable. The maximum len th of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in

cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a strai ht cable, to connect the device to a

PC/PLC/other is recommended the use of a cross cable.
