ADF Web HD67B33-B2 Manuale utente

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA

Server

CAN

Document code: MN67B33_ENG Revision 1. Page 1 of 27

User Manual

Revision 1.

English

OPC UA Server / CAN - Converter

(Order Code: HD67B33-B2)

for Website information:

http://www.adfweb.com/?Product=HD67B33

for Price information:

http://www.adfweb.com/?Price=HD67B33-B2

Benefits and Main Features:

Triple electrical isolation

Power Supply 18…35V DC and 8…24 V AC

Temperature range: -4 °C/+85°C (-4 °F/+185°F)

For others OPC UA Server devices, see also the following links:

OPC UA Server from/to …

www.adfweb.com?Product=HD67B26 (Serial)

www.adfweb.com?Product=HD67B27 (Modbus Master)

www.adfweb.com?Product=HD67B28 (Modbus Slave)

www.adfweb.com?Product=HD67B29 (Modbus TCP Master)

www.adfweb.com?Product=HD67B3 (Modbus TCP Slave)

www.adfweb.com?Product=HD67B31 (Ba net Master)

www.adfweb.com?Product=HD67B32 (Ba net Slave)

www.adfweb.com?Product=HD67B34 (CANopen)

www.adfweb.com?Product=HD67B35 (Devi eNet Master)

www.adfweb.com?Product=HD67B36 (Devi eNet Slave)

www.adfweb.com?Product=HD67B37 (DMX)

www.adfweb.com?Product=HD67B38 (EtherNet/IP Master)

www.adfweb.com?Product=HD67B39 (EtherNet/IP Slave)

www.adfweb.com?Product=HD67B4 (J1939)

www.adfweb.com?Product=HD67B41 (KNX)

www.adfweb.com?Product=HD67B42 (MQTT)

www.adfweb.com?Product=HD67B43 (NMEA0183)

www.adfweb.com?Product=HD67B44 (NMEA2000)

www.adfweb.com?Product=HD67B45 (PROFINET Master)

www.adfweb.com?Product=HD67B46 (PROFINET Slave)

www.adfweb.com?Product=HD67B47 (SNMP Manager)

www.adfweb.com?Product=HD67B48 (SNMP Agent)

Do you have an your customer protocol?

See the following links:

www.adfweb.com?Product=HD67 3

Do you need to choose a device? do you want help?

Ask it to the following link:

www.adfweb.com?Cmd=helpme

User Manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA

Server

CAN

Document code: MN67B33_ENG Revision 1. Page 2 of 27

INDEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 6

CONFIGURATION 6

POWER SUPPLY 7

FUNCTION MODES 8

LEDS 9

CAN 1

ETHERNET 11

USE OF COMPOSITOR SW67B33 12

NEW PROJECT / OPEN PROJECT 13

SOFTWARE OPTIONS 14

SET COMMUNICATION 16

OPC UA ACCESS 17

RECEIVE FRAMES 18

SEND FRAMES 2

UPDATE DEVICE 22

MECHANICAL DIMENSIONS 24

ORDERING INFORMATIONS 25

ACCESSORIES 25

DISCLAIMER 26

OTHER REGULATIONS AND STANDARDS 26

WARRANTIES AND TECHNICAL SUPPORT 27

RETURN POLICY 27

Pagina 2 di 27

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/

and search for the corresponding code on the page. Click on the proper

“Document Code” and download the updates.

REVISION LIST:

Revision

Date Author

Chapter

Des ription

1. 13/ 3/2 19 Tf All First release version

WARNING:

ADFweb.com reserves the right to change information in this manual about

our product without warning.

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belong to their respective

owners.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA

Server

CAN

Document code: MN67B33_ENG Revision 1. Page 3 of 27

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and

safety regulation are required for each individual application. The same applies also when using accessories.

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage.

CONFORMITY

The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA

Server

CAN

Document code: MN67B33_ENG Revision 1. Page 4 of 27

EXAMPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA

Server

CAN

Document code: MN67B33_ENG Revision 1. Page 5 of 27

Figure

: Connection

scheme

for HD

CONNECTION SCHEME:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA

Server

CAN

Document code: MN67B33_ENG Revision 1. Page 6 of 27

CHARACTERISTICS:

The HD67B33-B2 is a OPC UA Server / CAN converter.

It allows the following characteristics:

Up to 15 bytes in reading and 15 bytes in writing;

Two-directional information between CAN and OPC UA;

Mountable on 35mm Rail DIN;

Wide power supply input range: 8…24V AC or 12…35V DC;

Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].

CONFIGURATION:

You need Compositor SW67B33 software on your PC in order to perform the following:

Define the parameter of OPC UA;

Define the parameter of CAN line;

Define CAN frames that the converter can accept;

Define CAN frames that the converter can send;

Define OPC UA variables that contains the data sent by CAN;

Define OPC UA variables that contains the data to send to the CAN;

Update the device.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA

Server

CAN

Document code: MN67B33_ENG Revision 1. Page 7 of 27

POWER SUPPLY:

The devices can be powered between a wide range of tensions. For more details see the two tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

HD67B33-B2 8V 24V 12V 35V

Consumption at 24V DC:

Devi e W/VA

HD67B33-B2 4

Caution: Not reverse the polarity power

HD67B33-B2

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA

Server

CAN

Document code: MN67B33_ENG Revision 1. Page 8 of 27

FUNCTION MODES:

The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’:

The first, with Dip1 in Off position (factory setting), is used for the normal working of the device.

The second, with Dip1 in On position, is used for upload the Project/Firmware.

For the operations to follow for the updating (see ‘UPDATE DEVICE’ section).

According to the functioning mode, the LEDs will have specifics functions (see ‘LEDS’ section).

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA

Server

CAN

Document code: MN67B33_ENG Revision 1. Page 9 of 27

LEDS:

The device has got five LEDs that are used to give information of the functioning status.

The various meanings of the LEDs are described in the table below.

LED Normal Mode Boot Mode

1: Device State (green) Blinks slowly (~1Hz) Blinks qui kly: Boot state

Blinks very slowly (~0.5Hz): update in progress

2: CAN comm. (yellow) Flashing: CAN message

OFF: No CAN messages

Blinks qui kly: Boot state

Blinks very slowly (~0.5Hz): update in progress

3: OPC UA comm. (yellow) Flashing: OPC UA request

OFF: No OPC UA request

Blinks qui kly: Boot state

Blinks very slowly (~0.5Hz): update in progress

4: OPC UA error (yellow) ON: An error has occurred

OFF: The device is correctly running

Blinks qui kly: Boot state

Blinks very slowly (~0.5Hz): update in progress

5: Link Ethernet (green) ON: Ethernet cable connected

OFF: Ethernet cable disconnected

ON: Ethernet cable connected

OFF: Ethernet cable disconnected

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA

Server

CAN

Document code: MN67B33_ENG Revision 1. Page 1 of 27

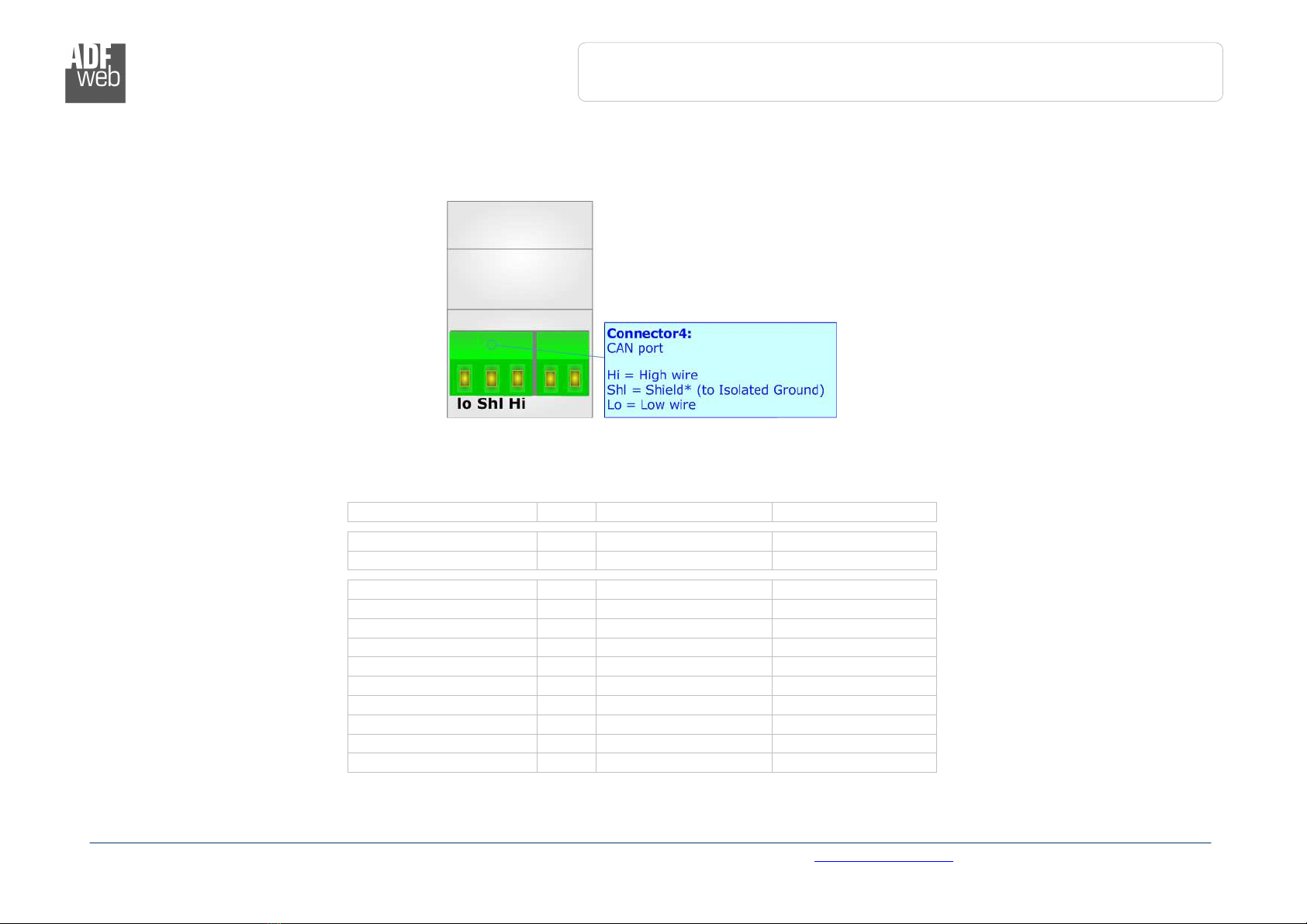

CAN:

For terminating the CAN line with a 12 Ω resistor it is necessary that the Dip1 of ‘Dip-Switch B’ is at ON position.

Cable characteristics:

DC parameter: Impedance 7 Ohm/m

AC parameters: Impedance 12 Ohm/m

Delay 5 ns/m

Length Baud Rate [bps] Length MAX [m]

1 K 5

2 K 25

5 K 1

1 K 65

125 K 5

25 K 25

5 K 1

8 K 5

1 K 25
