User Manual

OPC UA Server /

Modbus TCP Slave

Document code: MN67B30_ENG Revision 1 000 Page 1 of 23

User Manual

Revision 1 000

English

OPC UA Server / Modbus TCP Slave -

Converter

(Order Code: HD67B30-B2)

for Website information:

http://www adfweb com/?Product=HD67B30

for Price information:

http://www adfweb com/?Price=HD67B30-B2

Benefits and Main Features:

Triple electrical isolation

Power Supply 18…35V DC and 8…24 V AC

Temperature range: -40°C/+85°C (-40°F/+185°F)

For others OPC UA Server devices, see also the following links:

OPC UA Server from/to …

www adfweb com?Product=HD67B26 (Serial)

www adfweb com?Product=HD67B27 (Modbus Master)

www adfweb com?Product=HD67B28 (Modbus Slave)

www adfweb com?Product=HD67B29 (Modbus TCP Master)

www adfweb com?Product=HD67B31 (Bacnet Master)

www adfweb com?Product=HD67B32 (Bacnet Slave)

www adfweb com?Product=HD67B33 (CA )

www adfweb com?Product=HD67B34 (CA open)

www adfweb com?Product=HD67B35 (Device et Master)

www adfweb com?Product=HD67B36 (Device et Slave)

www adfweb com?Product=HD67B37 (DMX)

www adfweb com?Product=HD67B38 (Ether et/IP Master)

www adfweb com?Product=HD67B39 (Ether et/IP Slave)

www adfweb com?Product=HD67B40 (J1939)

www adfweb com?Product=HD67B41 (K X)

www adfweb com?Product=HD67B42 (MQTT)

www adfweb com?Product=HD67B43 ( MEA0183)

www adfweb com?Product=HD67B44 ( MEA2000)

www adfweb com?Product=HD67B45 (PROFI ET Master)

www adfweb com?Product=HD67B46 (PROFI ET Slave)

www adfweb com?Product=HD67B47 (S MP Manager)

www adfweb com?Product=HD67B48 (S MP Agent)

Do you have an your customer protocol?

See the following links:

www adfweb com?Product=HD67003

Do you need to choose a device? do you want help?

Ask it to the following link:

www adfweb com?Cmd=helpme

User Manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA Server /

Modbus TCP Slave

Document code: MN67B30_ENG Revision 1 000 Page 2 of 23

I DEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 6

CONFIGURATION 6

POWER SUPPLY 7

FUNCTION MODES 8

LEDS 9

ETHERNET 10

USE OF COMPOSITOR SW67B30 11

NEW CONFIGURATION / OPEN CONFIGURATION 12

SOFTWARE OPTIONS 13

SET COMMUNICATION 15

OPC UA ACCESS 16

UPDATE DEVICE 17

MODBUS MAP 19

MECHANICAL DIMENSIONS 20

ORDERING INFORMATIONS 21

ACCESSORIES 21

DISCLAIMER 22

OTHER REGULATIONS AND STANDARDS 22

WARRANTIES AND TECHNICAL SUPPORT 23

RETURN POLICY 23

Pagina 2 di 23

UPDATED DOCUME TATIO :

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document

With this “Document Code” go to web page www adfweb com/download/

and search for the corresponding code on the page Click on the proper

“Document Code” and download the updates

REVISIO LIST:

Revision

Date Author

Chapter

Description

1 000 13/03/2019 Nv All First release version

WAR I G:

ADFweb com reserves the right to change information in this manual about

our product without warning

ADFweb com is not responsible for any error this manual may contain

TRADEMARKS:

All trademarks mentioned in this document belong to their respective

owners

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA Server /

Modbus TCP Slave

Document code: MN67B30_ENG Revision 1 000 Page 3 of 23

SECURITY ALERT:

E ERAL

FORMATIO

To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and

safety regulation are required for each individual application The same applies also when using accessories

TE DED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e

independent limit switches, mechanical interlocks, etc )

UALIFIED

ERSO EL

The device can be used only by qualified personnel, strictly in accordance with the specifications

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job

ESIDUAL

ISKS

The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage

CO FORMITY

The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA Server /

Modbus TCP Slave

Document code: MN67B30_ENG Revision 1 000 Page 4 of 23

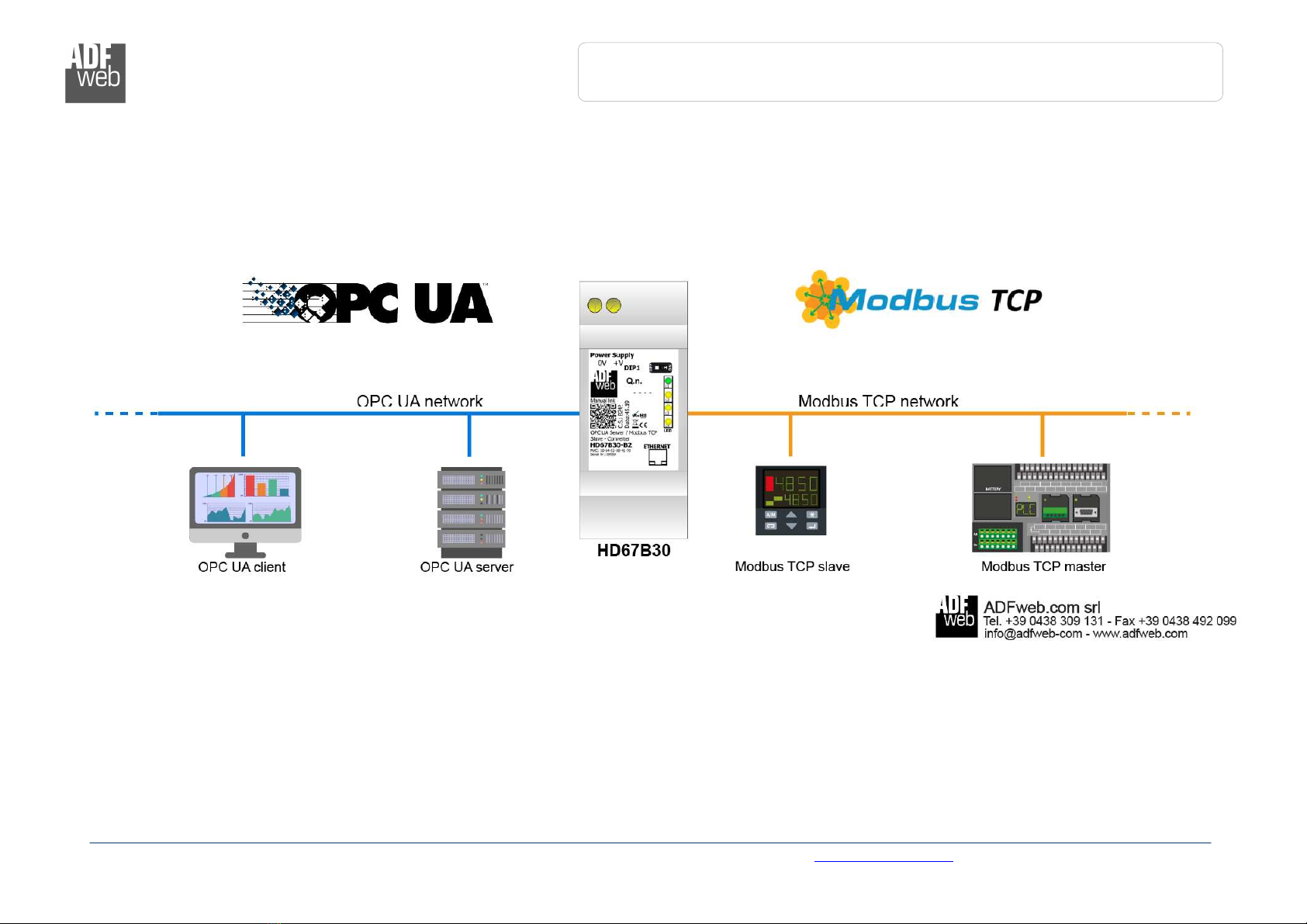

EXAMPLE OF CO ECTIO :

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA Server /

Modbus TCP Slave

Document code: MN67B30_ENG Revision 1 000 Page 5 of 23

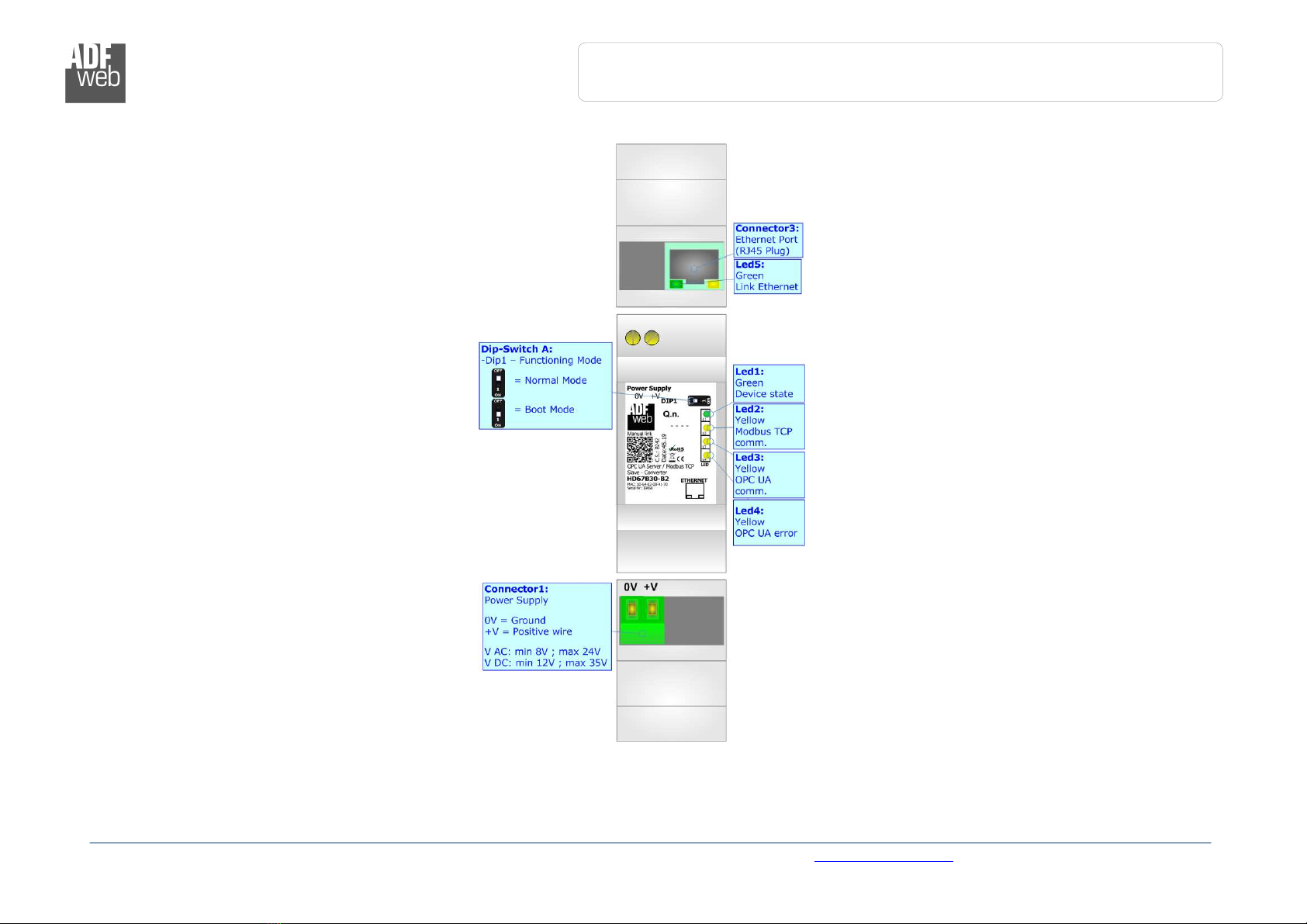

CO ECTIO SCHEME:

Figure

: Connection scheme for HD67

B30

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA Server /

Modbus TCP Slave

Document code: MN67B30_ENG Revision 1 000 Page 6 of 23

CHARACTERISTICS:

The HD67B30-B2 is a OPC UA Server / Modbus TCP Slave converter

It allows the following characteristics:

Up to 1500 bytes in reading and 1500 bytes in writing;

Two-directional information between Modbus TCP and OPC UA;

Mountable on 35mm Rail DIN;

Wide power supply input range: 8…24V AC or 12…35V DC;

Wide temperature range: -40°C / 85°C [-40°F / +185°F]

CO FIGURATIO :

You need Compositor SW67B30 software on your PC in order to perform the following:

Define the parameter of OPC UA line;

Define the parameter of Modbus TCP line;

Update the device

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA Server /

Modbus TCP Slave

Document code: MN67B30_ENG Revision 1 000 Page 7 of 23

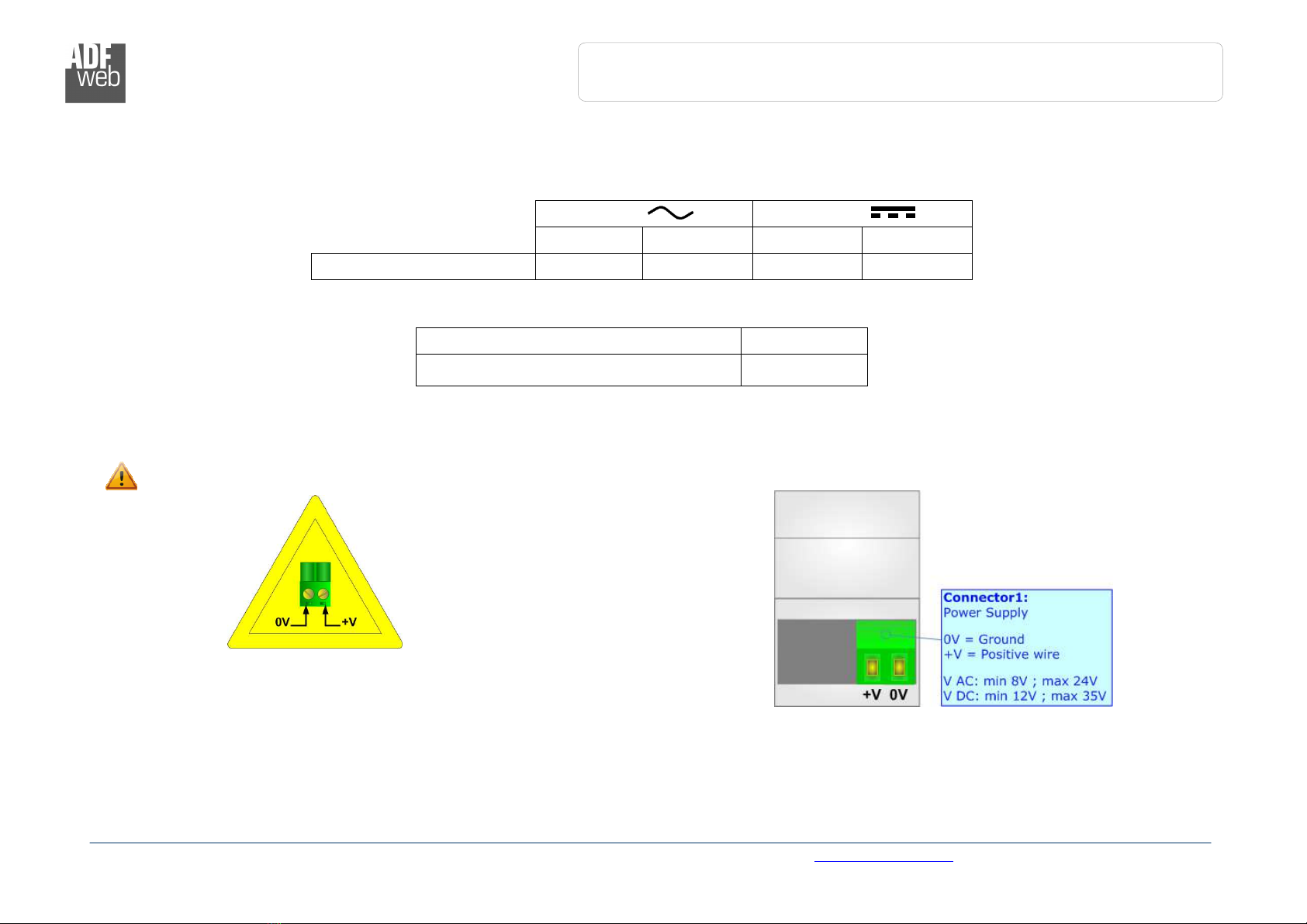

POWER SUPPLY:

The devices can be powered between a wide range of tensions For more details see the two tables below

VAC

VDC

Vmin Vmax Vmin Vmax

HD67B30-B2 8V 24V 12V 35V

Consumption at 24V DC:

Device W/VA

HD67B30-B2 4

Caution: ot reverse the polarity power

HD67B30-B2

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA Server /

Modbus TCP Slave

Document code: MN67B30_ENG Revision 1 000 Page 8 of 23

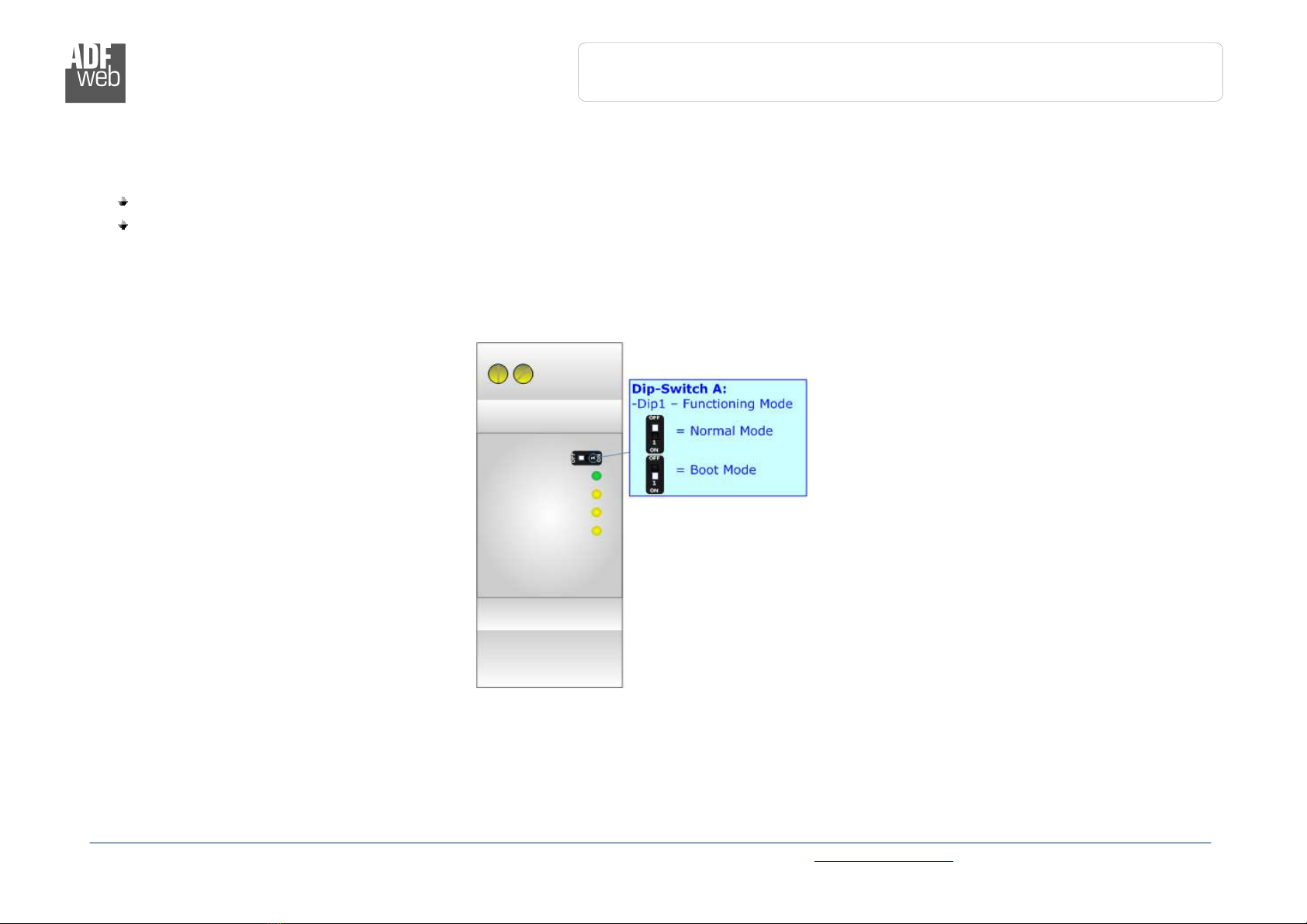

FU CTIO MODES:

The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’:

The first, with Dip1 in Off position (factory setting), is used for the normal working of the device

The second, with Dip1 in On position, is used for upload the Project/Firmware

For the operations to follow for the updating (see ‘UPDATE DEVICE’ section)

According to the functioning mode, the LEDs will have specifics functions (see ‘LEDS’ section)

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA Server /

Modbus TCP Slave

Document code: MN67B30_ENG Revision 1 000 Page 9 of 23

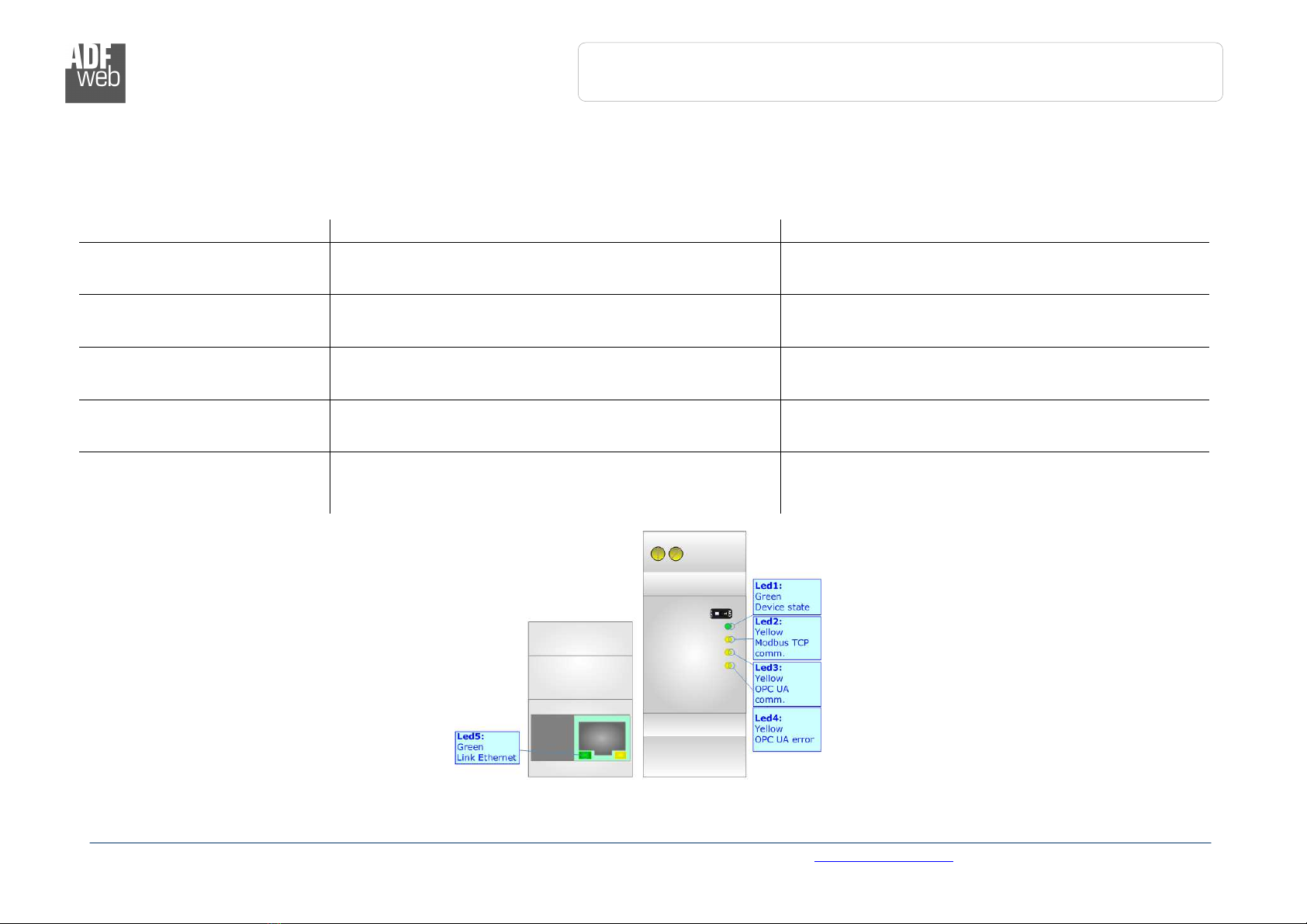

LEDS:

The device has got six LEDs that are used to give information of the functioning status

The various meanings of the LEDs are described in the table below

LED ormal Mode Boot Mode

1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

2: Modbus comm (yellow) Flashing: Modbus request

OFF: No Modbus request

Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

3: OPC UA comm (yellow) Flashing: OPC UA request

OFF: No OPC UA request

Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

4: OPC UA error (yellow) O : An error has occurred

OFF: The device is correctly running

Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

5: Link Ethernet (green) O : Ethernet cable connected

OFF: Ethernet cable disconnected

O : Ethernet cable connected

OFF: Ethernet cable disconnected

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

OPC UA Server /

Modbus TCP Slave

Document code: MN67B30_ENG Revision 1 000 Page 10 of 23

ETHER ET:

The Ethernet connection must be made using Connector3 of HD67B30-B2 with at least a Category 5E cable The maximum length of the

cable should not exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to 100 Mbps To connect the

device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a

cross cable
