MIO-2263 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. 1 MIO-2263 SBC

2. 1 Startup Manual

3. 1 SATA cable p/n: 1700006291

4. 1 Audio cable p/n: 1700022444-01

5. 1 COM cable p/n: 1701200220

6. 1 SATA Power cable p/n: 1700019656

7. 1 USB cable p/n: 1700002172

8. AT power cable p/n : 1700019705

9. 1 Heatsink p/n: 1960063455T001

10. Screw and stud pack (2 screws

for Mini PCIe, 4 M3 studs and

screws for heatsink) p/n: 9666226300E

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note 1: For detailed contents of MIO-2263, please refer

to Advantech website for detailed information.

Note 2: Acrobat Reader is required to view any PDF

ﬁle. Acrobat Reader can be downloaded at:

http://get.adobe.com/reader/ (Acrobat is a trade-

mark of Adobe)

Note 3: Default BIOS is supported for 64 bit OS installa-

tion, BIOS for 32 bit OS is supported by project,

please contact with sales representative for

details.

MIO-2263 Intel®AtomTM SoC J1900/ E3825 Pico-ITX

SBC, DDR3L, 18/24-bit LVDS, VGA or HDMI, 1 GbE,

Half-size Mini PCIe, 4 USB, 2 COM, SMBus,

mSATA & MIOe

Startup Manual

General

• CPU: Intel®Atom™ SoC Quad core J1900 2.0 GHz/ Dual

core E3825 1.33 GHz

• System Memory: 1 x 204-pin SODIMM socket DDR3L

1333 MHz (J1900) / 1066 MHz (E3825), up to 8 GB

• L2 Cache: 2 MB (J1900) / 1 MB (E3825)

• BIOS: AMI EFI 64 Mbit Flash ROM

• Watchdog Timer: 255 level interval timer

Battery: Lithium 3 V/210 mAH

Note: How to clear CMOS (Must follow steps below):

1. Turn off system power.

2. Unplug CR2032 battery cable on BH1.

3. Waiting for 15 sec or short BH1 pin1-2.

4. Connect battery cable on BH1.

5. Turn on system power.

• Serial ATA: Two SATA II interface, one supports 2.5” HDD

and another for mSATA devices, up to 300 MB/s

• USB: One USB 3.0 and three USB 2.0 ports

• Audio: High deﬁnition audio (HD), line-in, line-out

• GPIO: 8-bit general purpose input/output

• Expansion Interface: Half size Mini PCIe

MIOe Expansion Slot

• Interface: 2 x USB 2.0, 2 x PCIe x1, LPC, HD Audio

line-out, SMBus, DP or HDMI supported by request, 5

Vsb/12 Vsb

• Total peripheral power supply output: 5 V @ 3 A for

CPU board and MI/O Extension module totally, 12 V @ 2

A for MI/O Extension module

VGA/HDMI Interface

• Controller: Intel®SoC J1900 / E3825, DirectX 11 and

OpenGL3.0 support for VGA and HDMI display output

Chrontel CH7511 for 18/24 bit LVDS display output

• Output Interfaces:

- VGA: Up to 1920 x 1200

- HDMI: 1920 x 1080

- LVDS: Single channel 18/24-bit LVDS,

up to 1440 x 900

- Dual Display: VGA + LVDS or HDMI + LVDS

Ethernet Interface

• Supports single 10/100/1000 Mbps Ethernet interface

• Controller: Intel® i210

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://service.advantech.com.tw/support/

This manual is for the MIO-2263 Series Rev. A1

Part No. 2006226301

Printed in China

2nd Edition

August 2014

All manuals and user guides at all-guides.com

all-guides.com

2 MIO-2263 Startup Manual

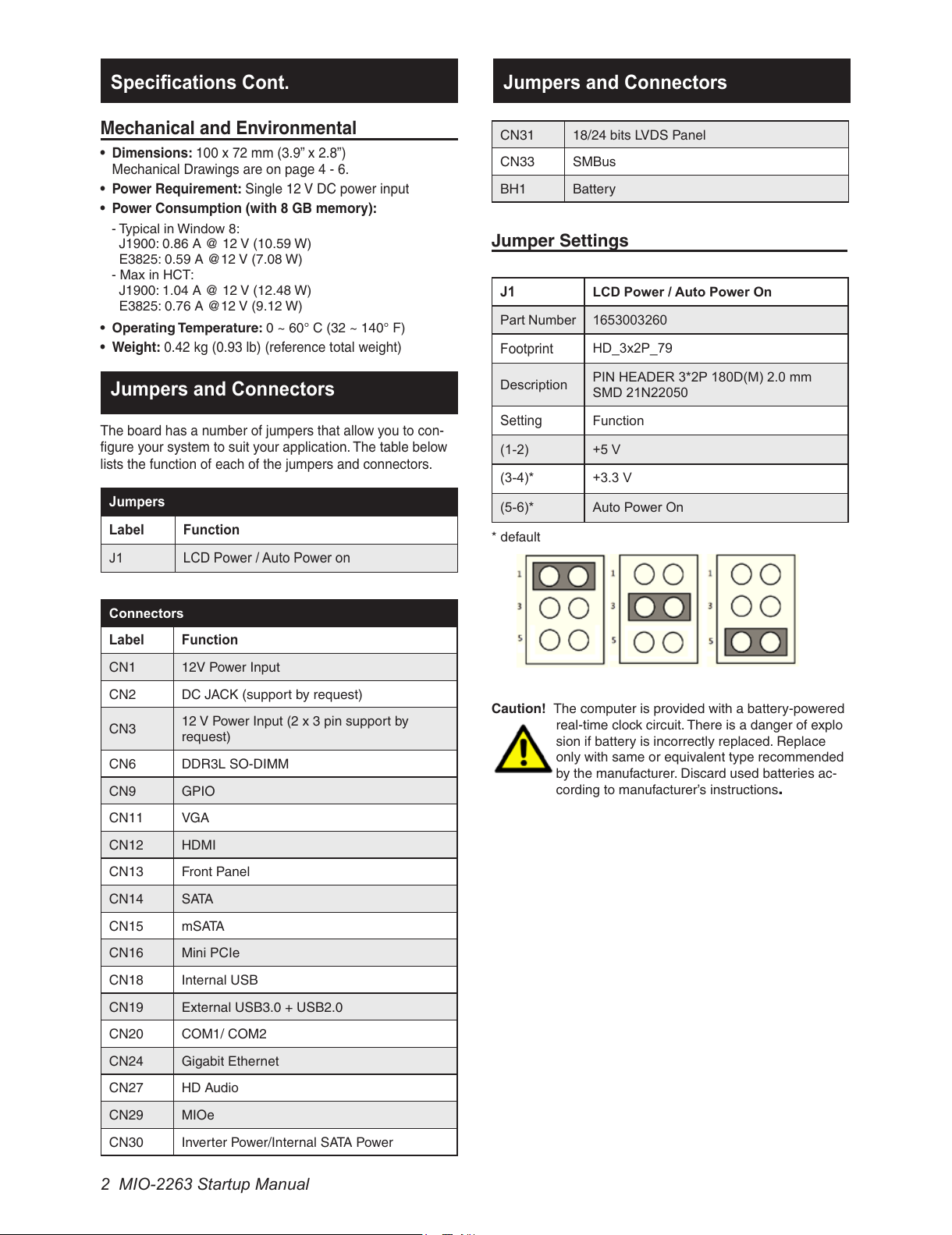

Mechanical and Environmental

• Dimensions: 100 x 72 mm (3.9” x 2.8”)

Mechanical Drawings are on page 4 - 6.

• Power Requirement: Single 12 V DC power input

• Power Consumption (with 8 GB memory):

- Typical in Window 8:

J1900: 0.86 A @ 12 V (10.59 W)

E3825: 0.59 A @12 V (7.08 W)

- Max in HCT:

J1900: 1.04 A @ 12 V (12.48 W)

E3825: 0.76 A @12 V (9.12 W)

• Operating Temperature: 0 ~ 60° C (32 ~ 140° F)

• Weight: 0.42 kg (0.93 lb) (reference total weight)

The board has a number of jumpers that allow you to con-

ﬁgure your system to suit your application. The table below

lists the function of each of the jumpers and connectors.

Jumpers

Label Function

LCD Power / Auto Power on

Connectors

Label Function

CN1 12V Power Input

CN2 DC JACK (support by request)

CN3 12 V Power Input (2 x 3 pin support by

request)

CN6 DDR3L SO-DIMM

CN9 GPIO

CN11 VGA

CN12 HDMI

CN13 Front Panel

CN14 S ATA

CN15 m S ATA

CN16 Mini PCIe

CN18 Internal USB

CN19 External USB3.0 + USB2.0

CN20 COM1/ COM2

CN24 Gigabit Ethernet

CN27 HD Audio

CN29 MIOe

CN30 Inverter Power/Internal SATA Power

Jumpers and Connectors

Specications Cont.

CN31 18/24 bits LVDS Panel

CN33 SMBus

BH1 Battery

Jumper Settings

LCD Power / Auto Power On

Part Number 1653003260

Footprint

HD_3x2P_79

Description PIN HEADER 3*2P 180D(M) 2.0 mm

SMD 21N22050

Setting

Function

(1-2) +5 V

(3-4)* +3.3 V

(5-6)* Auto Power On

* default

Caution! The computer is provided with a battery-powered

real-time clock circuit. There is a danger of explo

sion if battery is incorrectly replaced. Replace

only with same or equivalent type recommended

by the manufacturer. Discard used batteries ac-

cording to manufacturer’s instructions.

All manuals and user guides at all-guides.com

CN11

CNCN

CN31

CN13CN

CN13

CN6

CN14

CN29

MIO-2263 Startup Manual 3

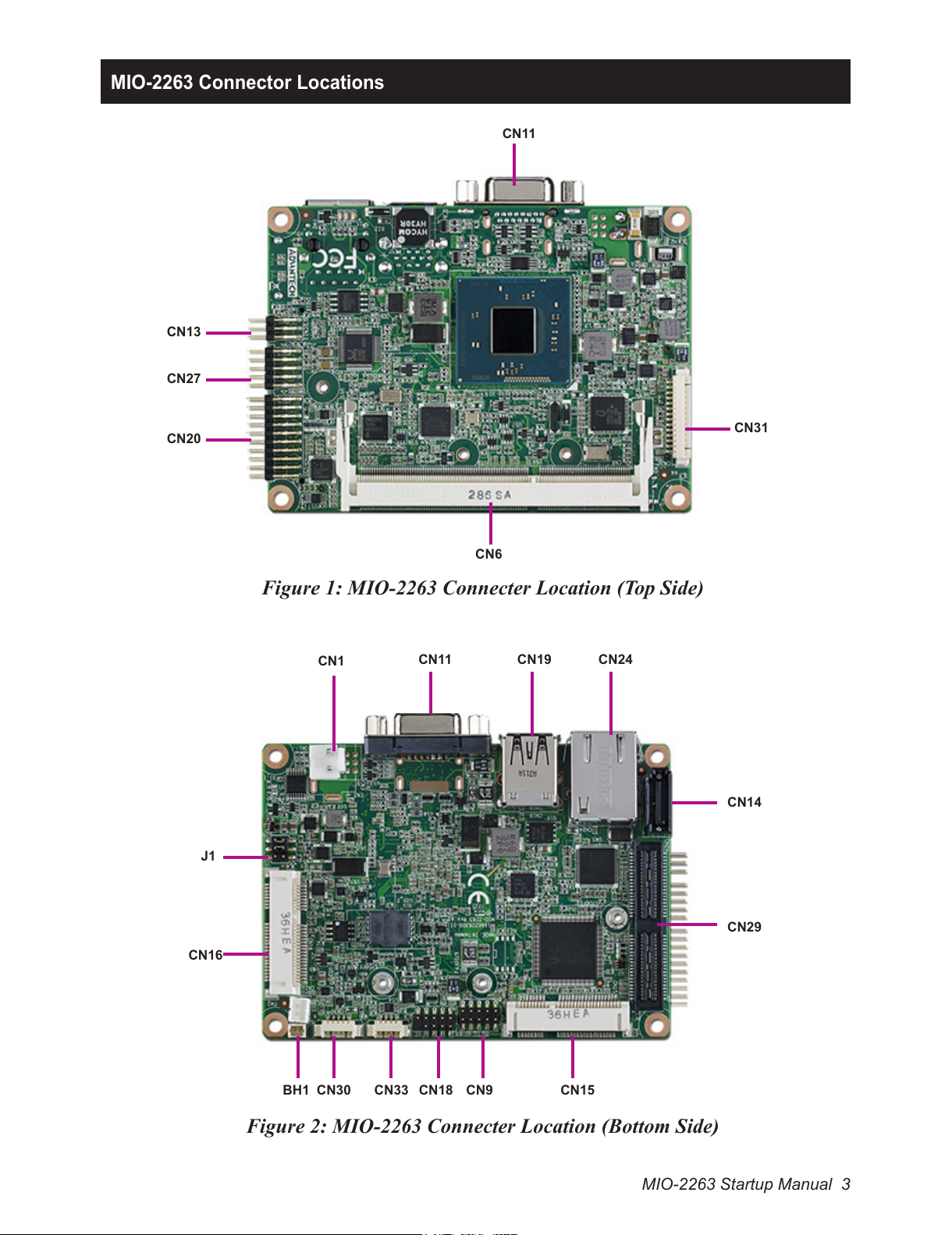

MIO-2263 Connector Locations

Figure 1: MIO-2263 Connecter Location (Top Side)

Figure 2: MIO-2263 Connecter Location (Bottom Side)

CN27

CN20

CN15CN9CN18CN33CN30

CN16

CN11 CN19 CN24

CN1

BH1

All manuals and user guides at all-guides.com

Unit: mm

4 MIO-2263 Startup Manual

Figure 3: MIO-2263 Mechanical Drawing (Top Side)

Figure 4: MIO-2263 Mechanical Drawing (Bottom Side)

MIO-2263

Mechanical Drawing

3.25

4.35

22.40

31.10

64.18

83.49

96.73

3.25

10.87

10.92

15.62

62.16

68.75

3.25

37.12

42.91

53.84

70.94

83.81

92.57

3.25

3.63

6.83

27.86

34.55

69.60

3.27

41.91

96.75

100

3.25

29.41

57.70

68.75

3.25

26.83

34.10

45.35

68.75

3.25

5.06

14.58

96.75

All manuals and user guides at all-guides.com

MIO-2263 Startup Manual 5

Unit: mm

Figure 5: MIO-2263 Mechanical Drawing (Side View)

Unit: mm

Figure 6: MIO-2263 Mechanical Drawing (Side View with Optional DC/Jack)

MIO-2263

Mechanical Drawing

40.56

65.40

83.31

16.51

6.35

46.23

8.38

100

16.34

4.28

10.99

104.36

3.20

40.56

65.40

83.31

6.35

8.38

46.23

100

16.34

4.28

104.36

3.20

10.99

17.27

6.55

All manuals and user guides at all-guides.com

6 MIO-2263 Startup Manual

Unit: mm

Figure 7: MIO-2263 Mechanical Drawing (Side vew with Heatsink)

Unit: mm

Figure 8: MIO-2263 Mechanical Drawing (Side View with Optional Heatspreader)

MIO-2263

Mechanical Drawing

40.56

65.40

83.31

6.35

8.38

16.51

100

16.34

4.28

104.36

3.20

17.29

40.56

65.40

83.31

6.35

8.38

16.51

100

16.34

4.28

104.36

3.20

12.79
