MIC-300 Startup Manual 1

Before installation, please ensure that the following items

have been included in your shipment:

1. 1 x MIC-300 serial

2. 1 x Startup manual

If any of the above items are missing or damaged, contact

your distributor or sales representative immediately.

1. Put this equipment on a reliable surface during installa-

tion. Dropping it or letting it fall may cause damage

2. Make sure the voltage of the power source is correct

before connecting the equipment to the power outlet

3. If the equipment is not used for a long time, disconnect

it from the power source to avoid damage by transient

overvoltage

MIC-300

3U Height CompactPCI®Serial Enclosure for 3U Cards

Startup Manual

Standard Functions

• Interface supported: PCIe (Gen3), SATA (Gen3),

USB2.0/USB3.0, Ethernet (10GBase-T)

• Backplane Type: 7-slot or 9-slot CompactPCI Serial

backplane with Ethernet Star, single star, without RIO

• Connector Type: AirMax VS

• Power: Power backplane for AC/DC CPCI-Serial Power

module.

• 12V Main: 6.65 A per slot

• 5V standby: 0.95A per slot

Mechnical and Environment

• Operating temperature:: 0 ~ 70° C (32 ~ 158° F)

• Storage Temperature: -40 ~ 85° C (-40 ~ 185° F)

• Humidity: 95% @ 40° C (non-condensing)

• Humidity (Non-operating): 95% @ 60° C (non-con-

densing)

• Cooling: 12 removable low noise mini-fans can be as-

sembled on the top and bottom side of chassis

• Random Vibration (operation): 5~500Hz, 2Grms, 3

axes

• Shock (Operation): 10G, 11ms

• EMC & Safety: design to meet EN50155/EN50121-4

PN Description Chassis

Slot TY

Backplane

slot

MIC-300S1-S1

MIC-300

3U CPCI-S

Chassis with 9

Slot BP

21 9

MIC-300S1-S2

MIC-300

3U CPCI-S

Chassis with 7

Slot BP

11 7

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/epc

For technical support services, please visit our support

website at:

http://support.advantech.com

This manual is for the MIC-300 Series.

Part No. 2041030000

Printed in China

Edition 1

August 2022

Safety Instructions

Specications

Ordering Information

2 MIC-300 Startup Manual

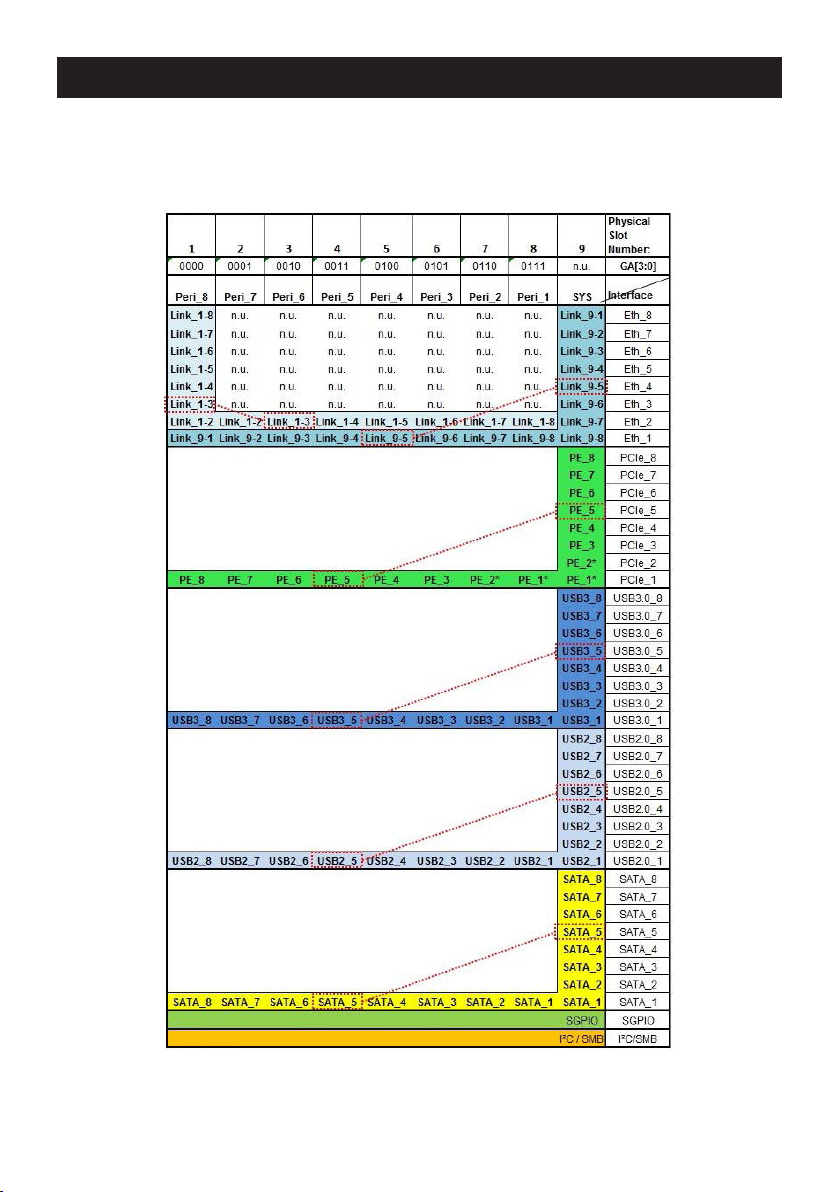

Option 1: 21-Slot Chassis 9 slot backplane

• CompactPCI Serial with Ethernet Star, single star, without RIO

• Connector Type:AirMax VS

• System Slot: Right

• Number of Slots: 9

Backplane Topolog

MIC-300 Startup Manual 3

Option 1: 11-Slot Chassis 7 slot backplane

• CompactPCI Serial with Ethernet Star, single star, without RIO

• Connector Type:AirMax VS

• System Slot: Right

• Number of Slots: 7

Backplane Topolog (Cont.)

4 MIC-300 Startup Manual

P1~P3 is AC power input pin, P4~P5 is DC power input pin. For The power input from PSU back-end connector, the P1~P3

isconnectedtotheAcpowerlterattherearofthechassisbydefault.ThesetupsupportsbothACpowerandtheDCpower

that can support front panel input. If DC power supply is used and it need input from DC power supply back-end connector,

the P4~P5 need to be connect to the connector at the rear of the chassis, the SKU is not currently available for standard, it

need to customize.

Boundary dimension:

21 slot chassis length x width×height = 482.60 x 251.50 x 132.55 mm (unit: mm)

7 slot chassis length x width×height=279.40 x 254.50 x 132.55 mm (unit: mm)

MIC-300-S1S1 MIC-300-S1S2

Unit: mm

482.6 ±0.5

465.00±0.4

37.7057.15±0.4

132.55±0.4

251.50 42.66

132.55±0.4

279.40±0.4

261.80±0.5

57.15±0.25

238.69

232.60

254.50

294.16

Power Backplane and Power Adapter Board

Dimensions
