Advantech MIC-75M40 Manuale di installazione e funzionamento

MIC-75M40 Startup Manual 1

Before you begin installing your card, please make sure

that the following items have been shipped:

1. MIC-75M40 Moduel x1

P/N: MIC-75M40-00A1E

2. MIC-75M40 Startup Manual x1 P/N: 20015M4000

3. Warranty Card P/N: 2190000902

4. SATA Cable x 1 P/N: 1700014518

5. SATA Power Cable x 1 P/N: 1700023566-02

6. Card Clamp Pad x 4 P/N:1990024989T000

7. Wall-Mount BKT (Left) x1 P/N:

1960070545N001

8. Wall-Mount BKT (Righ) x1 P/N:

1960070543N001

If any of these items are missing or damaged, please

contact your distributor or sales representative immediately.

Note: Acrobat Reader is required to view any PDF ﬁle.

Acrobat Reader can be downloaded at: get.

adobe.com/reader (Acrobat is a trademark of

Adobe)

MIC-75M40

PCIE Expansion Module for MIC-7 Series

Embedded System

Startup Manual

PCIe Slots

• One PCIex16 socket (PCIex8 signal)

Note 1: PCIEx8 power consumption supports to 35W.

• Three PCIex4 socket

Note 1: Each PCIEx4 supports 15W power consumption.

Note 2: MIC-75M40 does not supports MIC-7300 series

system.

Storage

• Internal SATA connector: 1

Note 1: MIC-75M40 supports 2x2.5’ HDD space and

one SATA signal is from main system.

Environment

• Operation Temperature:

-20 ~ 60° C with 0.7 m/sec air ﬂow: with 1 x Industrial SSD

without PC expansion boards

0 ~ 45° C with 0.7 m/sec air ﬂow: with 1 x 2.5” HDD

without PC expansion boards

• Storage Temperature: - 40 ~ 85° C (-40 ~185° F)

• Relative Humidity: 95% @ 40° C (non-condensing)

Mechanical

• Dimensions (H x W x D): 92 x 90 x 230 mm

Note 1: Please add FAN into i-module, when add-on

card total power consumption is over 45W.

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://support.advantech.com.tw/support/default.

aspx

This manual is for the MIC-75M40 Series Rev. A1.

Part No. 20015M4000

Printed in China

1st Edition

January 2016

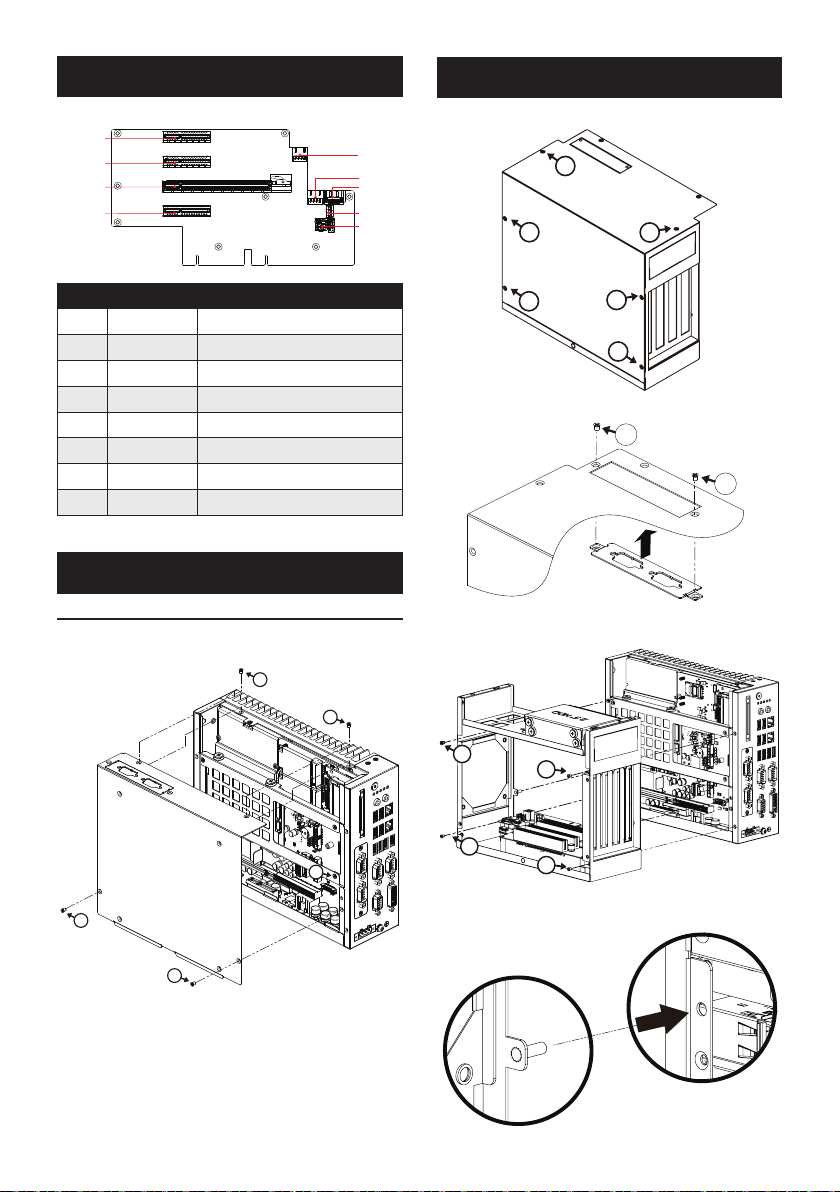

2 MIC-75M40 Startup Manual

2. Undo 6x screws of MIC-75M40.

3. Remove i-door cover by MIC-7500 bottom cover and

assemble and secure cover in i-module’s bottom cover.

4. Assemble MIC-75M40 and MIC-7 series device and

secure 4x screws to integrate system.

Note: MIC-75M40 has 2 bolts and it must be aligned

into the holes at device.

The table below list the function of each of the connectors.

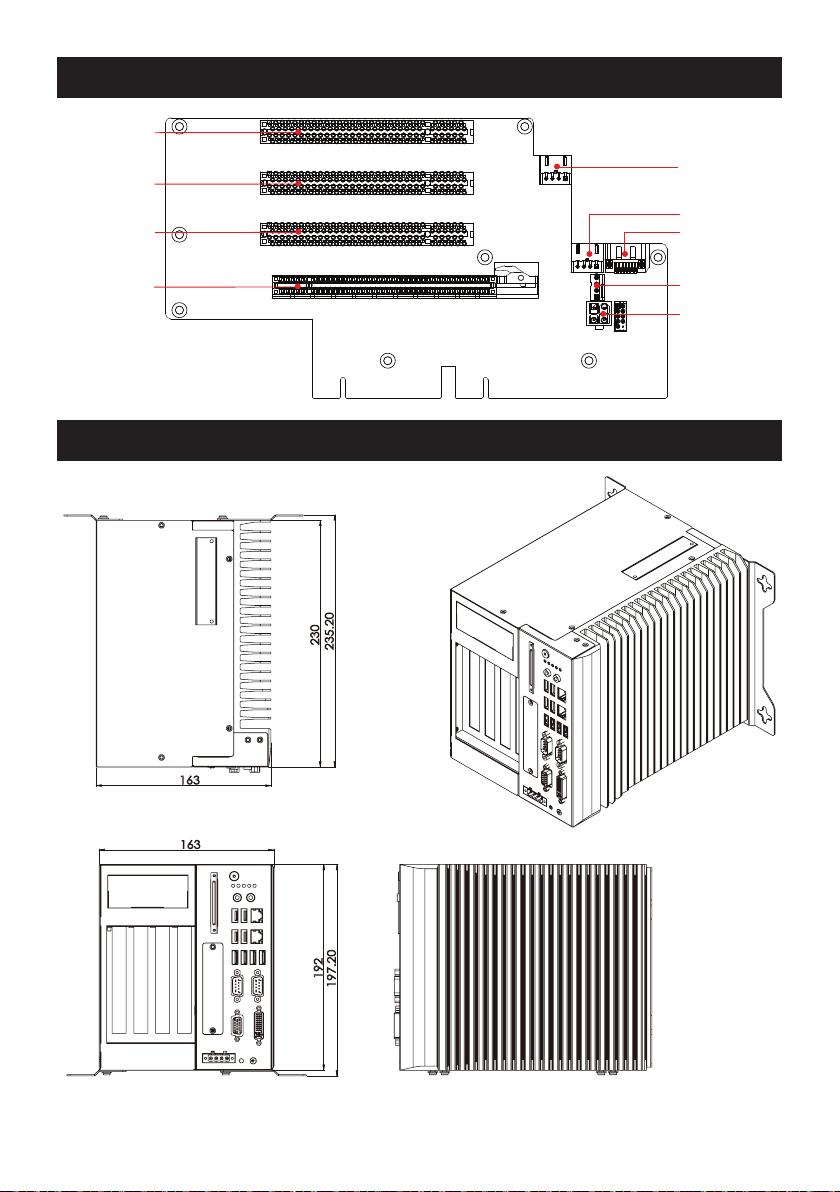

PCIE x 16 Socket

PCIEx4 Socket

12V Extral Power

SATA CON

SATA Power CON

5V Extral Power

FAN CON

PCIEx4 Socket

(PCIE x 8 Signal)

Connectors

No. Item Function

1 SATAPWR1 SATA Power connector

2SATA1 SATA connector

3 CPUFAN1 4 Pin FAN connector

4 PWR1 4 Pin Power connector (12V)

5 PWR2 4 Pin Power connector (5V)

6 PCIEx4 1/2/3 PCIEx4 Socket

7 PCIEx16_1 PCIE x16 Socket

System Installation

MIC-7 series i-module can assemble with all MIC-7 series

IPC system.

1. Undo MIC-7 series system screws and remove the

bottom cover.

Simple Maintain Process

Jumpers and Connectors

Simple Maintain Process (Cont.)

MIC-75M40 Startup Manual 3

5. Replacee the cover and secure with screws.

Note: Chassis cover has designed a notch and it must

buckle at a hook at chassis.

Chassis Cover

Chassis hook

HDD Installation

MIC-75M40 supports 2 x 2.5’ HDD space. You can move

System HDD to i-module HDD space that will be more

easy to maintain the system.

Note: MIC-75M40 only supports one SATA HDD

connector, 2nd SATA must extend from the

system.

1. Undo HDD bracket.

2. Assemble 4x HDD shock rubber pad

(P/N:1990008871S000) for One HDD.

3. Secure the 4xHDD screws (P/N:1930002235)

4. Assemble SATA/SATA Power cable.

(Please refer MB internal I/O connector speciﬁcaton at

next page)

5. Replace HDD bracket and chassis cover with screws.

FAN Installation (Optional)

MIC-75M40 supports a 8x8CM FAN space. If system wants

to install high perfornamce epxansion cards (For example:

Graphic or PoE card) or total power consumption is over

45W, please install FAN for Thermal issue.

FAN is optional module. If you system needs FAN module,

please contact your distributor or sales representative.

Fan Module P/N : 98R1751300E.

2Fan Connector

1. Undo FAN cover

2. Secrue FAN protectoin nets with 4 screws.

3. Assemble and secure FAN in chassis with 4 screws.

4. Plug the FAN power cable into the connector of

backplane board.

FAN Filter Installation

If your system has installed FAN, we recommend you to be

replaced system fan ﬁlter at regular intervals to ensure the

stability of the system cooling.

You can ﬁnd one new FAN ﬁlter at FAN moudle.

1. Undo system cover and remove old Fan ﬁlter.

2. Change new fan ﬁlter and replace system cover with screws.

Simple Maintain Process

(Cont.)

Simple Maintain Process (Cont.)

4 MIC-75M40 Startup Manual

PCIE x 16 Socket

PCIEx4 Socket

12V Extral Power

SATA CON

SATA Power CON

5V Extral Power

FAN CON

PCIEx4 Socket

(PCIE x 8 Signal)

197.20

192

163

230

235.20

163

IO Connectors

System Dimensions

MIC-75M40快速入门手册 1

安装系统之前，用户需确认包装中含有下面所列各项：

1. MIC-75M40模块x1 P/N: MIC-75M40-00A1E

2. MIC-75M40快速入门手册x1 P/N: 20015M4000

3. 质保卡 P/N：2190000902

4. SATA电缆x1 P/N：1700014518

5. SATA电源线x1 P/N：1700023566-02

6. 卡夹垫x4 P/N：1990024989T000

7. 壁挂式安装支架（左）x1 P/N：

1960070545N001

8. 壁挂式安装支架（右）x1 P/N：

1960070543N001

如果其中任何一项缺失或损坏，请立即与经销商或销售代

表联系。

注: 阅读PDF文件需要使用Acrobat Reader。用户可从

以下路径下载Acrobat Reader：get. adobe.com/

reader (Acrobat is a trademark of Adobe)

MIC-75M40

适用于MIC-7系列嵌入式系统的PCIE扩展模块

快速入门手册

PCIe插槽

• 1个PCIex16插槽（PCIex8信号）

注 1： PCIEx8功耗为35W。

• 3个PCIex4插槽

注 1：每个PCIEx4的功耗为15 W。

注 2： MIC-75M40不支持MIC-7300系列系统。

存储

• 内置SATA接口：1

注 1： MIC-75M40可支持两块2.5” HDD和一个来自主系统

的SATA信号。

环境规格

• 工作温度：

-20

60°C，0.7 m/sec

气流：带1 x 工业级SSD，

不带PC扩展板

45°C，0.7 m/sec

气流：带1 x

2.5

”

HDD

，

不带PC扩展板

• 储存温度：- 40

85°C (-40

185°F)

• 相对湿度：95% @ 40°C（非凝结）

物理规格

• 尺寸（W x H x D）：

92 x 90 x 230 mm

注 1：

当附加卡总功率超过45 W时，请安装风扇。

产品规格包装清单

如需了解有关本产品及研华其它产品的详细信息，请访

问研华网站：

http://www.advantech.com.cn

http://www.advantech.com.cn/eplatform

如需技术支持与服务，请访问研华网站：

http://support.advantech.com.cn/support/default.

aspx

本手册适用于MIC-75M40系列Rev. A1。

料号：20015M4000

中国印刷

第一版

2016年1月

2 MIC-75M40快速入门手册

2. 卸下 MIC-75M40的6颗螺丝。

3. 移除i-door盖子，并安装在MIC-75M13的系统侧盖上。

4. 将MIC-75M40安装至MIC-7系统，并用4颗螺丝固定。

注： MIC-75M40配有2个螺栓，安装时必须对准MIC-7系

统的定位孔位。

下表为每个跳线和接口的功能列表。

PCIE x 16插槽

PCIEx4插槽

12V附加电源

SATA 接口

SATA

电源接口

5V附加电源

风扇接口

PCIEx4插槽

(PCIE x 8信号)

接口

编号标签功能

1 SATAPWR1 SATA电源接口

2SATA1 SATA接口

3CPUFAN1 4针风扇接口

4PWR1 4针电源接口（12V）

5PWR2 4针电源接口（5V）

6 PCIEx4 1/2/3 PCIE x4插槽

7PCIEx16_1 PCIE x16插槽

系统安装

MIC-7系列i模块可安装于全系MIC-7 IPC系统。

1. 卸下MIC-7系统的螺丝并移除底盖。

简单安装步骤

跳线和接口

简单安装步骤（续）

MIC-75M40快速入门手册 3

5. 放回底盖并用螺丝固定。

注：机箱盖上设计了一个凹口，安装时必须扣住机箱

上的挂钩。

机箱盖

机箱挂钩

HDD安装

MIC-75M40支持安装两块2.5” HDD。用户可将系统HDD移至i模

块HDD支架，以便后续维护系统。

注： MIC-75M40仅支持一个SATA HDD接口。如需安装另

一个SATA，请使用系统SATA接口。

1. 卸下HDD支架。

2. 将4个HDD抗冲击橡胶垫（P/N：1990008871S000）放入

HDD支架安装孔。

3. 拧紧4颗HDD螺丝（P/N：1930002235）。

4. 连接SATA/SATA电源线。

关于母板内置I/O接口规格信息，请参考下一页内容)

5. 放回HDD支架和机箱盖，并用螺丝固定。

风扇安装（选配）

MIC-75M40支持一个8 x 8 CM风扇。若系统需要安装高性能扩

展卡（如显卡或PoE卡）或系统总功率超过45 W，请安装风扇

以解决散热问题。

风扇为选配模块。如需安装风扇模块，请联系研华经销商或

销售代表。

风扇模块P/N：98R1751300E。

2风扇接口

1. 卸下风扇盖。

2. 用4颗螺丝固定风扇保护网。

3. 用4颗螺丝将风扇安装并固定至机箱。

4. 将风扇电源线连接至背板接口。

风扇过滤器安装

如果系统已经安装风扇，建议用户定期更换风扇过滤器，以

确保稳定的冷却性能。

选配的风扇模块自带一个全新风扇过滤器。

1. 移除系统盖并取下原有风扇过滤器。

2. 更换新的风扇过滤器。然后，放回系统盖并用螺丝固定。

简单安装步骤（续）

4 MIC-75M40快速入门手册

PCIE x 16插槽

PCI插槽

12V附加电源

SATA电源接口

5V附加电源

风扇接口

197.20

192

163

230

235.20

163

IO接口

系统尺寸

MIC-75M40快速入門手冊 1

安裝系統之前，用戶需確認包裝含有下面所列各項：

1. MIC-75M40模組 x1 P/N：

MIC-75M40-00A1E

2. MIC-75M40快速入門手冊 x1 P/N：20015M4000

3. 保固卡 P/N：2190000902

4. SATA電纜 x1 P/N：1700014518

5. SATA電源線 x1 P/N：1700023566-02

6. 擴充卡固定組 x4 P/N：1990024989T000

7. 壁掛式安裝支架（左）x1 P/N：

1960070545N001

8. 壁掛式安裝支架（右）x1 P/N：

1960070543N001

如果其中任何一項有缺失或損壞，請立即與經銷商或與銷售

業務聯繫。

註: 閱讀PDF文件需要使用Acrobat Reader。用户

可以從以下路徑下載Acrobat Reader：get.

adobe.com/reader (Acrobat is a trademark of

Adobe)

MIC-75M40

适用于MIC-7系列嵌入式系统的PCIE扩充模组

快速入门手册

PCIe插槽

• 1組PCIex16插槽（PCIex8信號）

註 1： PCIEx8功耗為35 W。

• 3組PCIex4插槽

註 1：每個PCIEx4

的功耗為

15 W。

註 2： MIC-75M40不支援MIC-7300系列系統。

存儲

• 內建SATA接頭：1

註 1： MIC-75M40可支持兩個2.5” HDD空間和一個來自主

系統的SATA訊號

環境規格

• 工作溫度：

-20

60°C，0.7 m/sec

氣流

：搭載一個工業級SSD，

不帶PC擴展板

45°C，0.7 m/sec

氣流

：搭載一個2.5

”

HDD或m-SATA，

不帶PC擴展板

• 儲存溫度：- 40

85°C (-40

185°F)

• 相對溼度：95% @ 40°C（非凝結）

物理規格

• 尺寸（W x H x D）：

92 x 90 x 230 mm

註 1：

當擴充卡總功耗超過45W時，請安裝風扇模組。

產品規格包裝清單

如需了解有關本產品及研華其他產品的詳細訊息，請訪

問研華網站：

http://www.advantech.com.tw

http://www.advantech.com.tw/eplatform

如需技術支援與服務，請訪問研華網站：

http://support.advantech.com.tw/support/default.

aspx

本手冊適用於MIC-75M40系列 Rev. A1

料號：20015M4000

中國印刷

第一版

2016年1月

2 MIC-75M40快速入門手冊

2. 卸下MIC-75M40的6顆螺絲。

3. 移除i-door蓋子，並裝在MIC-75M40系統側蓋上。

4. 將MIC-75M40安裝至MIC-7系統，並用4顆螺絲固定。

註： MIC-75M40配有2個螺柱，安裝時必須對準MIC-7系

统統的的定位孔位。

下圖為每個跳線和接口的功能列表。

PCIE x 16 Socket

PCIEx4 Socket

12V Extral Power

SATA CON

SATA Power CON

5V Extral Power

FAN CON

PCIEx4 Socket

(PCIE x 8 Signal)

接口

編號項目功能

1 SATAPWR1 SATA電源接口

2SATA1 SATA接口

3CPUFAN1 4針風扇接口

4PWR1 4針電源接口（田字頭）（12V）

5PWR2 4針電源接口（5V）

6 PCIEx4 1/2/3 PCIE x4插槽

7PCIEx16_1 PCIE x16插槽

系统安裝

MIC-7系列模組可安裝於全系MIC-7 IPC系统。

1. 卸下MIC-7系统的螺絲並移除底蓋。

簡單安裝步驟

跳線與接口

簡單安裝步驟 (續)

Indice

Altri manuali Advantech Unità di controllo

Advantech

Advantech PCL-812PG Manuale utente

Advantech

Advantech PCM-3380 Manuale di installazione e funzionamento

Advantech

Advantech WISE-4610 Series Manuale di installazione e funzionamento

Advantech

Advantech EPD-132 Manuale utente

Advantech

Advantech USB-4711A Manuale utente

Advantech

Advantech ADAM-3017 Manuale di installazione e funzionamento

Advantech

Advantech ADAM-2000 Series Manuale utente

Advantech

Advantech PCM-3614I Manuale di installazione e funzionamento

Advantech

Advantech ADAM-5000 Series Manuale utente

Advantech

Advantech RISC SOM-A2558 Series Manuale utente

Advantech

Advantech PCM-3910 Manuale di installazione e funzionamento

Advantech

Advantech ADAM-3656 Manuale di installazione e funzionamento

Advantech

Advantech INTRAC INTRAC-305 Manuale di istruzioni

Advantech

Advantech PCM-233A Manuale di installazione e funzionamento

Advantech

Advantech MIC-75G20-10B1 Manuale di installazione e funzionamento

Advantech

Advantech SOM-6898 Manuale utente

Advantech

Advantech IPMI-2000 Manuale di installazione e funzionamento

Advantech

Advantech WISE-1540 Manuale utente

Advantech

Advantech ROM-7510 Manuale utente

Advantech

Advantech SOM-5894 Manuale utente

Advantech

Advantech EDG-4100 Series Guida rapida

Advantech

Advantech ADAM-3016 Manuale utente

Advantech

Advantech APAX-5202P Manuale utente

Advantech

Advantech WISE-2211 Manuale di installazione e funzionamento

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
