1 Startup Manual

STARTUP MANUAL

PCM-3810I

PCI-104 12-bit Multifunction Module

Before installation, please make sure that you have:

• PCM-3810I Module

• Driver CD

• Startup Manual

If anything is missing or damaged, contact your

distributor or sales representative immediately.

For more detailed information on this product,

please refer to the PCM-3810I User Manual on the

CD-ROM (PDF format).

Documents\Hardware Manuals\PCM\PCM-3810I

FCC Class A

This equipment has been tested and found to comply with

the limits for a Class A digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reason-

able protection against harmful interference when the

equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residen-

tial area is likely to cause interference in which case the

user is required to correct interference at his own expense.

This product has passed the CE test for environmental spec-

ifications when shielded cables are used for external wiring.

We recommend the use of shielded cables. This kind of

cable is available from Advantech. Please contact your local

supplier for ordering information.

PCM-3810I is a multifunction module for PCI-104 bus.

Their advanced circuit design provides higher quality and

more functions, including 12-bit A/D conversion, D/A con-

version, digital input, digital output, and counter/timer.

Analog Input

Analog Output

Non-Isolated Digital Input/Output

Packing List Specifications

User Manual

Declaration of Conformity

Overview

Notes

For more information on this and other Advantech

products, please visit our websites at:

http://www.advantech.com/eAutomation

For technical support and service:

http://www.advantech.com/support/

This startup manual is for PCM-3810I.

Part No. 2003381010 1st Edition

March 2010

Channels 16 S/E or 8 DIFF or combination

Resolution 12 bits

FIFO Size 4k samples

Max. Sampling Rate 250 kS/s

Input Range and Gain

List

Gain 0.5 1 2

Unipolar - 0~10 0~5

Bipolar ±10 ±5±2.5

Gain 4 8

Unipolar 0~2.5 0~1.25

Bipolar ±1.25 ±0.625

Drift

Gain All Gain

Zero 15 ppm/°C

Span 25 ppm/°C

Input Impedance 300 M / 5pF

Accuracy

INLE: ±1 LSB

DNLE: ±1 LSB

Gain 0.5 1 2

Gain Error

(% FSR)

0.1 0.1 0.2

Gain 4 8

Gain Error

(% FSR)

0.2 0.4

Channels 2

Resolution 12 bits

Output Range

Using Internal

Reference

0~5, 0~10, ±5, ±10 V

Using External

Reference

0~+x V @ +x V

(-10 ≤x ≤10)

-x~+x V @ +x V

(-10 ≤x ≤10)

Accuracy

Relative ±1 LSB

Differential

Non-linearity

±1 LSB (monotonic)

Driving Capability 10 mA

Update Rate Static update

Output Impedance 0.1 ohm max.

Input Channels 16 (shared)

Input Voltage Low 0.8 V max.

High 2.4 V min.

Output Channels 16 (shared)

Output Voltage Low 0.8 V max.

High 2.4 V min.

2 Startup Manual

Counter

General

The PCM-3810I has a built-in DIP switch (SW1),

which is used to define each module’s board ID. When

there are multiple cards on the same chassis, this board

ID setting function is useful for identifying each mod-

ule’s device number through board ID.

* Default setting is 0

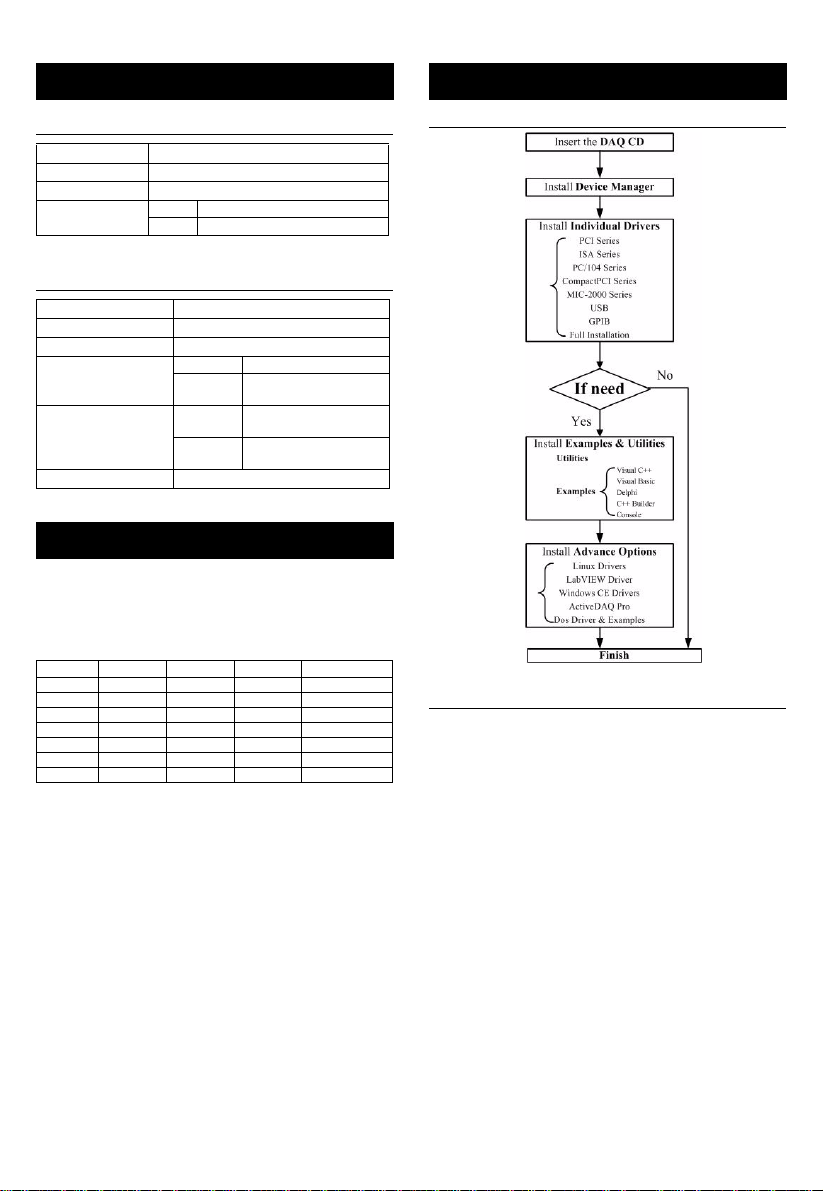

Software Installation

Hardware Installation

After the device driver installation is completed, you

can now go on to install the PCM-3810I module on

your computer.

Please follow the steps below to install the module on

your system:

1. Touch the metal part on the surface of your

computer to neutralize the static electricity that

might be in your body.

2. Plug your card into a PCI-104 slot. Use of excessive

force must be avoided; otherwise the card might get

damaged.

Specifications

Channels 3

Resolution 24 bits

Input Frequency 10 MHz max.

Input Voltage Low 0.8 V max.

High 2.0 V min.

I/O Connector Type 50-pin and 26-pin box header

Dimensions 96 x 90 mm (3.8" x 3.5")

Power Consumption 4.2 W typical; 5 W max.

Temperature

Operating 0 ~ 60°C (32 ~ 158°F)

Storage -20 ~ 70° C (-4 ~ 185°

Humidity

Operating 5 ~ 85% RH

non-condensing

Storage 5 ~ 95% RH

non-condensing

Certifications CE certified

Board ID Switch

SW1 Position1 Position2 Position3 Position4

Board ID ID3 ID2 ID1 ID0

15 OFF OFF OFF OFF

14 OFF OFF OFF ON

13 OFF OFF ON OFF

:::::

1 ONONONOFF

0* ON ON ON ON

Installation

Startup Manual 3

Figure 1: 50-pin I/O Connector Pin Assignments

Figure 2: 26-pin I/O Connector Pin Assignments

Pin Assignments

Signal Name Reference Direction Description

AI<0…15> AGND Input Analog Input Channels

0 to 15.

AGND - - Analog Ground.

ANA TRIG AGND Input Analog threshold Trig-

ger.

AI DIG TRIG DGND Input Analog Input Digital

Trigger.

AI PAUSE

GATE

DGND Input Analog Input Pause

GATE.

AI SCAN CLK DGND Input Analog Input Scan

Clock.

AI CONV CLK DGND Input Analog Input Conver-

sion Clock.

AO0 REF

AO1_REF

AGND Input Analog Output Channel

0/1 External Refer-

ence.

AO0_OUT

AO1_OUT

AGND Output Analog Output Chan-

nels 0/1.

AO START

TRIG

DGND Input Analog Output Start

Trigger.

AO CONV

CLK

DGND Input Analog Output Con-

vert Clock.

DIO<0..15> DGND Input Digital Input/ Output

Channel 0 to 15.

DGND - - Digital Ground. This pin

supplies the reference

for the digital channels

at the I/O connector as

well as the +5 V and

+12 V DC supply.

CNT0 CLK

CNT1 CLK

CNT2 CLK

DGND Input Counter 0/1/2 External

Clock Input.

CNT0 OUT

CNT1 OUT

CNT2 OUT

DGND Output Counter 0/1/2 Output.

CNT0 GATE

CNT1 GATE

CNT2 GATE

DGND Input Counter 0/1/2 Gate

Control.

+12V DGND Output +12 VDC Source.

+5V DGND Output +5 VDC Source.

NC - - Not Connected.

4 Startup Manual

Analog Input -

Single-ended Channel Connections

The single-ended input configuration has only one sig-

nal wire for each channel, and the measured voltage

(Vm) is the voltage referring to the common ground.

Analog Input -

Differential Channel Connections

The differential input channels operate with two signal

wires for each channel, and the voltage difference

between both signal wires is measured. On PCM-3810I,

when all channels are configured to differential input,

up to 8 analog channels are available.

Analog Output Connections

PCM-3810I provides two analog output channels, AO0

and AO1. The figure below shows how to make analog

output connections on PCM-3810I.

External Trigger Source Connection

In addition to pacer triggering, PCM-3810I also allows

external triggering for A/D conversions. A low-to-high

edge coming from TRIG will trigger an A/D conversion

on the PCM-3810I board.

Note!: Don't connect any signal to the TRIG pin when

the external trigger function is not being used.

Note!: If you use external triggering for A/D conver-

sions, we recommend you choose differential mode for

all analog input signals, so as to reduce the cross-talk

noise caused by the external trigger source.

Input Connections
