AIMB-232 Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
1. AIMB-232 Intel®SKYLAKE U Dual Core Mini-ITX
motherboard
2. SATA HDD cable x 2
3. SATA Power cable x 2
4. Fanless Heatsink x1
5. I/O port bracket x 1
6. Startup manual x 1
7. Warranty card x 1
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at: www.adobe.com/
Prodindex/acrobat/readstep.html (Acrobat is a trademark
of Adobe).
AIMB-232
Intel
®
SKYLAKE U Dual Core Mini-ITX with HDMI/
LVDS(eDP)/DP++, 2 COM, and Dual LAN
Startup Manual
Standard SBC functions
• CPU: Supports Intel®SKYLAKE U Dual Core i3/i5/i7/
Celereon
• BIOS: AMI uEFI 16 Mbits, SPI
• Chipset: Intel®SUNRISE Point LP
• System memory: Up to 32 GB in two 260-pin SODIMM
sockets. Supports DDR4 2133 MHz SDRAM
Note: Due to the inherent limitations of PC architecture, the
system may not fully detect 16 GB RAM when 16 GB RAM
is installed.
• SATA3 Interface: Two on-board Serial ATA3 connectors
with a data transmission rate of up to 600 MB/s support-
ing Advanced Host Controller Interface (AHCI) technology
• mSATA Interface:
- One mSATA slot with data transmission
(Celereon sku does not support it)
• Serial ports: Two serial ports
• Keyboard/mouse connector: Supports 5-pin wafer
PS/2 keyboard and mouse
• Watchdog timer: 1~255 level timer intervals
• USB 2.0: Supports up to two USB 2.0 ports
• USB 3.0: Supports up to two USB 3.0 ports
Graphic Interface
• Chipset: Supports Intel HD Graphics Support DirectX
11.2, OpenGL 5.0, OpenCL 2.1, full HW accelerated
video decoding for AVC/VC1/MPEG2/HEVC/VP8/JPEG.
• Resolution: Supports HDMI 2.0 for HD Video playback
Max resolution up to 4096x2304 at 60 Hz on DisplayPort,
4096x2160 at 60 Hz on HDMI and single channel 24-bit/
dual channel 48-bit LVDS, Max 1920 x 1200 @ 60 Hz
Ethernet Interface
• Interface: 10/100/1000 Mbps
• Controller:
- LAN1: Intel Clarkville i219LM GbE PHY;
- LAN2: Intel Springville i211AT GbE
Mechanical and Environmental
• Dimensions (L x W): 170 x 170 mm
• Power supply voltage: DC 12V
• Operating temperature:
- 0 ~ 60° C (Standard Operating Temperature),
- -20-70° C (Wide Temperature)
• Weight: 0.365 kg (weight of board)
Specications Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the AIMB-232 series Rev.A1.
Part No. 2006B23200
Printed in China
1st Edition,
May 2017
2 AIMB-232 Startup Manual

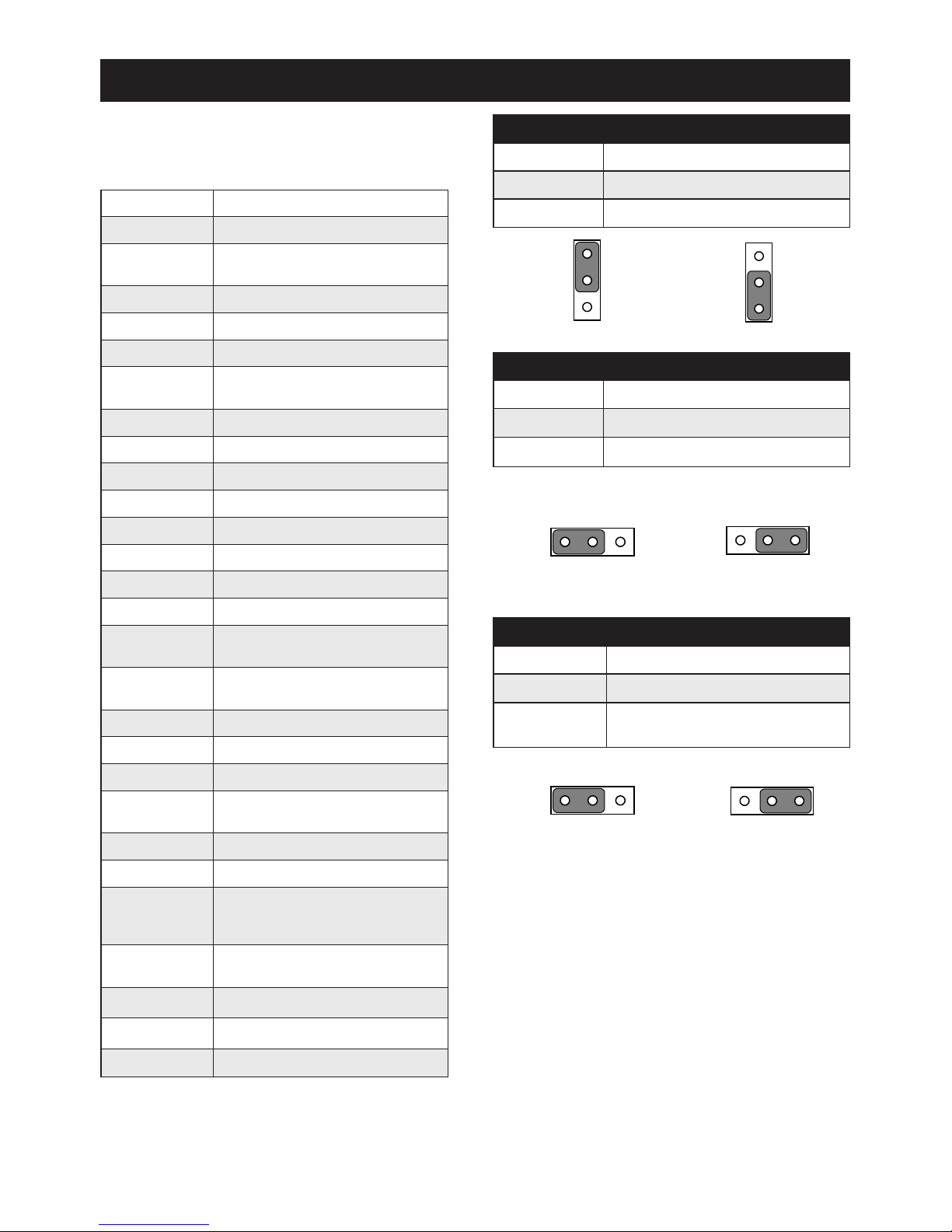

The board has a number of connectors and jumpers that
help configure the system to suit your application require-
ments. The tables below list the functions of the connectors
and jumpers.
Label Function
SATA1 ~ SATA2 SATA Signal Connector
SATA_PWR1 ~
SATA_PWR2 SATA Power Connector
ATX12V2 ATX 12V Power Supply Connector
USB56 USB Header
LVDS1 LVDS Panel Connector
INV1 LVDS Backlight Inverter Power
Connector
HDMI1 HDMI Connector
DP1 DP++ Connector
LAN12,LAN2 RJ45 Connector
COM1, COM2 COM Port
MINIPCIE1 F/S MINIPCIE & mSATA Connector
MINIPCIE2 F/S MINIPCIE & SIM card holder
CPUFAN1 CPU FAN Power Connector
SYSFAN1 SYSTEM FAN Power Connector
JFP2 HDD LED/SMBUS/Speaker Pin
Header
KBMS1 PS/2 Keyboard and Mouse 5-pin
Wafer
BAT1 Battery Wafer
U92 CPU
JFP1 Power Switch/Reset Switch
DIMMA1,
DIMMB1 DDR3 SO-DIMM Socket
GPIO1 General Purpose I/O Pin Header
SPDIF_O1 HD Digital Audio Interface
AUDIO1,
AUDIO2,
FP_AUDIO1
HD Analog Audio Interface
ATX12V1,
ATX12V2 ATX Power Supply Connector
DCIN1 12 V DC Input
BIOS1 BIOS Socket
LPC1 Low Pin Count Header
CMOS1: Clear CMOS
Closed Pins Result
1-2*
Keep CMOS data*
2-3 Clear CMOS data
* Default
PSON1: ATX, AT Mode Selector
Closed Pins Result
1-2
AT Mode
2-3* ATX Mode*
* Default
JWDT1: Watchdog Timer Output Option
Closed Pins Result
1-2
NC (Watchdog Timer Disabled)
2-3* System reset* (Reset System when
Watchdog Timer Triggered)
* Default
1
Keep CMOS data Clear CMOS
11
Jumpers and Connectors
11
NC 1-2 Closed System Reset 2-3 Closed
1
AT Mode ATX Mode
1-2 closed 2-3 closed
AIMB-232 Startup Manual 3
JLVDS1/JLVDS2: Voltage 3.3 V / 5 V / 12 V Selec-
tor Connector
Closed Pins Result
JLVDS1
3-4
For 12 V LVDS Panel
4-6 For 3.3 V LVDS Panel
2-4 For 5 V LVDS Panel
JLVDS1
12 V
5 V
3.3 V
Software Installation
CAUTION
Jumpers and Connectors
Declaration of Conformity
The device complies with the requirements in Part 15 of
the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference;
2. This device must accept any interference received,
including interference that may cause undesired opera-
tion.
You can download driver from advantech website.
www.advantech.com.tw.
The computer is supplied with a battery-powered real-time
clock circuit. There is a danger of explosion if the battery is
incorrectly replaced. Replace only with same or equivalent
type recommended by the manufacturer. Discard used bat-
teries according to manufacturer’s instructions.
Installation Note
JFP1
PWR_BTN
HDD_LED
SPEAKER
JFP2
RST_BTN
SM_BUS
JFP1+JFP2
1
1
1
4 AIMB-232 Startup Manual
Board Diagram
