Advantech AIMB-262 Manuale di installazione e funzionamento

AIMB-262 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

AIMB-262 Intel® LGA775 Core 2 Duo Mini ITX Moth-

erboard

SATA HDD cable x 2

SATA Power cable x 2

Serial port cable x 2

I/O port bracket x 1

Startup manual x 1

Driver CD x 1

Optional Cable

Parallel cable with bracket (P/N: 1700008809)

Dual port USB cable (27 cm) with bracket (P/N:

1700002204)

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note: Acrobat Reader is required to view any PDF ﬁle.

Acrobat Reader can be downloaded at:

www.adobe.com/Prodindex/acrobat/readstep.html

(Acrobat is a trademark of Adobe).

AIMB-262 (Intel® LGA775 Core 2 Duo Mini ITX Moth-

erboard with DDR2/LAN/4COM/PCIe x16)

Startup Manual

Standard SBC functions

CPU: Intel® LGA775 Core 2 Due,Pentium® due-core,

Pentium® 4, Celeron® D

FSB: 533/ 800 MHz

BIOS: Award 16 Mbit SPI

Chipset: Intel 945GC with ICH7

System Memory: Up to 2 GB; 200-pin SODIMM x 2,

Supports dual channel DDR 533/667 SDRAM

SATA: Two onboard serial ATA connectors with a data

transmission rate of up to 300 MB/s

Serial ports: Four serial ports: Three of RS-232; One of

RS-232/422/485

Parallel port: One parallel port, supports SPP/EPP/ECP

mode (with pin header)

Keyboard/mouse connector: Supports one standard

PS/2 keyboard, one standard PS/2 mouse

Watchdog timer: 255 level timer intervals

USB 2.0: Supports up to six USB 2.0 ports, four external

ports and two onboard pin headers

Graphic Interface

Controller: Chipset integrated VGA controller

Display memory: Dynamically shared system memory

up to 224 MB

CRT: Up to 2048x1536 resolution, 400MHz RAMDAC

Ethernet Interface

Single 10/100/1000Base-T GbE LAN Realtek RTL8111C

Mechanical and Environmental

Dimensions (L x W): 170 x 170 mm

Power supply voltage: +5 V, +12 V, +3,3 V, +5 VSB,

-12 V

Power requirements:

– Intel LGA775 Core 2 Due 1.8Mhz FSB800Mhz,2GB

DDR2

– +5 V @ 4 A, +3.3 V @ 1.02 A, +12 V @ 2.35 A, 5 VSB @

0.26, -12 V@ 0.12 A Measure the maximum current value

which system under maximum load (CPU: Top speed, RAM

& Graphic: Full loading)

Operating temperature: 0 ~ 60° C (depending on CPU)

Weight: 0.365 kg (weight of board)

•

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://www.advantech.com/support

This manual is for the AIMB-262 series Rev. A1

Part No. 2006026210

Print in Taiwan

1st Edition,

August 2008

2 AIMB-262 Startup Manual

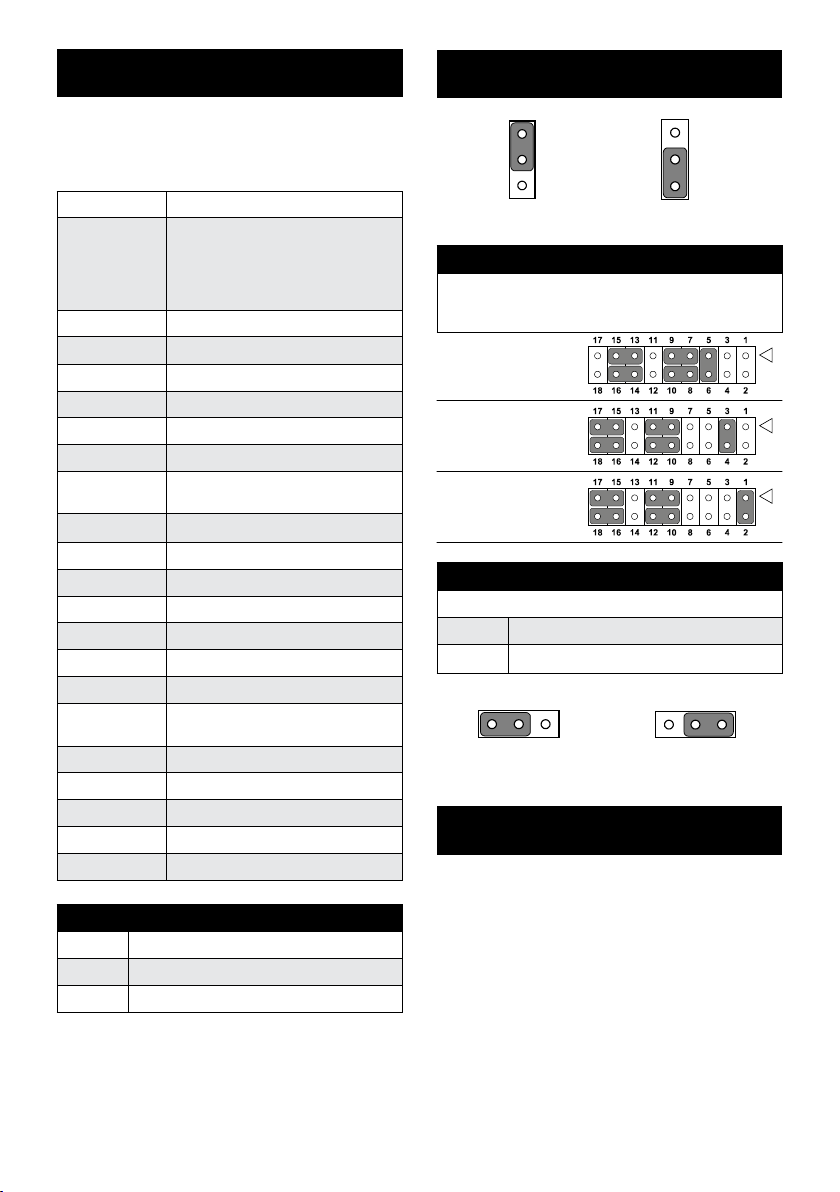

Jumpers and Connectors

The board has a number of connectors and jumpers that

help to conﬁgure the system to suit your application require-

ments. The tables below list the function of each of the

connectors and jumpers.

Label Function

JFP2_1 Reset connector

HDD LED connector

ATX soft power switch (PS_ON)

Power/Sleep LED

CMOS1 CMOS clear

PSON1 AT/ATX mode selector

LPT1 Parallel port

USB56 USB port 5, 6 (on board)

VGA1 VGA connector

COM1/2 Serial port: COM1/2 (rear panel port)

JSETCOM1 Serial port conﬁguration:

RS232/RS422/RS485

KBMS1 PS/2 keyboard and Mouse connector

CPU_FAN1 CPU fan connector

CHA_FAN1 System fan connector

COM3 Serial port connector

COM4 Serial port connector

LAN1_USB12 LAN1 / USB port 1,2

USB34 USB port 3,4

AUDIO1 Line IN, Line Out, Mic IN (Mother-

board) connector

EATXPWR1 ATX power connector

TPM_SLOT TPM2.0 Module connector

SPI_CN1 SPI ﬂash card pin header

SATA1 Serial ATA0 connectors

SATA2 Serial ATA1 connectors

CMOS1: Clear CMOS

Pins Result

1-2*

Keep CMOS data*

2-3 Clear CMOS data

* Default

JSETCOM1: COM1 RS232/422/485 Mode Selector

Users can use JSETCOM1 to select among RS

232/422/485 modes for COM1. The default setting is

RS 232.

JPSON1: ATX, AT Mode Slector

Closed Pins Result

1-2

AT Mode

2-3* ATX Mode*

* Default

AT Mode ATX Mode

1-2 locsed 2-3 closed

The device complies with the requirements in Part 15 of

the FCC rules. Operation is subject to the following two

conditons:

This device may not cause harmful interference;

This device must accept any interference received,

including interference that may cause undesired opera-

tion.

Keep CMOS data Clear CMOS

Jumpers and Connectors

Declaration of Conformity

RS-232 Configuration

(default)

RS-422 Configuration

RS-485 Configuration

AIMB-262 Startup Manual 3

The computer is supplied with a battery-powered Real-time

Clock circuit. There is a danger of explosion if the battery is

incorrectly replaced. Replace only wih same or equivalent

type recommended by the manufaturer. Discard used bat-

teries according to manufaturer’s instructions.

The CD disc contains a driver installer program that will

lead you through the installation os various device drivers

needed to take full advantage of your motherboard.

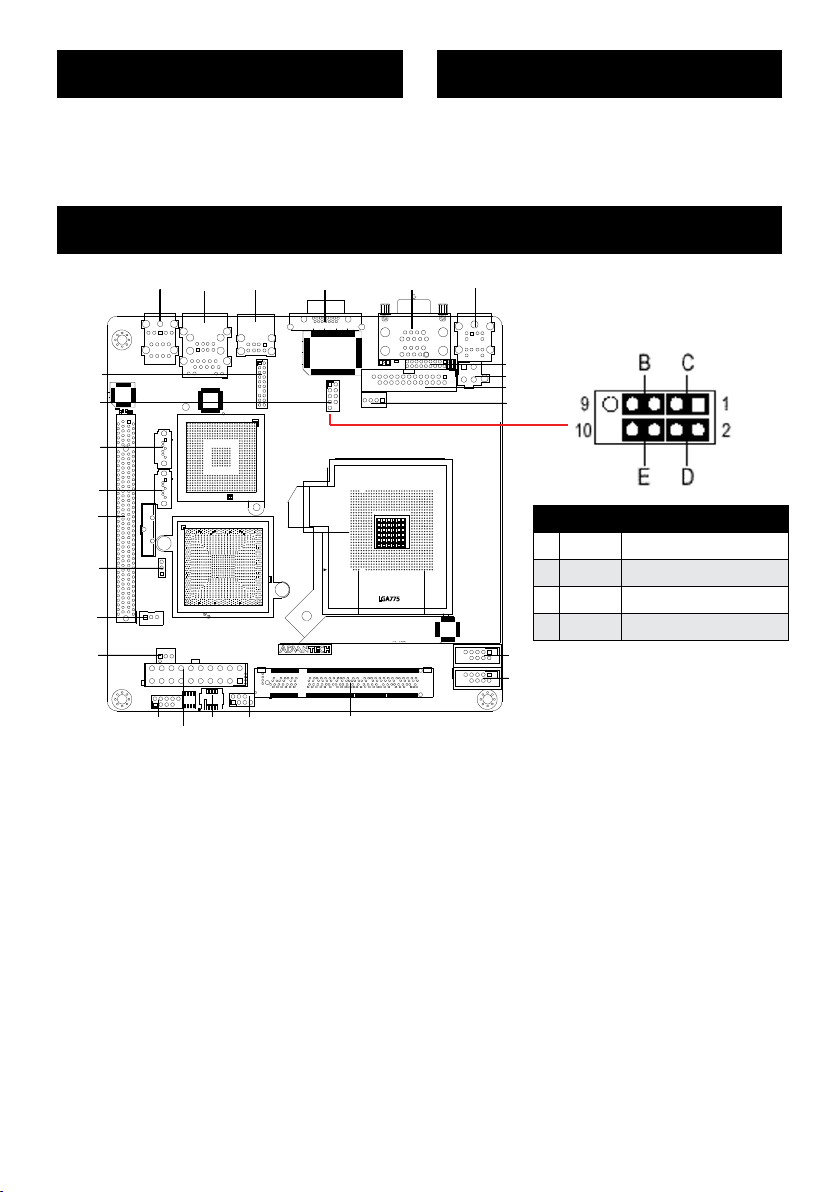

Audio1 USB34 VGA1 COM12 KBMS1

LAN_USB12

SATA2

SATA1

PCIEX16

CMOS1

PSON1

CHA_FAN1

USB56

EATXPWR1

SPI BIOS DIMM1

COM4

COM3

ATX12 V

JSETCOM2

LPT1

CPU_FAN1JFP2_1

SPI_CN1

TPM_SLOT1

Board Diagram

Software Installation

JFP2_1

B5 and 7 Reset switch

1 and 3 Hard driver activity LED

D 2 and 4 Power/Sleep/Waiting LED

6 and 8 Power switch
