Advantech PPC-MB-8260AE Manuale di installazione e funzionamento

PPC-MB-8260AE Startup Manual 1

Before card installation, ensure that the following items

have been included in your shipment:

1. 1 x PPC-MB-8260AE Intel® Core™ i7/i5/i3/Pentium/

Celeron LGA1151 mini-ITX motherboard

2. 4 x COM cable (2 x 5 pin)

3. 1 x SATA cable

4. 1 x Startup manual

5. 1 x Warranty card

6. 1 x Thermal grease

7. 14 x Screws for COM port

8. 1 x Packet screws for mini PCIe

If any of the above items are missing or damaged, contact

your distributor or sales representative immediately.

Note 1: For the detailed contents of PPC-MB-8260AE,

please refer to the latest product information

provided on the Advantech website (PPC-6151C

model).

Note 2: Acrobat Reader is required to view any PDF

ﬁle. Acrobat Reader can be downloaded from

www.adobe.com/Products/acrobat/readstep2.

html (Acrobat is a trademark of Adobe)

PPC-MB-8260AE (Intel® Core™ i7/i5/i3/Pentium/

Celeron LGA 1151 Mini-ITX with DP/VGA, 5 COM,

6 USB, Dual LAN, PCIe x4, Mini PCIe, DDR4)

Startup Manual

Selected

M/B

PPC-MB-8260AE

CPU

i7-

6700TE

i5-

6500TE

i3-

6100TE

Pentium

G4400TE

Celeron

G3900TE

Quad

Core

Quad

Core

Dual

Core

Dual

Core

Dual

Core

3.4GHz 3.3GHz 2.7GHz 2.4GHz 2.3GHz

8MB 6MB 4MB 3MB 2MB

35W 35W 35W 35W 35W

Chipset

H110

Memory

1 x 260-pin SODIMM DDR4, 2133 MHz,

up to 16 GB

Network

(LAN)

2 x 10/100/1000 Mbps Ethernet, Intel 211

x 2

I/O Port

1 x RS232/422/485,1 x RS232

1 x DP

1 x VGA

4 x USB (3.0)

1 x Line-Out,1 x Mic-In

Internal

Connector

3 x RS232

1 x GPIO (8 channels)

1 x Speaker connector

1 x LED connector

2 x USB 2.0

1 x LVDS connector

1 x Touch connector

2 x SATA connector

Watchdog

Timer

255 Timer levels, congurable using

software

Expansion

1 x Full-size mSATA or mini PCIe, 1 x PCIe

x4 slot

Dimensions

170 x 170 mm (6.69 x 6.69”)

Support

Microsoft® Windows 7 (32/64 bit)/

Windows 8.1 (64 bit)/Windows 10 (64 bit)

Specications Packing List

For more information about this or other Advantech

products, please visit our website at

http://www.advantech.com

For technical support and service, please visit our

support website at

http://support.advantech.com

This manual is for PPC-MB-8260AE, Rev. A1.

Part No. 2003826001

Printed in China

Edition 2

October 2016

2 PPC-MB-8260AE Startup Manual

The board has a number of jumpers that allow you to con-

ﬁgure your system to suit your application. The table below

lists the function of each of the jumpers and connectors.

Connectors and Headers

Connectors and Headers List

Label Function

CN2 Mic-In/Line-Out Connector

LAN2_USB1 RJ45+USB 3.0 Stack Connector

LAN1_USB1 RJ45+USB 3.0 Stack Connector

VGA1 VGA Display Connector

DP1 Display Port Connector

CN1 COM 1/COM 2 Connector

DCIN1 Power Input Connector

ATX12v1 ATX 12V Power Supply Connector

ATX_5Vsb1 ATX 5VSB Power Supply Connector

CN5 Power Button Connector

CN6 ~ 8 COM 5/4/3 Connector

CN11 General Purpose I/O Pin Header

BAT1 Battery Connector

SPI1 SPI BIOS Flash Socket

CN16 Touch Connector

CN17 LVDS Panel Connector

CN20 LVDS Backlight Inverter Power

Connector

Sysfan1 ~ 2 System Fan Power Connector

CPUFAN1 CPU Fan Power Connector

CN18 ~ 19 SATA Power Connector

SATA1 ~ 2 SATA Signal Connector

CN4 Power LED Connector

CN9/CN12 2 x USB 2.0 Pin Header

PCIex4_1 PCIe x4 Slot Connector

AMP1 Audio Amplier Output Connector

DIMMA1 DDR4 SODIMM Socket

CPU1 CPU Socket

Mini-PCIe1 MSATA and Mini PCIe Socket

ATX_5Vsb1: ATX 5VSB Power Supply Connector

Pin Denition

1 +V5SB

2 GND

3 PSON

CN1: COM 2 Connector

Pin Denition

(RS232)

Denition

(RS422)

Denition

(RS485)

1DCD TX- TX-

2RXD TX+ TX+

3TXD RX+

4DTR RX-

5 GND

6 DSR

7RTS

8 CTS

9 RI

CN6 ~ 8: COM 5/4/3 Connector

Pin Denition

1 DCD

2 RXD

3 TXD

4 DTR

5 GND

6 DSR

7RTS

8 CTS

9 RI

10 NA

CN11: General Purpose I/O Pin Header

Pin Denition

1 GND

2 GPIO4

3 GPIO0

Jumpers and Connectors (Cont.)

Jumpers and Connectors

PPC-MB-8260AE Startup Manual 3

CN4: Power LED Connector

Pin Denition

1 +V5_DUAL

2 +V5

3 GND

4 GND

AMP1: Audio Amplier Output Connector

Pin Denition

1 SPK L-

2 SPK L+

3 SPK R+

4 SPK R-

Jumper Settings

Jumpers List

Jumper Function

JP1 ATX/AT Select

JCMOS1 RTC Select

JP2 Touch Power Select

JP3 LCD Power Select

JP4 Enable Power Select

JP5 LVDS PWM Power Select

JP6 COM Pin 9 Power Select (COM 1 & 2)

JP7 LVDS Resolution Select

ATX/AT Select (JP1)

(1-2) P1 AT

(2-3) P2 ATX (default)

P1 P2

4 GPIO5

5 GPIO1

6 GPIO6

7 GPIO2

8 GPIO7

9 GPIO3

10 +V5

CN16: Touch Connector

Pin Denition

1 Y+

2 X+

3 SENSE

4Y-

5 X-

Sysfan 1 ~ 2: System Fan Power Connector

Pin Denition

1 GND

2 POWER

3 SPEED

4 PWM

CPUFAN1: CPU Fan Power Connector

Pin Denition

1 GND

2 POWER

3 SPEED

4 PWM

CN18 ~ 19: SATA Power Connector

Pin Denition

1 +V3.3

2 GND

3 +V5

4 GND

5 +V12

Jumpers and Connectors (Cont.)

4 PPC-MB-8260AE Startup Manual

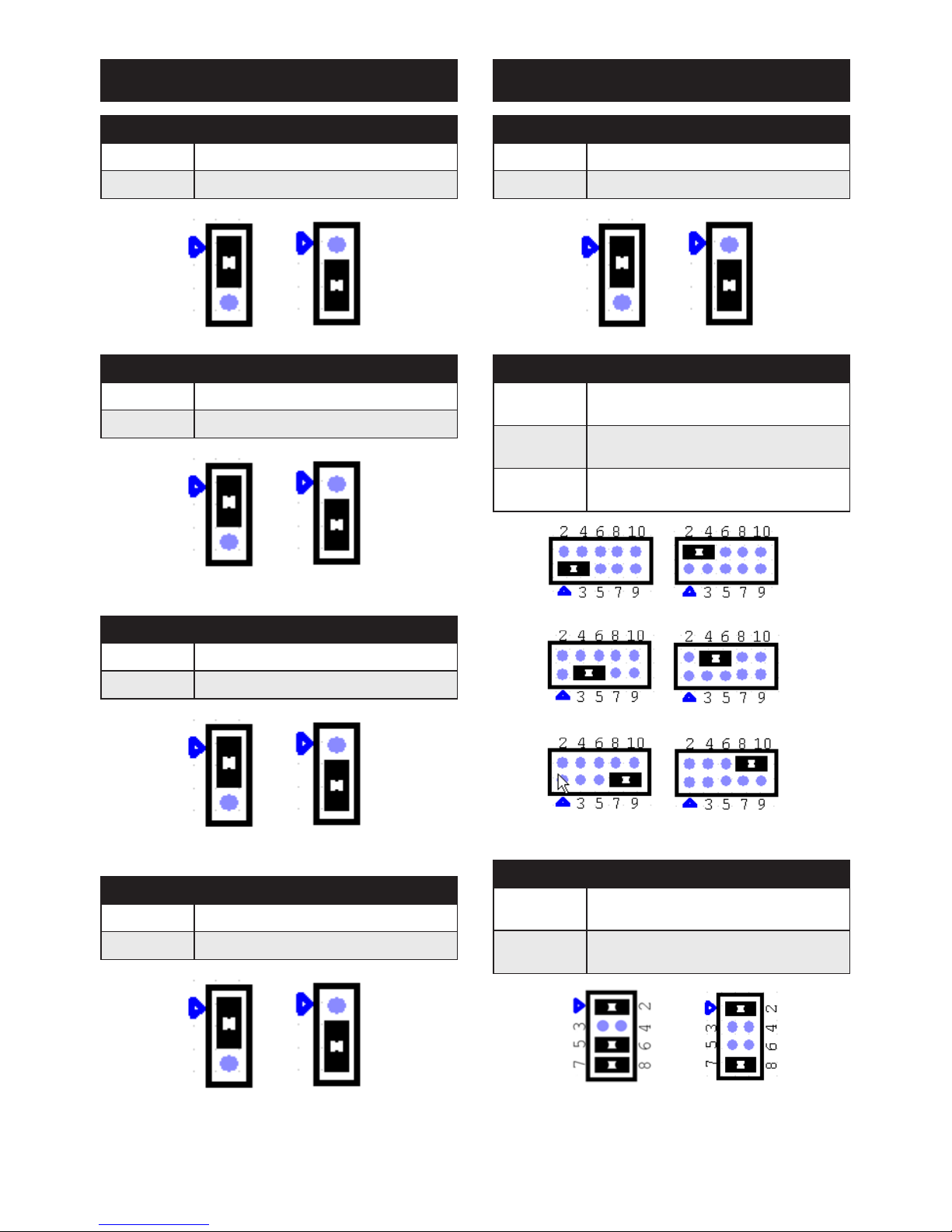

RTC Select (Jcmos1)

(1-2) P3 Normal (default)

(2-3) P4 Clear CMOS

P3 P4

Touch Power Select (JP2)

(1-2) P5 +V3.3_DUAL (default)

(2-3) P6 +V3.3

P5 P6

LCD Power Select (JP3)

(1-2) P7 +V5

(2-3) P8 +V3.3 (default)

P7 P8

Enable Power Select (JP4)

(1-2) P9 +V5

(2-3) P10 +V3.3 (default)

P9 P10

Jumpers and Connectors (Cont.)

LVDS PWM Power Select (JP5)

(1-2) P11 +V5

(2-3) P12 +V3.3 (default)

P11 P12

COM Ring Select (JP6)

(1-3)/(2-4)

P13/P14

COM 2/1 Ring (default)

(3-5)/(4-6)

P15/P16

COM 2/1 5V

(7-9)/(8-10)

P17/P18

COM 2/1 12V

P13 P14

P15 P16

P17 P18

LVDS Resolution Select (JP7)

(1-2)/(5-6)/

(7-8) P19

1024*768 (24 bit)

(1-2)/(7-8)

P20

1280*1024 (24 bit)

P19 P20

PPC-MB-8260AE Startup Manual 5

Board Layout: Jumper and Connector Locations

Installation Guide

1. Insert the memory module into the memory slot at a 45

degree angle, as shown below. Ensure that the gold

ﬁngers of the module are fully inserted into the slot.

45°

2. Once inserted, gently press the memory module into

the slot until the tabs snap into place, securing the

module in position.

6 PPC-MB-8260AE Startup Manual

1.1 Entering BIOS Setup

When the power is turned on, press the <Del> button to

enter the BIOS setup screen.

After a setting is conﬁgured, press <F4> to save and exit;

otherwise, the conﬁguration will not be saved in the BIOS.

1.2 COM 2 Mode Selection (RS232/422/

RS485)

1. Access the “Super IO Conﬁguration” item from the

“Advanced” tab.

2. Select “Serial Port 2 Conﬁguration”. The COM 2 mode

can be conﬁgured via the “Device Mode” item.

BIOS Setup Program

3. Select the “RS485” option. Autoﬂow and termination

resistors can be enabled or disabled.

1.3 H/W Monitor and Smart Fan Mode

Conﬁguration

1. Access the “H/W Monitor” item from the “Advanced”

tab to check the voltage temperature and fan speed.

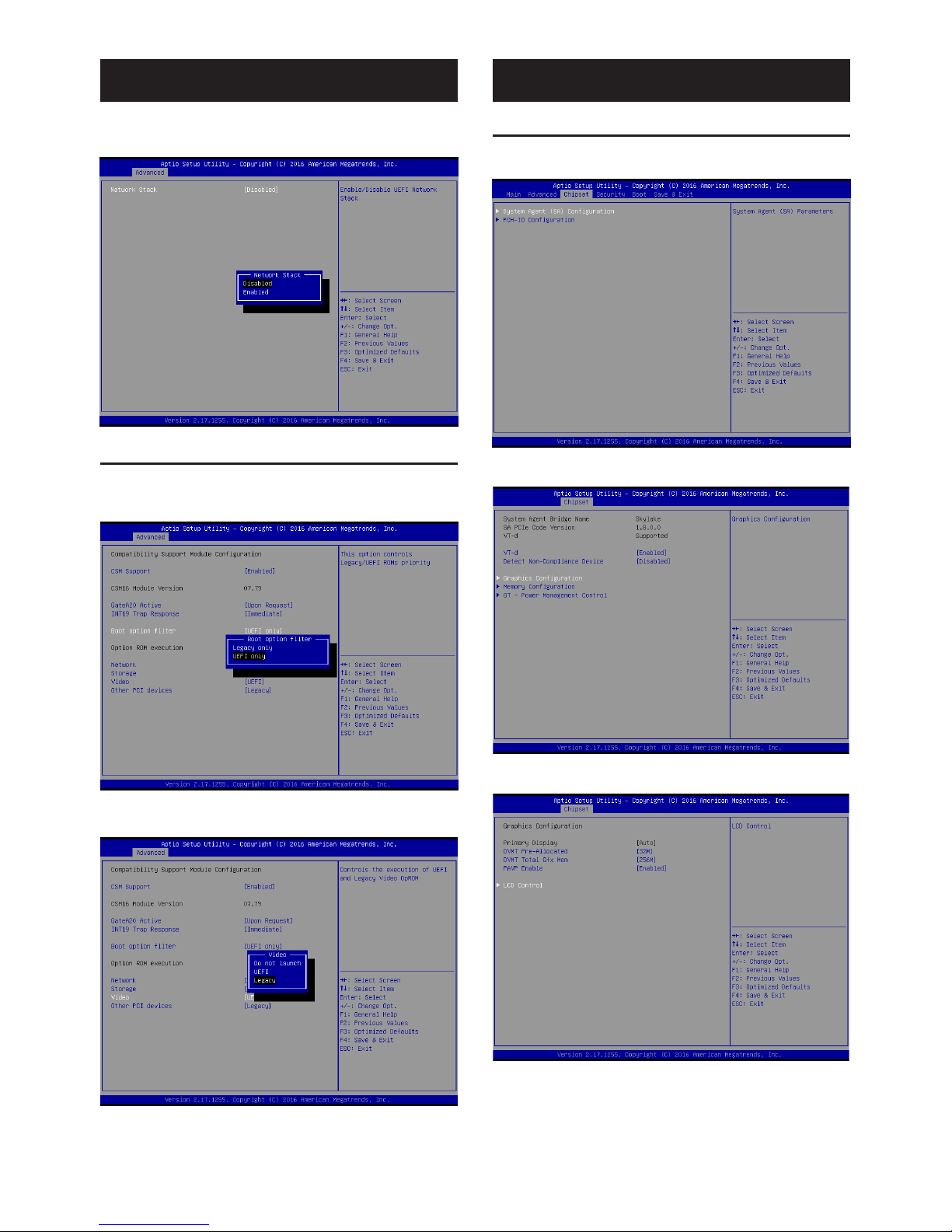

1.4 LAN PXE Mode Selection

1. Access the “Network Stack Conﬁguration” item from

the “Advanced” tab.

BIOS Setup Program (Cont.)

PPC-MB-8260AE Startup Manual 7

2. Select the “Enabled” option for the “Network Stack”

item.

1.5 Boot Option Filter

1. Access the “CSM Conﬁguration” items from the

“Advanced” tab. Users can select “UEFI only” or

“Legacy only” for “Boot Option Filter” conﬁguration.

2. Conﬁgure the Video and Storage item settings to match

with the Boot Option Filter conﬁguration.

BIOS Setup Program (Cont.)

1.6 Graphics Conﬁguration

1. Access the “System Agent (SA) Conﬁguration” item

from the “Chipset” tab.

2. Click on the “Graphics Conﬁguration” item.

3. Select the “LCD Control” item.

8 PPC-MB-8260AE Startup Manual

4. The Primary IGFX Boot Display item can be conﬁgured

as “VBIOS Default”, “DP”, “LVDS”, or “CRT”.

5. The Brightness Mode Control item conﬁguration is set

to “Chipset” by default. This means users can adjust

the system brightness via the OS brightness dimmer.

6. Access the “Brightness Manual Control” item to select

from six brightness level options.

BIOS Setup Program (Cont.)

1.7 Wake On LAN and Ring

1. In the “Chipset” tab click the “PCH-IO Conﬁguration”

item to access “PCIE Wake” conﬁguration. Select the

“Enabled” option to allow wake-on-LAN function.

2. In the “Chipset” tab click the “PCH-IO Conﬁguration”

item to access “Wake on Ring” conﬁguration. Select

the “Enabled” option to allow wake-on-ring function.

1.8 AT and ATX Setting

In the “Chipset” tab click the “PCH-IO Conﬁguration” item

to access the “Restore AC Power Loss” item. Set the item

conﬁguration to “Power On”, “Power Off”, or “Last State”.

Indice

Altri manuali Advantech Scheda madre

Advantech

Advantech MIO-2263 Manuale di installazione e funzionamento

Advantech

Advantech PCM-9387 Manuale di installazione e funzionamento

Advantech

Advantech PCA-6752 Manuale di installazione e funzionamento

Advantech

Advantech PCM-3341 Series Manuale utente

Advantech

Advantech AIMB-216 Manuale utente

Advantech

Advantech AIMB-287 Manuale utente

Advantech

Advantech PCM-5823 Series Manuale utente

Advantech

Advantech AIMB-215 Manuale utente

Advantech

Advantech MIO-2261 Manuale di installazione e funzionamento

Advantech

Advantech PCI-7030 Manuale di installazione e funzionamento

Advantech

Advantech MIO-5850 Manuale utente

Advantech

Advantech PCE-3032 Manuale utente

Advantech

Advantech AIMB-580 Manuale utente

Advantech

Advantech ASMB-584 Manuale di installazione e funzionamento

Advantech

Advantech PPC-MB-8260 Manuale di installazione e funzionamento

Advantech

Advantech PCM-9361 Manuale di installazione e funzionamento

Advantech

Advantech SIMB-M22 Manuale di installazione e funzionamento

Advantech

Advantech AIMB-740-B Manuale utente

Advantech

Advantech PCM-9550F Manuale utente

Advantech

Advantech PCA-6029 Manuale di installazione e funzionamento

Advantech

Advantech PCM-4372 Manuale di installazione e funzionamento

Advantech

Advantech MIC-3329 Series Manuale utente

Advantech

Advantech ROM-DB5901 Manuale utente

Advantech

Advantech PCA-6751 Series Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
