SIMB-A21 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. 1 x SIMB-A21 ATX Motherboard

2. 1 x CD ROM per carton, which contains Drivers

3. 1 x SATA cable kit (SATA/Power)

4. 1 x I/O Shield

5. 1 x Startup Manual per carton

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note 1: Acrobat Reader is required to view any PDF ﬁle.

Acrobat Reader can be downloaded at: www.

adobe.com/Prodindex/acrobat/readstep.html

(Acrobat is a trademark of Adobe).

SIMB-A21 Intel® H61 ATX Motherboard (LGA1155 socket for Intel®

Second Generation Core™ i7/ Core™ i5/ Core™ i3 Processors)

Startup Manual

System

• CPU: LGA1155 socket for Intel Sandy Bridge Processor,

Intel Core i7-2600 3.4 GHz, Intel Core i5-2400 3.1 GHz,

Intel Core i3-2120 3.3 GHz, Pentium G850 2.9 GHz,

Celeron G540 2.5 GHz

• FSB: 1333 /1066 MHz

• BIOS: AMI 32 Mb SPI BIOS

• System Chipset: Intel H61

• I/O Chipset: Nuvoton NCT6776F

• Memory: Two 240-pin DIMM sockets support up to 8 GB

Dual Channel DDR3 1333/1066 SDRAM

* Based on OS limits, when using the memory over 4 GB;

capacity under 32-bit OS, system will only recognize less

than 3 GB. 64-bit OS will not have this limitation.

• Watchdog Timer: Reset: 1 sec. ~ 255 min. and 1 sec. or

1 min./step

• H/W Status Monitor: Monitoring temperatures, voltages,

and cooling fan status. Auto throttling control when CPU

overheat

• Expansion Slots: 1 x PCI Express x16, 1 x PCI Express

x1, 4 x PCI (PCI Rev. 2.3 compliant)

• DIO: 8-bit

• S3 / S4: Ye s

• TPM: 2 x10 Pin header

• Wake up on LAN or Ring: LAN (PME / RPL)

• Smart Fan Control: Ye s

Display

• Chipset: Integrated HD Graphics 2000

• Max. Resolution: 2048 x 1536 bpp (@ 75Hz)

• VGA: Yes , Integrated Graphics

• LVDS / DVI / HDMI: Through ADD2 LVDS Card

• Secondary VGA: Yes, through ADD2 card

Audio

• Audio Codec: Realtek, ALC892, 5.1 HD Audio

• Audio Interface: Mic in, Line in, Line out

Ethernet

• LAN1: RTL8111E Gigabit LAN

• LAN2: RTL8111E Gigabit LAN

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://support.advantech.com

This manual is for the SIMB-A21 Series.

Part No. 20060A2110

Print in China

1st Edition

July 2012

2 SIMB-A21 Startup Manual

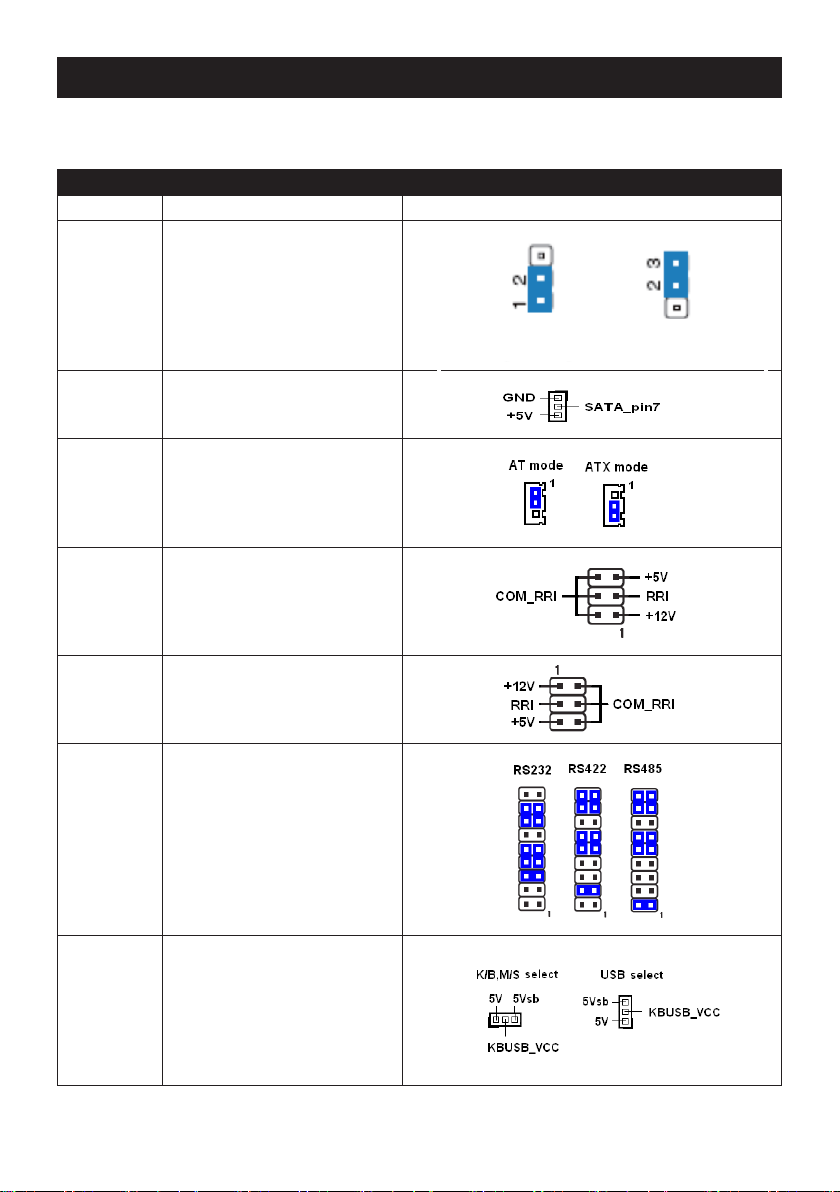

The board has a number of jumpers that allow you to conﬁgure your system to suit your application. The table below lists the

function of each of the jumpers and connectors.

Jumpers

Label Function Note

JCMOS1 Clear CMOS

SATA_PWR1 SATA_pin7 Voltage select

PSCN1 AT/ATX Mode setting

JCOMPWR_1 COM1 for Power select 5 V & 12 V

JCOMPWR_2 COM2 for Power select 5 V & 12 V

JSETCOM2 COM2 RS-232/422/485 Setting jumper

KBUSB_PWR1

USB_PWR1

K/B,M/S +5 V/+5 Vsb select

USB +5 V/+5 Vsb select

Jumpers and Connectors

Normal Clear CMOS

(Default)

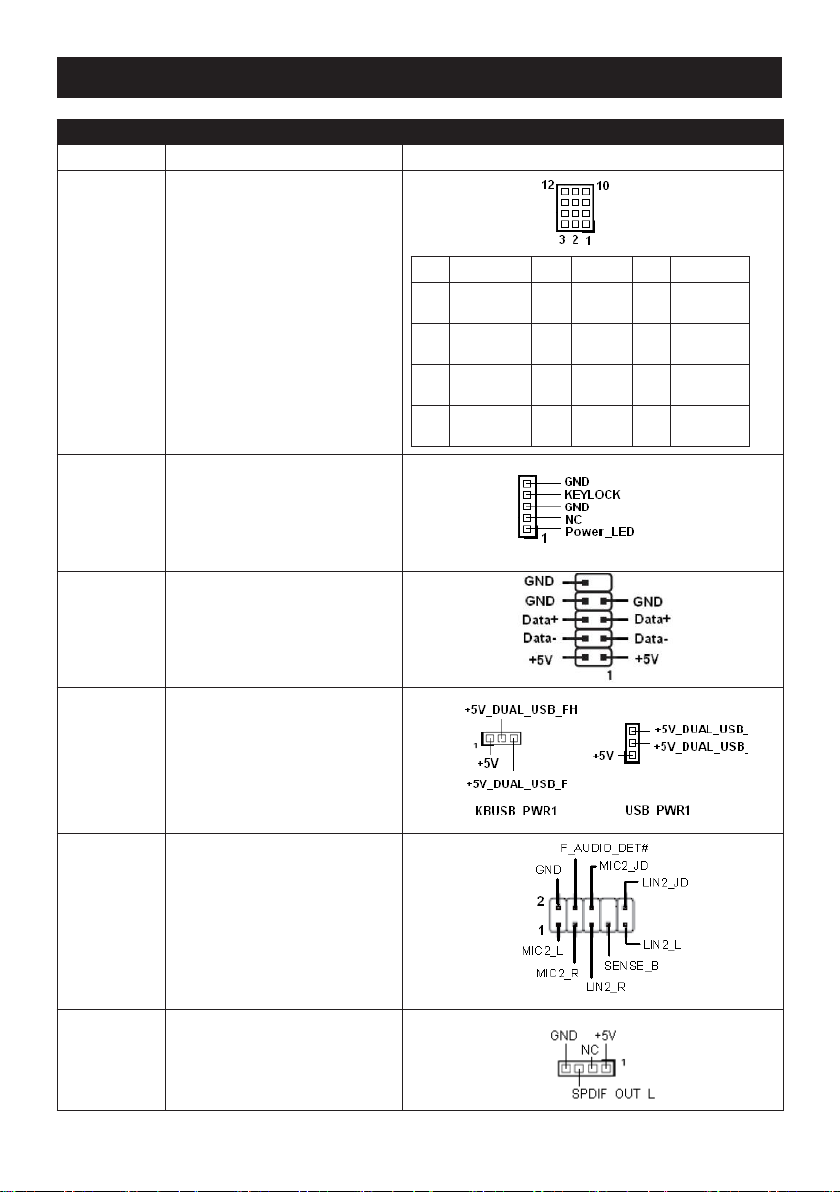

SIMB-A21 Startup Manual 3

Connectors

Label Function Note

JFP1+JFP2 Front Panel Header

Pin Signal Pin Signal Pin Signal

12 SYS RST_

GND 11 SNMP_

SCL 10 SPK_3

9SYS_RST# 8SNMP_

SDA 7 SPK_4

6PWRBTN_

GND 5S ATA _

LED# 4 SPK_2

3PWRBTN_

IN 2S ATA _

LED 1SPK_+5 V

JFP3 KEYLOCK pin Header

USB56

USB78

USB910

USB Header

KBUSB_PWR1

USB_PWR1 +5 V/+5VSB switch jumper

F_AUDIO Front Panel Audio Header for Intel

HD Audio

SPDIF_OUT_L SPDIF header

Jumpers and Connectors

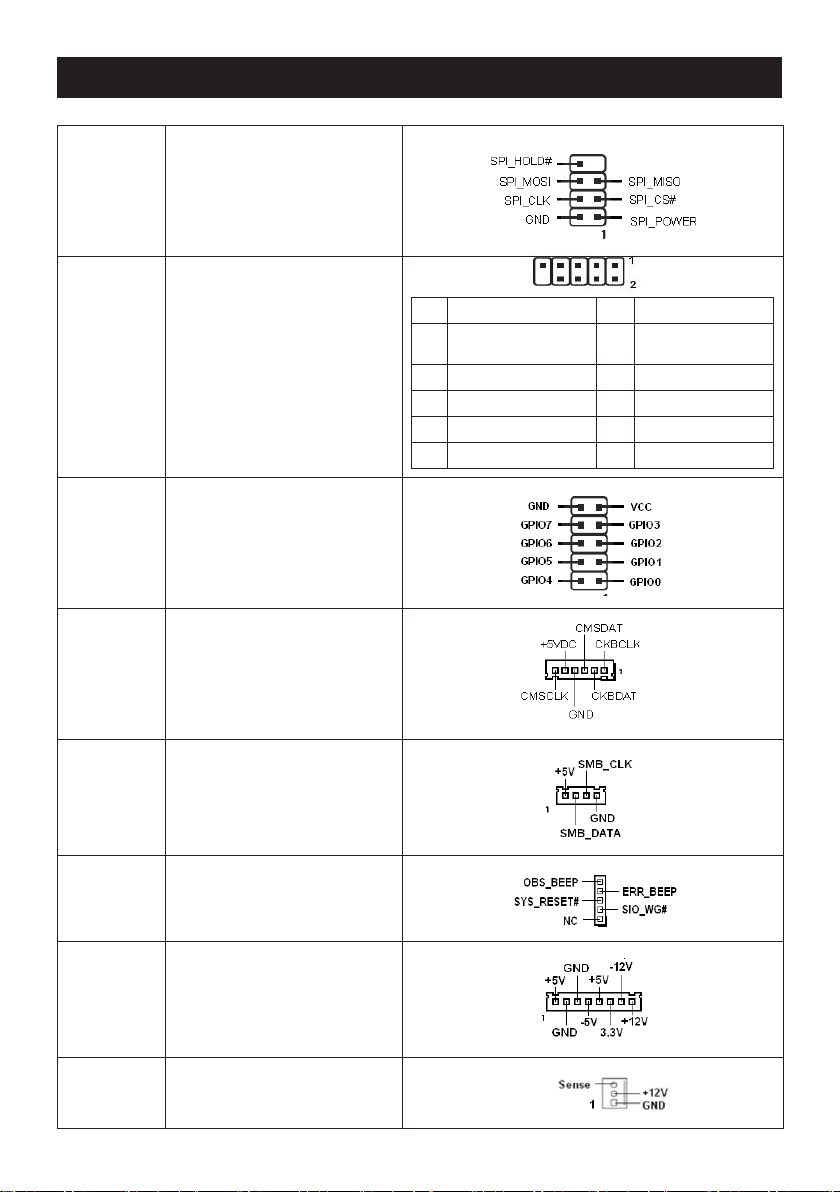

4 SIMB-A21 Startup Manual

Jumpers and Connectors

SPI_CN1 SPI Headers

LANLED1 LAN LED

Pin Signal Pin Signal

1 LAN1_ACT# 2 LAN2_ACT#

3 LAN_+VCC3 4 LAN_+VCC3

5 LAN1_SPEED1G 6 LAN2_SPEED1G

7 LAN1_SPEED100M 8 LAN2_SPEED100M

9 LAN_+VCC3 10 Key (no pin)

GPIO1 GPIO

KBMS2 Keyboard/ Mouse Header

SMBUS1 SM BUS

JWDT1+JOBS1 Watch/ HW monitor alarm header

VOLT1 Voltage Display header

SYSFAN1

SYSFAN2 System FAN Header

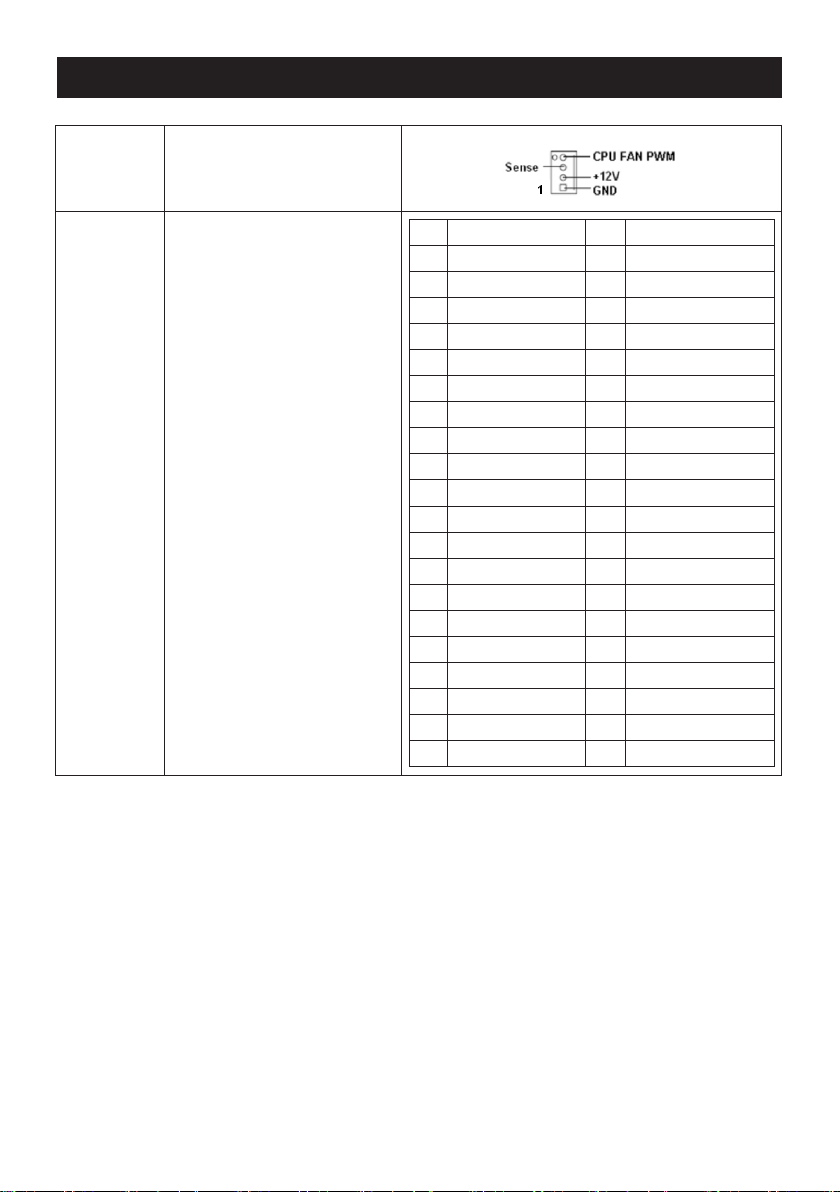

SIMB-A21 Startup Manual 5

Jumpers and Connectors

CPUFAN1 CPU FAN Header

COM3456 Box header for COM3 ~ COM6

Pin Signal Pin Signal

1 DDCD3# 2 DDSR3#

3 RRXD3 4 RRTS3#

5 TTXD3 6 CCTS3#

7 DDTR3# 8 RRI3#

9 GND 10 GND

11 DDCD4# 12 DDSR4#

13 RRXD4 14 RRTS4#

15 TTXD4 16 CCTS4#

17 DDTR4# 18 RRI4#

19 GND 20 GND

21 DDCD5# 22 DDSR5#

23 RRXD5 24 RRTS5#

25 TTXD5 26 CCTS5#

27 DDTR5# 28 RRI5#

29 GND 30 GND

31 DDCD6# 32 DDSR6#

33 RRXD6 34 RRTS6#

35 TTXD6 36 CCTS6#

37 DDTR6# 38 RRI6#

39 GND 40 GND

6 SIMB-A21 Startup Manual

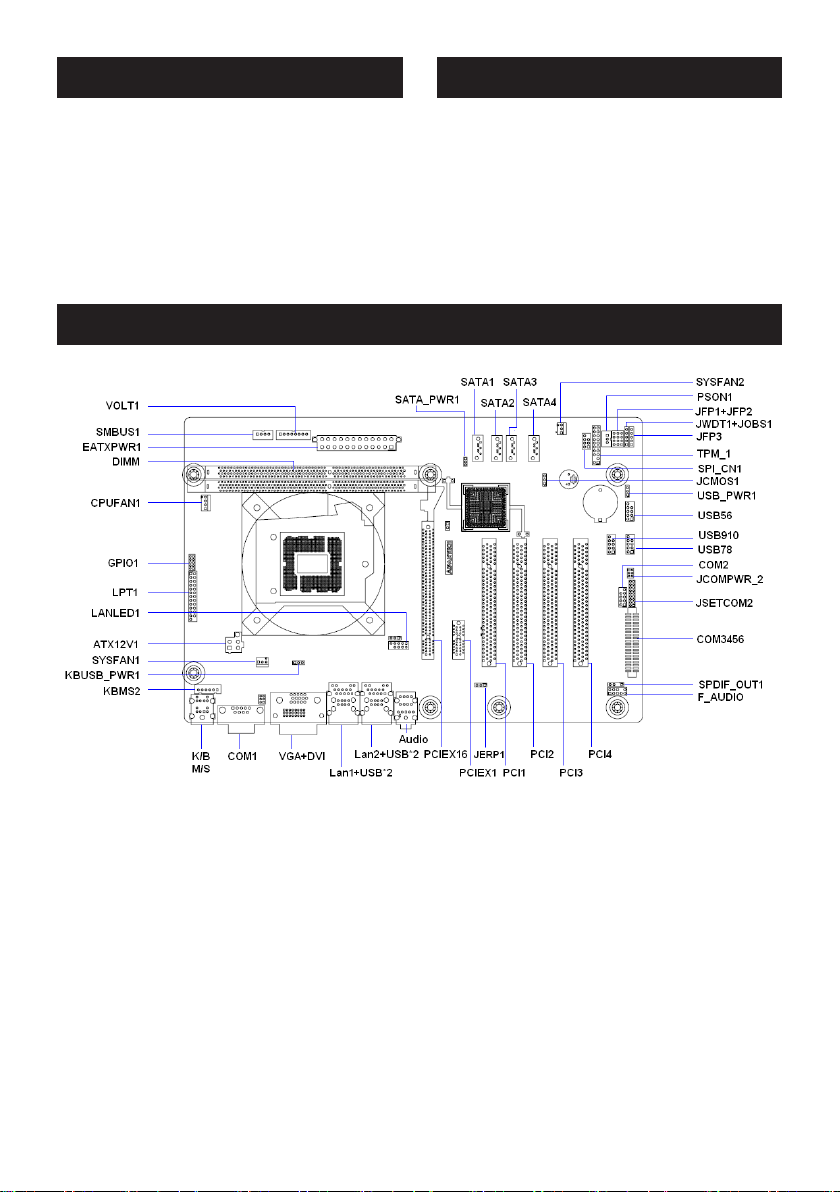

Board Diagram

Disclaimer and Notice

The manufacturer reserves the right to make changes, with-

out notice, to any product, including circuits and/or software

described or contained in this manual in order to improve

design and/or performance. The manufacturer assumes

no responsibility or liability for the use of the described

product(s), conveys no license or title under any patent,

makes no representations or warranties that these products

are free from patent, copyright, or mask work right infringe-

ment, unless otherwise speciﬁed. For the detail product

information, please refer to user’s manual.

This device complies with the requirements in Part 15 of

the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired opera-

tion.
