User Manual

SOM-DB4700

Development Board

SOM-DB4700 User Manual ii

The documentation and the software included with this product are copyrighted 2010

by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right

to make improvements in the products described in this manual at any time without

notice. No part of this manual may be reproduced, copied, translated or transmitted

in any form or by any means without the prior written permission of Advantech Co.,

Ltd. Information provided in this manual is intended to be accurate and reliable. How-

ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringe-

ments of the rights of third parties, which may result from its use.

Part No. 2006DB4700 Edition 1

Printed in Taiwan April 2011

Chapter 1

1Connector and

Jumper Setting

This chapter gives you connector

and jumper information on the

SOM-DB4700 Evaluation Carrier

Board.

Sections include:

Connector and Jumper Table

Connector and Jumper Pin Defi-

nition

SOM-DB4700 User Manual 2

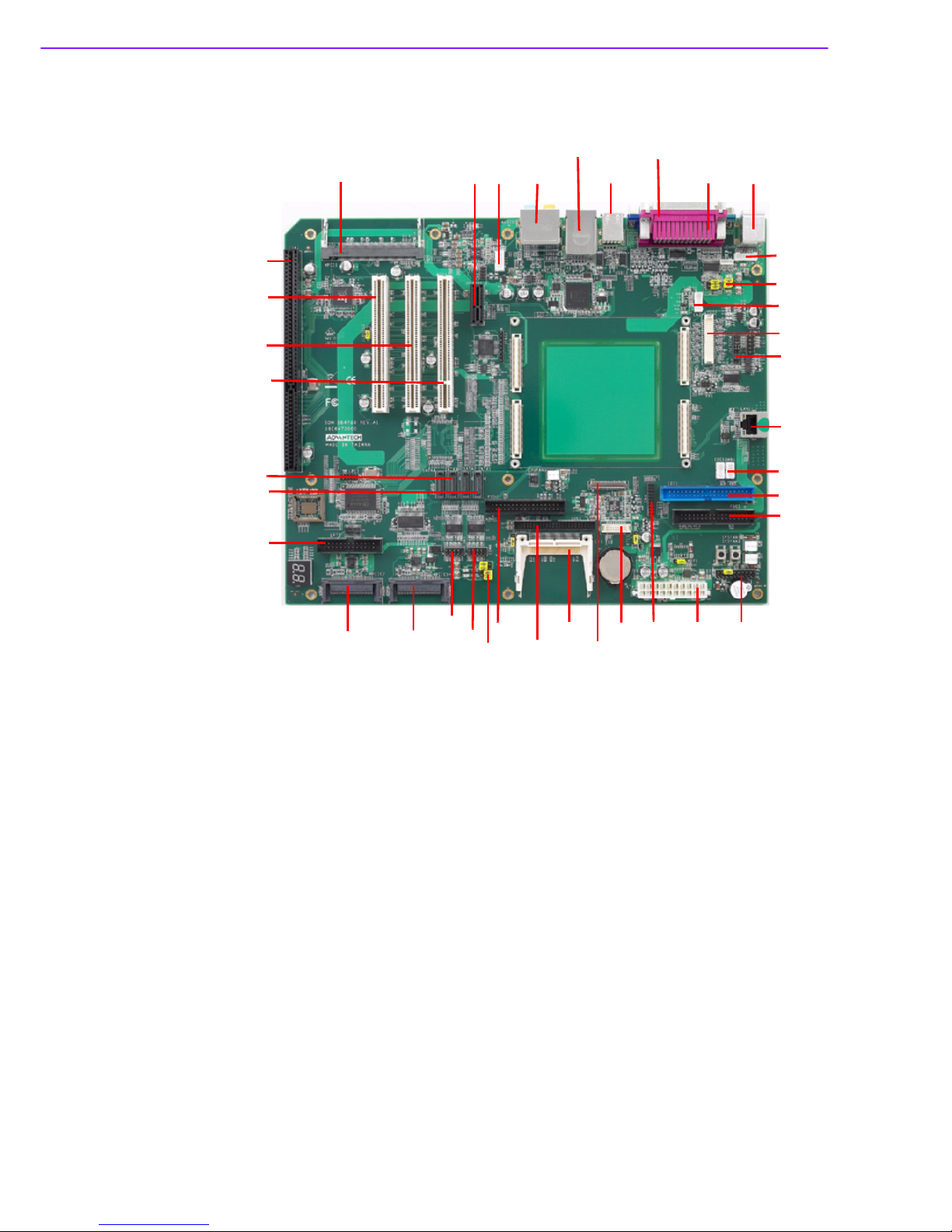

1.1 Location of Connectors

MPCI1 PCIEX1_1 CD1 AUDIO1

LAN_USB34

USB12

VGA1 & COM1

LPT1 KBMS1

KBMS2

J2 & J1

CN2

LVDS1

JSET_

COM1

LAN1

I2C1 &

SMB1

IDE1

FDD1

JFP1

ATX1

CN4

DVI1

SDVO1

CF1

IDE2

FDD2

J4 & J5

COM4

COM3

MPCIE1

MPCIE2

LPT2

SATA

1 & 2

SATA

3 & 4

PCI1

PCI2

PCI3

ISA1

3 SOM-DB4700 User Manual

1.2 Connector List

ATX1 ATX Power Connector*

Audio1 HD Audio Connector*

CD1 CD Line-in Connector

CF1 Compact Flash Connector*

CN1 HD Audio Digital I/O Connector (XTX only)

CN2 LCD Inverter Power Connector

CN4 Test Connector

COM1 COM Port 1 Connector

COM2 COM Port 2 Connector

COM3 COM Port 3 Connector

COM4 COM Port 4 Connector

CPUFAN1 CPU Fan 1 Connector

DVI1 DVI Connector

IDE1 IDE Connector*

IDE2 IDE Connector*

IRR1 IRDA Connector

ISA1 ISA Connector*

I2C1 I2C Connector

FDD1 FDD 1 Connector*

JFP1 Front Panel 1 Connector

JIDSEL1 PCI3-IDSELECT Connector

JSETCOM1 COM Port Mode Setting Connector

JTAG1 JTAG Test Connector

JWDT1 WDT and ISA IRQ Setting Connector

KBMS1 PS/2 KB/MS 1 Connector

KBMS2 PS/2 KB/MS 2 Connector

LAN1 Onboard LAN Connector*

LAN2_USB34 LAN2 and USB Port 3, 4 Connector* (XTX only)

LPC LPC Connector (XTX only)

LPT1 LPT 1 Connector*

LPT2 LPT 2 Connector

LVDS1 LVDS/TTL Interface Connector

MPCI1 Mini PCI Connector*

MPCIE1 Mini PCIe 1 Connector* (XTX only)

MPCIE2 Mini PCIe 2 Connector* (XTX only)

PCIEx1_ PCIe x1 Connector* (XTX only)

PCI1 PCI1 Connector*

PCI2 PCI2 Connector*

PCI3 PCI3 Connector*

SATA1 SATA1 Connector* (XTX only)

SATA2 SATA2 Connector* (XTX only)

SATA3 SATA3 Connector* (XTX only)

SATA4 SATA4 Connector* (XTX only)

SMB1 SMBus Connector

SOM1A ETX Connector A*

SOM-DB4700 User Manual 4

1.3 Jumper Table

SOM1B ETX Connector B*

SOM1C ETX Connector C*

SOM1D ETX Connector D*

SYSFAN1 System Fan 1 Connector

SYSFAN2 System Fan 2 Connector

TV1 TV-out Connector

USB12 USB1, 2 Connector*

VGA1 VGA Connector*

Note! * These iterfaces are common in the market at present and will not be

described in detail in this document.

J1, J2 COM port 1, 2 function selection

J4, J5 COM port 3, 4 function selection

RTC1 RTC power and clear selection

J3 CF Master/Slave selection

CN5 ISA and PCI3 function selection

PSON1 AT/ATX mode selection

5 SOM-DB4700 User Manual

1.4 Connector Pin Definition and Jumper Settings

CD1 CD Line-In Connector

Pin Pin Name

1 CD-L_B

2 CD-G_B

3 CD-G_B

4 CD-R_B

CN1 HD Audio Digital I/O Connector (XTX only)

Pin Pin Name

1+V5

2 GND

3 AZ_SYNC

4 AZ_BITCLK

5 AZ_SDOUT

6 AZ_SDIN0

7 AZ_SDIN1

8 AZ_RST#

9+V12

10 GND

11 GND

CN2 LCD Inverter Power Connector

Pin Pin Name # : low active

1+12V

2 BLON#

3 VBR

4 +V5

SOM-DB4700 User Manual 6

COM1 COM Port 1 Connector

Pin Pin Name # : low active

1 NDCD#1

2NRXD1

3NTXD1

4 NDTR#1

5GND

6NDSR#1

7NRTS#1

8NCTS#1

9COMA

10 GND

11 GND

COM2 COM Port 2 Connector

Pin Pin Name # : low active

1 NDCD#2

2NDSR#2

3 NRXD2_TXD485+

4NRTS#2

5 NTXD2_RXD485+

6NCTS#2

7 NDTR#2_RXD485-

8COMB

9GND

10 NC

COM3 COM Port 3 Connector

Pin Pin Name # : low active

1 NDCD#3

2NDSR#3

3 NRXD3_TXD485+

4NRTS#3

5 NTXD3_RXD485+

6NCTS#3

7 NDTR#3_RXD485-

8COMC

9GND

10 NC

7 SOM-DB4700 User Manual

COM4 COM Port 4 Connector

Pin Pin Name # : low active

1 NDCD#4

2 NDSR#4

3 NRXD4_TXD485+

4NRTS#4

5 NTXD4_RXD485+

6 NCTS#4

7 NDTR#4_RXD485-

8COMD

9GND

10 NC

CPUFAN1 CPU FAN 1 Connector

Pin Pin Name

1GND

2 FAN_Power

3 FAN_TACHOIN

DVI1 DVI Connector

Pin Pin Name

1 DVI1_Z_TDC-0

2 VCC_TMDS

3 DVI1_Z_TDC+0

4 DVI1_Z_TLC-

5 GND

6 DVI1_Z_TLC+

7 DVI1_Z_TDC-1

8 GND

9 DVI1_Z_TDC+1

10 DVI1-SC_DDC

11 GND

12 DVI1-SD_DDC

13 DVI1_Z_TDC-2

14 DVI1_HPDETT

15 DVI1_Z_TDC+2

16 NC

17 VCC_TMDS

18 NC

19 NC

20 NC

21 NC

22 NC

23 GND

24 GND

SOM-DB4700 User Manual 8

IRR1 IRDA Connector

Pin Pin Name

1IR_5V

2NC

3IRRX_A

4IR_GD

5IRTX_A

I2C1 I2C Connector

Pin Pin Name

1GND

2 I2C_DAT

3 I2C_CLK

4 +V5

JFP1 Front Panel Connector

Pin Pin Name

1PW-LED

2 +V5

3 PW-LED

4 GND

5 GND

6 BUZZER

7 KBINH#

8 SPEKER

9 GND

10 NC

11 GND

12 HD_LED

13 PWRBIN#

14 +V5

15 NC

16 NC

17 NC

18 FPRST1

19 GND

20 GND

Pin Function Description

11 & 13 Power Button

18 & 20 Reset Button

6 & 8 Speaker to Buzzer (Default)

12 & 14 HDD LED
