User manual Ceramic glass hob

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this

instruction manual carefully. It will enable you to navigate all processes perfectly

and most efficiently. To refer to this manual any time you need to, we recommend

you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

Contents

Safety information 2

Installation 3

Description of the appliance 6

Operating the appliance 6

The heat setting 6

Switching the outer rings on and off 7

Helpful hints and tips 7

Care and cleaning 8

What to do if... 8

Environment concerns 9

Packaging material 9

Subject to change without notice

Safety information

For your safety and correct operation of the appliance, read this manual carefully before

installation and use. Always keep these instructions with the appliance even if you move

or sell it. Users must fully know the operation and safety features of the appliance.

General safety

WARNING!

Persons (including children) with reduced physical sensory, mental capabilities or lack of

experience and knowledge must not use the appliance. They must have supervision or

instruction for the operation of the appliance by a person responsible for their safety.

Child safety

• Only adults can use this appliance. Children must get supervision to make sure that they

do not play with the appliance.

• Keep all packaging away from children. There is a risk of suffocation.

• Keep children away from the appliance when it is on.

WARNING!

Start the child safety device to prevent small children and pets from an accidental activation

of the appliance.

Safety during operation

• Remove all packaging, stickers and layers from the appliance before the first use.

• Set the cooking zones to "off" after each use.

2Contents

• Risk of burns! Do not put cutlery or saucepan lids on the cooking surface, as they can

become hot.

WARNING!

Fire danger! Overheated fats and oils can ignite very quickly.

Correct operation

• Always monitor the appliance during operation.

• Only use the appliance for domestic cooking tasks!

• Do not use the appliance as a work or a storage surface.

• Do not put or keep very flammable liquids and materials, or fusible objects (made of

plastic or aluminium) on or near the appliance.

• Be careful when you connect the appliance to the near sockets. Do not let electricity

bonds touch the appliance or hot cookware. Do not let electricity bonds tangle.

How to prevent a damage to the appliance

• If the objects or cookware fall on the glass ceramic, the surface can be damaged.

• Cookware made of cast iron, cast aluminium or with damaged bottoms can scratch the

glass ceramic if you move them on the surface.

• Do not let cookware boil dry to prevent the damage to cookware and glass ceramics.

• Do not use the cooking zones with empty cookware or without cookware.

• Do not cover any part of the appliance with aluminium foil.

WARNING!

If there is a crack on the surface, disconnect power supply to prevent the electric

shock.

Installation

Before the installation , note down this data from the rating plate:

• Model description (Modell)................

• Product number (Prod. Nr.) ............. ....

• Serial number (Ser. Nr.) ...............

You find the rating plate of the appliance on its lower casing.

HK614010MB 949 593 374 00

58 PEE 05 AO

220-240 V 50-60-Hz

6,4 kW

AEG-ELECTROLUX

Installation 3

Safety instructions

WARNING!

You must read these!

Make sure that the appliance is not damaged because of transportation. Do not connect a

damaged appliance. If it is necessary, speak to the supplier.

Only an authorised service technician can install, connect or repair this appliance. Use only

original spare parts.

Only use built-in appliances after you assemble the appliance into correct built-in units

and work surfaces that align to the standards.

Do not change the specifications or modify this product. Risk of injury and damage to the

appliance.

Fully obey the laws, ordinances, directives and standards in force in the country where you

use the appliance (safety regulations, recycling regulations, electrical safety rules etc.)!

Keep the minimum distances to other appliances and units!

Install anti-shock protection, for example install the drawers only with a protective floor

directly below the appliance!

Protect the cut surfaces of the worktop against moisture with a correct sealant!

Seal the appliance to the work top with no space left with a correct sealant!

Protect the bottom of the appliance from steam and moisture, e.g. from a dishwasher or

oven!

Do not install the appliance adjacent to doors and below windows! If not, hot cookware

can be hit off the hob when you open doors or windows.

WARNING!

Risk of injury from electrical current. Carefully obey the instructions for electrical connec-

tions.

• The electrical mains terminal is live.

• Make electrical mains terminal free of voltage.

• Install correctly to give anti-shock protection.

• Loose and incorrect plug and socket connections can make the terminal become too hot.

• A qualified electrician must install the clamping connections correctly.

• Use a strain relief clamp on cable.

• Use the correct mains cable of type H05BB-F Tmax 90°C (or higher) for a single-phase

or two-phase connection.

• Replace the damaged mains cable with a special cable (type H05BB-F Tmax 90°C; or

higher). Speak your local Service Force Centre.

The appliance must have the electrical installation which lets you disconnect the appliance

from the mains at all poles with a contact opening width of minimum 3 mm.

You must have correct isolation devices: line protecting cut-outs, fuses (screw type fuses

removed from the holder), earth leakage trips and contactors.

4Installation

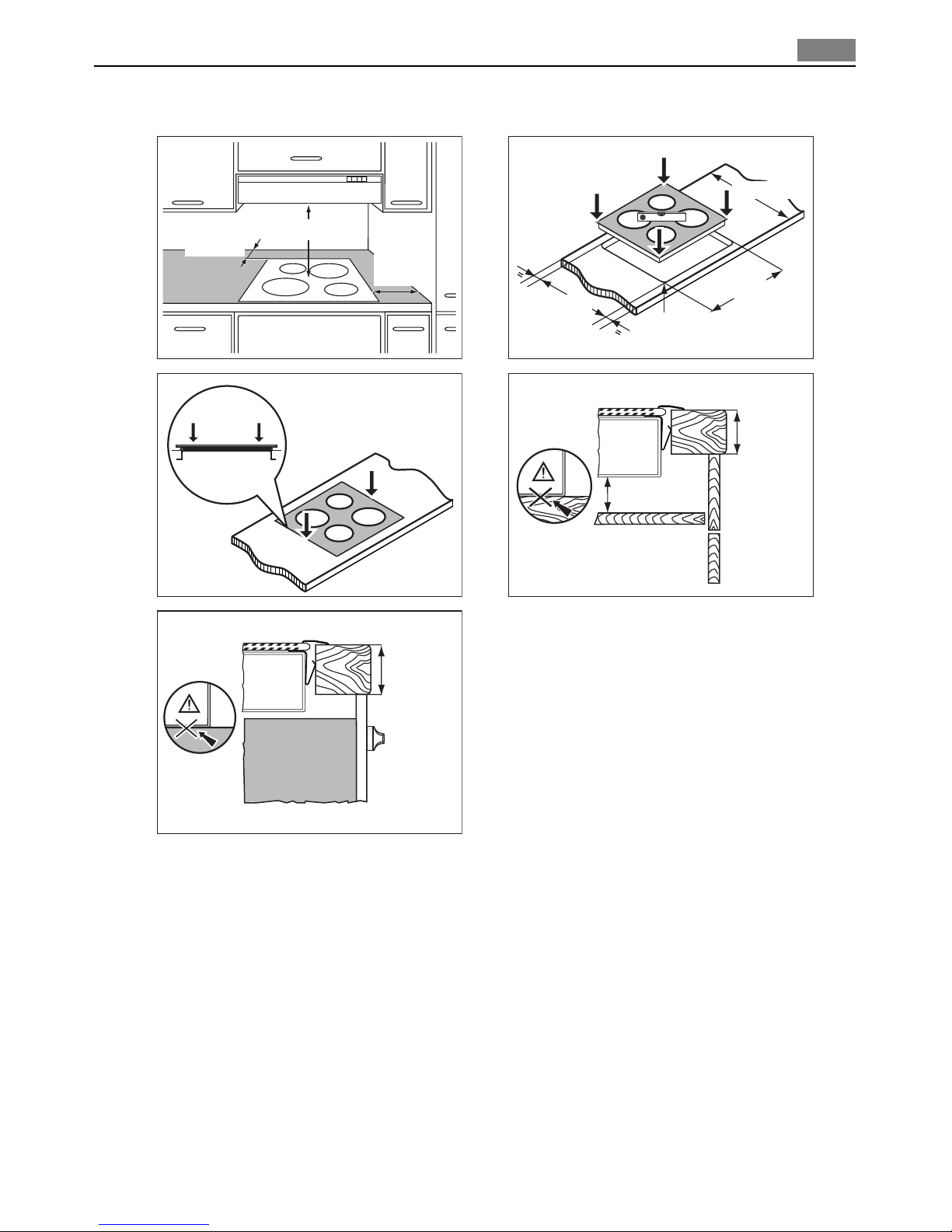

Assembly

min. 500 mm

min.

50 mm

min.

50 mm

600 mm

560+1 mm

490+1 mm

min.

25 mm

min.

20 mm

min.

40 mm

Installation 5

Description of the appliance

Cooking surface layout

456

1 2

180

145

120/210

1Single cooking zone 1200 W

2Single cooking zone 1800 W

3Control Knobs

4Single cooking zone 1200 W

5Residual heat indicators

6Double ring cooking zone 750/2200 W

Hob cooking zone control knob

1Assignment of control knobs

2Heat setting (0-9)

3Connection double ring cooking

zone

Residual heat indicator

The residual heat indicator comes on when a cooking zone is hot.

WARNING!

Risk of burns from residual heat!

Operating the appliance

When a cooking zone operates, it hums for a short time. This is typical of all ceramic glass

cooking zones and does not show that the appliance operates incorrectly.

The heat setting

To increase the heat setting turn the knob clockwise. To decrease the heat setting turn the

knob counter-clockwise. To switch off turn the knob to the 0.

6Description of the appliance

Switching the outer rings on and off

You can match the effective heating surface to the size of the cookware.

To switch on the outer ring turn the knob clockwise, past a light resistance, to the . Then

turn the knob counter-clockwise to the necessary heat setting. To switch off turn the knob

to the 0.

Switch on the inside ring before you switch on the outside ring.

Helpful hints and tips

Cookware

• The bottom of the cookware must be as thick and flat as possible.

• Cookware made of enamelled steel and with aluminium or copper bottoms can cause

discoloration on glass ceramic surface.

Energy saving

• If possible, always put the lids on the cookware.

• Put cookware on a cooking zone before you start it.

• Stop the cooking zones before the end of the cooking time to use residual heat.

• The bottom of pans and cooking zones must have the same dimension.

Examples of cooking applications

The data in the table is for guidance only.

Heat

setting

Use to: Time Hints

1 Keep cooked foods warm as re-

quired

Cover

1-2 Hollandaise sauce, melt: butter, choco-

late, gelatine

5-25

min

Mix occasionally

1-2 Solidify: fluffy omelettes, baked eggs 10-40

min

Cook with a lid on

2-3 Simmer rice and milkbased dishes, heat-

ing up ready-cooked meals

25-50

min

Add at least twice as much liquid as

rice, stir milk dishes part way

through

3-4 Steam vegetables, fish, meat 20-45

min

Add a few tablespoons of liquid

4-5 Steam potatoes 20-60

min

Use max. ¼ l water for 750 g of po-

tatoes

4-5 Cook larger quantities of food, stews

and soups

60-150

min

Up to 3 l liquid plus ingredients

6-7 Gentle fry: escalope, veal cordon bleu,

cutlets, rissoles, sausages, liver, roux,

eggs, pancakes, doughnuts

as re-

quired

Turn halfway through

Helpful hints and tips 7

Heat

setting

Use to: Time Hints

7-8 Heavy fry, hash browns, loin steaks,

steaks

5-15

min

Turn halfway through

9Boil large quantities of water, cook pasta, sear meat (goulash, pot roast), deep fry chips

Information on acrylamides

According to the newest scientific knowledge, if you brown food (specially the one which

contains starch), acrylamides can pose a health risk. Thus, we recommend that you cook at

the lowest temperatures and do not brown food too much.

Care and cleaning

Clean the appliance after each use.

Always use cookware with clean bottom.

WARNING!

Sharp objects and abrasive cleaning agents will damage the appliance.

For your safety, do not clean the appliance with steam blasters or high-pressure cleaners.

Scratches or dark stains on the glass ceramic have no effect on how the appliance operates.

Removing the dirt:

1. – Remove immediately: melting plastic, plastic foil, and food containing sugar. Use

a special glass ceramic scraper. Put the scraper on the glass ceramic surface at an

acute angle and slide the blade on the surface.

–Stop the appliance and let it cool down before you clean: limescale rings, water

rings, fat stains, shiny metallic discolorations. Use a special cleaner for glass ceramic

or stainless steel.

2. Clean the appliance with a damp cloth and some detergent.

3. At the end rub the appliance dry with a clean cloth.

What to do if...

Problem Possible cause and remedy

The appliance does not operate. • Set the heat setting.

• Examine the fuse in the electrical system of the house in the

fuse box. If the fuses blow time after time, speak to an au-

thorised electrician.

The residual heat indicator does

not come on.

The cooking zone is not hot because it operated only for a short

time. If the cooking zone must be hot, speak to the after sales

service.

If you tried the above solutions and cannot repair the problem, speak to your dealer or the

Customer Care Department. Give the data from the rating plate, three-digit-letter code for

8Care and cleaning

the glass ceramic (it is in the corner of the cooking surface) and an error message that

comes on.

If you operated the appliance incorrectly, the servicing by a customer service technician or

dealer will not be free of charge, even during the warranty period. The instructions about

the customer service and conditions of guarantee are in the guarantee booklet.

Environment concerns

The symbol on the product or on its packaging indicates that this product may not be

treated as household waste. Instead it should be taken to the appropriate collection point

for the recycling of electrical and electronic equipment. By ensuring this product is disposed

of correctly, you will help prevent potential negative consequences for the environment

and human health, which could otherwise be caused by inappropriate waste handling of

this product. For more detailed information about recycling of this product, please contact

your local council, your household waste disposal service or the shop where you purchased

the product.

Packaging material

The packaging materials are friendly to the environment and can be recycled. The plastic

components are identified by marking: >PE<,>PS<, etc. Discard the packaging materials as

household waste at the waste disposal facilities in your municipality.

Environment concerns 9

Indice

Altri manuali AEG Electrolux Piano cottura

AEG Electrolux

AEG Electrolux Gas Hob Manuale utente

AEG Electrolux

AEG Electrolux 34942 G Manuale utente

AEG Electrolux

AEG Electrolux U30280 35772G Manuale utente

AEG Electrolux

AEG Electrolux 86700 K Manuale utente

AEG Electrolux

AEG Electrolux 79200 KF-N Manuale utente

AEG Electrolux

AEG Electrolux 95852 G Manuale utente

AEG Electrolux

AEG Electrolux 79331KF-N Manuale utente

AEG Electrolux

AEG Electrolux HK764070FB Manuale utente

AEG Electrolux

AEG Electrolux FM 7531 K-AN Manuale utente

AEG Electrolux

AEG Electrolux 96901KFE-N Manuale utente

AEG Electrolux

AEG Electrolux 96931KFE-N Manuale utente

AEG Electrolux

AEG Electrolux 96931K-MN Manuale utente

AEG Electrolux

AEG Electrolux 36001 KF Manuale utente

AEG Electrolux

AEG Electrolux FM 6800TYAN Manuale utente

AEG Electrolux

AEG Electrolux 88101K-MN Manuale utente

AEG Electrolux

AEG Electrolux 111 K Manuale utente

AEG Electrolux

AEG Electrolux 75553G-M Manuale utente

AEG Electrolux

AEG Electrolux 79301 KF-N Manuale utente

AEG Electrolux

AEG Electrolux 76331 KF-N Manuale utente

AEG Electrolux

AEG Electrolux HK654070FB Manuale utente

AEG Electrolux

AEG Electrolux B 99852G Manuale utente

AEG Electrolux

AEG Electrolux 67670 K-MN Manuale utente

AEG Electrolux

AEG Electrolux 6000K Scheda tecnica

AEG Electrolux

AEG Electrolux 78001KF-MN Manuale utente

Manuali Piano cottura popolari di altre marche

Siemens

Siemens EX875KYV1E Scheda tecnica

AEG

AEG CERAMIC HOB 6010 K Manuale utente

VALERA

VALERA CT 70A Manuale utente

Zanussi

Zanussi ZGF 6420 Manuale utente

Gaggenau

Gaggenau CI 273 Manuale utente

G3 Ferrari

G3 Ferrari Energy Manuale utente

Pkm

Pkm IN4B Manuale utente

Award

Award H903BG Manuale utente

Zanussi

Zanussi VCH 5005 RZ Manuale utente

Miele

Miele KM 523 Manuale utente

Hotpoint

Hotpoint IS67V8CCXT/E Manuale utente

AEG

AEG HK854870XB Manuale utente

Cookology

Cookology SEP600BK Manuale utente

Bauknecht

Bauknecht Hob Manuale utente

Zanussi

Zanussi ZGM 782 Manuale utente

dipo INDUCTION

dipo INDUCTION DIBK218S Manuale utente

Miele

Miele KM 5987 Manuale utente

Miele

Miele KM 360 G Manuale utente
