AEG Electrolux HK764070FB Manuale utente

HK764070FB

User manual Ceramic glass hob

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this

instruction manual carefully. It will enable you to navigate all processes perfectly

and most efficiently. To refer to this manual any time you need to, we recommend

you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

Contents

Safety information 2

Installation 3

Description of the appliance 6

Operating the appliance 7

On and Off 7

Automatic Switch Off 7

The heat setting 8

/ Switching the outer rings on and off

The Automatic heat up 8

Using the Timer 8

Starting the STOP+GO 9

Locking / unlocking the control panel 9

The child safety device 10

OffSound Control (Switching off and on the

sounds) 10

Helpful hints and tips 10

Care and cleaning 11

What to do if... 12

Environment concerns 13

Packaging material 13

Subject to change without notice

Safety information

General safety

WARNING!

Persons (including children) with reduced physical sensory, mental capabilities or lack of

experience and knowledge must not use the appliance. They must have supervision or

instruction for the operation of the appliance by a person responsible for their safety.

Child safety

• Only adults can use this appliance. Children must get supervision to make sure that they

do not play with the appliance.

• Keep all packaging away from children. There is a risk of suffocation.

• Keep children away from the appliance when it is on.

WARNING!

Start the child safety device to prevent small children and pets from an accidental activation

of the appliance.

Safety during operation

• Remove all packaging, stickers and layers from the appliance before the first use.

2Contents

• Set the cooking zones to "off" after each use.

• Risk of burns! Do not put cutlery or saucepan lids on the cooking surface, as they can

become hot.

WARNING!

Fire danger! Overheated fats and oils can ignite very quickly.

Correct operation

• Always monitor the appliance during operation.

• Only use the appliance for domestic cooking tasks!

• Do not use the appliance as a work or a storage surface.

• Do not put or keep very flammable liquids and materials, or fusible objects (made of

plastic or aluminium) on or near the appliance.

• Be careful when you connect the appliance to the near sockets. Do not let electricity

bonds touch the appliance or hot cookware. Do not let electricity bonds tangle.

How to prevent a damage to the appliance

• If the objects or cookware fall on the glass ceramic, the surface can be damaged.

• Cookware made of cast iron, cast aluminium or with damaged bottoms can scratch the

glass ceramic if you move them on the surface.

• Do not let cookware boil dry to prevent the damage to cookware and glass ceramics.

• Do not use the cooking zones with empty cookware or without cookware.

• Do not cover any part of the appliance with aluminium foil.

WARNING!

If there is a crack on the surface, disconnect power supply to prevent the electric

shock.

Installation

Before the installation , note down this data from the rating plate:

• Model description (Modell)................

• Product number (Prod. Nr.) ............. ....

• Serial number (Ser. Nr.) ...............

You find the rating plate of the appliance on its lower casing.

HK764070FB 949 593 335 00

58 HDD 70 AO

220-240 V 50-60-Hz

7,5 kW

AEG-ELECTROLUX

Installation 3

Safety instructions

WARNING!

You must read these!

Make sure that the appliance is not damaged because of transportation. Do not connect a

damaged appliance. If it is necessary, speak to the supplier.

Only an authorised service technician can install, connect or repair this appliance. Use only

original spare parts.

Only use built-in appliances after you assemble the appliance into correct built-in units

and work surfaces that align to the standards.

Do not change the specifications or modify this product. Risk of injury and damage to the

appliance.

Fully obey the laws, ordinances, directives and standards in force in the country where you

use the appliance (safety regulations, recycling regulations, electrical safety rules etc.)!

Keep the minimum distances to other appliances and units!

Install anti-shock protection, for example install the drawers only with a protective floor

directly below the appliance!

Protect the cut surfaces of the worktop against moisture with a correct sealant!

Seal the appliance to the work top with no space left with a correct sealant!

Protect the bottom of the appliance from steam and moisture, e.g. from a dishwasher or

oven!

Do not install the appliance adjacent to doors and below windows! If not, hot cookware

can be hit off the hob when you open doors or windows.

WARNING!

Risk of injury from electrical current. Carefully obey the instructions for electrical connec-

tions.

• The electrical mains terminal is live.

• Make electrical mains terminal free of voltage.

• Install correctly to give anti-shock protection.

• Loose and incorrect plug and socket connections can make the terminal become too hot.

• A qualified electrician must install the clamping connections correctly.

• Use a strain relief clamp on cable.

• Use the correct mains cable of type H05BB-F Tmax 90°C (or higher) for a single-phase

or two-phase connection.

• Replace the damaged mains cable with a special cable (type H05BB-F Tmax 90°C; or

higher). Speak your local Service Force Centre.

The appliance must have the electrical installation which lets you disconnect the appliance

from the mains at all poles with a contact opening width of minimum 3 mm.

You must have correct isolation devices: line protecting cut-outs, fuses (screw type fuses

removed from the holder), earth leakage trips and contactors.

4Installation

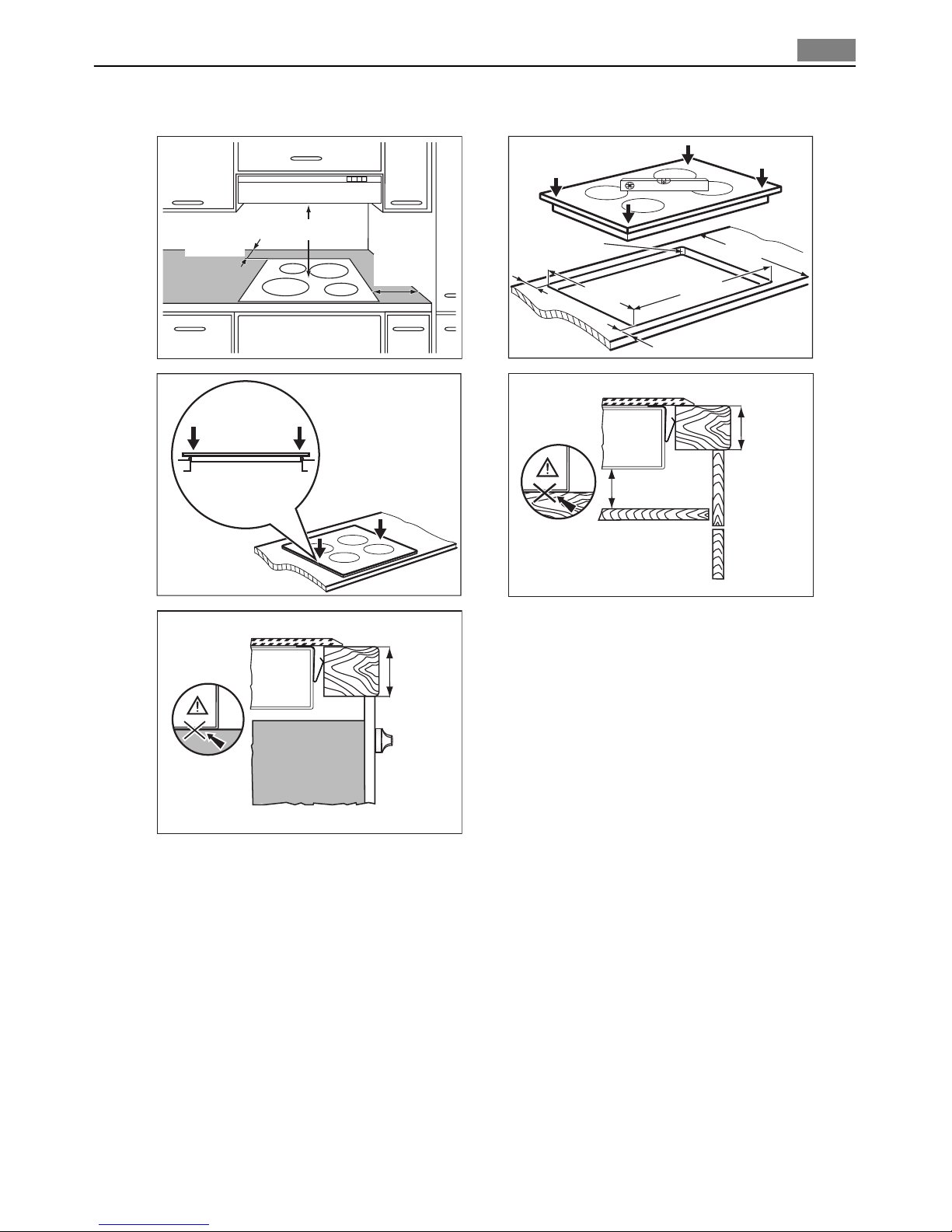

Assembly

min. 500 mm

min.

50 mm

min.

50 mm 600mm

490+1mm

680+1mm

R 5mm

min.

25 mm

min.

20 mm

min.

30 mm

Installation 5

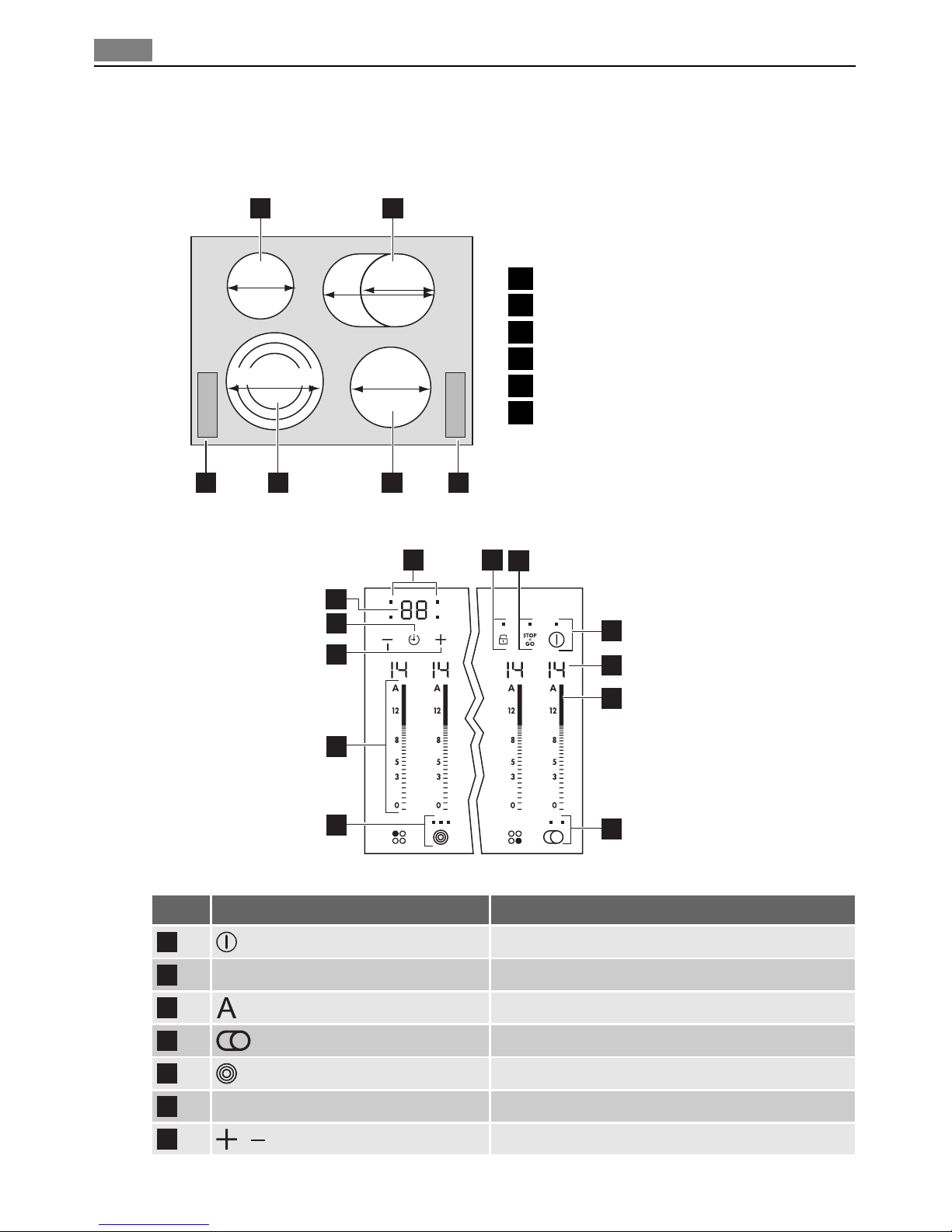

Description of the appliance

Cooking surface layout

180

170

265

145

120/175/210

1 2

35 46

1Single cooking zone 1200 W

2Oval zone 1400/2200 W

3Control panel

4Single cooking zone 1800 W

5Triple cooking zone 800/1600/2300 W

6Control panel

Control panel layout

11 12

Use the sensor fields to operate the appliance.

sensor field function

starts and stops the hob

a heat setting display shows the heat setting

activates automatic heat-up

with an indicator starts and stops the outer ring

a control bar to set the heat setting

/ increases or decreases the time

6Description of the appliance

sensor field function

selects the cooking zone

the timer display shows the time in minutes

cooking zones' indicators of timer shows for which zone you set the time

a lock with an indicator starts and stops the key lock or child lock

with an indicator starts and stops STOP+GO

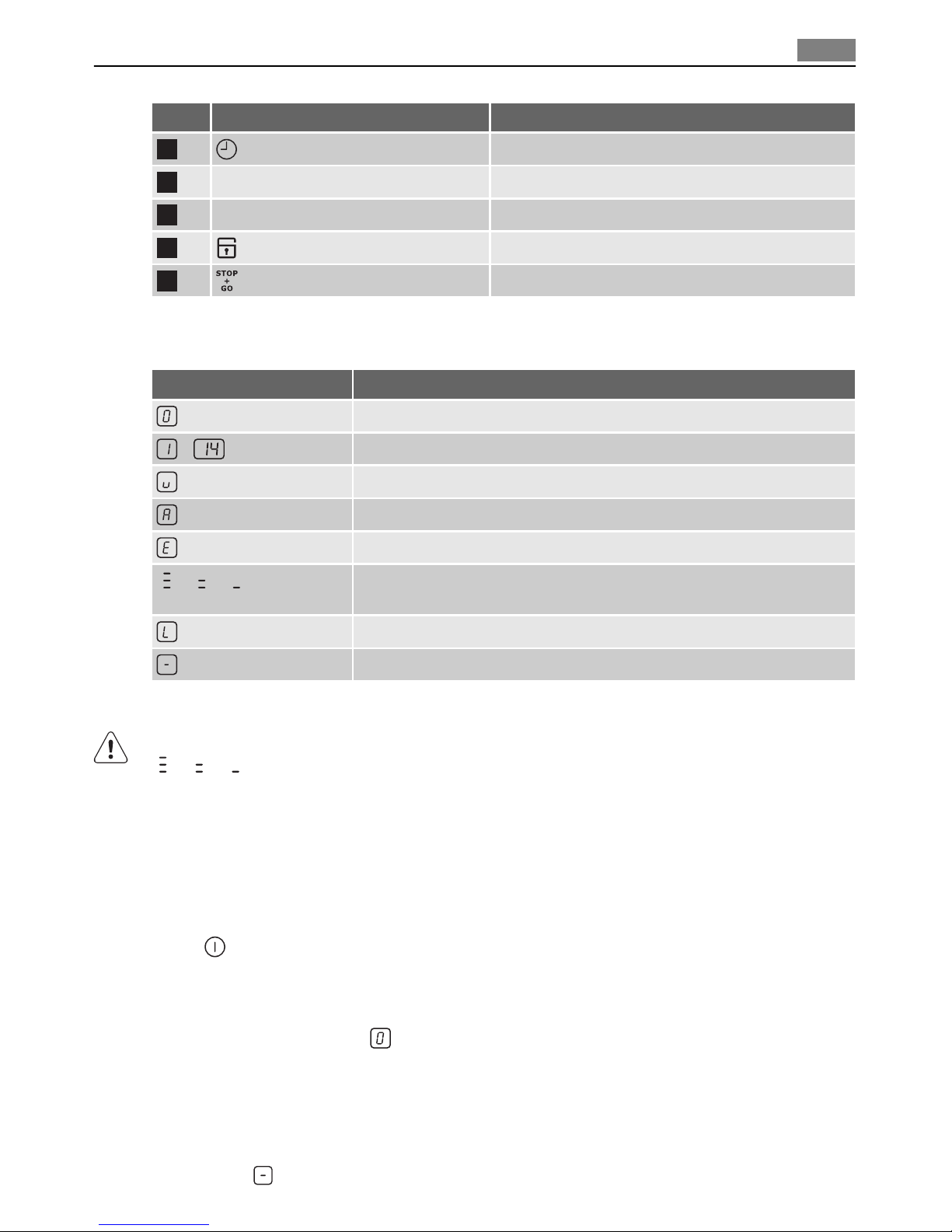

Heat setting displays

Displays show which functions operate

Display Description

The cooking zone is off

- The cooking zone operates

Keep Warm

The automatic heat-up function is on

+ digit There is a malfunction

/ / OptiHeat Control (3 step Residual heat indicator): still cooking / keep

warm / residual heat

Lock/Child safety function is on

The automatic switch off is on

OptiHeat Control (3 step Residual heat indicator)

WARNING!

/ / Risk of burns from residual heat!

OptiHeat Control indicates the level of the residual heat.

Operating the appliance

On and Off

Touch for 1 second to start or stop the appliance.

Automatic Switch Off

The function stops the hob automatically if:

• all cooking zones are off .

• you do not set the heat setting after you start the hob.

• you cover a sensor field with an object (a pan, a cloth, etc.) for longer than 10 seconds.

The sound operates some time and the hob stops. Remove the object or clean the control

panel.

• you do not stop a cooking zone or change the heat setting. After some time the hob

stops and comes on. See the table.

Operating the appliance 7

Automatic Switch Off times

Heat setting - - - -

Stops after 6 hours 5 hours 4 hours 1.5 hours

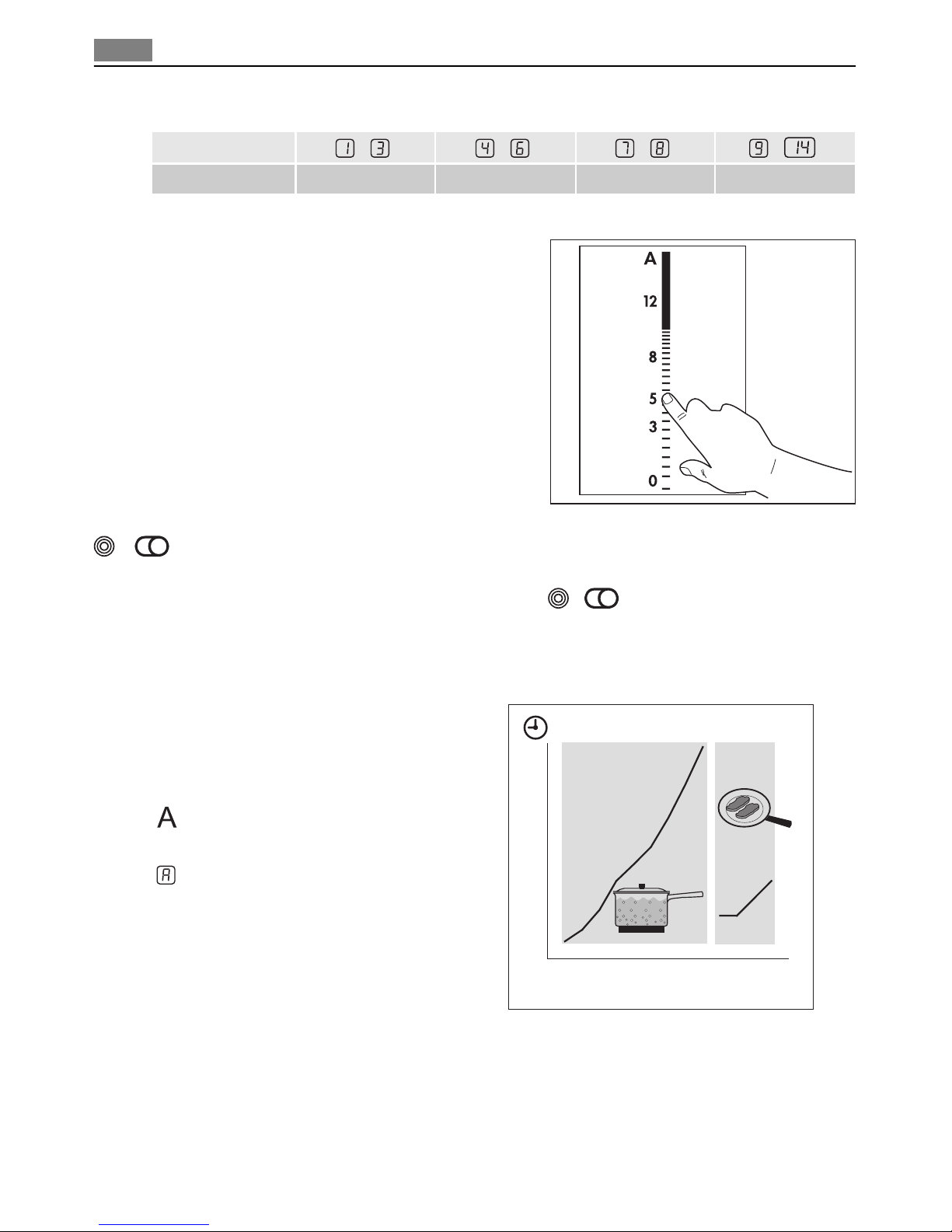

The heat setting

Touch the control bar at the necessary heat set-

ting. Change up or down, if it is necessary. Do not

release before you have a correct heat setting.

/ Switching the outer rings on and off

You can match the effective heating surface to the size of the cookware.

To switch on the outer ring touch the sensor field / . The indicator comes on. For

more outer rings touch the same sensor field again. The next indicator comes on.

Do the procedure again to switch off the outer ring. The indicator goes out.

The Automatic heat up

The Automatic heat up function sets the

highest heat setting for some time, and

then decreases to the necessary level.

To start function touch the symbol

and than set the necessary heat setting.

comes on when the cooking zone oper-

ates on the highest heat setting.

To stop the function change the heat set-

ting.

1234567891011121314

Using the Timer

Count Down Timer

Use the Count Down Timer to set how long the cooking zone operates for one cooking

session.

Set the Count Down Timer after the selection of the cooking zone.

You can set the heat setting before or after you set the timer.

8Operating the appliance

•Selection of the cooking zone: touch again and again until the indicator of a

necessary cooking zone comes on.

•Starting the Count Down Timer: touch of the timer to set the time (

minutes). When the indicator of the cooking zone flashes slower, the time counts down.

•Checking the remaining time: select the cooking zone with . The indicator of the

cooking zone flashes faster. Display shows the remaining time.

•Changing the Count Down Timer: select the cooking zone with touch or .

•Stopping the timer: select the cooking zone with . Touch . The remaining time

counts backwards to

. The indicator of the cooking zone goes out. To switch off You

can also touch and at the same time.

When the time elapses, the sound operates and

flashes. The cooking zone switches

off.

•Stopping the sound: touch

CountUp Timer (Count up timer)

Use the CountUp Timer to monitor how long the cooking zone operates.

•Selection of the cooking zone (if more than 1 cooking zone operate): touch

again and again until the indicator of a necessary cooking zone comes on.

•Starting the CountUp Timer: touch of the timer comes on. When the indicator

of the cooking zone flashes slower, the time counts up, display switches between and

time elapsed (minutes)

•Checking the elapsed time: select the cooking zone with . The indicator of the

cooking zone flashes faster. Display shows the elapsed time.

•Stopping the CountUp Timer: select the cooking zone with and touch or to

switch off the timer. The indicator of the cooking zone goes out.

Minute Minder

You can use the timer as a Minute Minder while cooking zones do not operate. Touch

. Touch or of the timer to select the time. When the time elapses, the sound operates

and

flashes.

Starting the STOP+GO

The function sets all cooking zones that operate to a keep warm setting.

•Touch to start this function. The symbol comes on.

•Touch to stop this function. The heat setting that you set before comes on.

does not stop the timer function.

fully locks the control panel but not the sensor field .

Locking / unlocking the control panel

You can lock the control panel, but not . You can stop the appliance.

Touch the symbol . The symbol comes on for 4 seconds.

The Timer still operates.

Touch the symbol to switch off this function. The heat setting that you set before comes

on.

When you switch off the appliance, you also switch off this function.

Operating the appliance 9

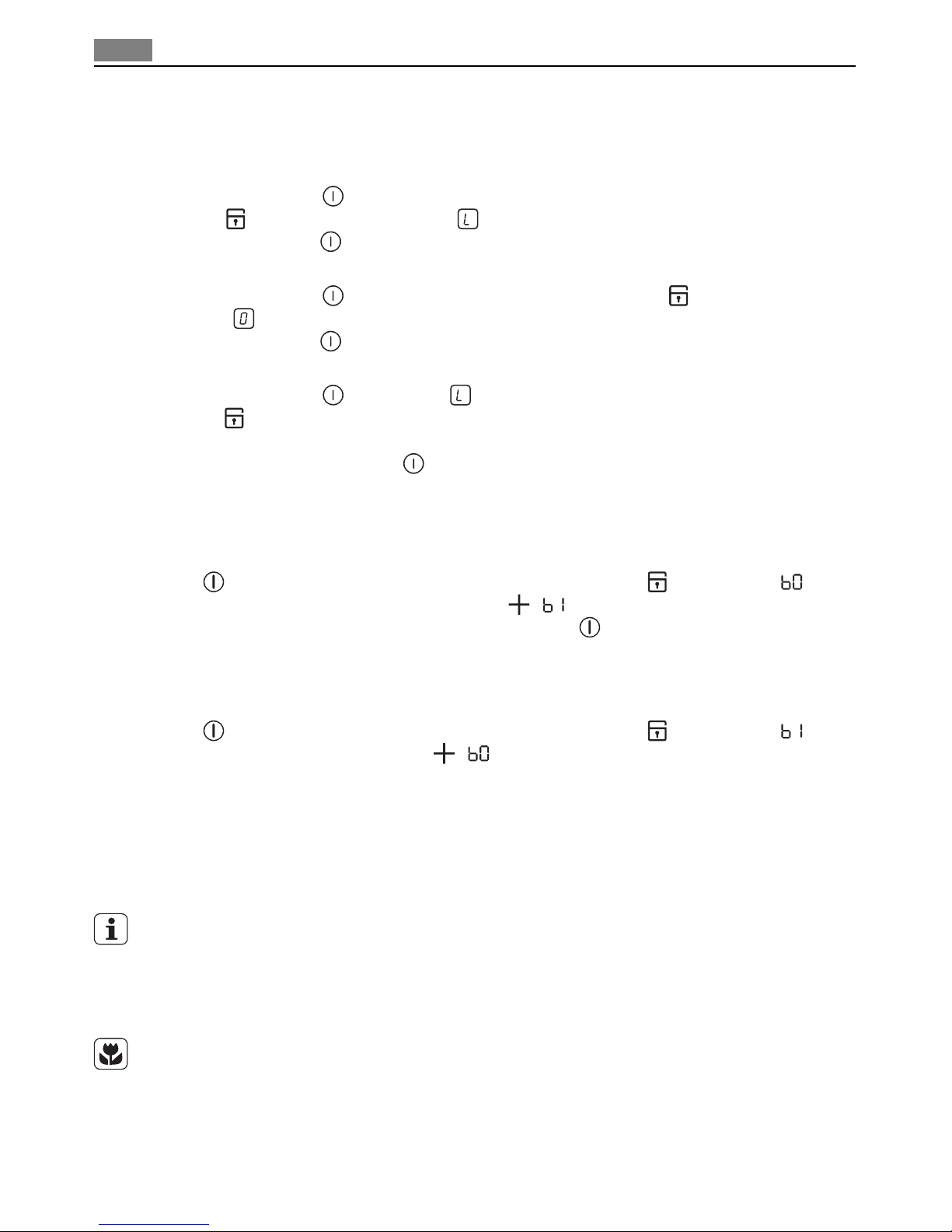

The child safety device

This function prevents an accidental operation of the hob.

Starting the child safety device

•Start the hob with . Do not set the heat settings .

•Touch for 4 seconds. The symbol comes on.

• Stop the hob with .

Switching off the child safety device

•Start the hob with . Do not set the heat settings . Touch for 4 seconds. The

symbol comes on.

• Stop the hob with .

Overriding the child safety device for one cooking session

• Start the hob with . The symbol comes on.

•Touch for 4 seconds. Set the heat setting in less than 10 seconds. You can operate

the hob.

• When you stop the hob with , the child safety device operates again.

OffSound Control (Switching off and on the sounds)

Switching off the sounds

Switch off the appliance.

Touch for 3 seconds. The displays come on and go out. Touch for 3 seconds. comes

on, the appliance is in standard mode. Touch , comes on, the sound is off.

When the sound is off, you hear only when you touch , Minute Minder or Count Down

Timer come down or when you cover the control panel.

Switching on the sounds

Switch off the appliance.

Touch for 3 seconds. The displays come on and go out. Touch for 3 seconds. comes

on, because the sound is off. Touch , comes on, the appliance is in standard mode.

The sound is on.

Helpful hints and tips

Cookware

• The bottom of the cookware must be as thick and flat as possible.

• Cookware made of enamelled steel and with aluminium or copper bottoms can cause

discoloration on glass ceramic surface.

Energy saving

• If possible, always put the lids on the cookware.

• Put cookware on a cooking zone before you start it.

• Stop the cooking zones before the end of the cooking time to use residual heat.

• The bottom of pans and cooking zones must have the same dimension.

10 Helpful hints and tips

Indice

Altri manuali AEG Electrolux Piano cottura

AEG Electrolux

AEG Electrolux 111 K Manuale utente

AEG Electrolux

AEG Electrolux 88101KF-N Manuale utente

AEG Electrolux

AEG Electrolux 79200 KF-N Manuale utente

AEG Electrolux

AEG Electrolux 24" HK654070XB Manuale utente

AEG Electrolux

AEG Electrolux 96901KF-N Manuale utente

AEG Electrolux

AEG Electrolux FM 6520 K-AN Manuale utente

AEG Electrolux

AEG Electrolux 21602 G Manuale utente

AEG Electrolux

AEG Electrolux 78001KF-N Manuale utente

AEG Electrolux

AEG Electrolux EHS 8675 P Manuale utente

AEG Electrolux

AEG Electrolux 78031KF-MN Manuale utente

AEG Electrolux

AEG Electrolux 76301K-MN Manuale utente

AEG Electrolux

AEG Electrolux 76331 KF-N Manuale utente

AEG Electrolux

AEG Electrolux 64500G-M Manuale utente

AEG Electrolux

AEG Electrolux 68031K-MN Manuale utente

AEG Electrolux

AEG Electrolux 79301 KF-N Manuale utente

AEG Electrolux

AEG Electrolux FM 7531 K-AN Manuale utente

AEG Electrolux

AEG Electrolux 320TDGM Manuale tecnico

AEG Electrolux

AEG Electrolux 64100 KF-N Manuale utente

AEG Electrolux

AEG Electrolux HK624010FB Manuale utente

AEG Electrolux

AEG Electrolux 88032K-MN Manuale utente

AEG Electrolux

AEG Electrolux 78001KF-N Manuale utente

AEG Electrolux

AEG Electrolux 76301K-MN Manuale utente

AEG Electrolux

AEG Electrolux 68002K-MN Manuale utente

AEG Electrolux

AEG Electrolux 79301 KF-N Manuale utente

Manuali Piano cottura popolari di altre marche

Siemens

Siemens EX875KYV1E Scheda tecnica

AEG

AEG CERAMIC HOB 6010 K Manuale utente

VALERA

VALERA CT 70A Manuale utente

Zanussi

Zanussi ZGF 6420 Manuale utente

Gaggenau

Gaggenau CI 273 Manuale utente

G3 Ferrari

G3 Ferrari Energy Manuale utente

Pkm

Pkm IN4B Manuale utente

Award

Award H903BG Manuale utente

Zanussi

Zanussi VCH 5005 RZ Manuale utente

Miele

Miele KM 523 Manuale utente

Hotpoint

Hotpoint IS67V8CCXT/E Manuale utente

AEG

AEG HK854870XB Manuale utente

Cookology

Cookology SEP600BK Manuale utente

Bauknecht

Bauknecht Hob Manuale utente

Zanussi

Zanussi ZGM 782 Manuale utente

dipo INDUCTION

dipo INDUCTION DIBK218S Manuale utente

Miele

Miele KM 5987 Manuale utente

Miele

Miele KM 360 G Manuale utente
