AFL FlexScan FS200 OTDR Manuale utente

FlexScan®FS200 OTDR

With SmartAuto®, FleXpress™and LinkMap®

Quick Reference Guide

www.AFLglobal.com or (800) 321-5298, (603) 528-7780

Test & Inspection

1. Power button

2. Power jack (5 VDC)

3. Charge/AC indicator

4. USB ports

5. OTDR/source port

6. Power meter port

7. VFL port

Controls, Display, Interfaces

8. Dust cover

9. Home button

10. Start/stop test button

11. VFL indicator

12. VFL button

13. Touchscreen display

Battery Charging

• Plug the included AC charger into AC outlet.

• Connect charger plug to power jack 2.

• LED 3indicates charging status as follows:

OFF - AC not connected

RED - Charging battery

GREEN - Fully charged

• FlexScan charges while operating.

Conﬁgure FlexScan to Auto-Off

• From the Home screen, select Settings menu.

• Locate and select the Auto Off Timer menu.

• From the Auto Off Timer menu, select the desired

power save option (5 min, 15 min, Never).

5 6 7

Home Screen

The Home screen is the FlexScan’s Main menu that is displayed at startup. While in any other screen, return to

Home by either pressing the Home button or touching (if available) the Back soft key. This screen

contains menus of Test and Utility modes that allow users to set test parameters, select user preferences,

manage saved test results, congure general settings and perform other non-test functions.

Test Modes and Features Summary

1. SmartAuto™OTDR: Congure and run SmartAuto OTDR test using multi-pulse acquisition.

2. Expert OTDR: Congure and run Expert OTDR test with averaging.

3. Real Time OTDR: Congure and initiate OTDR test with real-time updates.

4. Source & Power Meter: Enable light source and/or measure optical power.

5. Connector Inspection: View connector inspection

results received via Bluetooth from FOCIS Flex auto-

focus probe.

Utility Modes and Features Summary

6. USB: Touch to enable le transfer.

7. Last: Touch to view the most recent test results.

8. Saved: Touch to recall and view saved test results.

9. Settings: Touch to access General Settings menu.

10. Menu: Touch to view Device Information screen.

11. Bluetooth: Indicates Bluetooth enabled.

12. USB: Indicates external USB memory stick detected.

8 9 10

11 12

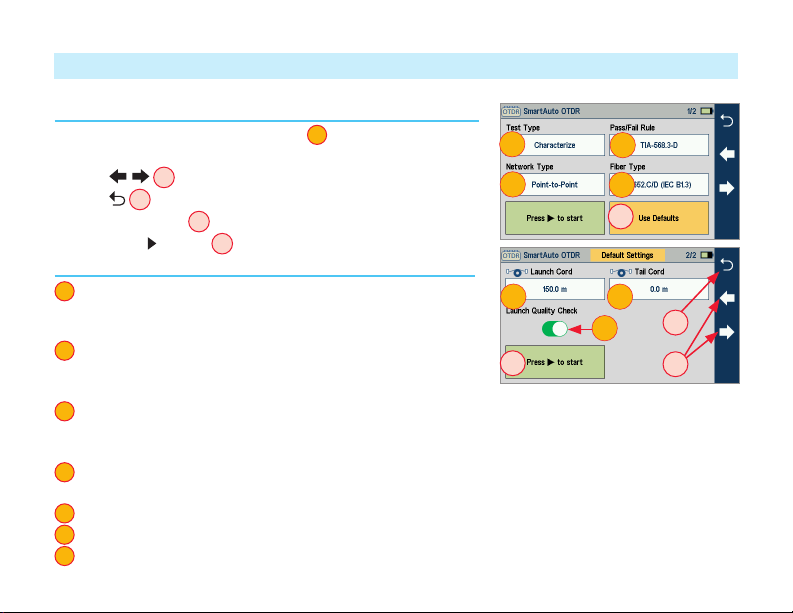

While in the SmartAuto OTDR Settings Menu:

• Touch the desired setting eld/tab (e.g. 1Test Type) to display a

sub-menu (where applicable).

• Touch Ato navigate to next/previous screen.

• Touch Bto return to the previous menu.

• Touch Use Defaults C(if displayed) to reset settings to defaults.

• Touch ‘Press to start’ Dto initiate testing.

SmartAuto OTDR Settings Summary

1. Test Type: Limited to Characterize in FS200-50B/100.

Select Characterize or FleXpress™Fast Test in FS200-60/300/304

when Network Type = Point-to-Point.

2. Pass/Fail Rule: Indicates selected LinkMap event pass/fail rules.

Touch to select ITU G.671, TIA-568.3-D or User. Touch and hold to

view/edit pass/fail event thresholds.

3. Network Type: Limited to Point-to-Point in FS200-50B/100 models.

Select Point-to-Point or FTTH PON in FS200-60/300/304 models. If PON selected, congure split ratio

settings to match expected network splitter conguration.

4. Fiber Type: Touch to select G.65x or User ber type. Touch and hold to view/edit associated Group Index of

Refraction (GIR) and Backscatter Coefcient (BC) settings.

5. Launch Cord: Touch to congure length of Launch cable, if present.

6. Tail Cord: Touch to congure length of Receive cable, if present.

7. Launch Quality Check: Enable to check OTDR connection to launch cord or jumper cable at start of test.

OTDR Modes: SmartAuto™with LinkMap®Display Summary

5 6

Live Fiber Detection

To prevent service disruption on live PONs, FlexScan performs a Live

Fiber check prior to every OTDR test. If a live ber is detected,

FS200-50B/100/300 models display a warning screen and do not allow

testing; FS200-60/304 displays a warning Aand allows the user to

complete a test at 1650 nm only.

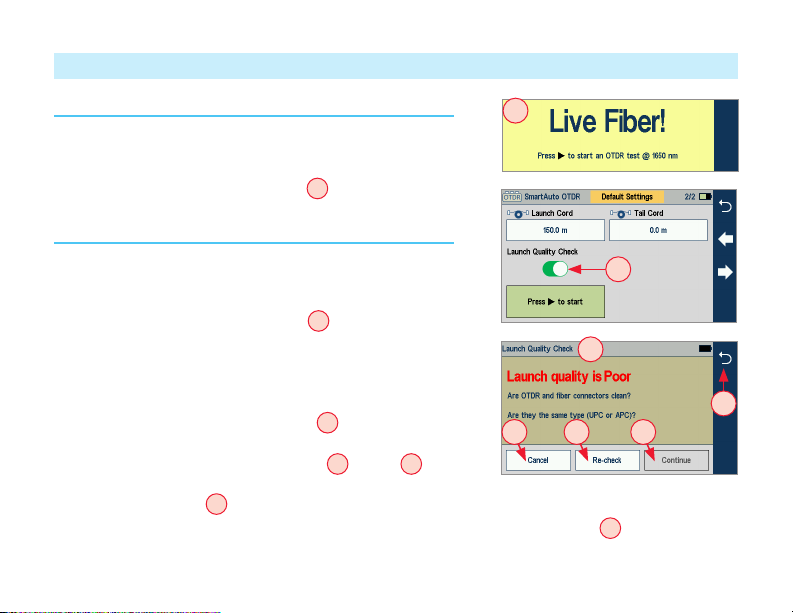

Launch Quality Check

An optional launch quality check enables users to detect dirty,

damaged, poorly seated, or mismatched (UPC to APC) connectors.

To perform the launch quality check:

1. With the Launch Quality Check option Benabled in the OTDR or

General Settings screen, initiate an OTDR test.

2. The FlexScan will assess the loss and reectance at the OTDR’s

connection to the launch cord (ber ring) or ber under test.

3. If excess loss or reectance is detected, the OTDR displays the

‘Launch Quality is Poor’ warning screen C. From this screen the

user may chose to perform one of the following:

–Cancel a test by touching either Cancel Dor Back E.

–Clean connectors, then repeat the launch quality check by

touching Re-check F.

–Continue testing without checking and cleaning the connection by pressing Continue G.

Note: Testing a ber with poor launch quality may produce poor test results.

OTDR Modes: Live Fiber Detection and Launch Quality Check

D F G

OTDR Modes: Testing in SmartAuto™

Initiate the SmartAuto test by touching ‘Press to start’ soft key or pressing Start/Stop button.

1. FlexScan begins testing with the Live Fiber check and if a live ber is NOT detected, proceeds to next step.

2. If the Launch Quality check is enabled, FlexScan checks loss and reectance of the OTDR connection.

3. If launch quality is good, FlexScan starts testing at one or more wavelengths using SmartAuto settings.

4. When testing is completed, FlexScan displays the LinkMap®screen, which is a primary display in SmartAuto

OTDR mode.

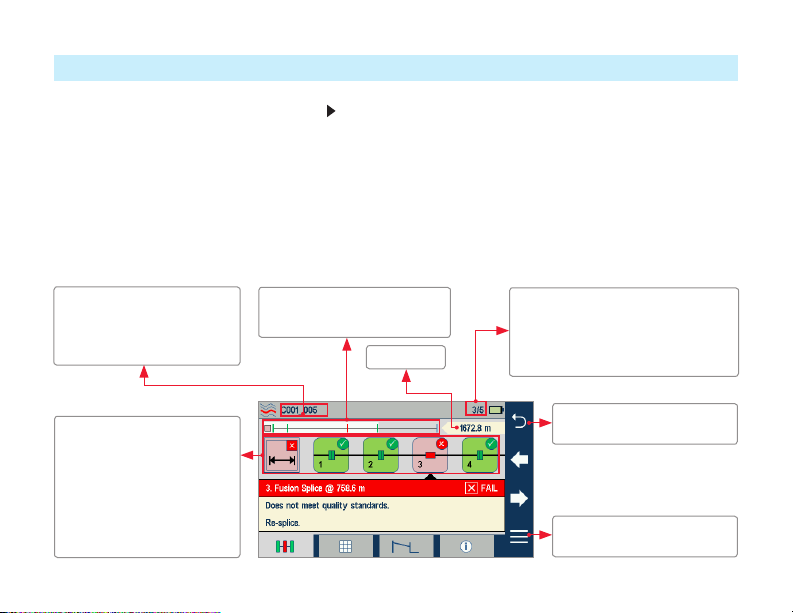

LinkMap Display Features

LinkMap is an icon-based representation of the analyzed network.

Link map thumbnail view with

proportionally spaced events

x/y or x1-x2/y, where

x = number of the selected event

x1-x2 = link section between events,

y = total events

File name: consists of cable

name and ber number, or

“New Trace” if le has not

been saved

LinkMap detail view: shows

summary and rst 4 events,

or up to 5 events. White

highlighted area in thumbnail

view indicates region of ber

for which events are shown in

the detail view.

Link Length

Back key: touch to return to

the previous menu

Menu key: touch to navigate

to Save As screen

OTDR Modes: Testing in SmartAuto™

Selection marker indicates

active icon: Summary, Event,

or Section

LinkMap tab: when in any

other test results viewer

(Event Table, Trace view,

Info view), touch to return to

LinkMap view

Details of the currently

selected Summary, Event,

or Section

Touch to move to next or

previous event or link section

Event Table tab: touch to display measurements for the

currently selected Link Summary A, Event B, or Section C

Trace tab - touch to display Trace view

that depends on selection:

Selection Display View

Summary Trace of entire network

Event Trace around event

Section N/A

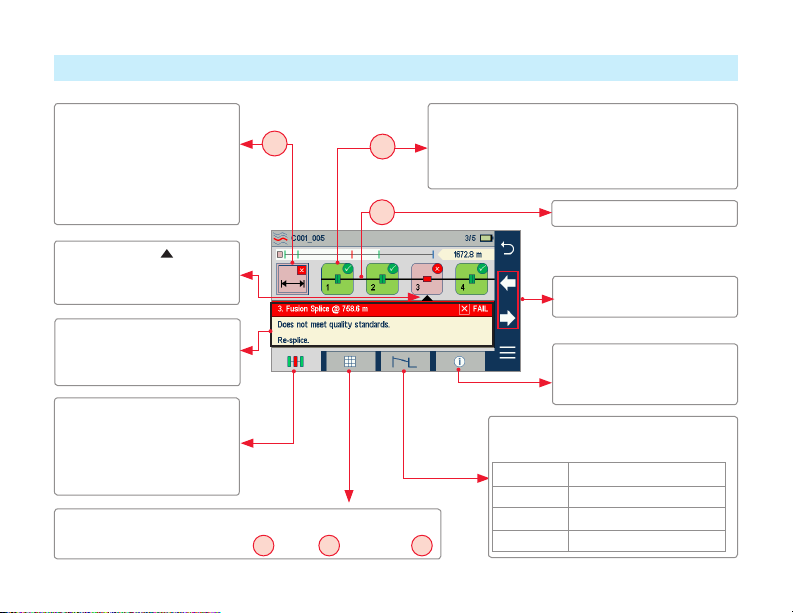

Link Summary icon: may be

green (all events passed), red

(one or more events failed,

but no major fault detected),

or black (one or more major

faults detected)

Link Section between events

Info tab: touch to display

summary of OTDR settings

used for this test

Event icon: event icons may be green (pass), red

(fail), or black (major fault). Pass/fail/major fault

is based on event loss and reectance thresholds

congured by the currently selected Pass/Fail Rule.

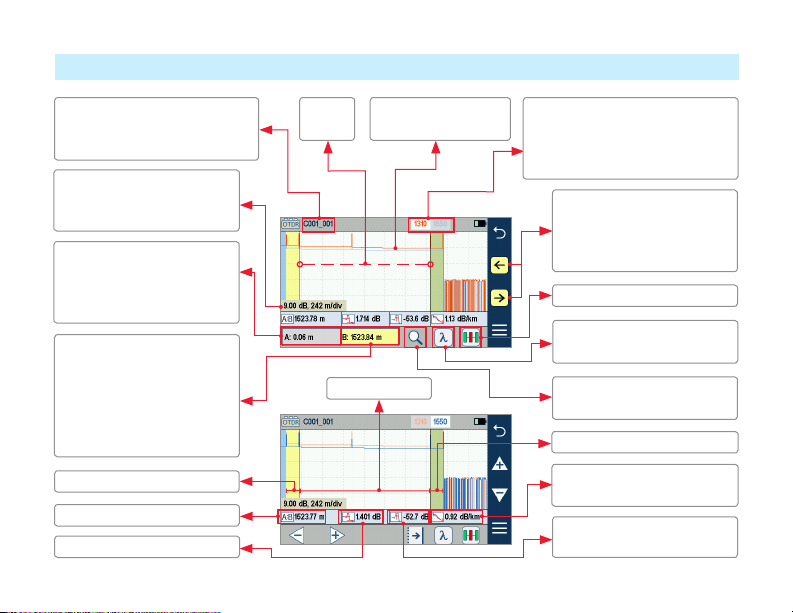

Expert and Real Time OTDR: Trace Display

Grid units display dB/div on

vertical axis and distance/div

on horizontal axis

File name: consists of cable

name and ber number, or “New

Trace” if le has not been saved

White background indicates

the currently selected (active)

wavelength. Cursor measurements

apply to active wavelength.

1310 nm trace is red;

1550 nm trace is blue

Receive cable (if present)

Launch cable (if present)

B cursor location (B is active).

• Yellow highlight indicates

the currently active cursor

• Touch the screen where

you want to reposition the

currently active cursor

Used for cursor position and

ne adjustments. Touch or

touch and hold arrows to

move the active cursor.

A cursor location (A is

inactive cursor). Touch non-

highlighted cursor box to

make the A cursor active.

Loss between A and B cursor

Loss-per-distance between A

and B cursors

Maximum Reectance

between A and B cursor

Touch to toggle active traces

(for multi-wavelength tests)

Distance from A to B cursor

Touch to enable and display

‘zoom control’ mode

Fiber under test

Touch to select LinkMap view

A and B

cursors

Expert and Real Time OTDR: Trace Display

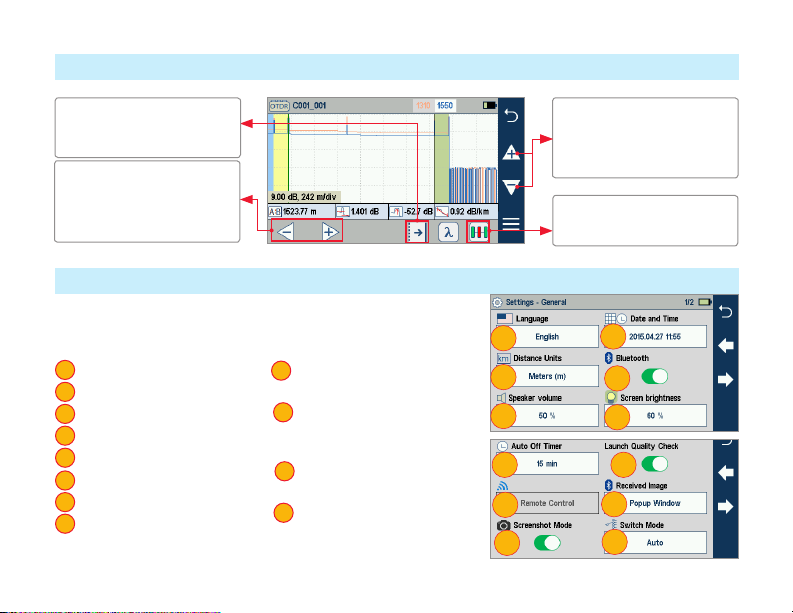

General Settings

While in the General Settings screen, touch the desired setting eld to

display a sub-menu and perform settings as follows:

1. Select Language

2. Select Distance Units

3. Set Speaker volume

4. Set Date and Time

5. Enable/congure Bluetooth

6. Set brightness and auto-dim

7. Set Auto Off Timer

8. Congure Remote Control

(future)

9. Enable/disable Launch

Quality Check

10. Display received FOCIS Flex

results in popup window or

save in background

11. If enabled, capture current

screen using Home key

12. Congure MPO Switch

Control (if Switch connected

and enabled)

Vertical zoom: Touch the up/

down arrow to zoom trace

view vertically around the

currently active cursor

Horizontal zoom: Touch the

right/left arrow to zoom trace

view horizontally around the

currently active cursor

Touch the cursor select key

to enable and display the

‘cursors control’ mode

11 12

Touch the LinkMap icon to

display the LinkMap view

Source Settings and Features

1. Touch to enable/disable light source. RED dot indicates that source is ON.

2. Touch to select test mode: Wave ID, CW, Tone (270 Hz, 330 Hz, 1 kHz, 2 kHz).

–Select Wave ID mode for fastest loss measurements.

While in this mode, the FlexScan source transmits wavelength information, enabling a Wave ID power meter

to synchronize and measure power at received wavelength(s).

–Use CW mode to generate continuous wave light at a single wavelength.

–Generate Tone for ber identication (270 Hz, 330 Hz, 1 kHz, 2 kHz).

3. Touch to select test wavelength: 1310, 1550 or 1650 nm (depending on model).

Power Meter Settings and Features

4. If used with non Wave ID source, touch to

select wavelength. If used with Wave ID source,

power meter automatically synchronizes to and

indicates received wavelength(s).

5. Hold to store new reference(s) at received

wavelength(s). Touch Ref/Set to view stored

reference(s).

6. Touch to toggle between power (in dBm or

Watts) and loss (dB) mode.

Note: Power meter detects and indicates ber

identifying tones when used with a light source

capable of generating a modulated Tone signal.

Light Source and Power Meter Operation

1 2 3

Source Meter

Altri manuali per FlexScan FS200 OTDR

Indice

Manuali Apparecchiature di prova popolari di altre marche

SMART

SMART KANAAD SBT XTREME 3G Series Manuale utente

Agilent Technologies

Agilent Technologies BERT Serial Manuale utente

Agilent Technologies

Agilent Technologies N3280A Manuale utente

Vernier

Vernier Go Direct Voltage Manuale utente

Lifeloc

Lifeloc R.A.D.A.R. Manuale utente

Fluke

Fluke T5-600 Istruzioni per l'uso e l'installazione

Mercury

Mercury TSL01 Manuale utente

MAHA

MAHA MBT Series Manuale utente

Fuji Electric

Fuji Electric P-61 Manuale utente

ETC

ETC SealerAtor Manuale utente

Skyfine

Skyfine ETHYWAY V2 Manuale utente

Appion

Appion G5 Twin Manuale utente

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuale utente

BW Technologies

BW Technologies MicroDock II Manuale utente

Sun Nuclear

Sun Nuclear 1027 Manuale utente

Biomark

Biomark HPR LITE READER Manuale utente

Hioki

Hioki 3169-20 Manuale utente

Ashcroft

Ashcroft ATE-100 Manuale utente
