Agilent Technologies InfinityLab 1290 Infinity II Manuale utente

Agilent InfinityLab

Evaporative Light Scattering Detectors

User Manual

Agilent InfinityLab ELSD User Manual

Notices

Document Information

Document No: D0013647 Rev. A

Edition: 08/2022

No part of this manual may be repro-

duced in any form or by any means

(including electronic storage and retrieval

or translation into a foreign language)

without prior agreement and written con-

sent from Agilent Technologies, Inc. as

governed by United States and interna-

tional copyright laws.

Warranty

The material contained in this document

is provided “as is,” and is subject to being

changed, without notice, in future edi-

tions. Further, to the maximum extent

permitted by applicable law, Agilent dis-

claims all warranties, either express or

implied, with regard to this manual and

any information contained herein, includ-

ing but not limited to the implied warran-

ties of merchantability and fitness for a

particular purpose. Agilent shall not be lia-

ble for errors or for incidental or conse-

quential damages in connection with the

furnishing, use, or performance of this

document or of any information con-

tained herein. Should Agilent and the user

have a separate written agreement with

warranty terms covering the material in

this document that conflict with these

terms, the warranty terms in the separate

agreement shall control.

Technology Licenses

The hardware and/or software described

in this document are furnished under a

license and may be used or copied only in

accordance with the terms of such

license.

Restricted Rights Legend

U.S. Government Restricted Rights. Soft-

ware and technical data rights granted to

the federal government include only

those rights customarily provided to end

user customers. Agilent provides this

customary commercial license in Soft-

ware and technical data pursuant to FAR

12.211 (Technical Data) and 12.212

(Computer Software) and, for the Depart-

ment of Defense, DFARS 252.227-7015

(Technical Data - Commercial Items) and

DFARS 227.7202-3 (Rights in Commer-

cial Computer Software or Computer

Software Documentation).

Safety Notices

CAUTION

A CAUTION notice denotes a

hazard. It calls attention to an

operating procedure, practice, or

the like that, if not correctly per-

formed or adhered to, could result

in damage to the product or loss

of important data. Do not proceed

beyond a CAUTION notice until

the indicated conditions are fully

understood and met.

WARNING

A WARNING notice denotes a

hazard. It calls attention to an

operating procedure, practice, or

the like that, if not correctly per-

formed or adhered to, could

result in personal injury or death.

Do not proceed beyond a WARN-

ING notice until the indicated

conditions are fully understood

and met.

Agilent Technologies

Hewlett-Packard-Strasse 8

76337 Waldbronn, Germany

Agilent InfinityLab ELSD User Manual 3

In This Book

This manual contains information on:

•Agilent 1260 Infinity II ELSD (G4260B)

•Agilent 1290 Infinity II ELSD (G7102A)

1 Introduction to the Detector

This chapter gives an introduction to the module, instrument overview, and internal

connectors.

2 Site Requirements and Specifications

This chapter provides information on environmental requirements, physical, and

performance specifications.

3 LAN Configuration

This chapter provides information on connecting the module to the control

software.

4UsingtheModule

This chapter explains the operational parameters of the ELSD.

5 Optimizing Performance

This chapter gives hints on how to optimize the performance or use additional

devices.

6Troubleshootingand Diagnostics

This chapter gives an overview about the troubleshooting and diagnostic features.

7 Error Information

This chapter describes the meaning of error messages, and provides information

on probable causes and suggested actions on how to recover from error

conditions.

Agilent InfinityLab ELSD User Manual 4

8 Maintenance

This chapter describes the maintenance of the ELSD.

9 Parts and Materials for Maintenance

This chapter provides information on parts for maintenance.

10 Appendix

This chapter provides addition information on safety, legal, and Web.

Agilent InfinityLab ELSD User Manual 5

Contents

1 Introduction to the Detector 7

Introduction to the ELSD 8

System Overview 9

2 Site Requirements and Specifications 16

Pre-installation Requirements 17

Site Requirements 18

Physical Specifications 21

Performance Specifications 23

3 LAN Configuration 27

What You Have to Do First 28

TCP/IP Parameter Configuration 29

PC and OpenLab CDS, OpenLab ChemStation or OpenLab EZChrom

Software Setup 36

4UsingtheModule41

Before Using the Detector 42

Instrument Controls 43

Operational Parameters 48

Controlling the ELSD During an Injection 52

Controlling the ELSD within OpenLab CDS, OpenLab ChemStation or

OpenLab EZChrom 54

General Considerations 55

5 Optimizing Performance 59

Do’s and Don’ts of ELS Detection 60

Location of the Detector Module 61

Pumping Systems 62

Mobile Phase Priming 63

Agilent InfinityLab ELSD User Manual 6

6 Troubleshooting and Diagnostics 64

Troubleshooting 65

Troubleshooting an HPLC System 66

General Problems 67

7 Error Information 74

What Are Error Messages 75

Module Specific Error Messages 76

8 Maintenance 83

Introduction to Maintenance 84

Cautions and Warnings 85

Cleaning the Module 87

Inspection of Cables 88

Drying the Diffuser 89

Cleaning the Nebulizer 90

Cleaning Evaporator Tube 91

Putting the Instrument into Storage 92

Updating Detector Firmware 93

9 Parts and Materials for Maintenance 98

Identifying Parts and Materials 99

10 Appendix 100

General Safety Information 101

Waste Electrical and Electronic Equipment (WEEE) Directive 105

Radio Interference 106

Agilent Technologies on Internet 107

Agilent InfinityLab ELSD User Manual 7

1 Introduction to the Detector

Introduction to the ELSD 8

System Overview 9

Basic Principles of Operation 9

Operational Parameters 12

Overview of ELS Detector 13

This chapter gives an introduction to the module, instrument overview, and

internal connectors.

1 Introduction to the Detector

Introduction to the ELSD

Agilent InfinityLab ELSD User Manual 8

Introduction to the ELSD

The Evaporative Light Scattering Detector is a unique and highly sensitive

detector for semi-volatile and non-volatile solutes in a liquid stream. It is mainly

used as a concentration detector for High Performance Liquid Chromatography

(HPLC). The solvent stream containing the solute material is nebulized and

carried by a gas flow through an evaporation chamber. The solvent is volatilized,

leaving a mist of solute particles that scatter light to a photosensitive device. The

signal is amplified and a voltage output provides the concentration of the solute

particles passing through the light.

The Agilent 1260 Infinity II ELSD or Agilent 1290 Infinity II ELSD may be used

alone, or as one of several detectors in a GPC or HPLC system. As the solvent or

eluent is evaporated during the analysis, the Agilent 1260 Infinity II ELSD or

Agilent 1290 Infinity II ELSD must be the last in series if used with other

detectors. If the Agilent 1260 Infinity II ELSD or Agilent 1290 Infinity II ELSD is

being used as the last detector in a series, care must be taken not to exceed the

recommended backpressure in detector cells in other units.

This manual instructs the user in the installation and operation of the Agilent

1260 Infinity II ELSD or Agilent 1290 Infinity II ELSD for standalone use and

control using Agilent OpenLab CDS, OpenLab ChemStation, or OpenLab

EZChrom.

Agilent InfinityLab ELSD User Manual 9

1 Introduction to the Detector

System Overview

Basic Principles of Operation

Nebulization

The eluent inlet is connected to the nebulizer via a short length of stainless steel

capillary tube. The incoming eluent stream passes through the heated nebulizer

and is mixed with the incoming nebulizer gas stream. The mixed gas and eluent

stream form an aerosol plume containing a uniform dispersion of droplets that

then passes as a continuous flow into the evaporator section. Any larger droplets

or the inefficiently nebulized droplets collect in the nebulizer chamber waste trap

and then drain off via the waste outlet into a collection bottle.

Evaporation

After nebulization, the atomized spray is propelled through the evaporation tube

assisted by the carrier gas. In the evaporator section, the solvent is removed

leaving a stream of dry particles of the analyte. A diffuser located in the

evaporator assists in the drying of the particles, acting as an efficient heat

exchanger, prevents ballistic particles reaching the scattering chamber and

randomizes the particle plume. The ELS Detector uses patented gas flow

technology in the evaporation zone to aid evaporation at low temperatures. By

adding a stream of dry nitrogen (evaporation gas) at the entrance of the

evaporator tube less volatile solvents (for example, water) are easily evaporated.

This evaporation gas is controlled by the user and facilitates subambient

operation.

1 Introduction to the Detector

System Overview

Agilent InfinityLab ELSD User Manual 10

Detection

Light in the optical chamber is passed through the instrument at right angles to

the direction of particle flow. A light trap is located opposite the source of light to

capture the transmitted incident beam eliminating internal reflections within the

instrument body. When pure solvent is being evaporated, only its vapor passes

through the light path and the amount of light scattered to the photomultiplier is

small and gives a constant baseline response. When a nonvolatile solute is

present a particle cloud passes through the light path, causing light to be

scattered. This scattered light enters the optical aperture of the detection system

and generates a signal response from the photodiode in real time. The quantity

of light detected depends on the solute concentration and solute particle size

distribution.

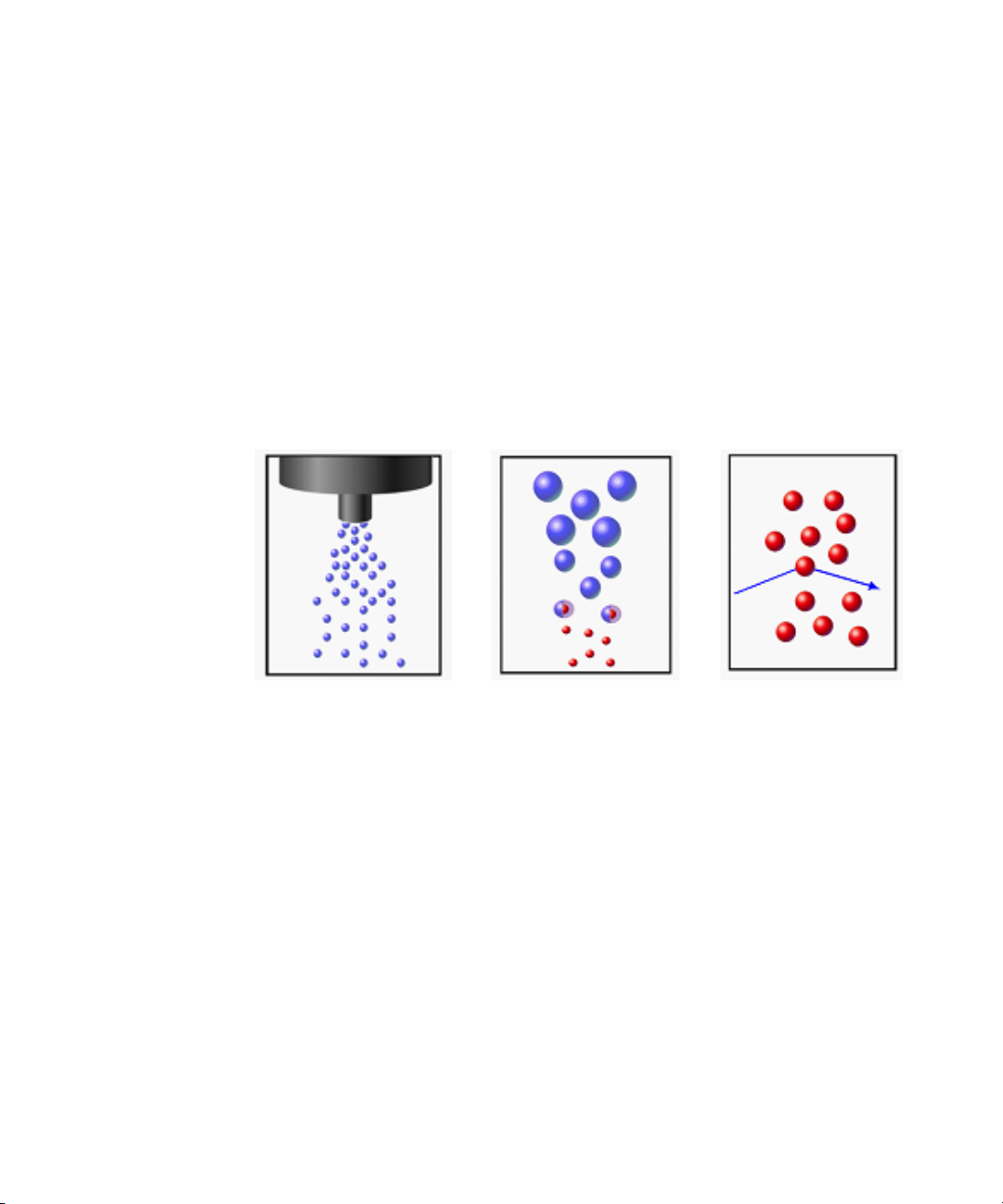

Figure 1 Principles of Operation

1. Nebulization 2. Evaporation 3. Detection

Indice

Altri manuali Agilent Technologies Sensore di sicurezza

Agilent Technologies

Agilent Technologies G3437A Manuale utente

Agilent Technologies

Agilent Technologies G3485A Manuale utente

Agilent Technologies

Agilent Technologies 1260 Infinity II Manuale utente

Agilent Technologies

Agilent Technologies 1260 Infinity Manuale utente

Agilent Technologies

Agilent Technologies G8610 Series Guida di riferimento

Agilent Technologies

Agilent Technologies G2334A Manuale utente

Agilent Technologies

Agilent Technologies 8355 Sulfur Manuale utente

Agilent Technologies

Agilent Technologies InfinityLab LC Series Manuale utente

Agilent Technologies

Agilent Technologies InfinityLab LC Series Manuale utente

Agilent Technologies

Agilent Technologies 1100 Series Manuale utente

Agilent Technologies

Agilent Technologies CrossLab CS Manuale utente

Agilent Technologies

Agilent Technologies 5977C Series Manuale utente

Agilent Technologies

Agilent Technologies 5973N Manuale

Agilent Technologies

Agilent Technologies G2621-64000 Manuale utente

Agilent Technologies

Agilent Technologies G1314B VWD Manuale utente

Agilent Technologies

Agilent Technologies 8355 Sulfur Manuale utente

Agilent Technologies

Agilent Technologies 355 SCD Manuale utente

Agilent Technologies

Agilent Technologies 1200 series Manuale utente

Agilent Technologies

Agilent Technologies VS C15 Series Guida

Agilent Technologies

Agilent Technologies G3388B Manuale di installazione

Agilent Technologies

Agilent Technologies 1200 Infinity Series Manuale utente

Agilent Technologies

Agilent Technologies 6820 GC Manuale utente

Agilent Technologies

Agilent Technologies PHD-4 Manuale utente

Agilent Technologies

Agilent Technologies 5973N Istruzioni operative

Manuali Sensore di sicurezza popolari di altre marche

THORLABS

THORLABS PDA10JT Manuale utente

Waeco

Waeco UV-DETECT Manuale utente

Intermatic

Intermatic IOS-DSIMF Manuale utente

urmet domus

urmet domus 1083 Manuale utente

Siemens

Siemens AZL66 Series Manuale utente

BTI

BTI Profiline Multi Finder Manuale utente

Challenger

Challenger SL01 Manuale utente

DMP Electronics

DMP Electronics 1122INT Manuale utente

Rielta

Rielta Ladoga MK-RK Manuale utente

Mirion Technologies

Mirion Technologies ACCURAD PRD Manuale utente

Bosch

Bosch DS835 Manuale utente

DBI SALA

DBI SALA EZ Stop Manuale dell'operatore

Lamptime

Lamptime ST05C Manuale utente

Ubiquiti

Ubiquiti MFI-MSC Manuale utente

Subsite

Subsite 910R Istruzioni per l'installazione

Satel

Satel OPAL Pro Manuale utente

Aleph

Aleph XC-1XTEU Manuale utente

Pima

Pima LARIS QUAD Manuale utente
