AGPtek A06 Manuale utente

AGPTekA06 Bluetooth Music Player

Quick Start Guide

Please contact us, when anything comes to your mind, we urge to turn this little thing into

the best music player in the world and in your hand. The player you receive is the latest

version, the way to set up Bluetooth is a bit different from the previous version，please

refer to the chapter 'Play by Bluetooth' for details.

Index

Quick guide.......................................................................................................3

Charging the Battery.........................................................................................4

Power On and Off.............................................................................................4

Play Your Music...............................................................................................5

Play by Bluetooth..............................................................................................7

Transfer files to your player..............................................................................8

Video and radio.................................................................................................9

Recording and E book.....................................................................................10

FAQ and Supports...........................................................................................11

Precautions......................................................................................................16

Quick guide

1. Plug Earphone into jack on bottom right of machine then turn power switch to on and

AGPtEK will show on screen.

2. Each time you push the button , it will bring you to one of its 11 different functions,

including Music, Video, Recordings, Pictures, FM Radio, EBook, Folder, Tools, Setting,

and Bluetooth and now playing.

3. Select the icon Music and push the button , a new list will appear showing the

following: All songs, update card data, artists, albums, genres, play lists, album art, local

folder and card folder.

4. Move to Local folder and Push the center button a new screen will appear showing:

Repeat all songs and list of songs if there is more than one song. Then push-(Center

button) on repeat all songs the first song will start playing.

Charging the Battery

1. Plug one end of the micro USB cable into the USB port of a computer or into the mains

plug.

2. Plug the other end of the

cable into the micro USB port

on your device.

3. When the device is fully

charged, disconnect the cable

from your device by pulling it straight outward.

Note: Please turn the slider to 'on' and it will let you know when it is fully charged.

(When the player is under charging and the slider is set to ‘off’, the player still shows it is

charging even your device is fully charged already.)

Power On and Off

You can turn your player on and off through the switch button and the central button

1. Turn the slider switch to on , the player will power up.

2. When the slider switch is turned to on, it will be turned on / off by pressing the center

button for three seconds.

3. When the player is on the song playing screen, press the button VOL and then press the

center button to turn off it. The next time you switch back on the player, it will start

from the last position it left off.

Note: If you cannot switch on the player, please check if you turn the switch to on.

Play Your Music

If the MP3 player is in music playing or FM radio interface, tap VOL button, and then

use left double arrow key to go back to main menu.

Hold the button M to lock the player and hold the button M again to unlock it.

Note: that you cannot fast forward or rewind under Bluetooth mode

1. Play mode

There are two play modes of this MP3 player: easy mode and normal mode. When the

player is on the song screen, it comes to easy mode by pressing the center button. The

MP3 player comes back to normal mode by pressing the center button again.

2. Volume control

In normal mode, press and hold VOL until the volume screen appears and then use M

and VOL to adjust the volume.

In easy mode, press M and VOL to adjust the volume.(Please press the VOL button

first to avoid locking your player)

Tap to show displays menu related

to playing music (Play Mode,

Sound Settings, Add to List,

Remove from List, Delete, and

Book Marks)

Hold the right key to fast

forward, tap to the next track

Hold the left key to fast rewind,

tap to the previous track

Tap the bottom Key and then

repeatedly tap the Left Key to get

back to Main Menu

Key’s function under music play screen

1. Shuffle and repeat

Shuffle

You can choose the song from “Music” or “Folder” to get into the music playing screen

and then push the button M, you will find the item “Shuffle” under “Play mode”.

Note: if you play the song through “Music”, it will only shuffle the songs in the folder

which your music is included. If you play the song through “Folder”, it will shuffle songs

by folder. In Bluetooth mode, the shuffle option only works in an individual folder, it will

shuffle each folder one by one. It cannot shuffle all the songs.

Repeat

You can repeat your songs from the music playing screen by pressing the button M>

“Play mode” > “Repeat”. The player would only play the first 10 seconds of a track and

then skip if you select option “View playing”.

Note: if you play songs through “Music”, it will only repeat in the folder which your

songs is included. If you play songs through “Folder”, it will repeat by folder with the

option “Repeat all”.

3. Resume playback

Press VOL to exist from the song screen and then push the center button for three

seconds to switch off the player, the next time you turn on the player it will start from

where you left off.

5. Back to another screen

Tap left double arrow key to return to last menu. If the MP3 player is in music playing or

FM radio interface, press VOL button, and then use left double arrow key to go back to

last menu. Long press center button to turn off/on the player.

Play by Bluetooth

1. Turn on your BT device and make sure it is under paring mode. Please kindly note

that for some Bluetooth speaker and lots of Bluetooth headphones, only when the

LED flash red and blue at the same time, it is under pairing mode.

2. Then access Bluetooth icon on the AGPtek MP3 player and the player will display

‘please wait’ and it comes to ‘Bluetooth device list’screen. The screen will be

indicated by moving dots, which means the player is searching Bluetooth device.

3. The Bluetooth device will show up on theAGPtek MP3 player a few seconds later. As

soon as it shows up on the player, select the device and select ‘Connect Bluetooth’,

then the player will display ‘please wait’ and ‘Bluetooth connected’. In Bluetooth

mode, the shuffle option only works in an individual folder, it will shuffle each folder

one by one. It cannot shuffle all the songs.

4. The next time you access Bluetooth icon on the MP3 player, it will automatically

connect with the previous paired device. (Make sure the previous paired device is

under pairing mode.

5. If the Bluetooth feature does not work on your player please contact us for help:

[email protected]om.

The player cannot playback OGG orAAC files when under Bluetooth mode.

Playlist is not supported under Bluetooth mode.

The workaround to shuffle all songs: Put all of our songs into one folder (Music) to

get the songs to shuffle when in Bluetooth mode.

Transfer files to your player

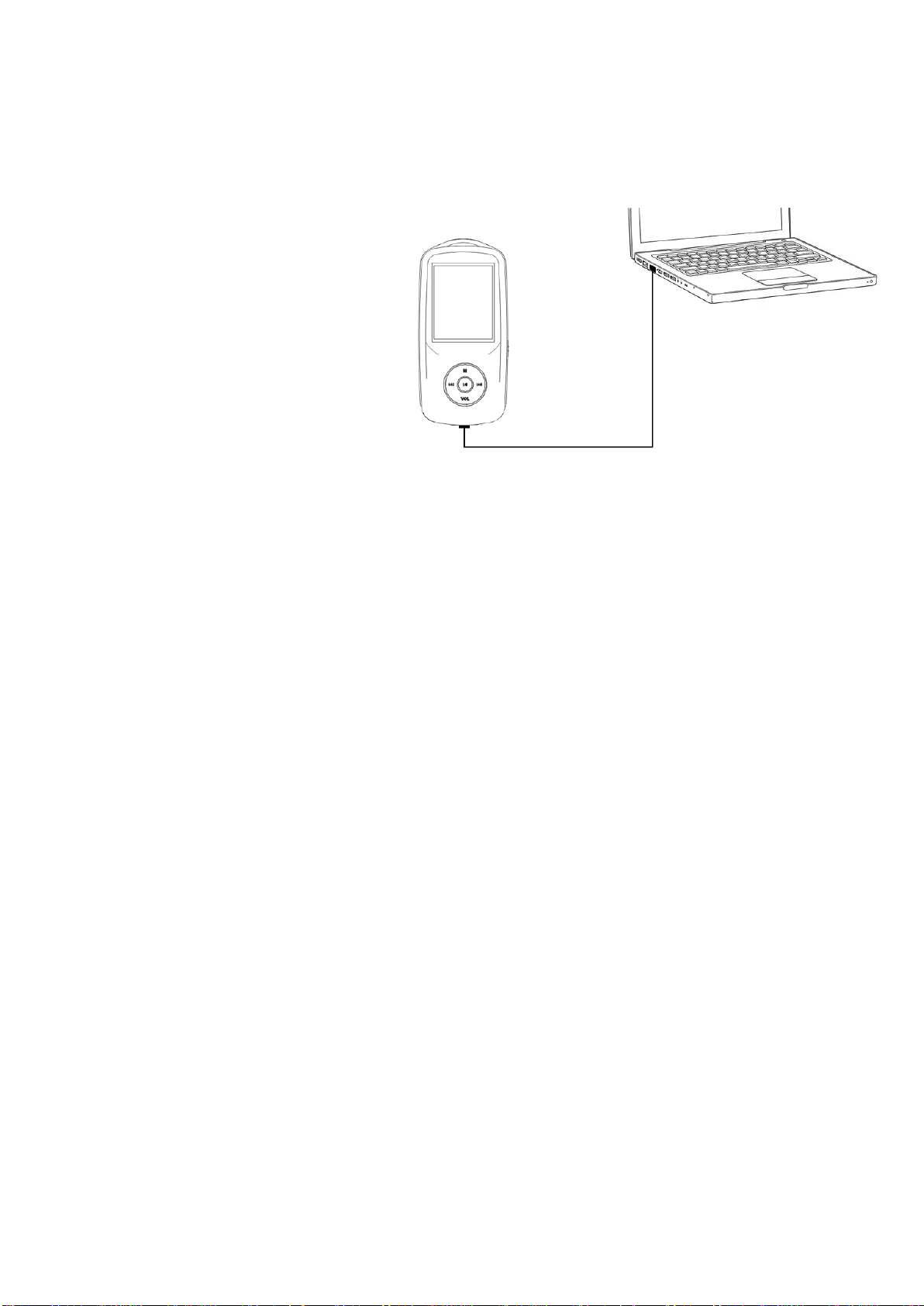

1. Connect it to the computer with the enclosed Micro USB cable, the MP3 player will

show up as a removable disk as soon as the computer recognize it and then just drag

files onto the MP3 player. If your computer cannot recognize the player, the enclosed

Micro USB lead may has problem please use another Micro USB lead to connect it to

your PC.

2. When the slider is "off" the unit will power up when connected to a USB port, and

then go dead when disconnected. Slide the switch of the opposite position it will

power up OK.

Note: if there is the “Disk error” showing for your

device, please connect your player with the computer,

and then format the disk with “exFAT” option.

Right-click your device on computer, and

then choose the item “Format” with

exFAT option

Video and radio

1. Video

Note: The product only support 160*128 video, you may convert video files to this format

by the tools included in the device.

To use the “am transform” included in the device

Install the program on your computer first, and press

the icon to choose the file you want to convert

on your computer, and choose the icon to put

the converted video in the file on yourA06 player.

Choose the icon to start convert, the bottom

will show the progress of converting for the icon , it will be ok until it showed 100%.

2. Radio

You can adjust the radio through “Manual tune” or “Auto tune”，press the button and

for rewind and forward search one by one, and long press the button for searching

Hold the right key to fast

forward, tap to the next

video.

Hold the left key to fast

rewind, tap to the previous

video

Tap the bottom Key and then

repeatedly tap the Left Key to

get back to Main Menu

automatically, then press the button to stop on the channel you like. Press the button

to start FM recording.

Please kindly note that you can only listen to mono radio station on this player!

Recording and E book

1. Recording

On main menu, press the central key to enter Record, start language record/record

library/record format/record setting/, press the central key to enter after choose.

Press VOL key and then choose “yes” to save the recording you want

2. E Book

On main menu, press the central button to enter E book function, Press the button and

to turn the page up/down. Please note it only supports “txt” format for your reading.

Please note: if you can’t read your txt document through E book, connect your player to

the computer, and then choose the file for the item “save as”, select the code as “UTF-8”
