Aim GPS09c Manuale utente
Quick Guide
GPS09c Open
Release 1.01
1
1 – The system
The GPS09c Open features three output streams:
•open CAN connection. Freely user configurable
•open RS232 connection. Freely user configurable
•AiM CAN connection. To be connected as expansion using the AiM CAN network
The Module comes with a 7 pins Binder 712 male connector whose pinout is shown here below.
2

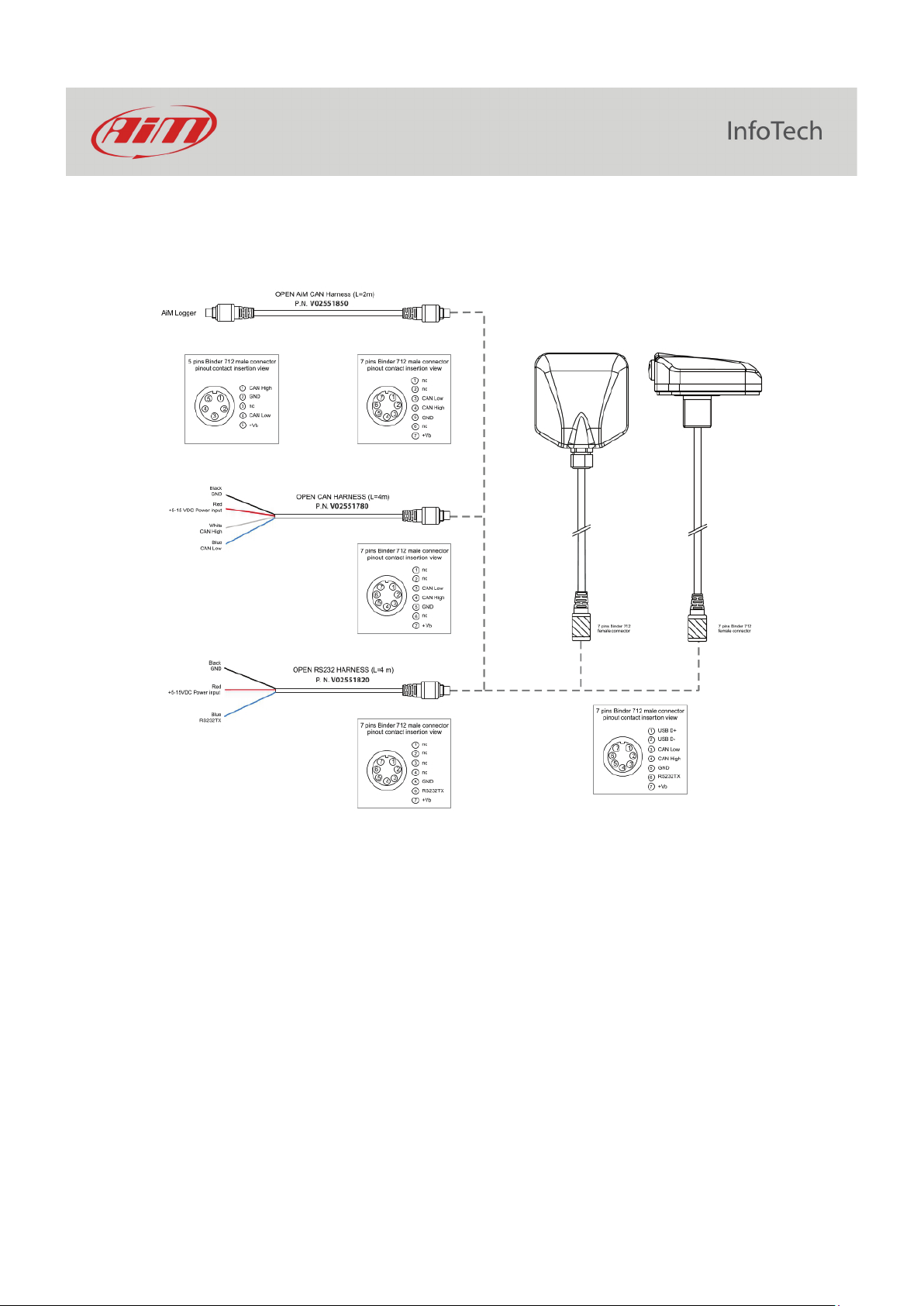

The module comes with a 7-pin connector, as shown in fig 1, to which you may connect the proper cable, in dependance upon the
connection you need to manage:
3
2 – Configuration
In order to configure GPS09c Open you need to connect it to your PC using the proper cable shown:
After having connected the GPS09C to your PC USB cable, you have to run our software RaceStudio3 and use the configuration manager
for configuring it.
4
2.1 – CAN Bus connection (default)
If you select the CAN Open stream, you may configure the CAN messages you need. It is possible to set the baud rate for the CAN bus
and, for every message:
•ID
•DLC (1- 8 bytes)
•Bye order (little endian, big endian)
•Message frequency (1-5-10-25 Hz)
The information the GPS09c Open may transmit in CAN are:
•
Altitude
•Latitude
•Longitude
•Sats number
•Pos Accuracy
•Speed Accuracy
•GPS Lateral acceleration
•GPS Linear acceleration
•GPS Heading
•GPS Yaw rate
•
GPS Hour
•GPS Min
•GPS Sec
•GPS Millisec
•Year
•Month
•Day
•Week number
•ITOW
•Unix Time
5
2.2 – RS232 Messages
If you set GPS09c Open in order to transmit an RS232 stream, it will transmit the standard NMEA messages.
It is of course possible to set all the parameters related to the RS232 protocol, and the frequency at which every message is transmitted.
The messages the system may transmit are:NMEA DTM
•NMEA DTM
•NMEA GBS
•NMEA GGA
•NMEA GLL
•NMEA GNS
•NMEA GRS
•NMEA GSA
•NMEA GST
•NMEA GSV
•NMEA RLM
•NMEA RMC
•NMEA VLW
•NMEA VTG
•NMEA ZDA
•NMEA TXT
The meaning of all these NMEA messages is described in www.nmea.org
6
2.3 – AiM CAN connection
In case you need to connect the device to an AiM CAN Network, you have to select AiM CAN Connection: the device is automatically
managed by the AiM dash or logger, so you don’t need to configure anything else.
