Airlink101 AWLL5099 Manuale utente
Quick Installation Guide
Wireless N 150 Ultra Mini USB Adapter
Model # AWLL5099
Install the Wireless USB Adapter
This Quick Installation Guide only provides the basic installation instructions.
For detailed instructions of other advanced features, please refer to the User’s
Manual that can be found on the provided CD.
For Macintosh users, you can find the software and installation instructions for
MAC 10.4, 10.5, 10.6 is under the MAC directory on the provided CD.
Step 1.1 Insert the USB adapter into an available USB port of your computer.

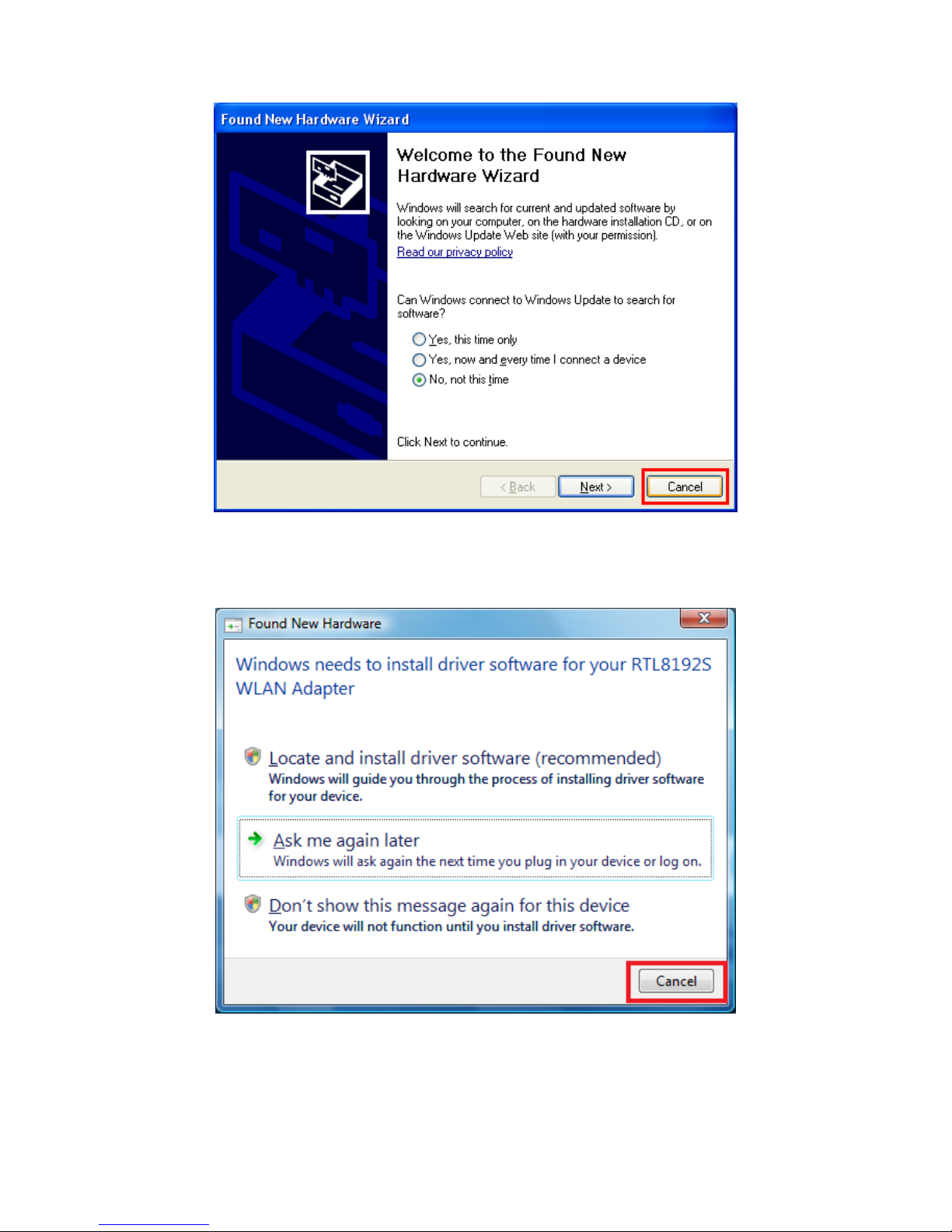

Step 1.2 Click Cancel when you see the Found New Hardware Wizard.
Section 1
Ver. 1.0
Package Contents:
•Wireless N 150 USB
Adapter
•Driver & Utility CD
•Quick Installation Guide
Windows XP/2000 Users:
Windows 7/Vista Users:

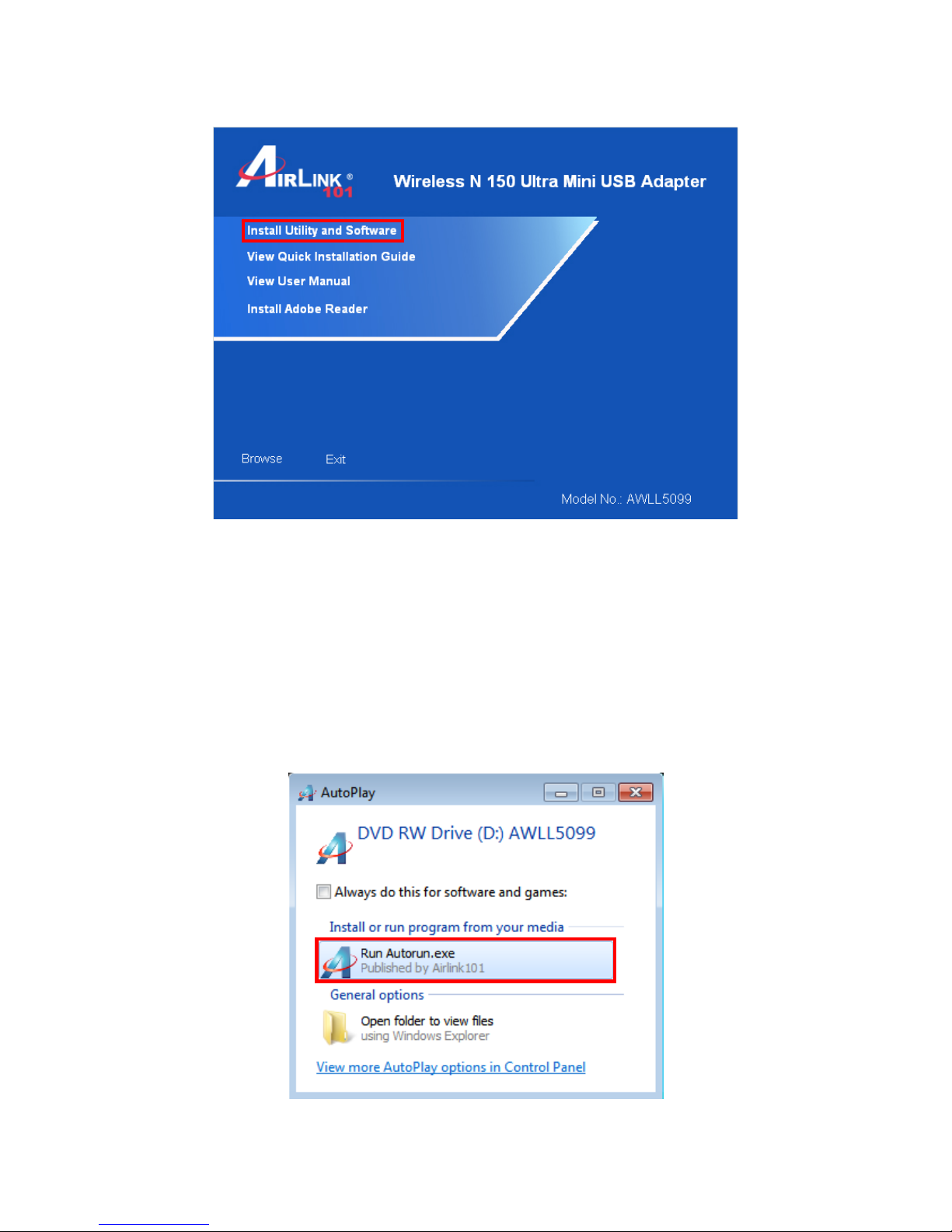

Step 1.3 Insert the Installation CD in the CD ROM drive. The Autorun screen
will pop up. Select Install Utility and Driver from the menu.
Note: If the Autorun screen doesn’t appear automatically, go to Start, Run, and
type D:\Utility\Setup.exe (where D is the letter of your CD ROM drive) and
click OK.
Windows 7/Vista Users:When you get warning message(s), make sure that
you give permission to continue with the installation of the driver software.
Step 1.4 The AutoPlay screen will popup. Click Run Autorun.exe on the
screen.
Step 1.5 Click Next to begin the installation.
Please wait for Windows to finish installing the Airlink101 Wireless Monitor and
driver for Airlink101 Wireless Adapter, and the utility.
Step 1.6 Select Yes, I will restart my computer now. Click Finish to
complete the installation.
The driver and utility have been installed. Please continue to Section 2.
Connect to Wireless Network
Step 2.1 Click on the wireless icon in the system tray at the bottom right-hand
corner of your screen. Airlink101 Wireless Monitor screen will popup. Click on
Available Network tab, a list of available network will be shown.
Section 2
Step 2.2 Then, select the one you want to connect to and click Connect.
Step 2.3 Enter the network security key if the wireless network you are
attempting to connect has wireless encryption enabled. Click OK. The
connection should be now established.
Step 2.4 The Easy Setup Button(WPS compatible button) is a new and easy
way to configure the encryption for your wireless network clients, it is Wi-Fi
compatible. In order to use it, you need to have a router that supports this
feature. If your router doesn’t support WPS compatible function, continue to
Step 2.5.
1. Push the Easy Setup Button of the Adapter until you see the following
window pops up on the monitor.
This window pops up to acknowledge you that the Adapter is starting to
establish a connection.
2. Push the Easy Setup Button (WPS compatible button) of the Router. The
following picture shows Airlink101 AR675W Wireless N Green Router.
3. The router will now start the handshake with the wireless Adapter. The
connection will be established in 2 minutes. Notice that there are cases that
the WPS button on the router to be pushed first before pushing the one on
the adapter. Continue to Step 2.7. If the connection is not able to establish,
continue to Step 2.5.
Step 2.5 Click the Available Network tab of the Wireless Monitor, select the
SSID (Network Name) of the wireless network that you wish to connect to, and
click Add to Profile.
If the network that you are attempting to connect does not have encryption
enabled, you will receive a warning about connecting to an unsecured network.
Click OK to complete the connection.
Step 2.6 Enter the wireless security key into the Network Key box if the
network you are attempting to connect has wireless security enabled. Click OK.
The Adapter will automatically detect the type of Network Authentication and
the Data encryption. All you need to do is to enter the Network Key in the
appropriate boxes according to the settings of the wireless router and then click
OK to connect.
Step 2.7 The connection should be now established. Open Airlink101 Wireless
Monitor utility by double clicking the icon on the system tray and go to General
tab to check the status of the connection. Verify that IP Address, Subnet Mask
and Gateway have valid numbers assigned to them (instead of all 0’s). The
Status should be Associated, and there should be green bars next to Signal
Strength and Link Quality.
Congratulations! You have now connected to the wireless network
successfully.
