Akai AHC1600 Manuale utente

English: AHC1600

Index

1. Safety

o1.1. Intended use

o1.2. Labels in this manual

o1.3. General safety instructions

2. Preparations for use

3. Installation

4. Functions

5. Operation

6. Cleaning and maintenance

7. Technical data

8. Disposal of used electrical and electronic equipment

Safety

Intended use

The DVD Micro System plays music from CDs and music, videos and photos from DVDs and USB.

The appliance also plays photos from Kodak picture CDs. Read the manual carefully before the first

use.

DVDs and DVD appliances are manufactured under the worldwide agreed DVD regional code system

that the appliance will operate only with corresponding disc of the same regional code. If the code

number on the label of a DVD does not match that on the label alongside, the DVD will not play on this

appliance.

The appliance has built in copyright protection technology that prevents copying from a disc to any

media. If a video recorder is connected to the appliance, the video output image will be distorted

during recording.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are

The product complies with Kodak picture CD format and will display Kodak picture CDs. The "KODAK

Picture CD Compatible" logo is a trademark of Eastman Kodak Company and is used with permission.

Because of the great variety of products with USB ports and their sometimes quite manufacturer-

specific functions we can neither guarantee that all devices will be recognised, nor that all operating

options that are possible in theory will actually work.

Labels in this manual

WARNING A warning means that injury or death is possible if the instructions are not obeyed.

CAUTION A caution means that damage to the equipment is possible.

A note gives additional information, e.g. for a procedure.

General safety instructions

WARNING Do not put force on the appliance. The appliance can fall and can cause serious injury.

CAUTION Do not spill any liquid on the appliance.

WARNING Do not insert any objects in the ventilation holes.

CAUTION Do not block the ventilation holes.

This appliance is double insulated; therefore no earth wire is required. Always check that the mains

voltage corresponds to the voltage on the rating plate.

This appliance employs a laser system. To prevent direct exposure to the laser beam, do not open the

appliance. Visible laser radiation when open and interlock defeated.

Preparations for use

Unpacking

Unpack the appliance carefully.

Check the package contents as described below. If any item is missing, please contact your

reseller.

Remove the labels from the front panel carefully if present.

We recommend that you retain the original carton and packing materials in case it ever becomes

necessary to return your product for service. This is the only way to safely protect the product against

damage in transit. If you do dispose of the carton and the packing materials, please remember to

recycle with due care to the environment.

Package contents

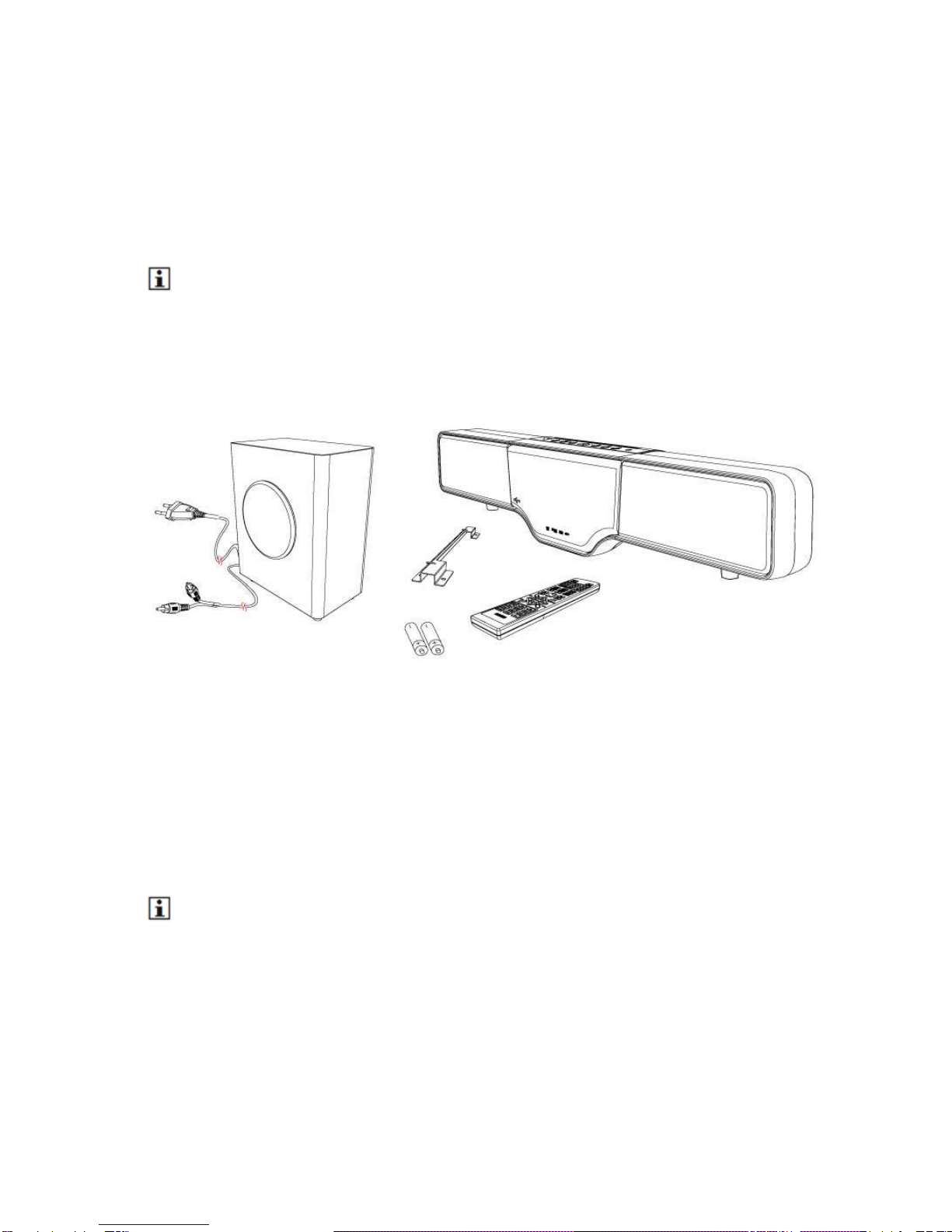

The following items are included in the received package:

1 x Quick start guide

1 x Wall bracket

1 x Subwoofer

1 x DVD Micro System

2 x Speaker

1 x Remote control

2 x Batteries (AAA)

If any item is missing, please contact your reseller.

Installation

Install batteries

Remove the battery cover.

Insert the batteries matching the (+) and (-) polarity markings.

CAUTION Incorrect installation can cause battery leakage and corrosion which will damage the

appliance. Corrosion, oxidation, battery leakage and any other gradually acidic defect of this

nature will invalidate the guarantee.

Connecting the system

Connect the speakers to the appliance.

Connect the subwoofer to the appliance.

Connect the appliance to the mains.

Connect the tv

Use one of the two cables for this

Please note:

Cables are not included

Functions

Remote control

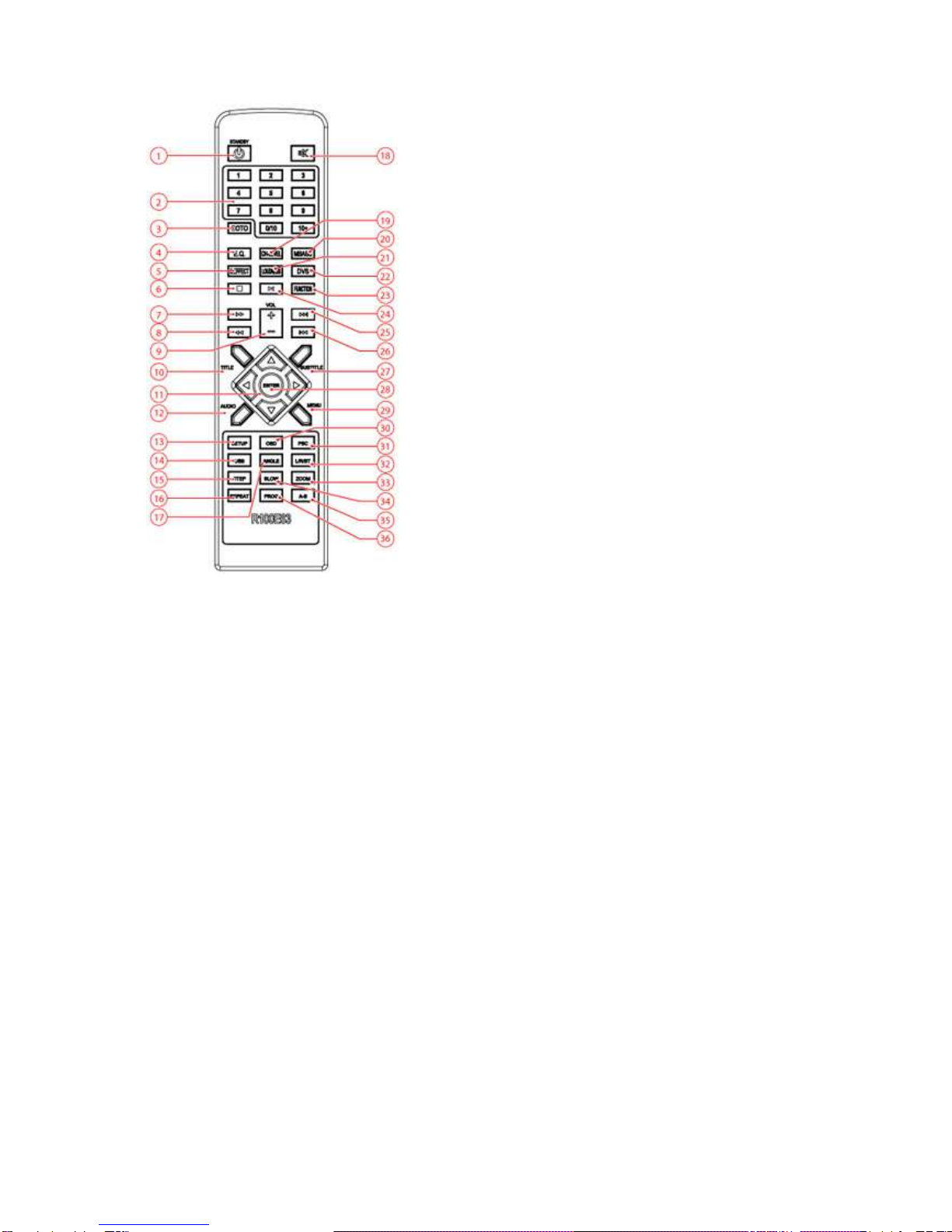

1. STANDBY button

2. Digit buttons

3. GOTO button

4. EQUALIZER button

5. S.EFFECT button

6. STOP button

7. FAST FORWARD button

8. FAST REWIND button

9. VOLUME button (+/-)

10. TITLE button

11. Arrow buttons

12. AUDIO button

13. SETUP button

14. USB button

15. STEP button

16. REPEAT button

17. ANGLE button

18. MUTE button

19. CH-LEVEL button

20. MBASS button

21. LOUDNESS button

22. DVS button

23. FUNCTION button

24. PLAY/ PAUSE button

25. NEXT button

26. PREVIOUS button

27. SUBTITLE button

28. ENTER button

29. MENU button

30. OSD button

31. PBC button

32. L/R/ST button

33. ZOOM button

34. SLOW button

35. A-B REPEAT button

36. PROGRAM button

Radio 7/8.

SEARCH (+/-) button 10.

RDS button 12.

MEMORY button

24/25. RADIO (+/-) button

26. AUTO button

28. MO/ST button

ASB90i soundbox

1. Loudspeaker

2. USB slot

3. PORT INPUT

4. STANDBY

5. SOURCE

6. STOP

7. VOLUME +/-

8. PREVIOUS

9. PLAY/PAUSE

10. NEXT

11. OPEN

12. DC INPUT (25V)

13. FM ANTENNA

14. SUBWOOFER OUTPUT

15. AUX INPUT

16. L/R AUDIO OUTPUT

17. COMPOSITE VIDEO OUTPUT

18. HDMI OUTPUT

Operation

All functions of the appliance are accessible using the remote control. All instructions refer to operation

with the remote control, unless indicated otherwise.

Quick start

General functions

Set the appliance in the standby mode.

To switch on the appliance, press the STANDBY button (1). To switch back to the standby mode,

press the STANDBY button (1) again.

Use the FUNCTION (23) key to select AUX IN, DVD, PORT-IN or RADIO.

To adjust the volume, press the VOL + button or the VOL - button (9).

To mute or restore sound, press the MUTE button (18).

DVD/CD functions

Switch on the appliance. Select the DVD mode.

Place a disc in the disc tray Press the OPEN button (on the appliance) to open the disc tray.

The display shows the total number of tracks on the CD.

To start playback, press the PLAY/PAUSE button (24) once.

For extended instructions, read the paragraph â€œDVD/CD functionsâ€ • further on in this

manual.

USB functions

Switch on the appliance.

Insert the USB device in the slot . The device can only be connected one way.

Select DVD mode.

Press the USB button (14).

To start playback, press the PLAY/PAUSE button (24) once.

For extended instructions, read the paragraph â€œUSB functionsâ€ • further on in this manual.

AUX in

Select AUX mode.

Use the FUNCTION (23) key for this.

Connect the external appliance to your AHC1600.

General setup menu operation

This chapter explains a complete setup of the appliance: settings of screen display, audio setup and

video setup.

General settings menu

To change the initial settings

The following actions have to be carried out with the remote control.

Press the SETUP button (13).

Press the arrow buttons (left and right) (11) to select a menu. The submenu is displayed directly.

Press the arrow buttons (up and down) (11) to scroll through the submenu.

Press the ENTER button (28) to select a setting, or the left arrow button to cancel the selection.

Press the SETUP (13) button to store the settings and exit.

Picture format

In the TV DISPLAY section, press the arrow buttons (11) to select 4:3 NORMAL/PS or NORMAL/LB

for a conventional TV set. Select WIDE for a wide screen TV set.

OSD LANG

In the OSD LANG section, press the arrow buttons to choose the language.

Screensaver on/off.

The screensaver will be turned on automatically when there is no picture.

last memory: on/off

When the DVD is paused, playback will automatically resume from where last stopped.
