Akai AMD350 Manuale utente
AMD350 Manual
Index
1. Intended use
2. Safety
o2.1. Labels in this manual
o2.2. General safety instructions
3. Preparations for use
o3.1. Unpacking
o3.2. Package contents
4. Installation
o4.1. Install batteries
o4.2. Connecting the system
o4.3. Connecting random equipment
o4.4. Connecting to the mains
5. Functions
o5.1. Remote control
o5.2. AMD350 Microset
6. Operation
o6.1. Quick start
o6.2. General setup menu operation
o6.3. Clock functions
o6.4. DVD/CD functions
o6.5. Radio functions
o6.6. USB functions
o6.7. AUX IN
o6.8. iPad/ iPhone/ iPod functions
o6.9. Operation with BLUETOOTH
7. Cleaning and maintenance
o7.1. Handle and care of a disc
8. Technical data
9. Disposal of used electrical and electronic equipment
1.Intended use
The DVD Microset plays music from CDs and music, videos and photos from DVDs and USB. The
appliance also plays music from iPad/iPhone/iPod. The Microset can be controlled by bluetooth. Read
the manual carefully before the first use.
DVDs and DVD appliances are manufactured under the worldwide agreed DVD regional code system
that the appliance will operate only with corresponding disc of the same regional code. If the code
number on the label of a DVD does not match that on the label alongside, the DVD will not play on this
appliance.
The appliance has built in copyright protection technology that prevents copying from a disc to any
media. If a video recorder is connected to the appliance, the video output image will be distorted
during recording.
Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are
trademarks of Dolby Laboratories. Confidential unpublished works. Copyright 1992-1997 Dolby
Laboratories. All rights reserved.
Because of the great variety of products with USB ports and their sometimes quite manufacturer-
specific functions we can neither guarantee that all devices will be recognised, nor that all operating
options that are possible in theory will actually work.
2.Safety
2.1. Labels in this manual
WARNING A warning means that injury or death is possible if the instructions are not obeyed.
CAUTION A caution means that damage to the equipment is possible.
A note gives additional information, e.g. for a procedure.
2.2. General safety instructions
WARNING Do not put force on the appliance. The appliance can fall and can cause serious injury.
CAUTION Do not spill any liquid on the appliance.
WARNING Do not insert any objects in the ventilation holes.
CAUTION Do not block the ventilation holes.
This appliance is double insulated; therefore no earth wire is required. Always check that the mains
voltage corresponds to the voltage on the rating plate.
This appliance employs a laser system. To prevent direct exposure to the laser beam, do not open the
appliance. Visible laser radiation when open and interlock defeated.
3.Preparations for use
3.1. Unpacking
Unpack the appliance carefully.
Check the package contents as described below. If any item is missing, please contact your
reseller.
Remove the labels from the front panel carefully if present.
We recommend that you retain the original carton and packing materials in case it ever becomes
necessary to return your product for service. This is the only way to safely protect the product against
damage in transit. If you do dispose of the carton and the packing materials, please remember to
recycle with due care to the environment.
3.2. Package contents
The following items are included in the received package:
1 x AMD350 DVD Micro System
2 x Speaker
1 x Remote control
2 x Batteries (AAA)
1 x A/V cable
2 x speaker wire
If any item is missing, please contact your reseller.
4.Installation
4.1. Install batteries
Install batteries
Remove the battery cover.
Insert the batteries matching the (+) and (-) polarity markings.
CAUTION Incorrect installation can cause battery leakage and corrosion which will damage the
appliance. Corrosion, oxidation, battery leakage and any other gradually acidic defect of this nature
will invalidate the guarantee.
4.2. Connecting the system
Connect the speakers to the appliance.
4.3. Connecting random equipment
Connect the tv
Use one of the cables as presented in the image below.
To connect the aerial to the appliance:
Insert an FM aerial or a suitable cable into the connection.
4.4. Connecting to the mains
Connect the appliance to the mains.
Switch on the appliance.
5.Functions
5.1. Remote control
1. STANDBY button
2. Digit buttons
3. GOTO button
4. USB button
5. DISK button
6. AUX button
7. SLOW button
8. PLAY/ PAUSE button
9. STOP button
10. PREVIOUS button
11. ENTER button
12. Arrow buttons
13. SETUP button
14. SUBTITLE button
15. TITLE button
16. REPEAT button
17. BASS button
18. A-B button
19. EQ button
20. OPEN/ CLOSE button
21. CLOCK button
22. TIMER button
23. PROG button
24. SLEEP button
25. TUNER button
26. DOCK button
27. MUTE button
28. OSD/RDS button
29. VOLUME button (+/-)
30. MENU button
31. ANGLE button
32. ZOOM button
33. AUDIO button
34. DIM button
35. SHUFFLE button
36. SURROUND button
By pressing the button EQ (19) the desired music mode (POP/JAZZ/ROCK/CLASSIC/FLAT) can
by selected.
Press the button DIM (35) to select the brightness level.

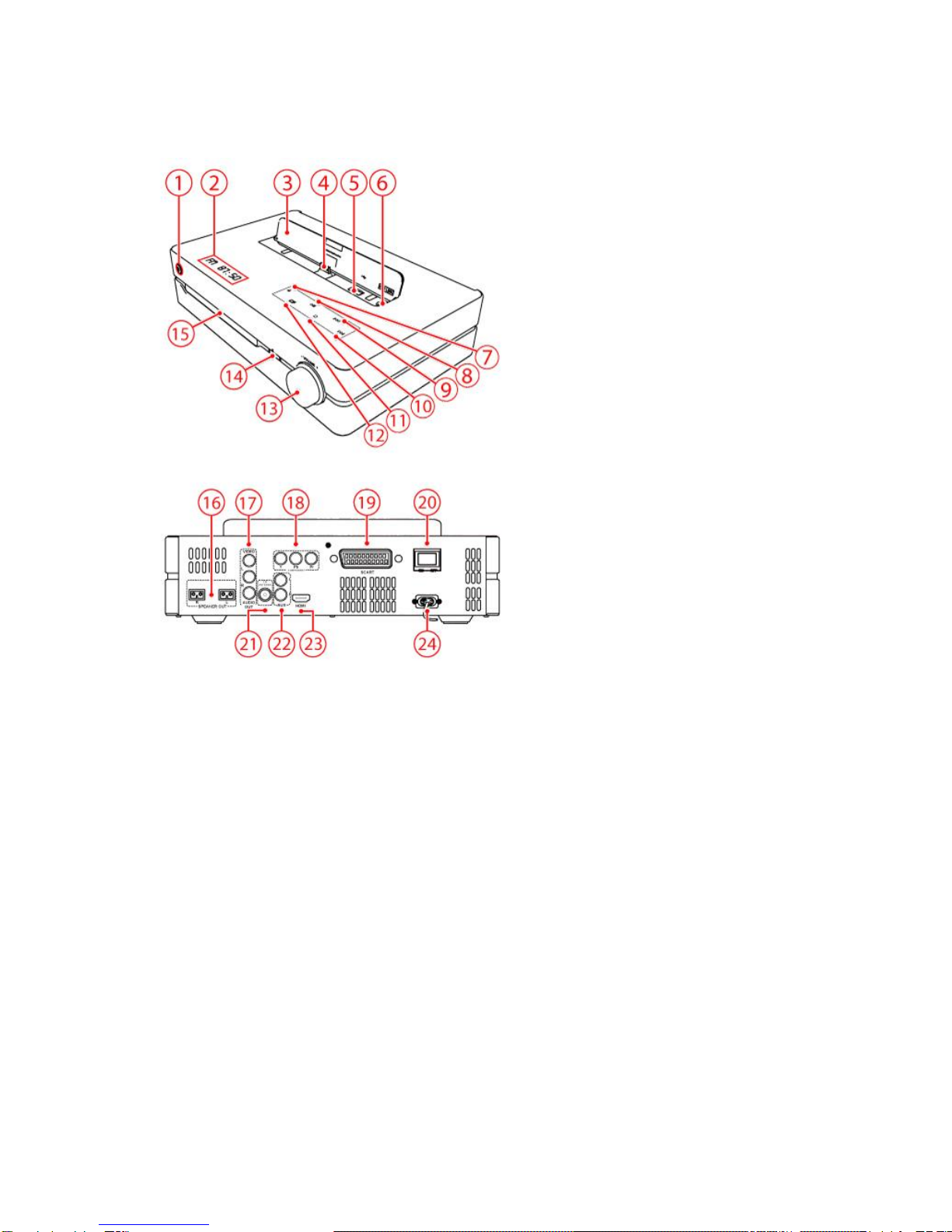

5.2. AMD350 Microset
1. POWER/ STANDBY
2. DISPLAY
3. Docking cover
4. iPad/ iPhone/ iPod dock
5. USB 2.0 slot
6. AUX jack: 3.5 mm
7. EJECT
8. PLAY/ PAUSE
9. PREVIOUS
10. NEXT
11. STOP
12. SOURCE
13. VOLUME +/-
14. iR SENSOR
15. DVD tray
16. Connection to speakers
17. AV OUT
18. COMPONENT
19. SCART
20. ON/ OFF
21. FM ANTENNA
22. AUX IN
23. HDMI
24. AC~ POWER
