Albatron PX865PEC PRO(2.0) Manuale utente

PX865PEC PRO(2.0)

All rights are reserved. No part of this publication may be reproduced, transmitted, transcribed,

stored in a retrieval system or translated into any language or computer language, in any form or by

any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the

prior written permission of the company. Brands and product names are trademarks or registered

trademarks of their respective companies.

The vendor makes no representations or warranties with respect to the contents herein and especially

disclaim any implied warranties of merchantability or fitness for any purpose. Further the vendor

reserves the right to revise this publication and to make changes to the contents herein without

obligation to notify any party beforehand. Duplication of this publication, in part or in whole, is not

allowed without first obtaining the vendor’s approval in writing.

Disclaimer

We make no warranty of any kind with regard to the content of this user’s manual. The content is

subject to change without notice and we will not be responsible for any mistakes found in this user’s

manual. All the brand and product names are trademarks of their respective companies.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits of a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. Operation of this equipment in a residential area

is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense. However, there is no guarantee that interference will not occur in a

particular installation.

Ver: EG102

Things You have to know !!!

0The images and pictures in this manual are for reference only and may

vary slightly from actual product installation depending on specific

hardware models, third party components and software versions.

0Unplug any power connector when installing components and

configuring switches and pins on the mainboard.

0This mainboard contains very delicate IC chips. Use a grounded wrist

strap when working with the system.

0Do not touch the IC chips, leads, connectors or other components.

0Unplug the AC power when you install or remove any device on the

mainboard.

Packing List

PX865PEC PRO(2.0) mainboard

FDD Cable

HDD Cable

Rear I/O panel for ATX case

S/PDIF & USB Cables (optional)

SATA Cable (optional)

Mainbaord Setup Driver CD

Mainboard User Manual CD

Mainboard Quick Installation Guide (Optional)

Symbols

Attention …

Following the procedures …

Troubleshooting …

Please refer to …

PX865PEC PRO(2.0)

Intel® 865PE & ICH5

Supports Socket 478 Intel®Pentium®4 Processor

User Manual

Enabling the Hyper-Threading Technology, your computer system is

required as the following components:

zCPU: An Intel®Pentium® 4 Processor with HT Technology

zChipset: An Intel® Chipset that supports HT Technology

zBIOS: A BIOS that supports HT Technology and has it enabled

zOS: An operating system that supports HT Technology

For more information on Hyper-Threading Technology, go to:

http://www.intel.com/info/hyperthreading

Dimensions (ATX form-factor):

¾294mm x 225mm (WxL)

Operating System

¾Windows®XP/ 2000

Contents

CHAPTER 1. GETTING STARTED ............................................................1

INTRODUCTION..........................................................................................................1

SPECIFICATION..........................................................................................................2

CONFIGURATION .......................................................................................................5

Layout of PX865PEC PRO(2.0).........................................................................5

HARDWARE INSTALLATION ......................................................................................6

CPU Processor Installation.................................................................................6

Memory Installation............................................................................................7

Back Panel Configuration...................................................................................9

Front Panel Headers Indication .................................................................................11

Connectors........................................................................................................13

Headers & Jumpers...........................................................................................14

Audio Connectors.............................................................................................16

Slots ..................................................................................................................17

Power Supply Attachments...............................................................................18

APPENDIX I: SUPER 5.1 CHANNEL AUDIO EFFECT SETUP .......................................19

Chapter 1. Getting Started

Introduction

Thanks for choosing the PX865PEC PRO(2.0) mainboard! It is based on the 865PE Northbridge

chipset and the ICH5 Southbridge chipset. It supports Intel®Pentium®4 (Northwood/ Prescott)

Processors with FSB (Front Side Bus) 800/533/400 MHz.

The PX865PEC PRO(2.0) mainboard provides 4 sockets using 184-pin DDR SDRAM with a total

capacity of up to 4GB. You can install unbuffered & non-ECC DDR400/ 333/ 266 (PC3200/ 2700/

2100) SDRAM.

The PX865PEC PRO(2.0) mainboard provides one x8 AGP Slot with AGP 3.0 specification and five

32-bit PCI Slots.

The PX865PEC PRO(2.0) mainboard includes two built-in IDE facilities that support Ultra ATA

33/66/100 BMIDE and PIO Modes. It also includes two built-in Serial ATA facilities that support a

transfer rate to 150 Mbps.

The PX865PEC PRO(2.0) mainboard comes with an AC’97 Sound Codec (ALC655) which supports

high quality 6 channels audio function (Super 5.1 Channel Audio Effect). It also supports Sony/

Philips Digital Interface (S/PDIF) function (SPDIF-OUT function is onboard, but SPDIF-IN function

is an optional facility).

The PX865PEC PRO(2.0) mainboard also supports to set maximal eight USB 2.0 ports.

Moreover, the PX865PEC PRO(2.0) mainboard comes with a LAN chip which provides the back

panel LAN port capable with 10/ 100 Mbps transfer rate.

All of the information in this manual only for reference. This specification is subject to change

without notice.

Specification

CPU:

zSupport Socket 478 Intel®Pentium®4 processor (Northwood/ Prescott)

zSupport Hyper Threading Technology

Chipset:

zNorthbridge Chip (MCH) – Intel®865PE

zSouthbridge Chip (ICH) – Intel®ICH5

zI/O Controller – ITE IT8712F

zAC’97 Audio Codec – ALC655

zLAN Controller – RTL8100C

DRAM Memory:

zSupport DDR400 (PC3200)/ 333 (PC2700)/ 266 (PC2100) SDRAM

zSupport 64 MB/128 MB/256 MB/512 MB/1 GB unbuffered & non-ECC DDR memory

modules

zSingle channel DDR400 memory modules support a bandwidth of 3.2 GB/s

zDual channel DDR400 memory modules support a bandwidth of 6.4 GB/s

zSupport only x8 or x16 DDR devices with four banks

zSupport a total memory capacity of 4 GB

BUS Slots:

zSupport one x8 AGP slot (AGP3.0 Specification)

zSupport five 32-bit PCI slots

IDE Facilities:

zSupport two IDE Slots

zSupport Ultra ATA 33, Ultra ATA 66, and Ultra ATA 100 with BMIDE and PIO modes

zSupport high capacity hard drive disks

Serial ATA Facility:

zCompatible with SATA 1.0

zSupport Serial ATA 150MB/sec transfer rate

AC’97 Sound Codec Onboard:

zHigh performance CODEC with high S/N ratio (>90 dB)

zCompliant with AC’97 2.3 specification

zSupport 6-channel playback capability (Super 5.1 Channel Audio Effect)

zSupport 3D Stereo enhancement

zSupport Sony/ Philips Digital Interface (S/PDIF) function

LAN Chip onboard:

z10/100 Mbps Ethernet supported

I/O facilities:

zOne Multi-parallel Port capable of supporting the following specifications:

1. Standard & Bi-direction Parallel Port

2. Enhanced Parallel Port (EPP)

3. Extended Capabilities Port (ECP)

zSupport two serial ports

zSupport PS/2 mouse and PS/2 keyboard

zSupport 360 KB, 720 KB, 1.2 MB, 1.44 MB, and 2.88 MB floppy drive disks

Universal Serial Bus:

zSupport up to eight USB 2.0 ports for USB interface devices

BIOS:

zPhoenix-Award™ BIOS

zSupports APM1.2

zSupports ACPI power management

Green Functionality:

zSupport Phoenix-Award BIOS ™ power management functionality

zSystem wake up from power saving sleep mode by touching any keyboard or mouse

Hardware Monitor Function:

zMonitor CPU and all fan speeds

zMonitor CPU temperature and system voltage

Watch Dog Timer:

zThis mainboard contains a special feature called the “Watch Dog Timer” which is used to

detect when the system is unable to handle over-clocking configurations during the POST

stage. Once a problem is detected the system will reset the configurations and reboot the

system after five seconds.

Configuration

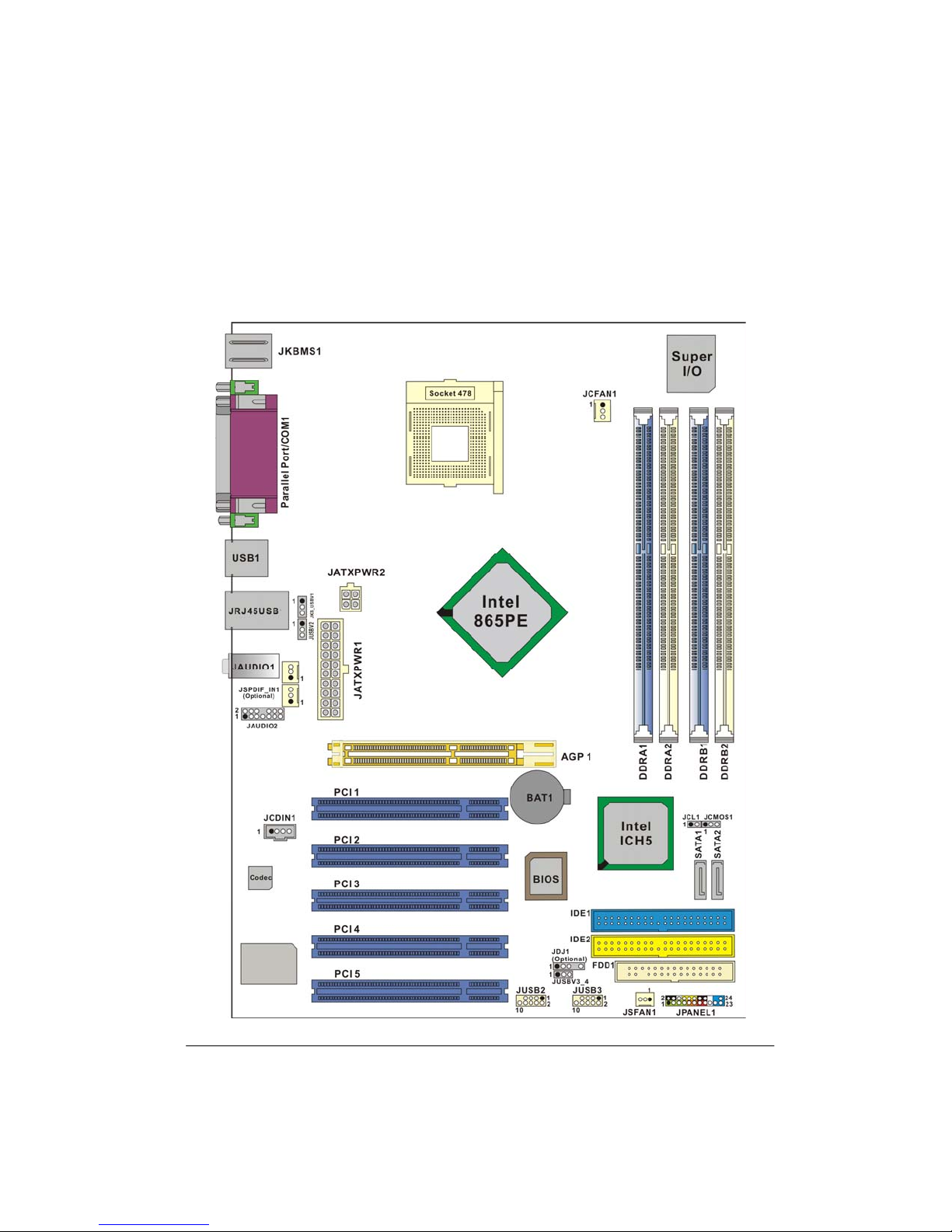

Layout of PX865PEC PRO(2.0)

Hardware Installation

This section will assist you quickly in installing your system hardware. Wear a wrist ground strap

before handling components. Electrostatic discharge may damage your system components.

CPU Processor Installation

This mainboard supports Intel®Pentium®4 processors using a Socket 478. Before building your

system, we suggest you to visit the Intel website and review the processor installation procedures.

http://www.intel.com

CPU Socket 478 Configuration Steps:

Locate the CPU socket on your mainboard and nudge the lever away from the socket. Then lift the

lever to a 90-degree angle.

On the socket, locate the corner that has the pin-1 receptor. This corner will be near the end of the

lever on the socket. Match the dot on the CPU with the pin-1 receptor on the socket and lower the

CPU onto the socket. The bottom of the CPU should be flush with the face of the socket.

Lower the lever until it snaps

back into position. This will lock down the CPU.

Smear thermal greas se the clasps on the

fan to attach it to the socket. Finally, extend the power cable from the fan and insert it onto the

JCFAN1 header.

e on top of the CPU. Lower the CPU fan onto the CPU and u

Pin1 Receptor

Dot

Attention: Before starting the system arting the system.Please check the installation completely before st

Verify that the heatsink is properly installed and make sure the CPU

fan is working. Overheating can damage the CPU and other

sensitive components.
