Alcolizer Druglizer LE5 Manuale utente

LE5 CHARGING

CRADLE ASSEMBLY

INSTRUCTIONS

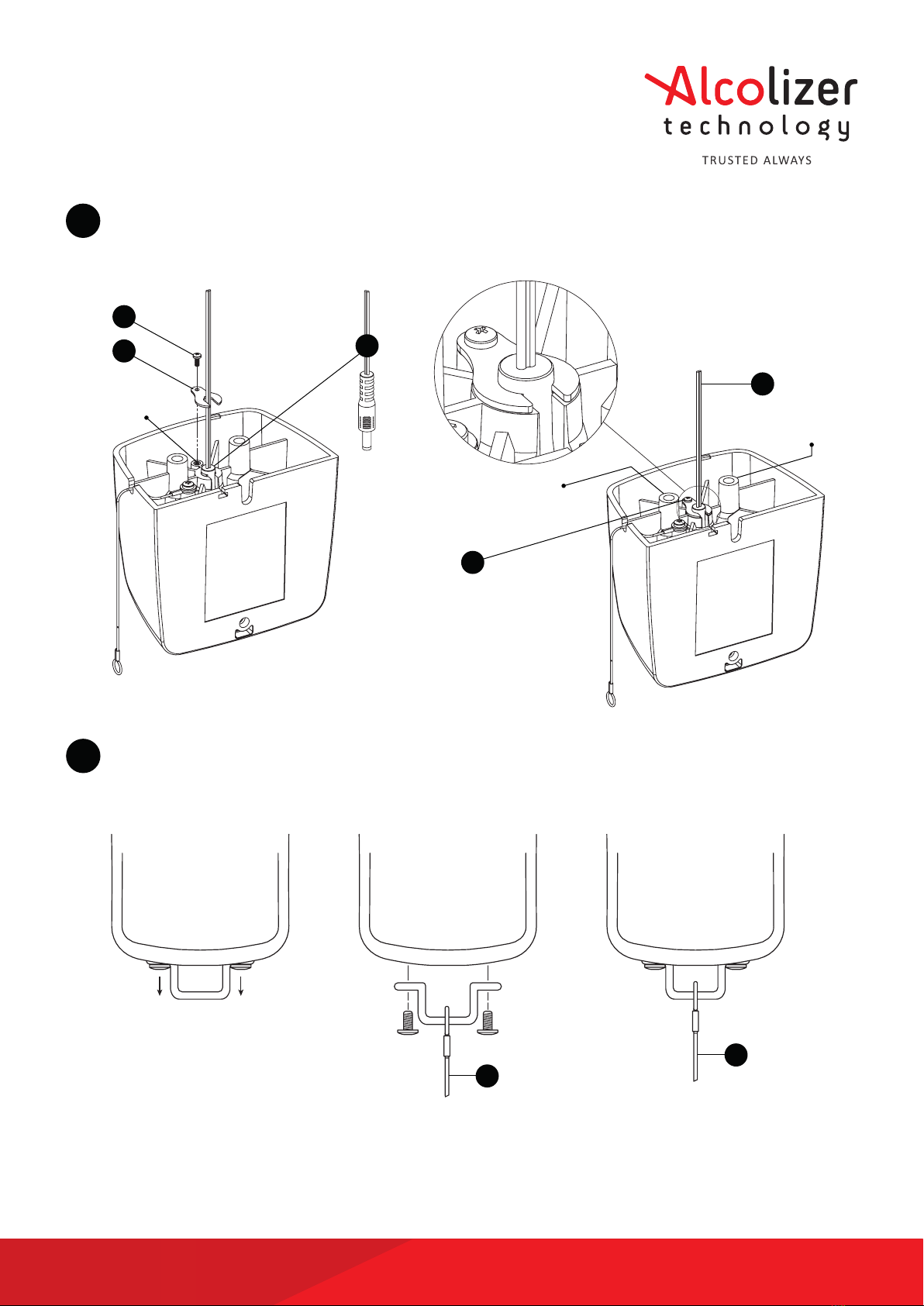

STEP 1 – Secure security cable to cradle

Screw

hole a.

Items within your LE5 Cradle package

Items you will need

AC/DC Charger Power Cord Tools required

Items not to scale

Vercal surface

mounng point

Horizontal surface

mounng points

Phillips screwdriver

RESEARCH \ DESIGN & DEVELOPMENT \ MANUFACTURING

SALES & SERVICE \ CALIBRATION & REPAIR \ TRAINING & EDUCATION

www.alcolizer.com | 1300 789 908

a. b.

d. e. f.

Securely fasten screw a. to bracket

STEP 3 – Secure security cable to LE5 device

NOTE: Remove Silicone Cover. Thread security cable through before securing to device.

3.1 Remove screws and handlebar 3.2 Loop the end of the security

cable onto the the handlebar

3.2 Securely fasten screws to bracket

RESEARCH \ DESIGN & DEVELOPMENT \ MANUFACTURING

SALES & SERVICE \ CALIBRATION & REPAIR \ TRAINING & EDUCATION

Securely fasten

screw d. to bracket

STEP 2 – Secure AC/DC power cord to bracket

www.alcolizer.com | 1300 789 908

Screw

hole b.

NOTE: Item e. must be

located on the boom

slot of the power cable

Horizontal surface

mounng point

Horizontal surface

mounng point

RESEARCH \ DESIGN & DEVELOPMENT \ MANUFACTURING

SALES & SERVICE \ CALIBRATION & REPAIR \ TRAINING & EDUCATION

Contact any of our naonwide oces by calling 1300 789 908 or email sales@alcolizer.com

STEP 4 (Oponal) – Mounng the Cradle

www.alcolizer.com | 1300 789 908

Horizontal surface mounng

Vercal surface mounng

Horizontal surface

mounng points

Horizontal surface

mounng points

Boom view of cradle

Back view of cradle (underneath)

Side view of cradle

Front view of cradle

Vercal mounng

point 1

Vercal

mounng

point 1

Vercal

mounng

point 2

Vercal

mounng

point 2
