Alderon Industries Mini Power Post PRPT-00003 Manuale utente

USER GUIDE

MODEL NUMBER:

PRPT-00003

Mini Power Post™

Pump Connection Center

Contents

Introduction................................................................................................................................................................. 3

Safety Guidelines ................................................................................................................................................... 3

Included with Post .................................................................................................................................................. 4

Features ................................................................................................................................................................. 5

Installation .................................................................................................................................................................. 6

Installing Post..................................................................................................................................................... 6, 7

Wiring..................................................................................................................................................................7, 8

General Operation...................................................................................................................................................... 9

Septic Tank Monitoring........................................................................................................................................... 9

Alarm Auxiliary with Auto Dialer........................................................................................................................... 10

Troubleshooting ........................................................................................................................................................ 11

Specications ........................................................................................................................................................... 12

Warranty Information ................................................................................................................................................ 13

Company Information ............................................................................................................................................... 16

Mini Power Post™ - USER GUIDE

Alderon Industries™ - Leading Edge Control Products | 3

Mini Power Post™ - USER GUIDE

Introduction

Use the Mini Power Post™ to make a professional and safe connection for power and oat switch wiring connections to your

on-site septic system. The Mini Power Post™ eliminates a 4" x 4" wood post and the exposed wires for a safe, clean, and quick

installation. The Mini Power Post™ serves as a junction box which is connected to a remote alarm panel. This system can be

used for a wide variety of applications, including but not limited to: septic tanks, holding tanks, pump chambers, and water tanks.

Visit our website alderonind.com to view the different options and accessories. In addition, there are a variety of oat switches

that can be used with the Mini Power Post™.

Safety Guidelines

Before proceeding with the installation or operation of this product, read all instructions thoroughly, as well as complying with

all federal, state and local codes, regulations, and practices. This product must be installed by qualied personnel familiar with

all applicable local electrical and mechanical codes. Refer to the National Electrical Code (NFPA 70). Failure to properly install

and test this product can result in personal injury or equipment malfunction.

WARNING

1. DISCONNECT POWER when installing or servicing the product. Failure to disconnect all power sources could result in

serious injury or death.

2. NEVER enter a ooded space without proper Personal Protective Equipment (PPE). Always wear dielectric rubber boots

and other applicable protective equipment when water is on the oor and you must service an energized pump, alarm

system, or product.

3. DO NOT enter the water if the water level is higher than that of the protection your PPE offers or if your PPE is not

watertight.

4. DO NOT use this product with or near ammable liquids.

5. DO NOT install this product in locations classied as hazardous or in explosive atmospheres as dened by any applicable

electrical safety code.

4 | Alderon Industries™ - Leading Edge Control Products

Mini Power Post™ - USER GUIDE

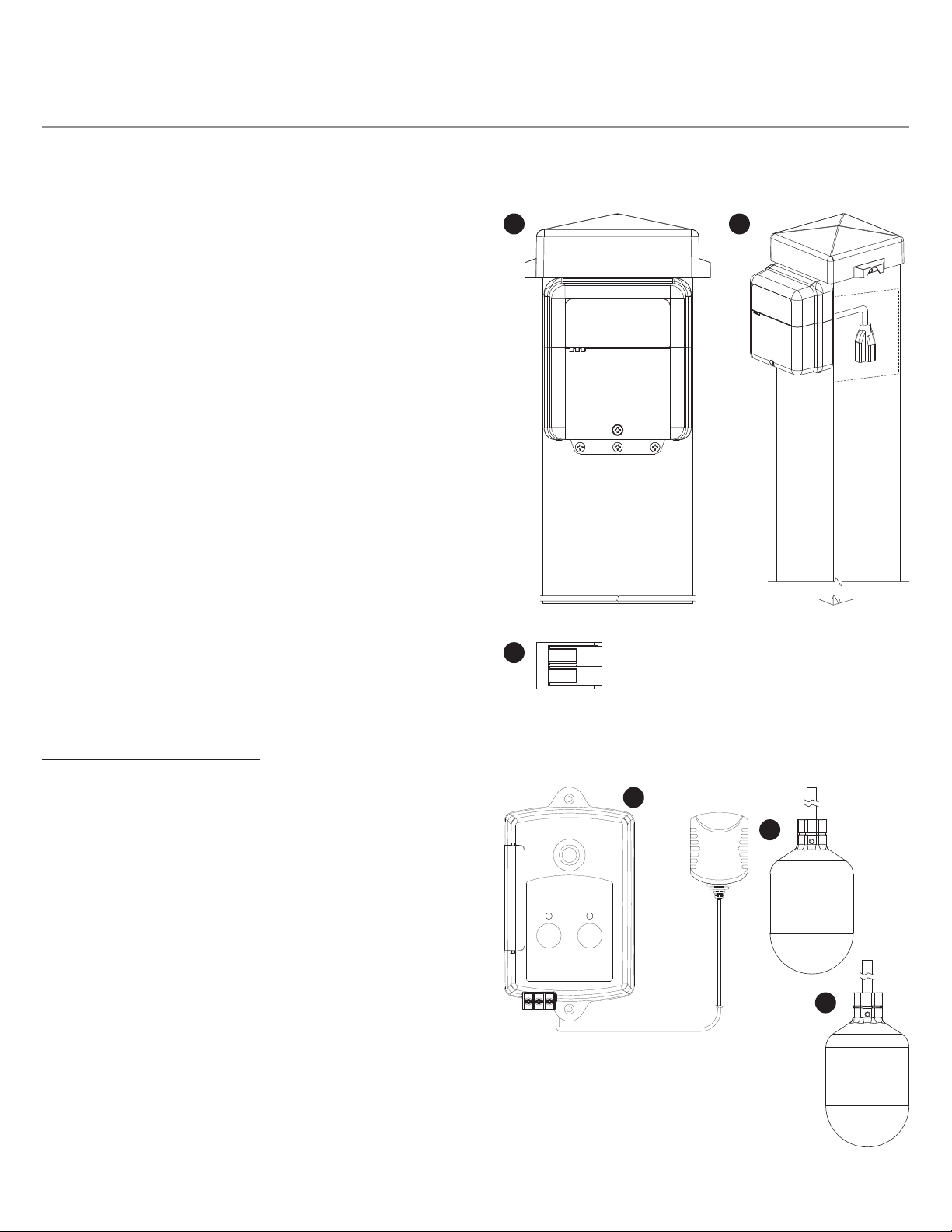

Included with Post

This model includes: (1) Mini Power Post™ with junction box, (1) Pump Power Receptacle (120VAC or 230VAC depending on

part number), and (5) Wago connectors.

ADDITIONAL OPTIONS:

(4) Versa’larm™ Indoor Alarm Panel

The Versa’larm™ indoor alarm has options for monitoring one

to three zones (sensors).

(5) Alarm Float Switch

The alarm oat switch is a typical sensor expected to be used

with the Versa’larm™ indoor alarm for liquid level monitoring.

(6) Pump Float Switch

The pump oat switch is used to control the pump directly. When

actuated the pump oat switch will pass power to the pump. 6

(1) Mini Power Post™

The Mini Power Post™ comes with a 42.5-inch post to install in

the ground. The ventilated post cap, cable grips, and junction

box are all pre-installed to the post.

(2) Pump Power Receptacle (120VAC shown)

A female, 15A, pump power receptacle is pre-installed (120VAC

or 230VAC depending on part number).

(3) Wago Connector

Five Wago connectors are included. Three are pre-installed

on the pump power receptacle. Then there are two additional

Wago connectors for the alarm oat connections.

(120VAC Model Shown, 230VAC Models Available)

Alderon Industries™ - Leading Edge Control Products | 5

Mini Power Post™ - USER GUIDE

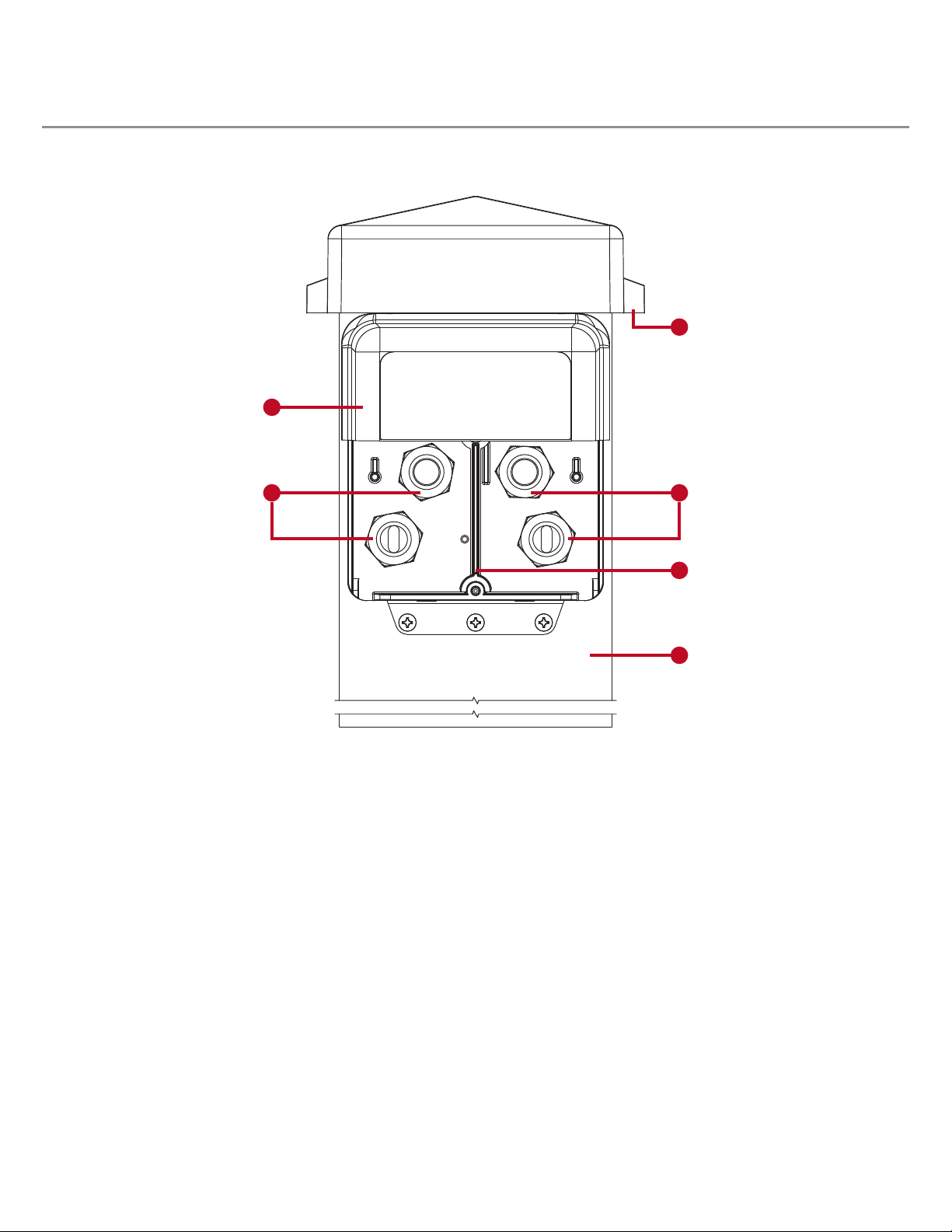

Features

Refer to the illustration below to reference the feature descriptions provided.

(1) Vented Post Cap - Allows airow to prevent the build up of gases

and condensation inside the post.

(2) Junction Box Enclosure - Pre-installed on post for easy wiring

and installation.

(3) Cable grips - Pre-installed, making it easy to run wire in and out

of the enclosure.

(4) Partition - Separates high voltage from low voltage.

(5) Pump Power Receptacle (not shown) - A female, 15A, pump

power receptacle is pre-installed (120VAC or 230VAC depending on

part number).

(6) Post - Provides wire routing access to the pre-installed junction

box and protection from water intrusion.

(7) QR Code (not shown) - Scan code on bottom enclosure cover

which directs you to alderonind.com where additional information can

be found for the Mini Power Post™.

6 | Alderon Industries™ - Leading Edge Control Products

Mini Power Post™ - USER GUIDE

21 4 53

Installing Post

1 2 3 4 5

Installation

STEP 1: INSTALL POST

Determine the location for the post in the ground near a tank.

Drill access holes for the oat switch cables using the customer

supplied conduit/ttings or Alderon’s riser connection kit (refer

to step 2 below).

Note: Seal all conduits to prevent moisture and gases from

entering the post per local codes.

DISCONNECT ALL POWER SOURCES WHEN INSTALLING OR SERVICING THIS PRODUCT. FAILURE TO

TURN OFF ALL POWER SOURCES COULD RESULT IN SERIOUS INJURY OR DEATH.

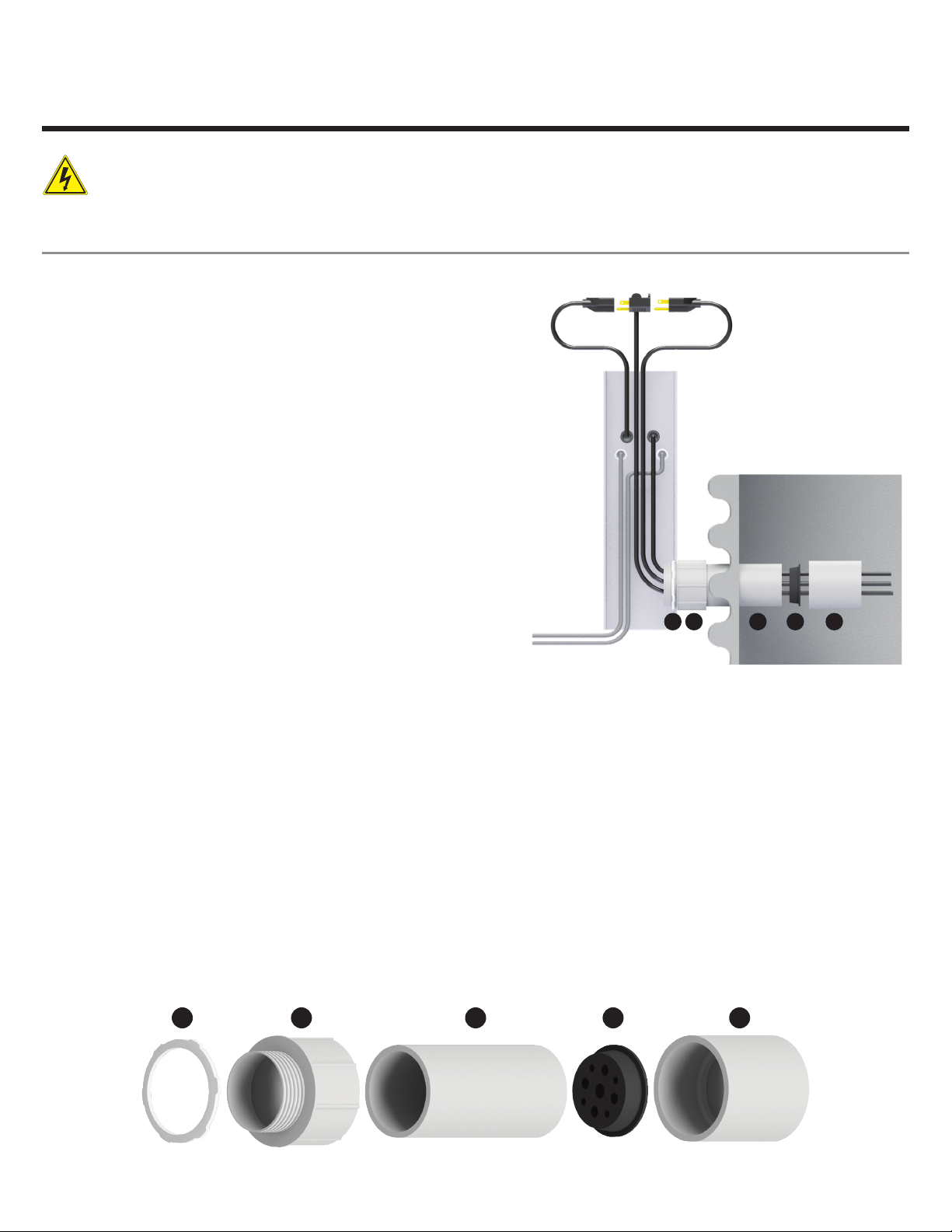

STEP 2: INSTALLING AN ALDERON RISER CONNECTION KIT

1. Determine location for access hole on the post. Drill access hole for the correct size terminal adapter (2.0" or 2.5" depending

on model / #2). Insert terminal adapter into access hole. On the inside of the post, use the lock nut (#1) to secure the terminal

adapter in place (use PVC cement to ensure proper bonding between the terminal adapter and post per local codes).

2. Insert PVC pipe (conduit / #3) into terminal adapter using appropriate cement for bonding.

3. Determine location on the riser to insert the conduit (2.0" or 2.5" depending on model). If your riser does not have a

pre-drilled hole for the conduit, you must drill a hole in the riser to accept the conduit. Insert conduit through the riser hole,

which is now attached with the post. Seal conduit to riser hole with silicone or per local codes.

4. Run the pump power, pump oat switch, and alarm oat switch cables through the PVC coupler (#5). Then continue through

the conduit and to the appropriate height inside the post for wiring. Take the 3-hole rubber grommet (#4) which has slits

next to the holes and insert cables, then insert the rubber grommet into the conduit.

5. Place the PVC coupler over the end of the conduit.

Alderon Industries™ - Leading Edge Control Products | 7

Mini Power Post™ - USER GUIDE

Wiring

STEP 1: WIRING CONNECTIONS

1) Route alarm oat switch cable through Cable Grip A and

rmly tighten grip.

2) Route the underground feeder (UF) cable from the

indoor alarm panel through Cable Grip B and rmly

tighten grip.

3) Route incoming pump power UF cable through Cable

Grip D and rmly tighten grip.

4) Connect wires in Cable Grip D to the pre-installed Wago

connectors on wires coming out of Cable Grip C as shown

in the diagram.

5) Connect wires coming in Cable Grip A to wires coming in

Cable Grip B as shown in the diagram.

Note: NEVER leave ground wire exposed, use provided Wago

connectors for wire termination.

Installing Post (continued)

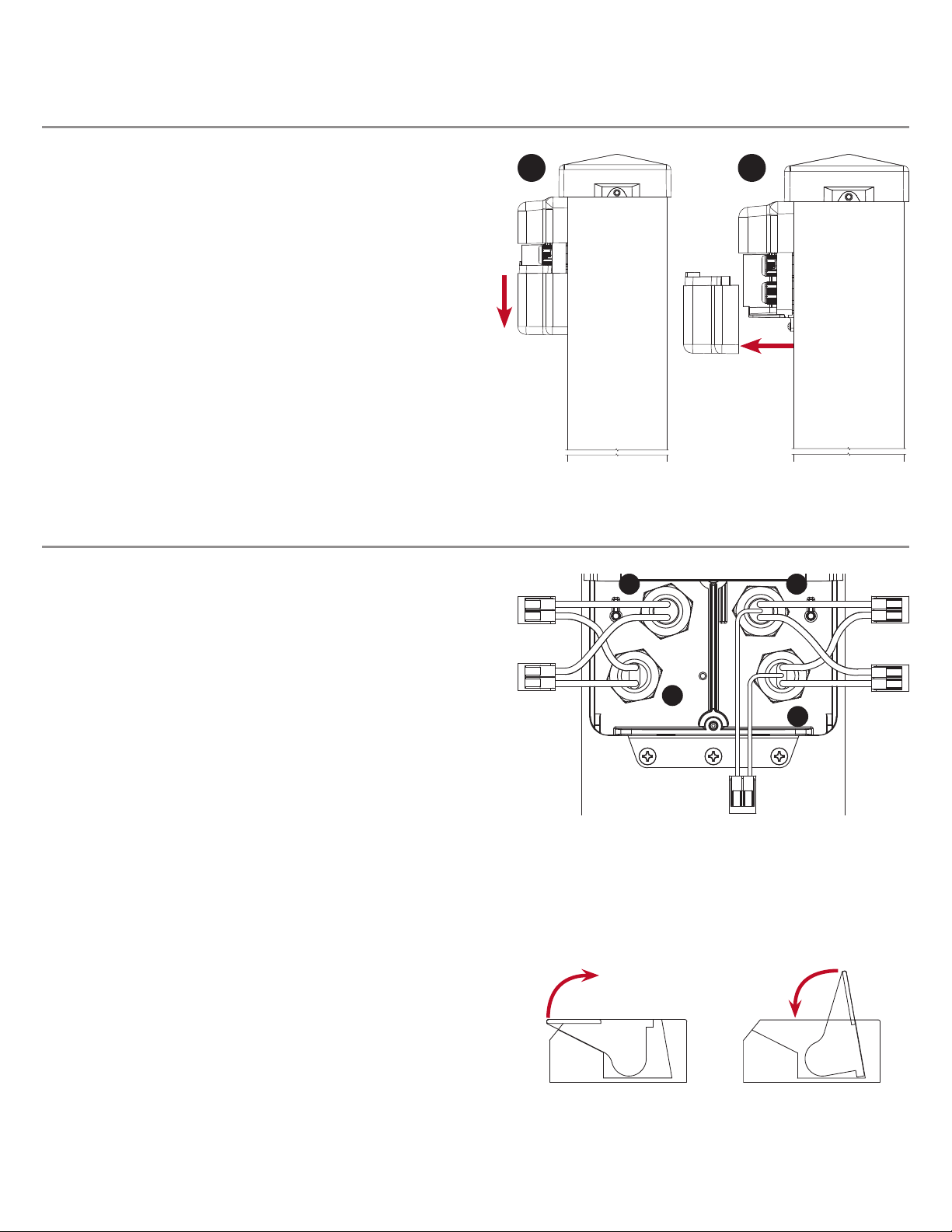

STEP 2: INSTALLING WIRE INTO WAGO CONNECTOR

1) Lift tab(s) upward.

2) Insert wire(s) into slot.

3) Press tab(s) downward.

4) Make sure wire(s) are secured.

STEP 3: REMOVE BOTTOM COVER

The bottom enclosure cover is fastened by a single screw on

the bottom of the enclosure. Remove the screw and slide the

cover directly downward (3A) and pull directly away from the

enclosure (3B).

3A 3B

WAGO

GREEN

BLACK

WHITE

BLACK

WHITE

GROUND

WAGO WAGO

WAGO

TO OPEN

WAGO TO CLOSE

WAGO

8 | Alderon Industries™ - Leading Edge Control Products

Mini Power Post™ - USER GUIDE

Wiring (continued)

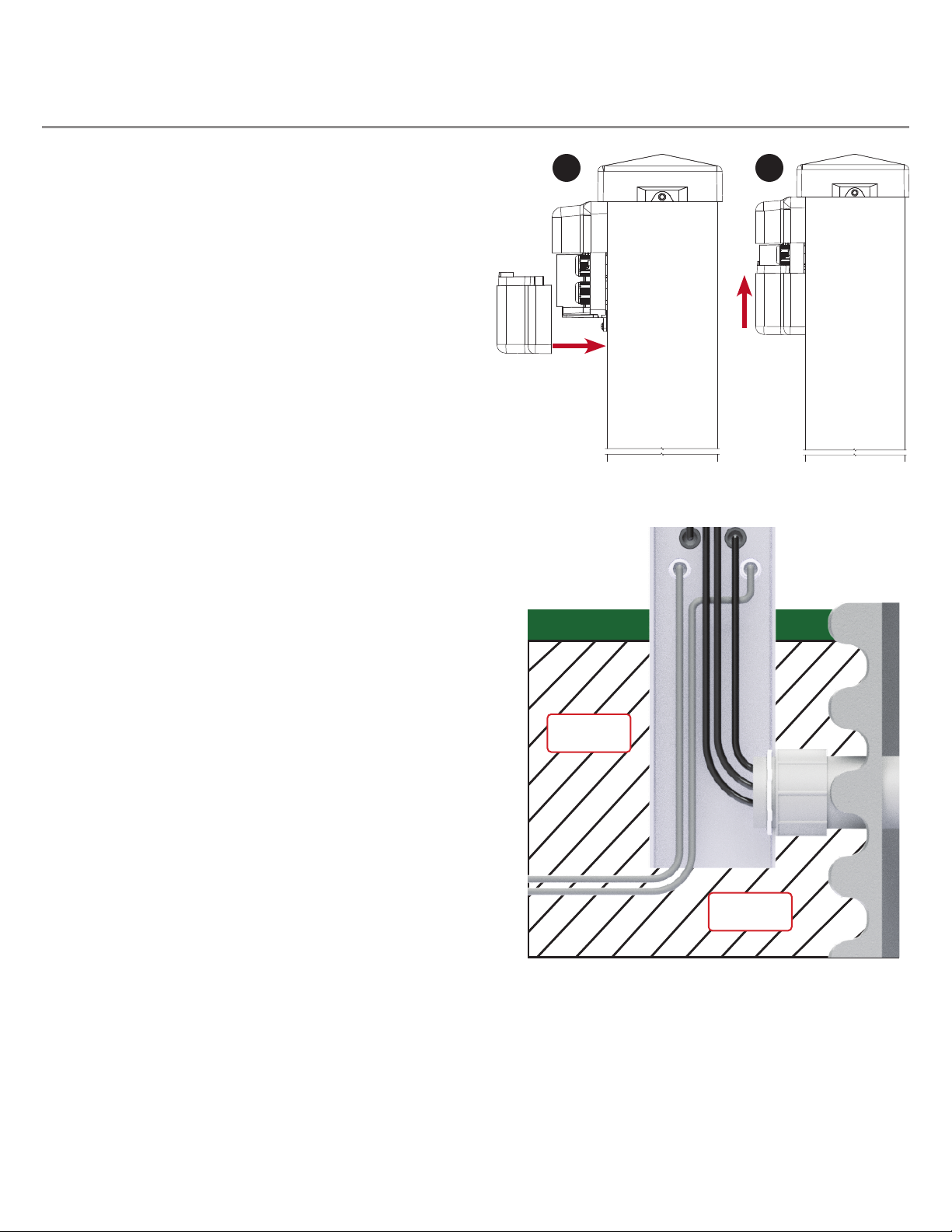

STEP 4: BACKFILL

Once all steps of the installation and wiring are complete, take

the dirt/soil removed and backll the area you dug for the post

and riser.

Backll

Area

Backll

Area

STEP 3: INSTALL BOTTOM COVER

Place the bottom of enclosure back on, lining up with the

grooves (3A). Then slide the bottom piece upward (3B) until it

meets the top piece and screw hole is lined up with the boss.

Replace the screw at the bottom of the enclosure.

3B3A

Alderon Industries™ - Leading Edge Control Products | 9

Mini Power Post™ - USER GUIDE

Testing the Wire Connections

Make sure the installation process is completed and there is power to the product.

STEP 1: PUMP FLOAT SWITCH

Activate the pump oat switch and the pump should turn on, when the pump oat switch deactivates the pump should turn off.

STEP 2: ALARM FLOAT SWITCH

Activate the alarm oat switch, the alarm indicator of the indoor alarm should illuminate and the buzzer should annunciate.

When the alarm oat switch is deactivated, the indoor alarm should reset for the next alarm cycle.

STEP 3: ADDITIONAL TESTING

Make sure to follow all individual instructions for the indoor alarm, pump oat switch, alarm oat switch, or accessories for any

additional testing.

10 | Alderon Industries™ - Leading Edge Control Products

Mini Power Post™ - USER GUIDE

General Operation

The Mini Power Post™ serves as a junction box for easy wire access. The junction box allows for easy connection of pump

power, pump oat switch, and high level alarm oat switch which is connected to the remote alarm panel. The junction box can

be used for a wide variety of applications. The applications are not limited to what is listed in this user guide. Follow all individual

instructions for oat switches and accessories used with the Mini Power Post™.

The following applications can be found in this user guide: Septic Tank Monitoring and Alarm Auxiliary with Auto Dialer.

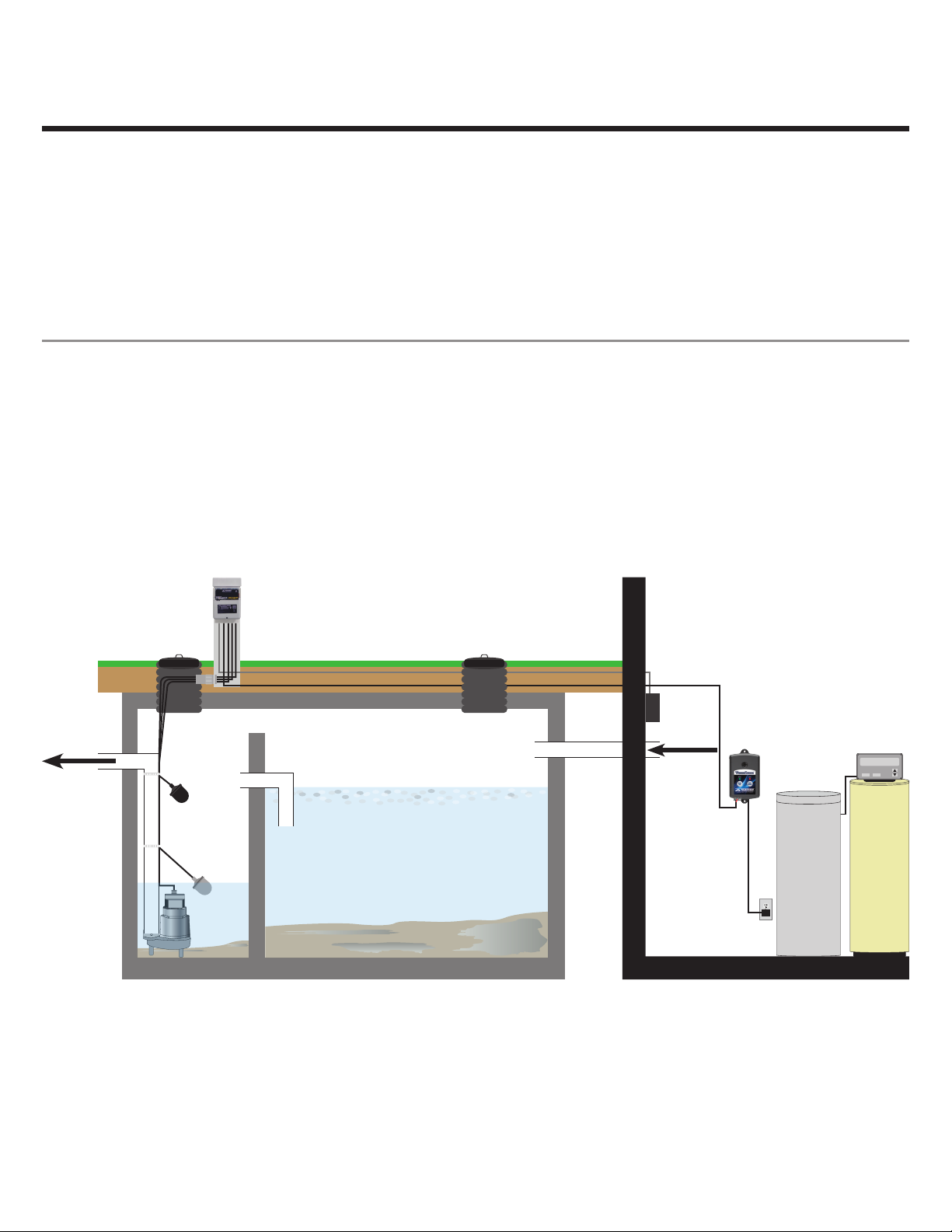

Septic Tank Monitoring

The diagram below displays the typical setup for septic tank monitoring. The setup includes: Mini Power Post™, Versa’larm™

indoor alarm, alarm oat switch, and pump oat switch. The Mini Power Post™ is installed into the ground and attached to

the septic tank riser. The pump oat switch is only wired to the pump power line. When the pump oat switch is actuated, the

pump will turn on and turn back off when the pump oat switch is deactivated. The alarm oat switch is wired through the post

and extends to the remote alarm in the house. When the alarm oat switch is actuated, the Versa’larm™ alarm indicator will

illuminate and the buzzer will annunciate. The alarm condition will stay on until the alarm oat switch is deactivated. If the alarm

silence pushbutton of the Versa’larm™ is pressed during an alarm condition, then the alarm indicator will remain on and the

buzzer will silence. The indoor alarm will reset when the alarm oat switch connected to the Mini Power Post™ deactivates. The

Versa’larm™ in the house provides a local audible and visual alarm indication in a convenient indoor location.

5:05

PM 71%

REGENERATION

MENU ENTER

Septic to Drain Field

House to Septic

Mini

Power

Post™

Alarm

Float

Pump

Switch

Versa’larm™

Indoor Alarm
