Alfawise U10 Manuale utente

U10 3D Printer Quick Start Guide

Catalogue

Foreword........................................................................................................................................................... 3

1. Machine parameters................................................................................................................................... 3

2. Flow Diagram for Quick Start Guide........................................................................................................ 3

3. Important Notice and Attentions................................................................................................................. 4

4. Remove Packaging...................................................................................................................................... 5

4.1 Remove packaging................................................................................................................................. 5

4.2 Check the accessories ........................................................................................................................... 5

4.3 Machine placement .............................................................................................................................. 5

5. Installation of U10 ..................................................................................................................................... 5

5.1 Step1 Preparation prior to install.......................................................................................................... 5

5.2 Step2 Install printer............................................................................................................................... 6

5.3 Step3 Wire connection.......................................................................................................................... 8

Remark: .....................................................................................................................................................11

6. User Manual............................................................................................................................................... 12

6.1 Step1 Leveling the X Axis..................................................................................................................... 14

6.2 Step2 Hotbed Leveling. ....................................................................................................................... 14

6.3 Step3 Loading Filament....................................................................................................................... 15

6.4 Step4 Preheat Filament....................................................................................................................... 15

6.5 Step5 Feeding Filament....................................................................................................................... 15

6.6 Step6 Printing...................................................................................................................................... 17

6.7 Step7 Removing Filament. .................................................................................................................. 18

7. Operation: The Four Steps of 3D Printing.............................................................................................. 18

7.1 Step1 Create or find a 3D file .............................................................................................................. 18

7.2 Step2 Slice the file for 3D printing ...................................................................................................... 19

7.3 Step3 Send the file to the printer. (Off-line Printing or Online Printing) ............................................ 26

7.4 Step4 Print........................................................................................................................................... 28

8. Frequently Asked Questions and Solutions........................................................................................... 29

8.1 Step-by-Step Troubleshooting............................................................................................................. 29

8.2 Digital problems: Slicer settings.......................................................................................................... 29

8.3 Mechanical problem: Leveling the build plate.................................................................................... 30

8.4 Mechanical problem: Filament is not coming out of the Nozzle........................................................ 30

Alfawise U10 Specs

U10 Packing List ........................................................................................................................... 2

....................................................................................................................................... 1

...................

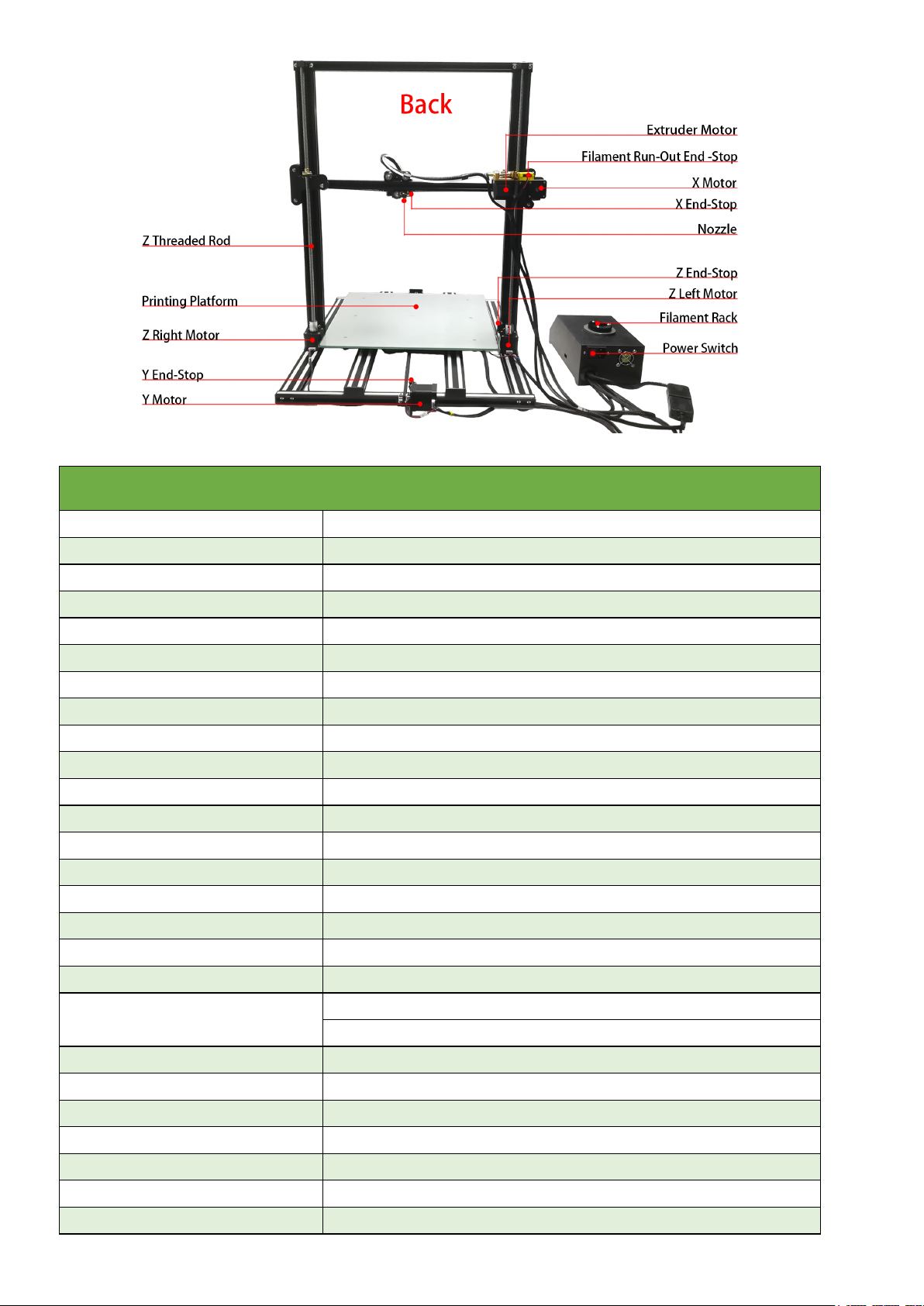

Alfawise U10 Specs

Brand Alfawise

Model U10

Extruder Qty Single

Machine Size 582*697*755(X*Y*Z)

Build Volume 400x400x500mm

Package Size 775X640X315mm

Machine Weight 14.8kg

Gross Weight 18.5kg

Open Filament System Optimized for PLA, ABS, Nylon, TPU,etc

Filament Diameter 1.75mm

XYZ Accuracy 0.012, 0.012, 0.004mm

Printing Precision 0.05-0.3mm

Nozzle Swappable nozzle (0.4mm by default)

Feeder type Geared feeder

Print Speed 10 ~ 150mm/s

Power Supply 110/220V, 360W/30A/12V

Max Temperature of Nozzle 260 °C

Max Temperature of Hotbed 60°C

Recommend Temp. ABS: Nozzle:235 °C Hot Bed:100 °C

PLA: Nozzle:215 °C Hot Bed:50 °C

Operating Software CURA, Repetier-Host, Simplify 3D

Software supporting PROE, Solid-works, UG, 3d Max, Rhino 3D design software, etc.

Supported File Types STL, OBJ, DAE, AMF

Print File Types GCODE

System Compatibility WIN / XP / MAC / VISTA / LINUX

Language English

File Transfer SD card (off-line) / USB(on line)

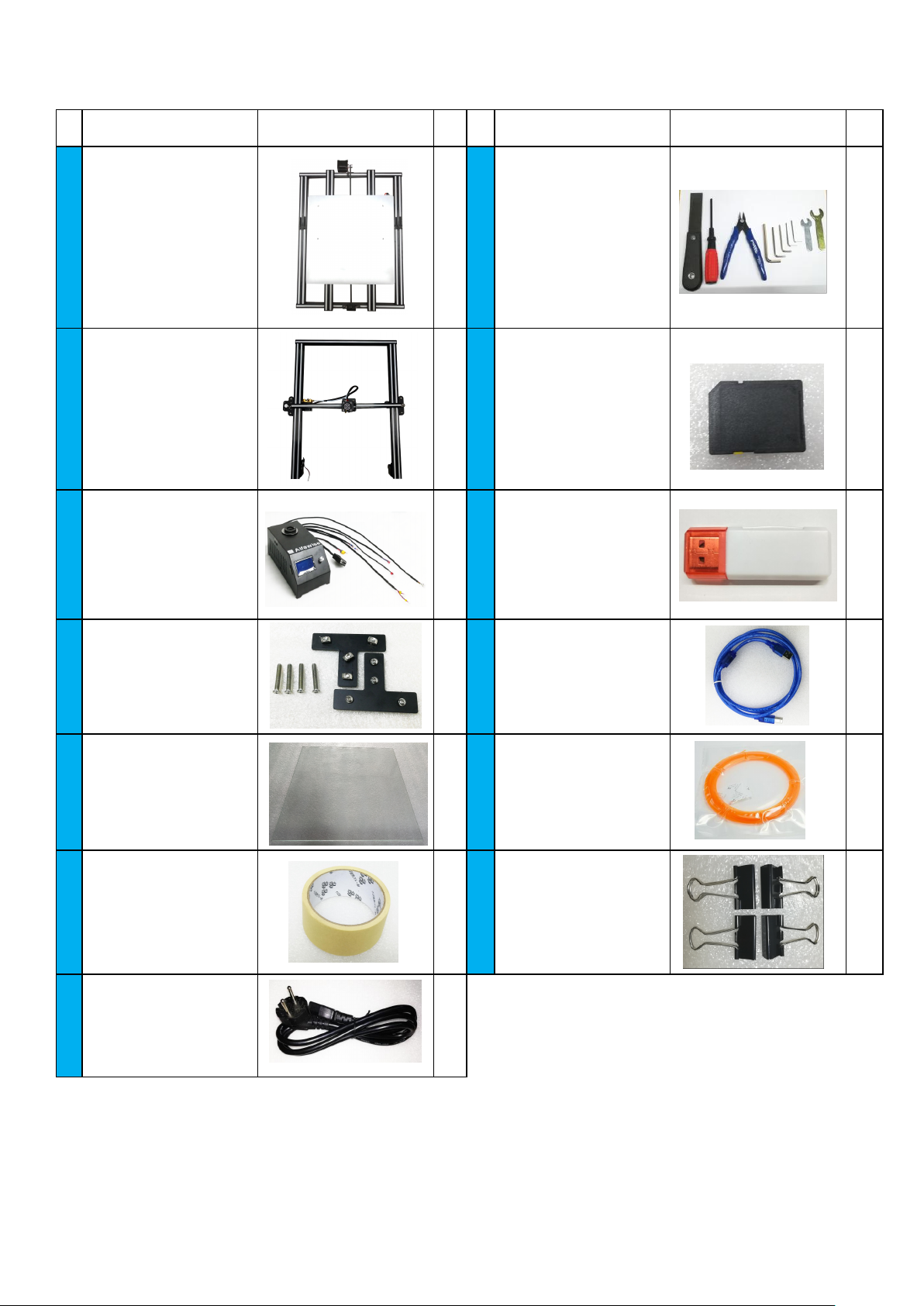

U10 Pcking List

No. Items Name Picture Qty

NO. Items Name Picture Qty

①Bottom Part 1 ⑧

Shovel *1

Screw Driver *1

Cutting Nipper *1

M5 Hex W rench*1

M3 Hex W rench*1

M2.5 Hex W rench*1

M2 Hex W rench*1

M1.5 Hex W rench*1

8mm Hex W rench *1

14mm Hex W rench*1

②Frame Part 1 ⑨8G SD Card 1

③Control Box 1 ⑩Card Reader 1

④

M5*25 Philips Cap Screw*4

T Nut*8

M4*8 Button Head Hex

Screw*8

T- Connector*2

22 ⑪USB Cable 1

⑤405*405 4mm Glass Platform 1⑫10m Filament 1

⑥Masking Tape 1 ⑬Clip 4

⑦Power Line 1

3D Printer Quick Start Guide

Foreword

Thanks in advance for choosing our 3D Printer! With the Quick Use Guide (here in after as “Guide”), you

could enjoy Test and Printing step by step. Meanwhile, you will also learn the structure principle and its special

FDM printing technology deeply, and then you will get great progress on not only the theoretical knowledge but

also the manipulative ability.

To make sure players good effect of the printer and ensure the worry-free buying, smooth and enjoyable

using, we spare no effect to consider the question and difficulty you will meet with from when you order the

printer and make this detail guide to show you the exact settle way. We write this “Guide” elaborately in great

detail and we will always accompany with your using on 3D printer. The 3D printer would come to you by

assembled 3D printer; you can use it out of box. Please read the “Guide” carefully before you use the printer and

then utility our printer in strict accordance with the “Guide” to avoid the any defective or invalid use caused by

improper operation. So please keep the Guide for your easy reference.

Special Note:

With our objective of constant update for our printer, we would not make future notice to you if some

specifications and models updated. And we apologize for the inconvenience that will lead to you.

1. Machine parameters

Printing

technology FDM Nozzle diameter 0.4mm

Print size 400*400*500mm Printing precision 0.1-0.3mm

Filament PLA /ABS

/HIPS/WOOD Printing speed 40-100mm/s

(proposal)

Filament diameter ￠1.75mm Working condition 10-40℃

Number of

extruder 1 Humidity 20-50％

2. Flow Diagram for Quick Start Guide

Matters and Attentions Preparatory Work Pre installation Checklist Assembly and

Calibration Printing Test Function Instruction

3.Important Notice and Attentions

For better using experience, please read the following detail instruction carefully before you use the

printer:

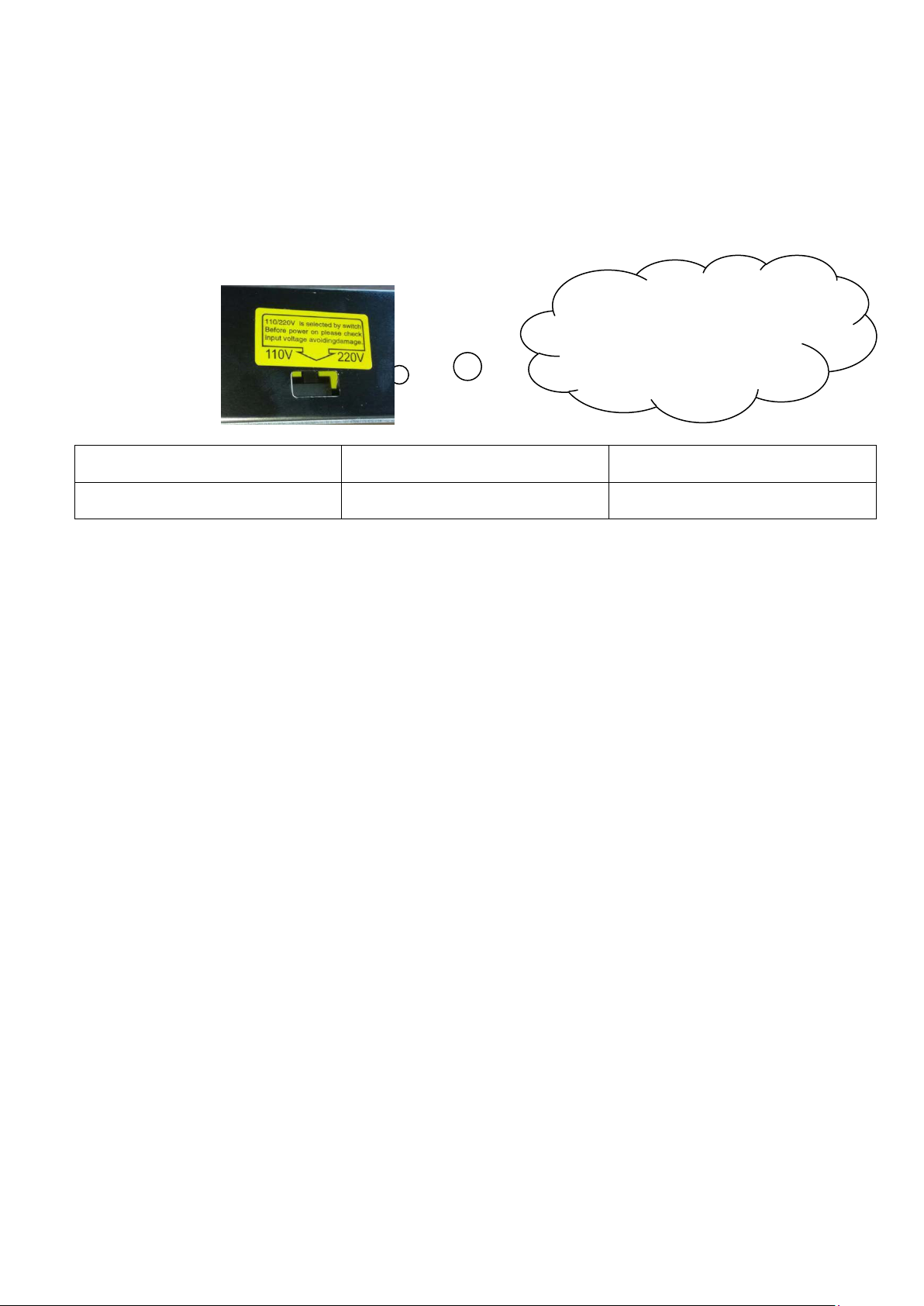

3.1 Please ensure that you move to the right tap position for input voltage (110V or 220V) of the power

supply (as shown in the picture).

Input Voltage 100~160V 200~260V

Position choice 110V 220V

3.2 Place the machine on a flat table and make sure it will not shake, otherwise it will affect printing.

3.3 Before and after printing model, some supplies will fall out around nozzle due to gravity; you can use

tweezers to remove redundant material.

3.4 When printing PLA filament, just use the application's default parameters; when print ABS material,

you need to change the print to the corresponding temperature and heat bed temperature.

3.5 When reloading filament, you need to extrude the filament thread a certain distance material and then

pull out it. After inserting the new filament thread, push in the new thread a long distance and

squeeze out all original materials in extruder. Start printing when it is feed smoothly.

3.6 After several times printing, the wrinkles paper posted on the platform may be broken, you can just

remove broken wrinkles paper and stick a new one to get better printing effect.

3.7 When there is filament blocking in the nozzle during printing, you can cut filament thread outside the

extruder and use the small screwdriver to clear the feed channel, squeeze out the supplies in the

pipes and nozzle.

3.8 After several times printing, the initial height of the platform may be changed and affect printing. If the

initial distance between Nozzle and platform is too large, it will cause insufficient adhesion of the

model, easy to cock up, or even fall off; the distance is too small and the nozzle cannot discharge

properly, easily lead to blocking. At this point you can re-calibrate the height of platform and get the

best printing effect. Unless absolutely necessary, do not adjust.

3.9 After printing large models, it will be more convenient to remove the model from the platform if you

heat the heated bed to 50 degrees before taking out the model. Do not use violence and make the

heating bed platform broken. The temperature of heating bed can be set by entering "Menu" ->

"Control" -> "Temperature"-> "Bed" and press the button to start heating.

3.10 Coat some glue or crepe paper tape on the platform before printing big model to increase adhesion

between the model and platform, preventing curling edges.

Warning: Must switch it to

the right voltage in the

condition of power off the

equipment.

4.Remove Packaging

4.1 Remove packaging

(1) Open the carton, remove EPE protection and take out the machine from carton.

(2) Take out the accessories box.

(3) Remove all fixed tape, fixture and attachments before power up the machine; otherwise it may cause

damage to the machine.

4.2 Check the accessories

(1) Power cable: connect the machine and power.

(2) USB data cable: connect 3D printer and the computer.

(3) Allen Key suit: for printer fix and maintenance.

(4) SD card, card reader: Using for offline print. Document and software are In the SD card,please copy all the

files to computer for future reference ( in case the data lost). When SD card insert into the machine's SD card

slot, make sure that the yellow copper pin side is upward.

(5) High temperature wrinkles stickers: stick on the printing platform and make the model better attached to the

printing bed.

(6) Shovel: strip down models from the print platform.

(7) Slotted screwdriver: for printer fix and maintenance.

4.3 Machine placement

(1) Connect the power cord to the interface behind the machine.

(2) Put machine on the flat desktop to assure the machine will not shake. If the desktop is not smooth enough,

you can pad some paperat the bottom of the machine to ensure the machine does not shake, otherwise it will

affect printing.

Pay attention to the safety:

Please do not reach into the machine's inner space.

5. Installation of U10

This manual will offer your assemble instruction including wire connection, operation instruction, and support

resources.

Unlike Acrylic kit required to be built piece by piece for over 10 hours to complete, you will find it done to be

ready for first print in minutes!

5.1 Step1 Preparation prior to install

①Get all parts including tools and screws out of box, and check all if any damage exists, especially the

wires and their connectors.

②Switch PSU to the correct position according to the voltage in your country. E.g: 110V for US, 220V for

UK. (Fig.01)

③Check heating bed if it is wobbly.Adjust the tension of heating bed by

Allen key and wrench (obtained in tool pack) to fix this if so.

Fig.01

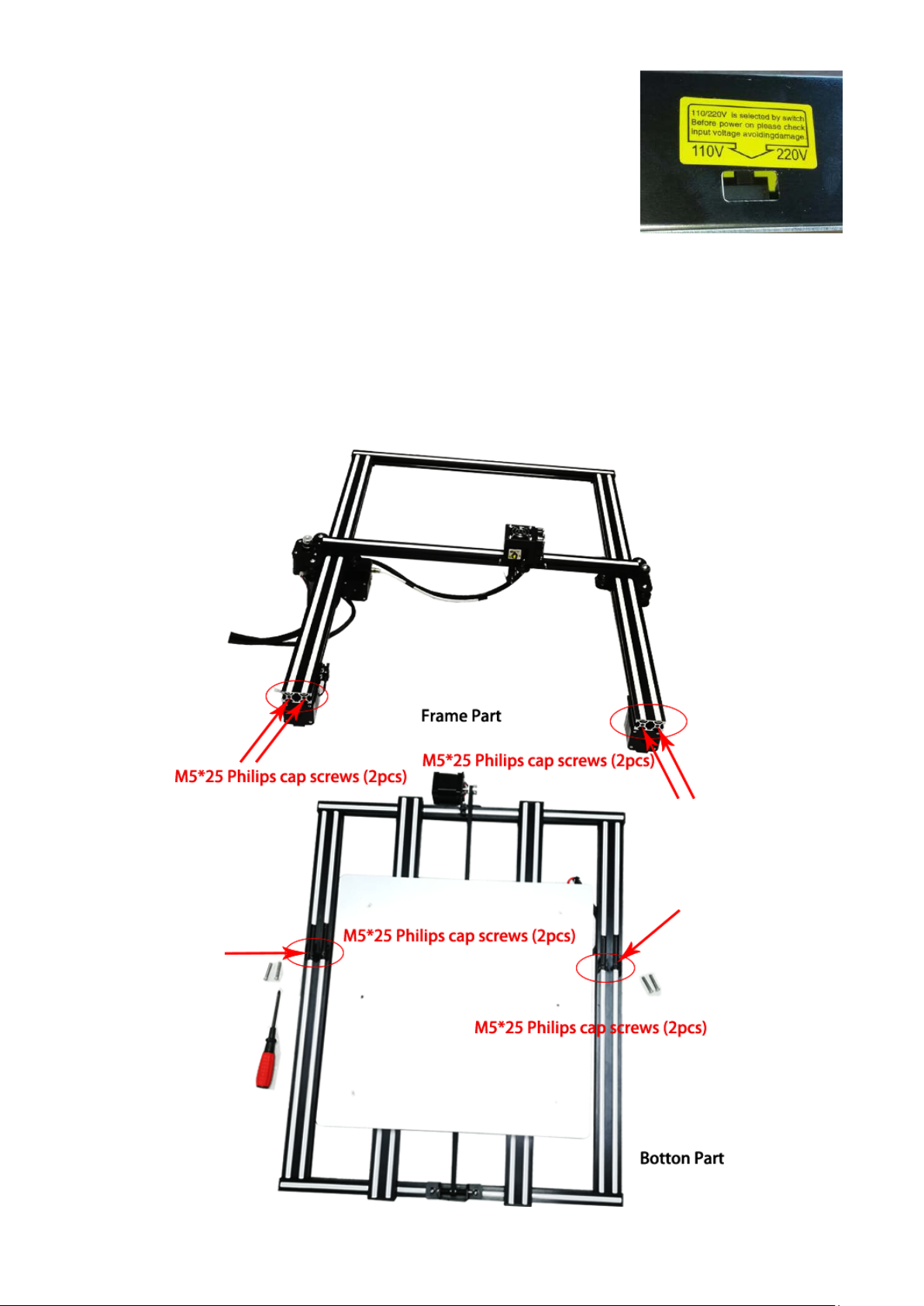

5.2 Step2 Install printer

Items needed: Bottom Part, Frame Part, 4 pcs of M5*30 Philips cap screw, 8 pcs of T Nut,

Insert screws from bottom of “Bottom Part” to reach holes of “Frame Part”.

Please refer to Fig.02.

Fig.02

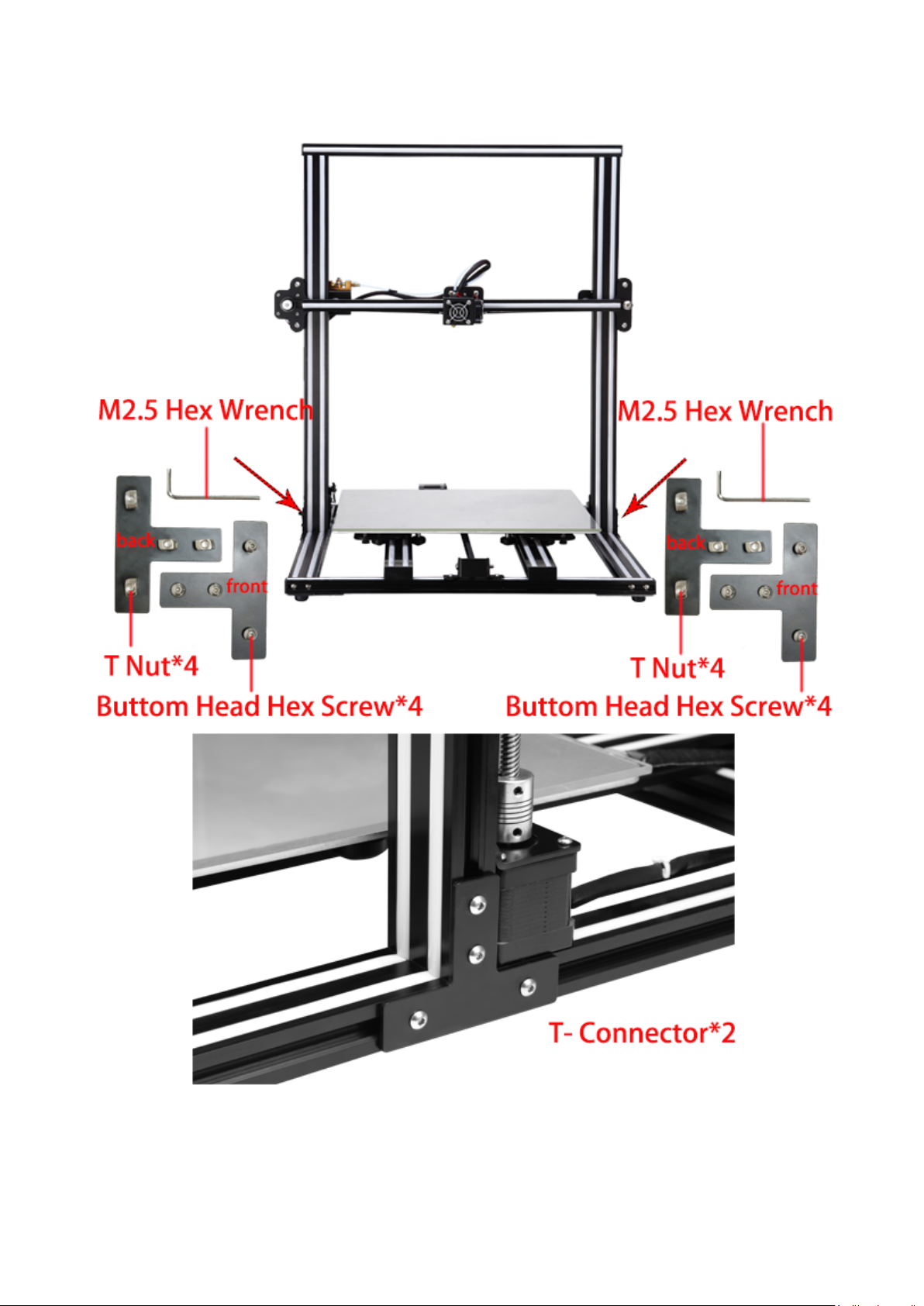

4mm Glass Platform, 8 pcs of Button Head Hex Screw and 2 pcs of T-Connector.

Insert screws from bottom of “Bottom Part” to reach holes of “Frame Part”.

Please refer to Fig.03.

Fig.03

Then, put the 4mm glass platform on the top of the heatbed.

And Fig.04 is what is to be end of this step.

Fig.04 (Build Frame)

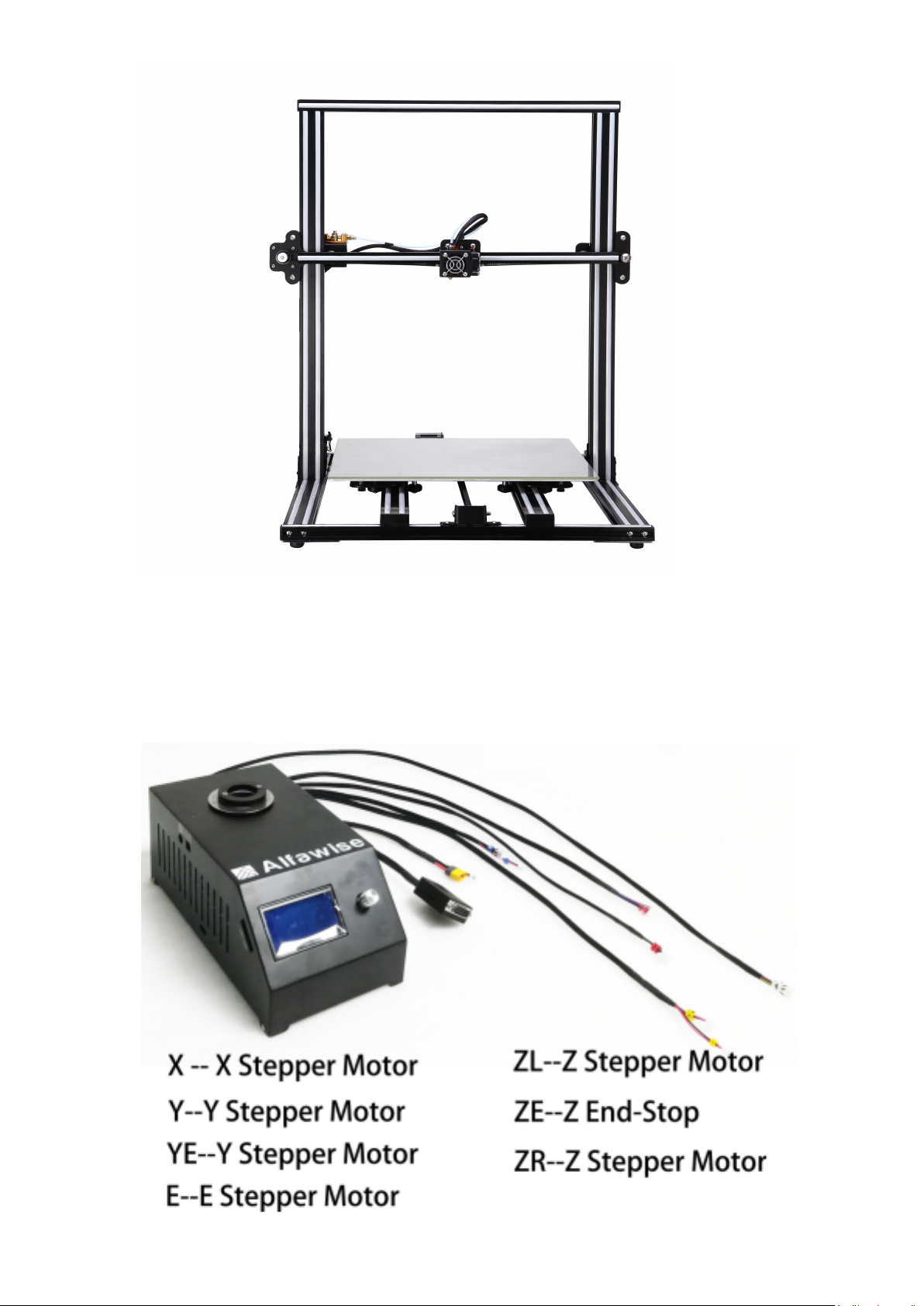

5.3 Step3 Wire connection

Items needed: Control box and Build Frame.

Make “Control Box” circuits and “Build Frame” (Fig.04) circuits connected well. Please note that there are labels

of each wire, please refer to Fig.05, and connector at end of each wire.

Fig.05
